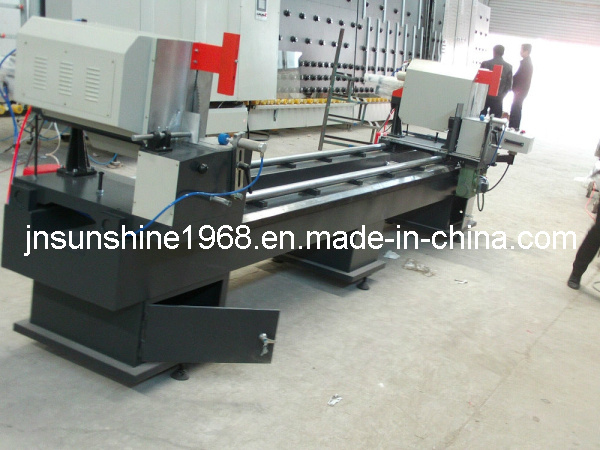

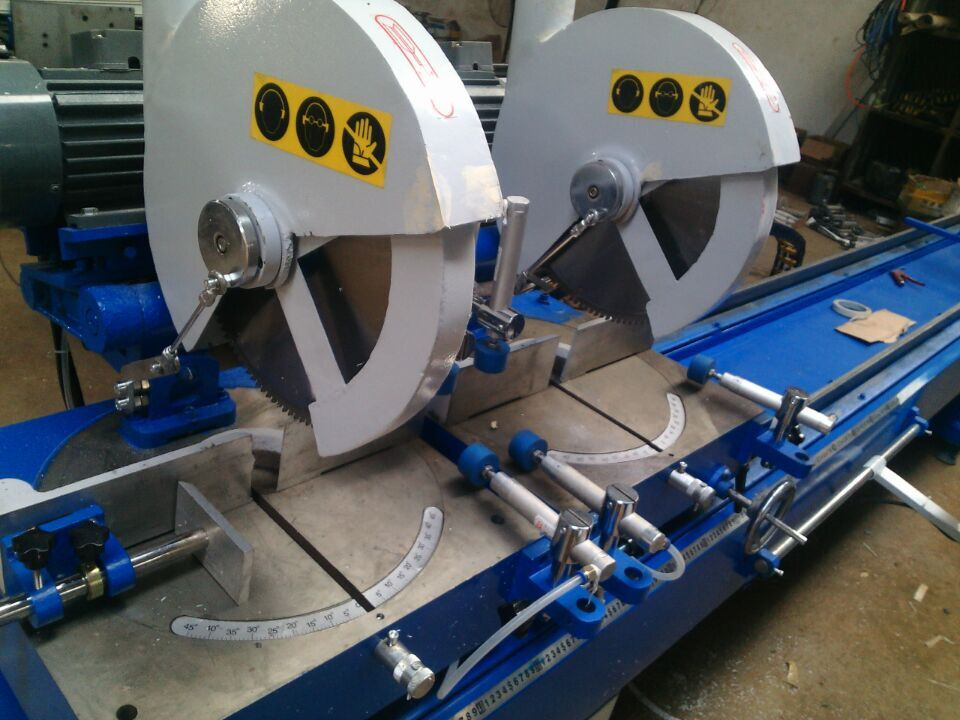

Double Miter Cutting Saw for PVC and Aluminum Profiles
| Price: |
US $ 1200-1800/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
SJ06-3700 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
for Cutting PVC and Aluminum Profile |
| Planeness Of Cutting Surface: |
≤0.1mm |
| Repeat Locating Length: |
≤0.3mm |
Product Description
SJ06-3700 Double Miter Cutting Saw Machine for PVC and Aluminum Profiles
Introduction
SJ06-3700 Double mitre cutting saw is the necessary equipment for the processing of aluminum window and door.
The machine is 1)special for aluminum and PVC profile at 45` ~ 90`. 2)Carbide saw blade give accurate processing and high endurance3)The two heads can work independently simultaneously4)Cutting off the required length and two end angles is available by one time processing.
Technique Parameter
Saw cutting(w*h): 120*200mm
Main motor power: 3.55kw
Main motor rotation speed: 2840r/min
Saw blade dimension: Ø 450*Ø 30
Saw blade swing angle: 90`~45`
Working voltage: 380V50Hz
Over all dimension: 4600*1300*1550mm
Weight: 1300kg
Max/Min cutting length: 3700-450mm
Cutting profile surface roughness: Ra12.5μ M
Planeness of cutting surface: ≤ 0.1mm
Repeat locating length: ≤ 0.3mm
Guarantee & Aftersales service
1. Guarantee the complete machine for one year, except the consumable parts.
2.24hour technical support by email or calling.
3. User-friendly English manual for machine using and maintaining.
