Prod Model: |
HC-73215 |
Condition: |
New |
Spindle Speed: |
2800rpm |
Weight: |
1500kg |
Warranty: |
in 1 Year |
Usage: |
Drilling Holes |
Voltage: |
380V, 3phase, 50Hz |
After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
Utility: |
Wood Panel Furniture |
Motor Type: |
Servo Motor |
Power(W): |
15kw |
Certification: |
FDA |
Product Description
Double Rows Power Multi Boring Machine
Wood Drilling Machine is used to drill holes on solid wood panel, chipboard, ABS board, PVC board and other boards which have the similar structure and hardness. It's a necessary tool for furniture production and decoration industry.

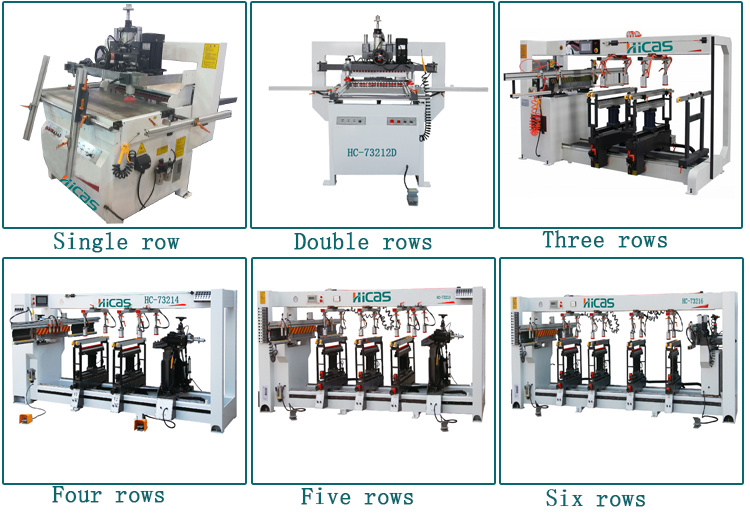

Model | HC-73214 (Four rows) | HC-73215 (Five rows) | HC-73216 (Six rows) |
Number of spindles | 21*4 | 21*5 | 21*6 |
Max. Diameter of holes | 35mm | 35mm | 35mm |
Max. Boring depth | 60mm | 60mm | 60mm |
Rotating speed of boring spindles | 2800r/min | 2800r/min | 2800r/min |
Motor | 1.5kw*4 | 1.5kw*5 | 1.5kw*6 |
Machinery dimension | 3600*2500*1600mm | 4000*2500*1600mm | 4500*2500*1600mm |
Working pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
Packaging dimension | 3700*1300*1800mm | 3600*1200*1600mm | 4600*1300*1800mm |
Weight | 2000KG | 2200KG | 2500kg |
Model | HC-73213A (Three rows) | HC-73212D (Double rows) | HC-73211B (Single row) |
Number of spindles | 21*3 | 21*2 | 21*1 |
Max. Diameter of holes | 35mm | 35mm | 35mm |
Max. Boring depth | 60mm | 60mm | 60mm |
Rotating speed of boring spindles | 2800r/min | 2800r/min | 2800r/min |
Motor | 1.5KW*3 | 1.5KW*4 | 1.5KW*5 |
Working pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
Machinery dimension | 2600*2500*1600mm | 2000*1200*1500mm | 1400*1200*1500mm |
Packaging dimension | 2700*1300*1800mm | 2100*1300*1700mm | 1500*1300*1700mm |
Weight | 1300KG | 450KG | 400kg |

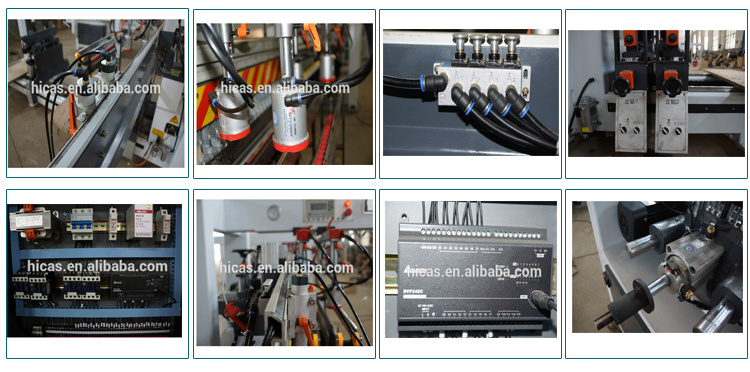

Detailed images:End products:Packaging:
Qingdao High-Class Service Import & Export Co., Ltd. is located in the beautiful coastal Qingdao city, which is also famous for woodworking machinery. We are professional in providing Chinese leading woodworking machinery products, whole-factory solutions and excellent services.
Now, we are engaged in offering woodworking machinery, metalworking machinery, packing machinery,WPC machinery and corresponding spares parts and raw materials. Our company has own professional technical team to make sure the perfect import and export service system run well.
With years of experience, we have established long and strong business relationships with more than
10 professional distributors all over the world. We are the sole buying agent of customers from Russia, the Middle East, South Africa and Brazil. We always welcome partners to join us and develop the business together.
Under the guideline of "High Class Service", we would like to continue providing the best service for
customers who need machinery. In accordance with the principle of mutual benefit, we are going to have a pleasant corporation.
FAQ:
1. Can we visit your factory?
We do welcome our new and regular friends come here to have a visit. Besides, we would send you
our relative information to promote a face-to-face meeting if you'd like to.
2. What's your warranty of your products?
Our machines have best quality and its warranty is 1 year.
3. How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.
4. What's your payment term?
30% advance payment and the balance payment should be paid before delivery but after inspection.
