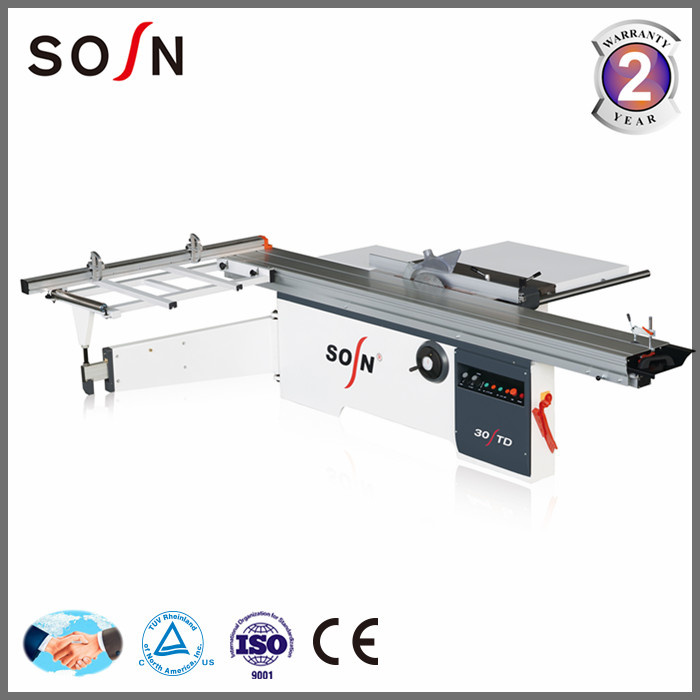

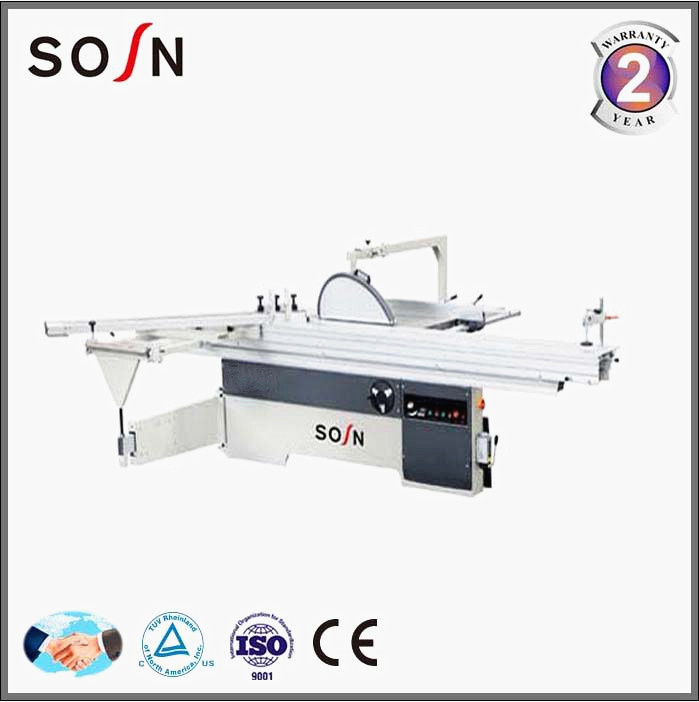

Double Saw Woodworking Tool Panel Saw (MJ6132TD)
Price: |
US $ 1000-5000/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Prod Model: |
MJ6132TD |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Saw Type: |
Sliding Table Panel Saw |
Voltage: |
220V,380V |
Warranty: |
2 Years |
Motor Power: |
5.5+1.1kw |
Tilting Degree: |
45 Degree |
Brand: |
Sosn |
Spindle Diameter: |
30+20mm |
Saw Blade Diameter: |
250-350mm |
Optional Cutting Length: |
1600,2200,2800,3200,3800,4200mm |
Weight: |
700kg |
Type: |
Table Panel Saw |
Layout: |
Vertical |
Controlling Mode: |
Hydraulic Semi-automatic |
Automatic Grade: |
Semiautomatic |
Precision: |
High Precision |
Certification: |
ISO |
Product Description
Main parameters Main technical parameter for MJ6132TD |
Dimension of sliding table | 3200x375mm |
Gross cut capacity | 3200mm |
Width of cut between saw blade and rip fence | 1250mm |
Saw blade diameter | 300mm(250-300mm) |
Height of cut (300mm) | 80mm |
Speed of main saw spindle | 4500/6000rpm |
Main spindle diameter | 30mm |
Tilting saw blade | 45° |
Main motor | 5.5kw |
Scoring saw blade diameter | 120mm |
Speed of scoring saw blade | 8000rpm |
Scoring saw diameter | 20mm |
Scoring motor | 0.75kw |
weight | 950kg |
Overall dimension | 3200x3150x900mm |

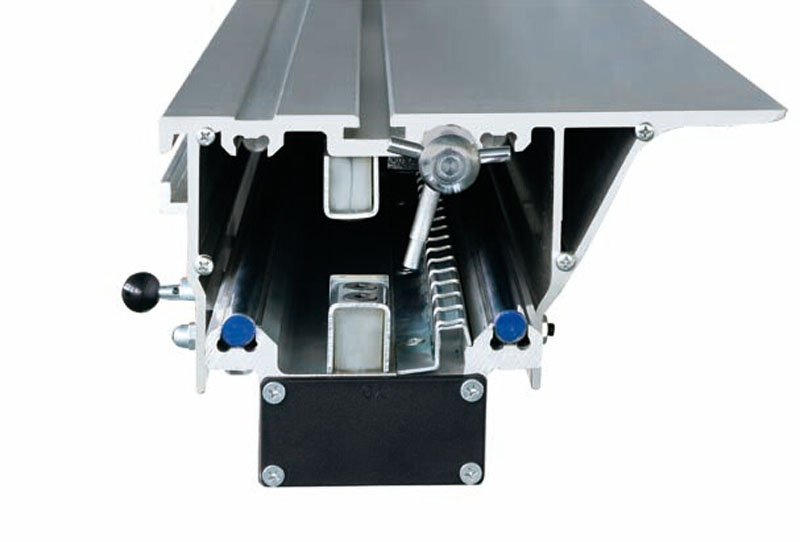

Steel bar sliding table,with inner lock, more rigidity and strength,smooth movement. |
For saw spindle, every axis has been tested for perfect balance. |
Perfect inner structure, to make sure the machine work precision, easy-operation. |
Static spray paint technology for machine, never paint off, |
thick metal sheet,high stiffness of the frame prevents the emergence of vibration during operation in severe cutting conditions. |
Fine micro adjustment,stable and precision. |
Auto power off saw blade cover added the working safety |
5.5kw +1.1kw big power motor, national standard, cooper wire, aluminum shells |
European quality button |
Aluminum extruded fence with large stopper |
Big ruler with high quality |
Big saw blade tilt degree is digital show, very convenient for operator, also with high precision. This favor is only for re-seller,(it is optional) |

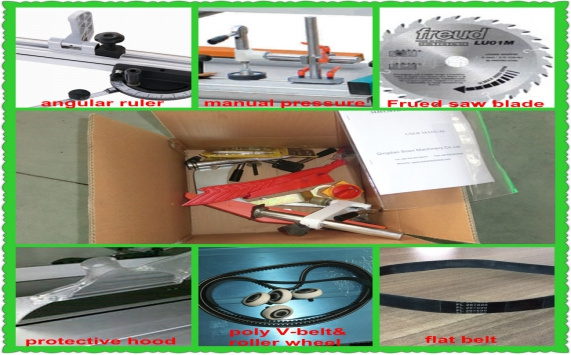

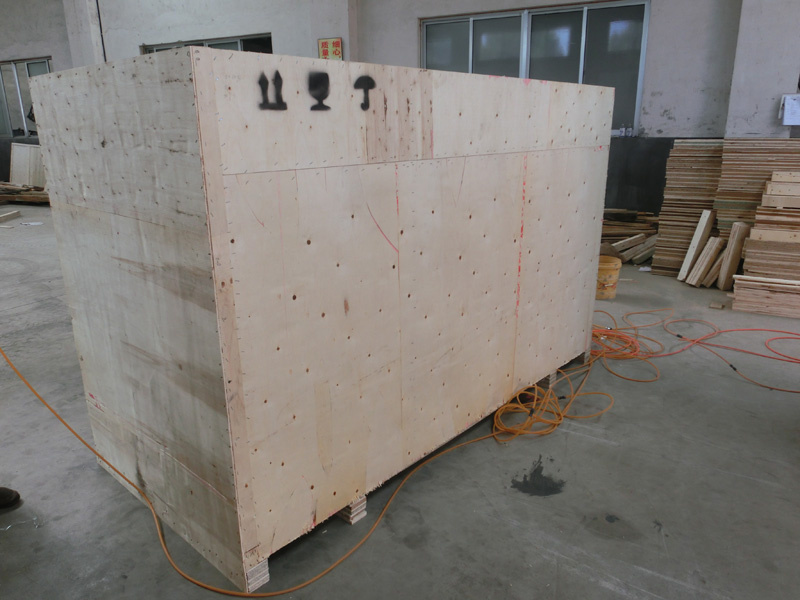

Here is the work video : www.youtube.com/watch?v=WW9BI5jLIAk&t=44sMachine with wooden case Spare parts of machine Welcome to SOSN for check the production
NOTE1.Payment term:30% TT as deposit,70%TT after readiness of the machine 2.Package:standard wooden case for export 3.Delivery time:20 days after getting deposit 4.Warranty:24 month for whole machine.If there any question , all SOSN group will be pleasure to be in your service .

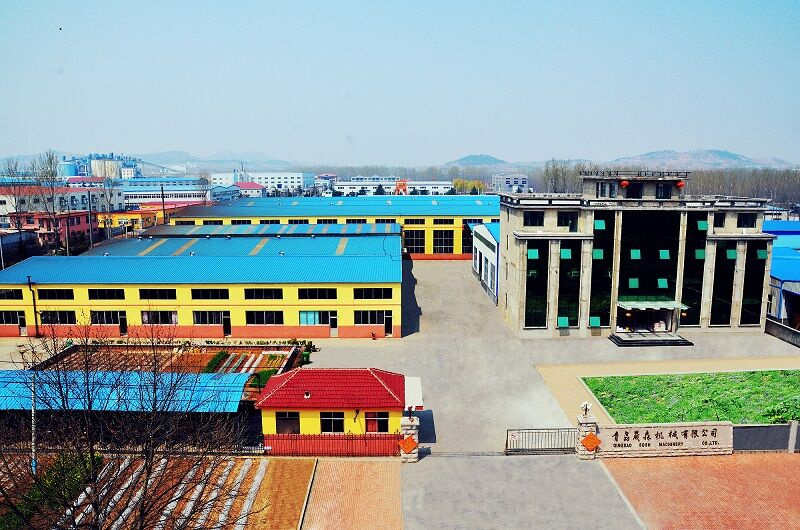

Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
