| Prod Model: |
KET-DTC |
| Color And Size: |
Customized |
| Power: |
Hydraulic; Electric |
| Material: |
Steel |
| Application: |
Dismounting |
| Working Pressure: |
70MPa |
| Cylinder Stroke: |
250-500mm |
| Cylinder Capacity: |
50-200t |
| Motor Power: |
0.75kw |
| Voltage: |
380V |
| OEM: |
Support |
Product Description
Product Description

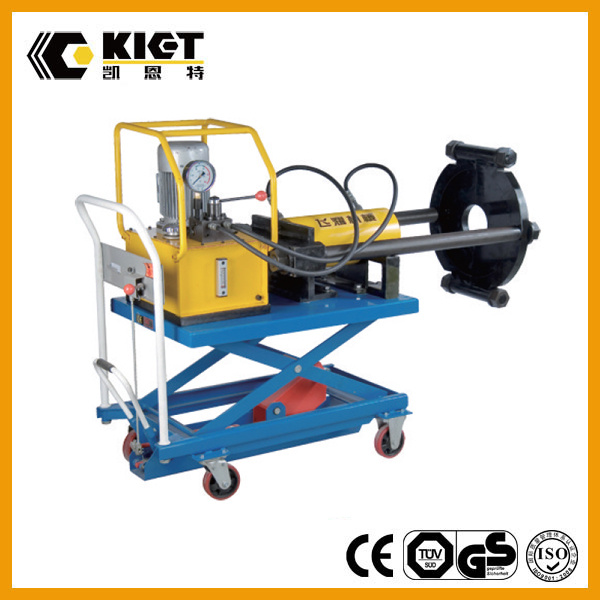

Vehicle-mounted hydraulic cam dismounting puller is widely used to dismantle the cam in the coal mill and steam turbine, the coupling , gear, bearing in the induced draft fan and motors. Equipped with special double speed electric hydraulic pump, very safe and reliable.
Product Features:
1. High strength alloy steel jaws with high pulling force.
2. Vehicle-mounted type, move conveniently.
Parts of the parameter
| Model | Working Pressure (MPa) | Quantity of Jaws | Cylinder Capacity (T) | Working Stroke (mm) | Spread (min.-max.) (mm) | Reach (min.-max.) (mm) | Centering Range (mm) | Motor Power (KW) | Voltage (V) |
| KET-PH-50T | 70 | 3 | 50 | 300 | 100-1250 | 120-300 | 545-1100 | 0.75 | 380 |
| KET-PH-100T | 70 | 2 | 100 | 250 | 380-1220 | 860-1060 | 310-915 | 2.2 | 380 |
| KET-PH-200T | 70 | 2 | 200 | 330 | 203-1334 | 1100-1219 | 800 |
Company Information
Jiangsu Canete Machinery Manufacturing Co.,Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Packaging & Shipping:
We provide Aluminum Alloy Lightweight Box , which can perfectly protect , the shipping can be by express parcel, by air or by sea shipping.
