| Prod Model: |
TSY-PH90A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Material: |
Diamond |
| Customized: |
Customized |
| Condition: |
New |
| Quality: |
Great |
| Automation: |
Automatic |
| Layout: |
Horizontal |
| Control: |
Artificial |
| Precision: |
High Precision |
| Application: |
Stone Industry |
| Certification: |
CE |
Product Description

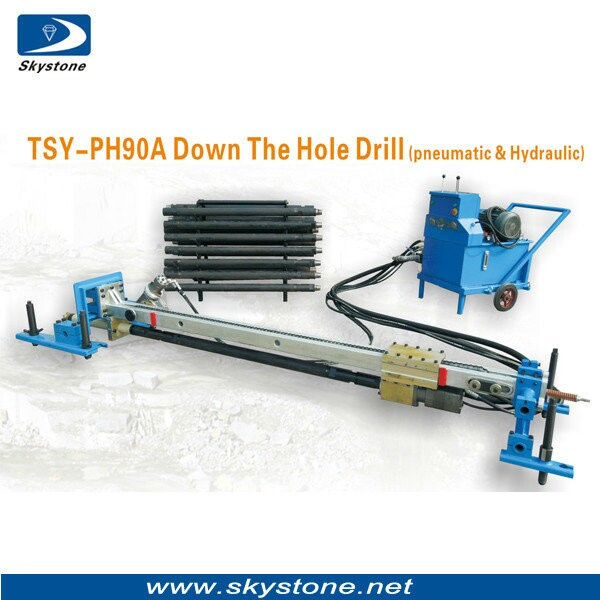

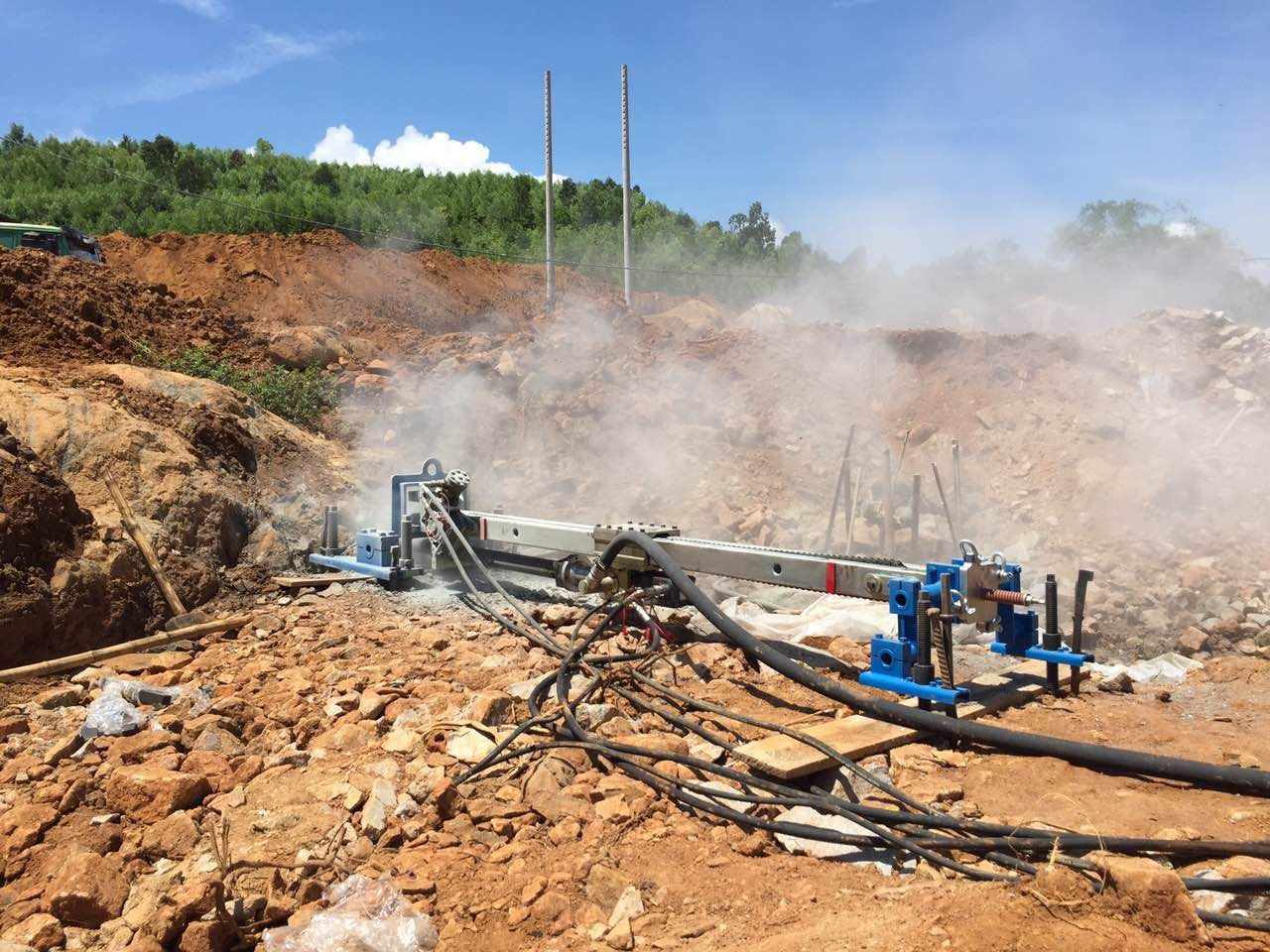

The TSY-PH90A Drill which controlled jointly by pneumatic and hydraulic, is a new model drill we developed specially used for stone quarry, and especially suitable for the mine that lack of compressed air.
The characters of the drill:
1. Light weight, easy installation and transportation;
2. The high quality pneumatic components ensure lower energy & air consumption and high efficiency;
3. The good hoisting ability;
4. The particular mechanical tube devices for screwing and discharging to reduce the labor intensity;
5. The Particular design for guiding drilling.
The total weight of machine is 1000kg(including 20 drill pipes and 1 aiguille).
| Technical Parameter |
| Power voltage | 380V/50HZ |
| Power of rotation motor | 5.5KW |
| Maximum pressure of ratating | 12.5Mpa |
| Maximum pressure of forward & withdraw | 8Mpa |
| Diameter of the drill hole | 90mm-100mm |
| Depth of the drill hole | ≥30m |
| Drill speed | 5-10m/h |
| Single Feeding distance | 1500mm |
| Hoisting ability | 1300kg |
| Air consumption | 6-10m 3/min |
| Working air pressure | 0.5-0.8Mpa |
| Weight of main drill frame | 150kg
|
