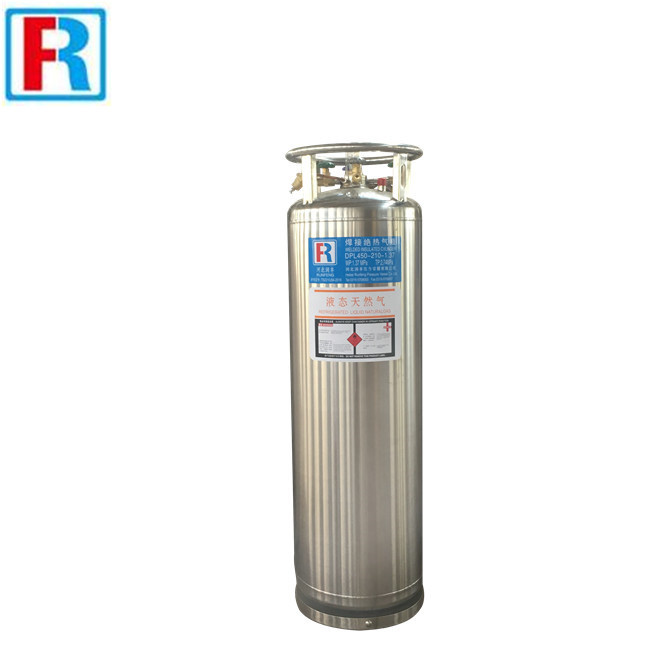

Dpl Cryogenic Cylinder for Sales
| Price: |
US $ 1350/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
DPL-210L |
| Pressure Level: |
Medium Pressure (',1.6MPa≤p<10.0MPa) |
| Condition: |
New |
| Storage Medium: |
LNG, Lo2,Lar, Lco2,Ln2 |
Product Description
Our focus is cryogenic pressure vessels, dewar, LNG station equipments, industry gas equipment system products, Runfeng is famous for design and manufacture of highly engineered cryogenic equipment used from the beginning to the end in the liquid gas supply chain.our domestic operation located in china and our products are most welcomed in Russia and Southeast Asia countries. Our tagline is become your lifelong trustworthy and honest supplier.

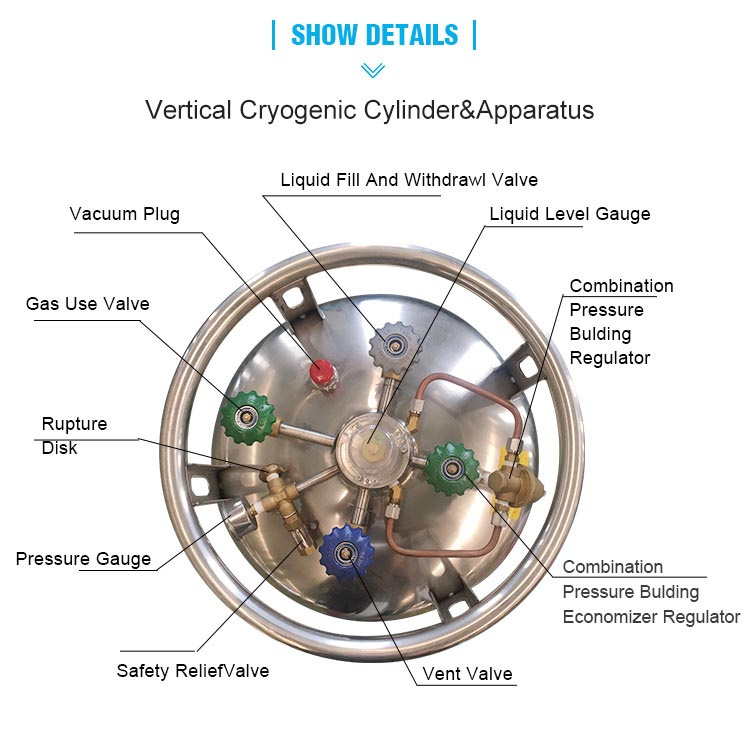

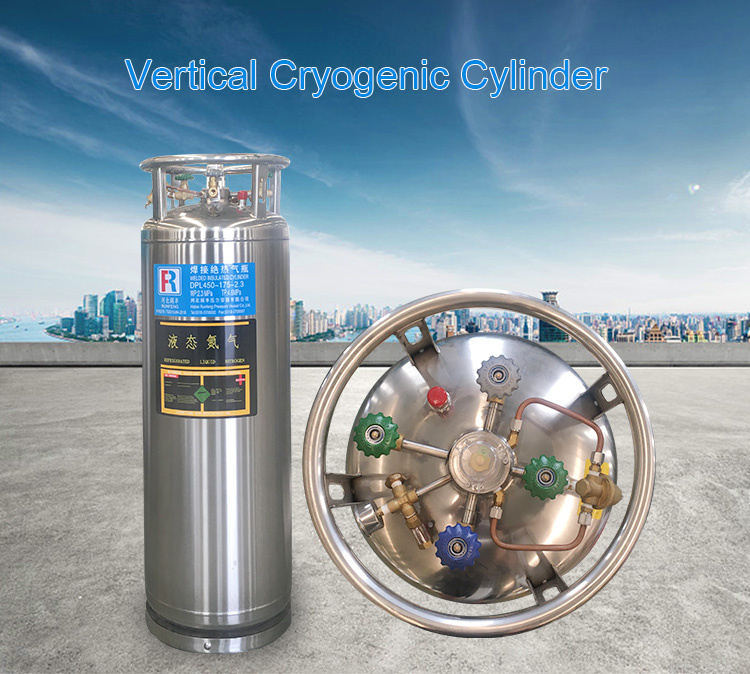

| Welded insulated cylinder (Vertical) |
| ITEM | MP Low Pressure Series |
| Model | DPL-175-1.37 | DPL-195-1.37 | DPL-210-1.37 |
| Dimension(O.D. × Height ) mm | φ 505×1551 | φ 505×1676 | φ 505×1761 |
| Nominal Volume L | 175 | 195 | 210 |
| Effective Volume L | 160 | 180 | 195 |
| Service Pressure Mpa | 1.37 | 1.37 | 1.37 |
| Empty Vessel Weight (Kg) | 116 | 125 | 142 |
| Setting Pressure of Safety Device Mpa | Filling LNG, 1 class safty valve setting pressure :1.59, 2 classvalve pressure:2.41
Filling LO2/LN2/Lar,safty valve setting pressure : 1.59, Burst pressure of bursting disc:2.4 |
| Filling Medium | LO2 | LN2 | LAr | LNG | LO2 | LN2 | LAr | LNG | LO2 | LN2 | LAr | LNG |
| Max. Filling Weight kg | 170 | 120 | 208 | 70 | 190 | 134 | 232 | 78 | 205 | 145 | 250 | 84 |
| Standard Volume Nm3 | 119 | 96 | 116 | 97 | 133 | 107 | 130 | 109 | 143 | 116 | 140 | 117 |
| Normal Evaporation Rate %/d | LN2≤2.1 | LN2≤2.02 | LN2≤1.99 |
| Liquid Level Gauge | Float | Float | Float |
| Surface Treatment | Polish | Polish | Polish |
| ITEM | HP series |
| Model | DPL-175-2.3 | DPL-195-2.3 | DPL-210-2.3 |
| Dimension(O.D. × Height ) mm | φ 505×1551 | φ 505×1676 | φ 505×1761 |
| Nominal Volume L | 175 | 195 | 210 |
| Effective Volume L | 160 | 180 | 195 |
| Service Pressure Mpa | 2.3 | 2.3 | 2.3 |
| Empty Vessel Weight (Kg) | 133 | 145 | 160 |
| Setting Pressure of Safety Device Mpa | Filling LNG, 1 class safety valve setting pressure :2.41, 2 class valve pressure:3.45
Filling LO2/LN2/Lar,,safety valve setting pressure :2.41, Burst pressure of bursting disc:3.62 |
| Filling Medium | LO2 | LN2 | LAr | LNG | LCO2 | LO2 | LN2 | LNG | LCO2 | LO2 | LN2 | LAr | LNG |
| Max. Filling Weight kg | 170 | 120 | 208 | 70 | 164 | 190 | 134 | 78 | 183 | 205 | 145 | 250 | 84 |
| Standard Volume Nm3 | 119 | 96 | 116 | 97 | 83 | 133 | 107 | 109 | 93 | 143 | 116 | 140 | 117 |
| Normal Evaporation Rate %/d | LN2≤2.1 | LN2≤2.02 | LN2≤1.99 |
| Liquid Level Gauge | Float | Float | Float |
| Surface Treatment | Polish | Polish | Polish |
Our focus is cryogenic pressure vessels, dewar, LNG station equipments, industry gas equipment system products, Runfeng is famous for design and manufacture of highly engineered cryogenic equipment used from the beginning to the end in the liquid gas supply chain. Our domestic operation located in China and our products are most welcomed in Russia and Southeast Asia countries. Our tagline is become your lifelong trustworthy and honest supplier.
