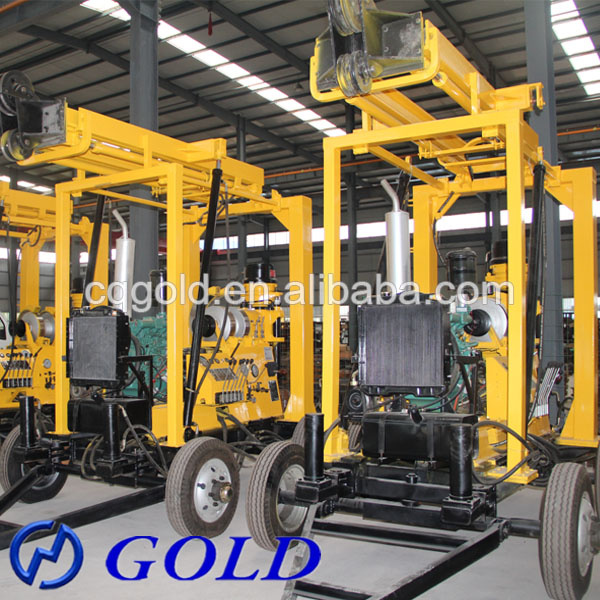

Drill Rigs and Diamond Core Bit Drill for Reinforced Concrete

Drill Rigs and Diamond Core Bit Drill for Reinforced Concrete
Price: US $ 18500/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: XYX-3
Markets: South America,Southeast Asia,Africa,Mid East
Brand Name: Gold
Power: 37kw
Certification: ISO9001-2000
Warranty: 12 Months
Dimension(L*W*H): 3.8*2*2.6 M
Weight: 4500kg
After-Sales Service Provided: Engineers Available to Service Machinery Overseas
Voltage: 380V
Usage: Water Well
Power Type: Diesel
Type: Core Drilling Rig
Condition: New

Product Description

Specifaction

Drilling       depth                             m100250300600
Drilling  DI                       mm30020015075
Open hole DImm300
End hole  DI                        mm75
Drilling rod                               mmΦ60
Drilling angle                            90°-65°
Rotary Spindle
Spindle forward speed                 r/min30-1050
Spindle reverse speed                 r/min29-137
Spindle stroke                            mm560
Spindle inner diameter                 mm96
Spindle lifting capacity             KN60
Main Winch  ( drive hydraulic system)
Single line lifting speed                m/min0-45
Hug floodgate belt width                   mm90
Tightrope diameter                        mm14
Hoist single line lifting capacity      KN40
Roller diameter                             mm200
Roller cubic measure                       m30
Gear Oil pump
Duplex gear oil pump           CBF-F63/25
Front displacement,pressure           63mL/r    20Mpa
Behind displacement,pressure         25mL/r    20Mpa
Drilling rig Power
Diesel engine                             Hp   R4105ZD    50HP
Electric motor                                KW   Y180L-4      22KW

Packaging & Shipping


Package: Wooden Case or Plywood
Delivery: Container ship, 10 days after receiving deposit

Company Information

Established in 2009.

Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd is a high-tech enterprise for researching, designing, developing and producing scientific and measuring instruments. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil tester, electric tester, laboratory instrument, road building instrument and geophysical equipment.

Though highly acclaimed and favorably accepted by numerous customers and possessed of the right to import and export, to ensure the high quality of our products, we conduct our manufacturing in strict accordance with various standards of ISO, ASTM D, IP, GB etc. We have developed sales channels in many countries and regions such as Thailand, Philippine, Iran, Indonesia, Spain, Iceland, Chile, Regions of Southeast Asia, Middle East, Europe, North and South America etc, and have gained strong advantage and high reputation in international market.

We have persisted on the business idea of "Integrity Basis and Quality First" for the stable and constant development. We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity. Client, quality and service are our supreme target!
