| Prod Model: |
XY-3T |
| Markets: |
South America,Southeast Asia,Africa,Mid East |
| Brand Name: |
Gold |
| Power: |
59 Kw |
| Warranty: |
12 Months |
| Dimension(L*W*H): |
2500 * 900 * 1800 mm |
| Weight: |
600 Kg |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Voltage: |
380V |
| Bit: |
Diamond,Tsp,PDC,ND,Diamond Core,Diamond Bit |
Product Description

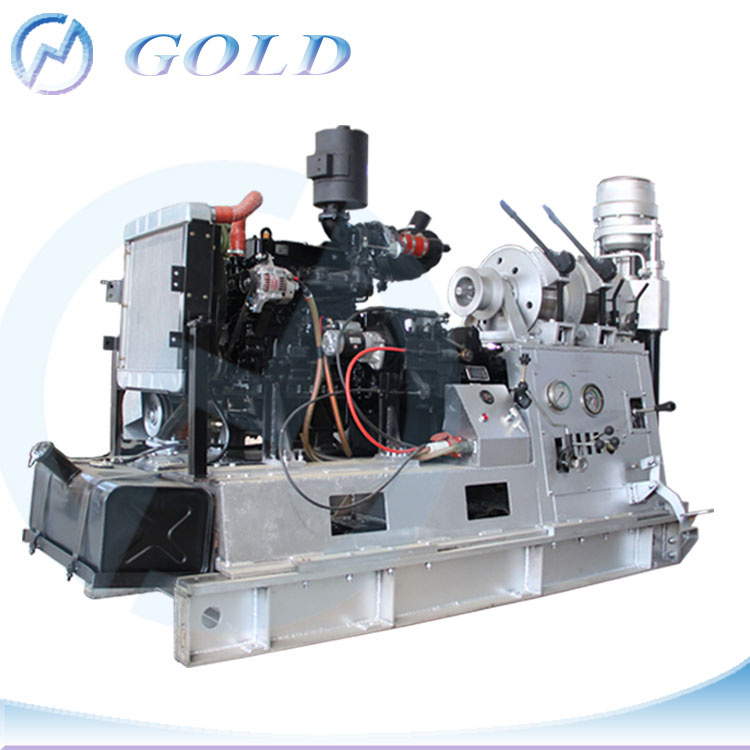

XY-3T Water Well Drilling Rig China is mainly diamond and carbide drill core drilling equipment, mainly applied to geology, hydrology, engineering, metallurgy and coal industries, can also be used for engineering geological exploration drilling construction, mining and tunnel ventilation, drainage and other projects.
The application of new types of high-strength light alloy materials. The main parts (vertical boxes, moving boxes, hoists and other) material using pressure casting high-strength aluminum alloy to replace ordinary steel research of new aluminum alloy welding technology, integration applied in the Tower, base; on the premise of ensuring drilling rig, which weighs about 1/3.
Modular drilling rig solid design, split more fast Assembly. Split each part maximum weight of about 40-100kg, solved the problem of relocation job difficult in mountainous area.
Drill transfer machine structure using high-frequency treatment setting Rails, wear-resisting performance, extending its service life.
Composite transmission design. LG515 automobile transmission design of additional Deputy as speed, high and low speed switch, torque, variable speed range, concentrated and convenient operation, meet the needs of drilling technology and accessories General.
Specification
| Structural style | Spindle |
| Power(kw) | 4TNV88-BSBKC 27.1kW 2200rpm |
| Dimension(mm) | 2600*900*1750 |
| Weight(kg) | 700(power not included) |
| Drilling depth(m) | 600 |
| Drilling diameter(Max.)(mm) | 219 |
| Kelly bar(mm) | 46x51x4200 /Ø50 |
| Drill bit(mm) | Ø75- Ø220 |
| Rotating speed(r/min) | 57/157/470/942 |
| Reel caliber (mm) | 200 |
| Single line lifting speed(m/s) | 0.3-1.9 |
| Single line hoisting capacity(t) | 2.5 |
| Wire rope length(m) | 50 |
| Wire rope diameter(mm) | Ø12.5 |
| The rated load(t) | 3 |
| Effective height(m) | 6 |
| Tower leg specifications(mm) | Ø73 |
Packaging & Shipping
1. Inudustrial professional export packing, full inspection on all packing details.
2. Standard wooden case for Water Well Drilling Rig China exporting and shock absorbing, for better outerior protection.
3. Considerate interior plastic sheeting protection to prevent from wet and moisture.
