| Prod Model: |
15.2.2.2.4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
35mm |
| Thread Size: |
3/8" Shaft Without Thread |
| Segment Type: |
Normal Type |
| Drilling Materials: |
Marble, Granite, Sandstone, Limestone, etc. |
| Delivery Time: |
Around 30days |
| MOQ: |
50PCS |
| Brand: |
Johnsontool |
| Company Type: |
Direct Manufacturer and Trading Company for Stone |
| Graininess: |
#30/40 |
Product Description

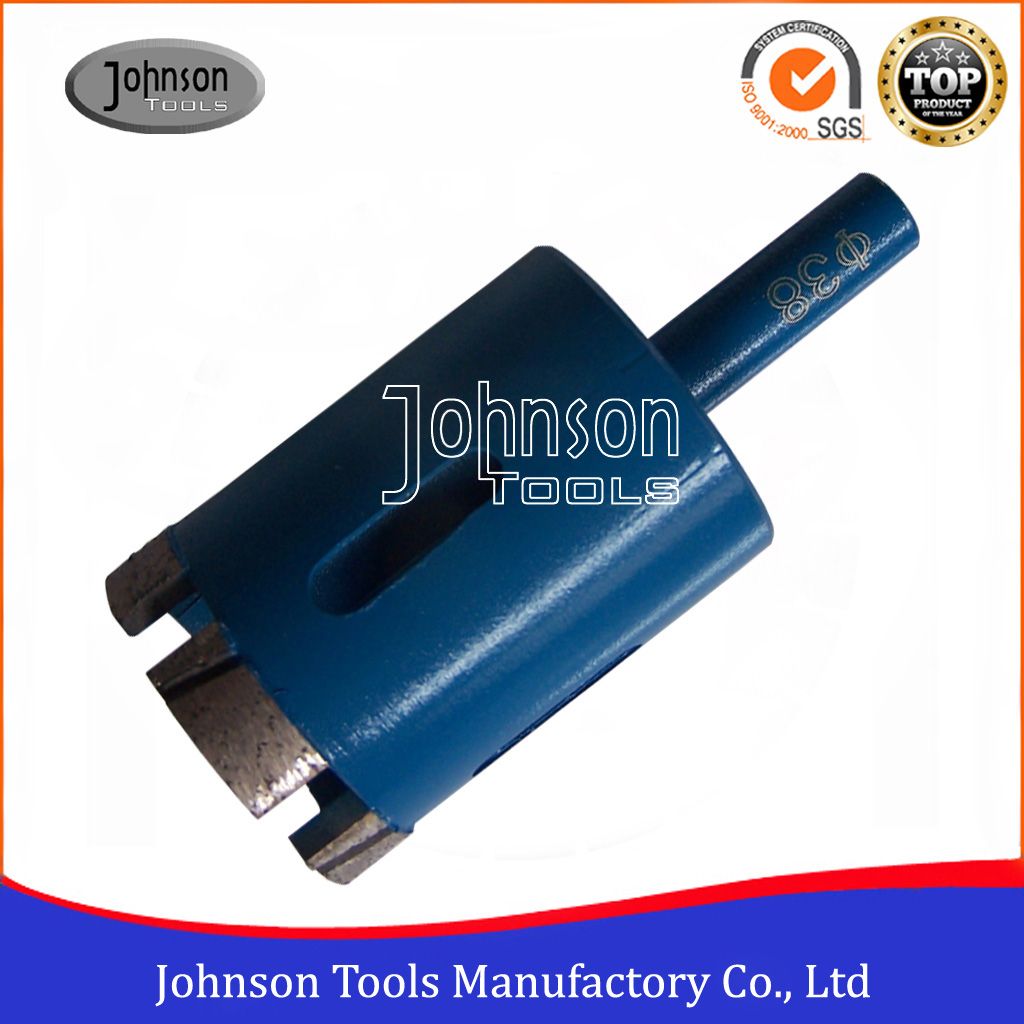

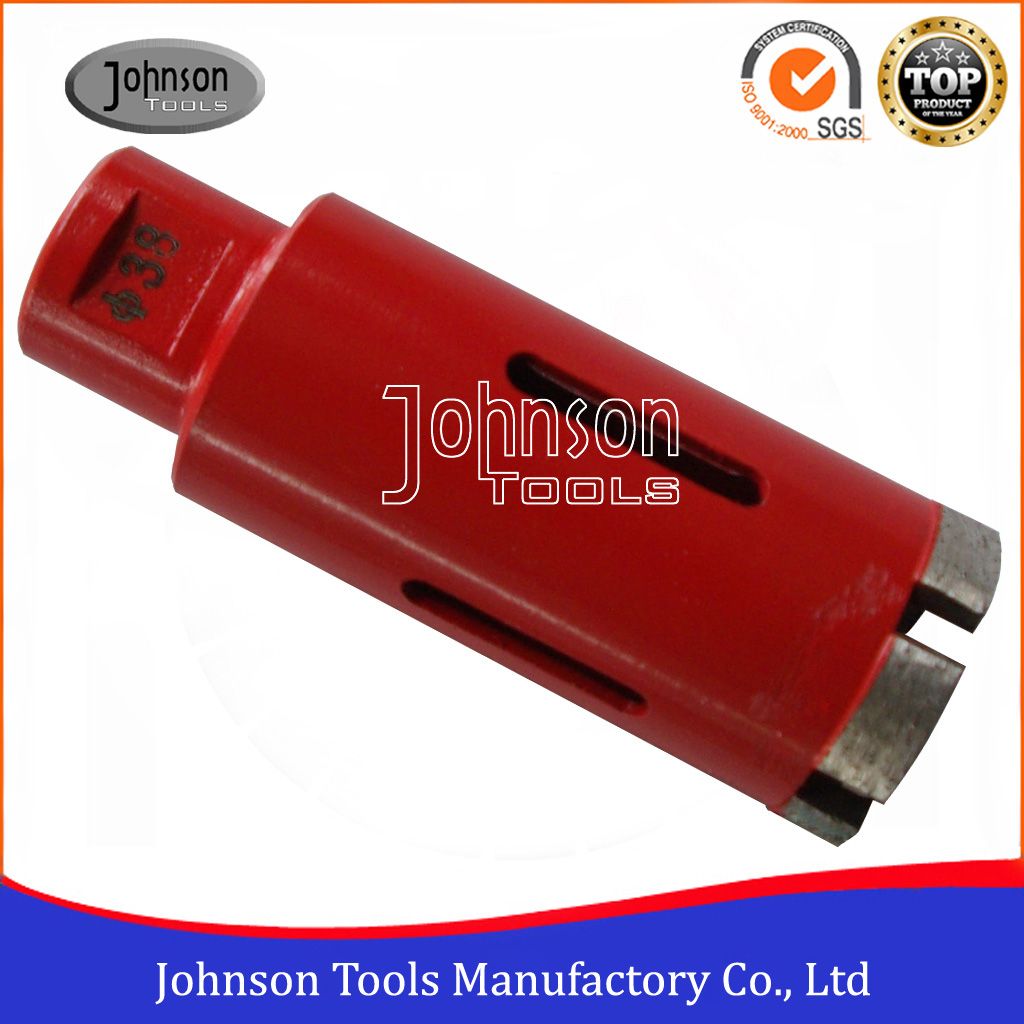

Drilling bits: Od38mm Diamond Core Bit for StoneWhy choose us:1. SGS, MPA certificate, Established in 2000 year, Rich producing experience.2. Well approved by our worldwide clients, export more than 70 countries.3. Success formula for concrete saw blade 4. Quick Delivery time.5. One-Day reply to your inquiry and question.1.Description of OD38mm Diamond Core Bit for Stone
Sintered Diamond segment hole saw core drills bit with excellent diamond segments, especially used on rock or marble, granite stone, or concrete (with less than 5mm steel bar). Made for countertop, kitchen or any other stone fabrication applications.2.Features of diamond stone core drills OD38mm 38mm (1 1/2 inch) outside diameter.
10mm (3/8 inch) shank.
Total length is 83mm (3 1/4 inch).
Can drill 50mm (2 inch) depth.
Great segment of 8mm height.
Segment type: Normal Segment or Turbo segment type.
More durable for industrial or business use.
3.Specification information of OD38mm diamond drill for stone
| Item No. | Diameter | Segment Dimension | Total Length | Teeth No. |
| mm | Height | Thickness |
| BGB38 | 38 | 8 | 3 | 83 | 4 |
Other specifications we can offer| Diamond core bits for stone, with 3/8" shaft or 1/2" shaft |
| Item No. | Diameter | Segment Dimension | Total Length | Teeth No. |
| mm | Height | Thickness |
| BGB6.5 | 6.5 | 8 | - | 83 | C |
| BGB8 | 8 | 8 | - | 83 | C |
| BGB10 | 10 | 8 | 2.5 | 83 | Crown |
| BGB12 | 12 | 8 | 2.5 | 83 | Crown |
| BGB14 | 14 | 8 | 2.5 | 83 | Crown |
| BGB16 | 16 | 8 | 2.5 | 83 | Crown |
| BGB18 | 18 | 8 | 2.5 | 83 | Crown |
| BGB20 | 20 | 8 | 2.5 | 83 | Crown |
| BGB22 | 22 | 8 | 2.5 | 83 | Crown |
| BGB25 | 25 | 8 | 2.5 | 83 | Crown |
| BGB28 | 28 | 8 | 2.5 | 83 | Crown |
| BGB30 | 30 | 8 | 3 | 83 | Crown |
| BGB35 | 35 | 8 | 3 | 83 | Crown |
| BGB40 | 40 | 8 | 3 | 83 | 4 |
| BGB45 | 45 | 8 | 3 | 83 | 5 |
| BGB51 | 51 | 8 | 3 | 83 | 6 |
| BGB55 | 55 | 8 | 3 | 83 | 6 |
| BGB60 | 60 | 8 | 3 | 83 | 7 |
| BGB65 | 65 | 8 | 3 | 83 | 7 |
| BGB70 | 70 | 8 | 3 | 83 | 8 |
| BGB76 | 76 | 8 | 3 | 83 | 8 |
| BGB85 | 85 | 8 | 3 | 83 | 9 |
| BGB100 | 100 | 8 | 3 | 83 | 10 |
| BGB105 | 105 | 8 | 3 | 83 | 10 |
| BGB110 | 110 | 8 | 3 | 83 | 11 |
| BGB115 | 115 | 8 | 3 | 83 | 11 |
| BGB120 | 120 | 8 | 3 | 83 | 12 |
| BGB127 | 127 | 8 | 3 | 83 | 12 |
4.Packing and shipping of 38mm core bits for stone According to the size, normally put in an export standard carton, gross weight per carton is limited within 20-25kg.
Shipping date: If there is steel discs in our stock, normally shipment within 10-15days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment term T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.6.Our Related Products
7.Our technologyWe are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers. Providing our customers with satisfactory diamond cutting tools is our aim!8.Certification,
9.FAQQ: How to place order to your company?- Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
- Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
- Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
- Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
- After-Sale Service: Track the goods, learn the products' performance.
- Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
10.Company Information
