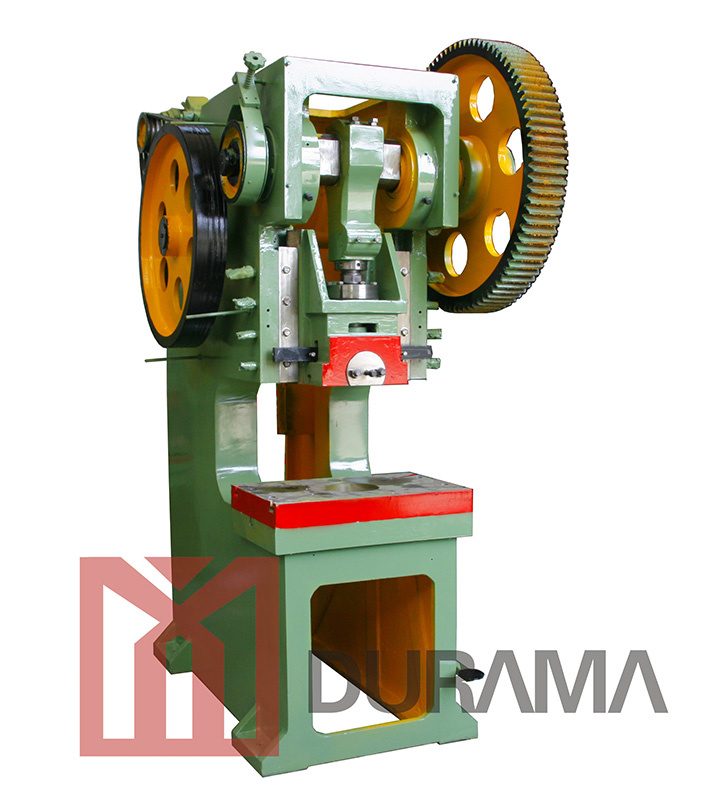

Drj21 Mechanical Deep Throat Power Press / Punching Machine

Name: Drj21 Mechanical Deep Throat Power Press / Punching Machine
Brand: tool-buy.com
SKU: 708157162
Availability: InStock
Rating: 4.9 (140 reviews)

Price:	US $ 4200-5500/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Nanjing Dura Machines Co., Ltd.

Showroom Product Company Profile

Prod Model:	DRJ21-63T
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Pressure:	25t, 40t, etc
Type:	General Punching Machine
Controlling Mode:	Artificial
Automatic Grade:	Manual
Power Source:	Mechanical Drive
Precision:	High Precision

Product Description

DURAMA supply the mechanical power press, C type power press, punching machine. Our products are widely used in special production fields such as decoration, metallurgy, ship, automobile, machinery, aviation, etc.
Our DRJ21 series power press, with high precision and efficiency, is also stable and easy to operate, quite populay by our customers and end users.
It is able to punch different sizes holes, for metal and plastic etc.

DRJ21 Mechanical Deep Throat Power Press / punching machine / Punching Holes

Technical Parameter			Unit	JB23-10T	JB23-16T	JB23-25T	JB23-40T	JB23-63T
Norminal capacity			kN	100	160	250	400	630
Norminal stroke			mm	3	4	5	5	6
Slide stroke			mm	50	60	70	100	100
Slide stroke time			min-1	145	140	70	50	50
Max. die set height			mm	150	180	200	300	330
Die set adjustment			mm	40	40	40	60	60
Slide center to the machine body			mm	130	170	200	200	230
Worktable size			Mm	240 x 360	300 x 480	320 x 500	420 x 640	440 x 700
Worktabke material hole		Depth	mm	100	110	160	150	140
		Width	mm	180	220	220	300	300
		Diameter	mm	140	160	200	220	210
Slide bottom size			mm	150 x 170	150 x 230	170 x 230	220 x 250	240 x 300
Bolster thicness			mm	30	35	40	50	50
Volum space			Mm	180	220	240	260	290
Declining angle			angle	30°	30°	20°	20°	20°
Motor	Power		Kw	1.1	1.5	2.2	3	4
Motor	Speed		r/min	1440	1440	1440	1440	1440
Dimension	Length		mm	570	1050	1250	1400	1700
	Width		mm	380	700	900	1000	1150
	Height		mm	1503	1750	2030	2300	2500
Weight			kg	480	900	1380	2650	3600

Welcome to DURAMA!

We are DURAMA, durable machines and spare parts supplier, the designers and manufacturers of industry products. Our factories are located in industrial area in Nanjing City. With over 10 years of experience, DURAMA supplies the most comprehensive range of machines and spare parts available today.

We supply many popular machines such as hydraulic press brake, shearing machine, hydraulic iron worker, hydraulic notcher, mechanical power press, mechanical shears, and mechanical rolling machines etc...

We supply Press Brake Tools for most famous Press Brake in the world, including Amada, Beyeler, Colly, Durma, LVD, Trumpf, Wila, etc. All our products are available for immediate dispatch, enabling you to tackle any project with confidence. We supply Shearing Machine Blades for most models.

With continued investment and an unrivaled reputation for quality and service, DURAMA is trying to be the global center of excellence for Press Brake Tools and bending technology. We also supply relative industry machines and materials.

DURAMA is always trying best to supply durable machines and spare parts, and timeproof service to our customers.

Sincerely invite you to visit our factory. It's our honor to offer services for you.
