Hydraulic Guillotine Shearing Cutting Machine, Plate Shears
| Price: |
US $ 6500-40000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
DRGS series cutting machine |
| Material Blade Shears: |
6crw2si |
| Warranty: |
3 Years |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Cutting Angle: |
Adjustable |
| Certification: |
Ce,ISO,SGS |
| Name: |
Hydraulic Guillotine Shear |
| Power: |
Hydraulic |
| Electrical Supply: |
380V,50Hz,3pH(220V,60Hz,3pH Available) |
| Cutting Stroke: |
Adjustable |
| Control System: |
According to Customer Requirements |
Product Description
Hydraulic Guillotine Shearing cutting machine, plate Shears
DRGS (QC11Y-SERIES) Hydraulic Guillotine Shearing Machine
The model of this hydraulic cnc guillotine shear is DRGS series ( QC11K-series),As the second generation of shearing machine,guillotine shear keeps the advantage of cold working as well as it have more special features:in accord with metal sheet of various thickness,rake angle is adjustable to attain best performance of machine.
Basic features:
• Steel welded structure with stress-free
• Three guide trolleys enable accurate movement and fine shearing results• Adjustable rake angle to minimize deformation of sheared plate

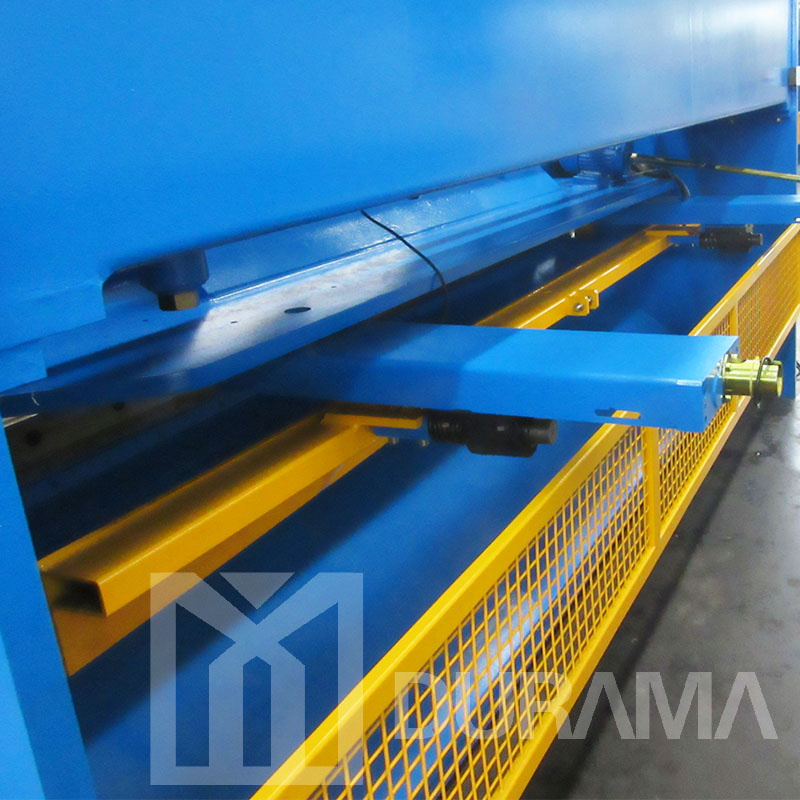

• Swing away backgauge function for cutting longer sheets
• Both upper blade and lower blade has 4 cutting edge for long lifespan of using

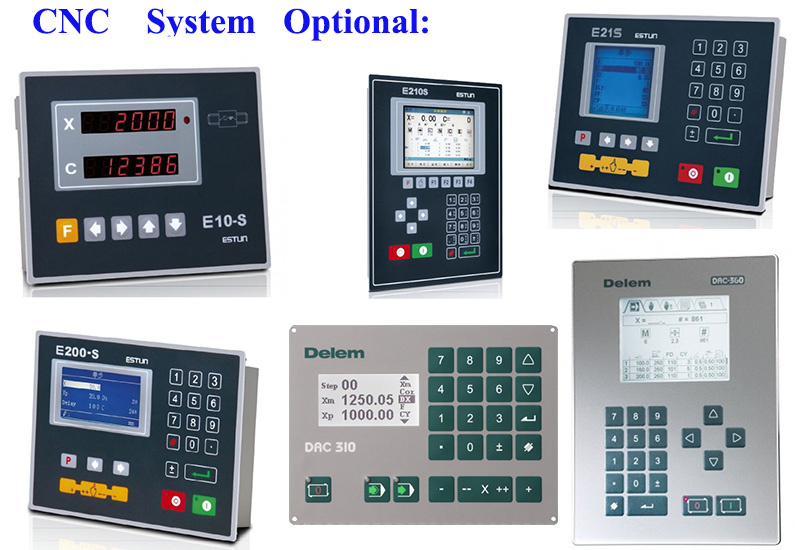

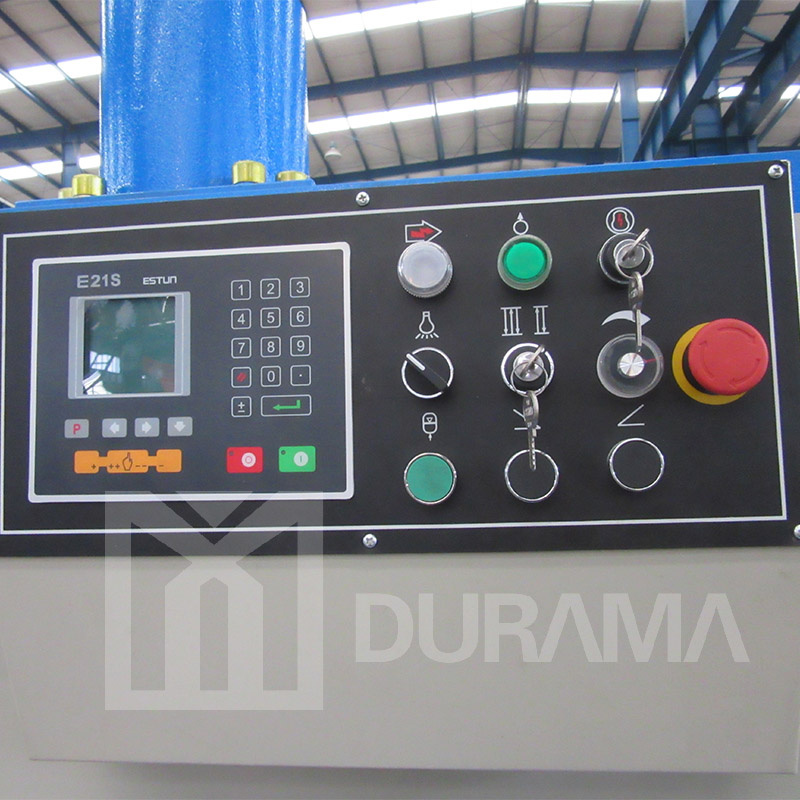

• Standard ESTUN E21 simple NC, optional DELEM DAC310, ELGO P40 etc.
• Hand wheel blades gap adjustment with indicator,rapid,convenient and accurate
• Adjustable rake angle to reduce the distortion and deformation of the metal sheet• Inchlining structure of the upper blade holder for easy blanking and high cutting precision
• Top blade could be adjusted to work for full stroke or shorter ones
• Customized power connection voltage, such as 3phase, 220V, 60Hz in South Ameirca,etc
Technical Parameters: | Model | Cutting thickness
(mm) | Cutting
width
(mm) | Shearing angle | Strokes
(min-1) | Backgauge
range
(mm) | Main
Motor
(kw) | Weight
(kg) | Overall
Dimensions
L×W×H(mm) |
| Modelo | Capacidad
de corte
(mm) | Logitud
de corte
(mm) | angulo | Golpes
per
minuto
(min-1) | Tope
trasero
(mm) | Potencia
motor
(kw) | Peso
aprox.
(kg) | Dimensiones
L×W×H(mm) |
| DRGS-625 | 6 | 2500 | 0.5-2 | 10-25 | 20-600 | 7.5 | 5,000 | 3270×1580×2040 |
| DRGS-632 | 6 | 3200 | 0.5-2 | 10-25 | 20-600 | 7.5 | 6,400 | 3820×1580×2100 |
| DRGS-640 | 6 | 4000 | 0.5-2 | 10-25 | 20-600 | 7.5 | 8,500 | 4620×1630×2160 |
| DRGS-650 | 6 | 5000 | 0.5-2 | 8-20 | 20-800 | 7.5 | 13,000 | 5530×2075×2080 |
| DRGS-660 | 6 | 6000 | 0.5-2 | 8-20 | 20-800 | 11 | 17,000 | 6530×2075×2610 |
| DRGS-670 | 7 | 7000 | 0.5-2 | 10-25 | 20-800 | 11 | 21,000 | 7530×2075×2830 |
| DRGS-825 | 8 | 2500 | 0.5-2 | 10-25 | 20-600 | 11 | 5,500 | 3270×1580×2040 |
| DRGS-832 | 8 | 3200 | 0.5-2 | 6-20 | 20-600 | 11 | 6,500 | 3820×1580×2100 |
| DRGS-1225 | 12 | 2500 | 0.5-2.5 | 6-20 | 20-800 | 18.5 | 11,000 | 3400×1920×2350 |
| DRGS-1232 | 12 | 3200 | 0.5-2.5 | 6-20 | 20-800 | 18.5 | 12,000 | 3950×1920×2400 |
| DRGS-1240 | 12 | 4000 | 0.5-2.5 | 4-15 | 20-800 | 18.5 | 14,000 | 4750×1960×2580 |
| DRGS-1380 | 13 | 8000 | 0.5-2.5 | 5-15 | 20-800 | 30*2 | 52,000 | 8600×2900×3100 |
| DRGS-1625 | 16 | 2500 | 0.5-2.5 | 5-15 | 20-800 | 18.5 | 11,000 | 3450×2010×2350 |
| DRGS-1632 | 16 | 3200 | 0.5-2 | 5-15 | 20-800 | 18.5 | 12,800 | 3940×1960×2400 |
| DRGS-1640 | 16 | 4000 | 0.5-2.5 | 5-15 | 20-800 | 18.5 | 15,300 | 4745×2010×2640 |
| DRGS-2025 | 20 | 2500 | 0.5-3 | 5-15 | 30-800 | 30 | 14,000 | 3450×2200×2560 |
| DRGS-2040 | 20 | 4000 | 0.5-3 | 4-15 | 30-800 | 37 | 21,000 | 4660×2200×2710 |
| DRGS-2525 | 25 | 2500 | 0.5-3.5 | 4-15 | 40-1000 | 37 | 17,000 | 3450×2700×2900 |

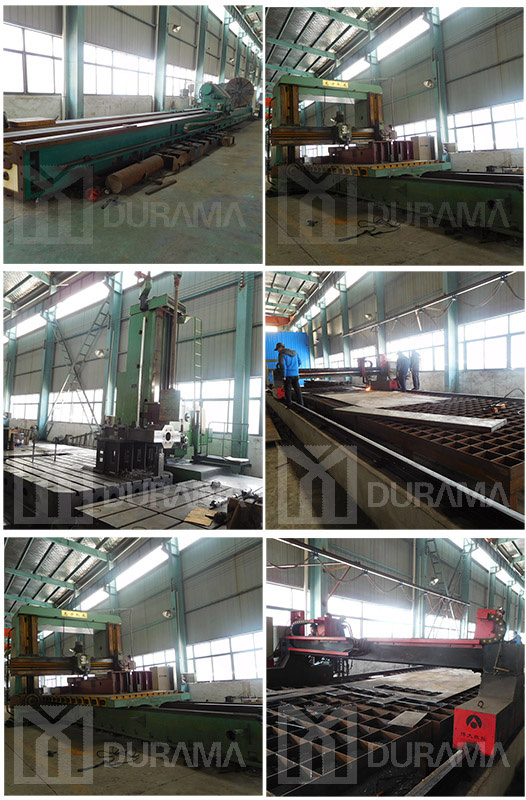

Company Information: We are DURAMA, durable machines and spare parts supplier, the designers and manufacturers of industry products. Our factories are located in industrial area in Nanjing City. With over 10 years of experience, DURAMA supplies the most comprehensive range of machines and spare parts available today.
With continued investment and an unrivaled reputation for quality and service, DURAMA is trying to be the global center of excellence for Press Brake Tools and bending technology. We also supply relative industry machines and materials.
DURAMA is always trying best to supply durable machines and spare parts, and timeproof service to our customers.
Our Services:1.Pre-sales:help client select the suitable machine
2.After-sales:provide free technical guidance
3.Installation service:we dispatch technician to customer's factory for installation
4.Training service:offer training of how to use our machines
5.Quality guarantee:machine warranty is 3 years, We offer flexible extended warranties if needed.
6.we arrange final test before shipment
7.Other services :
1): response within 1 hours
2): provide solution in 1 day
3): solve complaint in 2 daysPackaging and Shipping:Standard Exporting Packaging for DURAMA Shearing Machine
1.inner machine, it is packaged in moistureproof film.
2.pallet or wood box.
3.ground fixed bolt to confirm steady and avoid destory.
4.tightly exporting standard belf to fasten machine in container.How to reach our factory: Our factory is about 260 km far away from Shanghai air port, and 8 km far away from Nanjing air port . You can come here by fast train or by plane to Nanjing. We will pick you up from the train station or air port.If you would like to know some more details about this product, please leave a message with your contact information, we will reply you at earliest time!
