| Prod Model: |
DT-63 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Size 3 |
| Door Thickness: |
45mm |
| Certificate: |
En1154 &En1634 |
| Warranty: |
10 Years |
| Material: |
Aluminum Alloy |
| Type: |
Outside-mounted |
| Standard: |
European Standard |
| Remote Control: |
Without Remote Control |
| Installation Type: |
Standard and Parallel |
| Function: |
Door Closer |
| Door Width: |
Maximum 1070mm |
| Door Weight: |
45-65kgs |
| Usage: |
All Applications |
| Color: |
Silver, White, Black, Gold Champagne |
Product Description

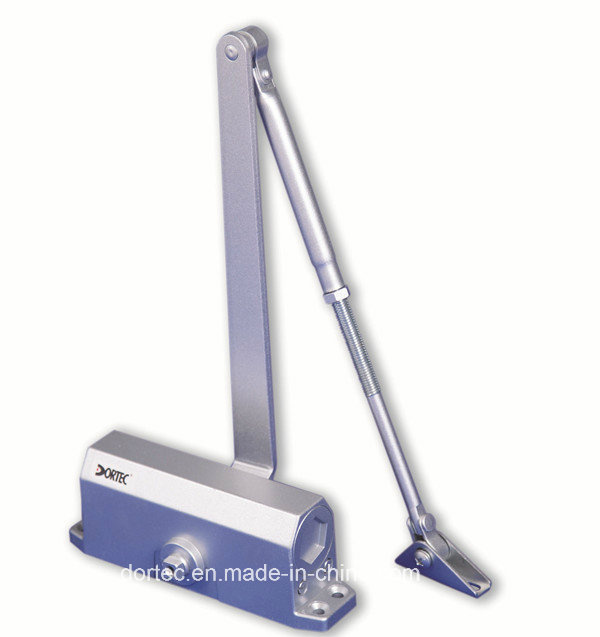

Name :door closer
item no:DT-63
Product description:
Easy to install, Non-Handed
Universal application as standard
Superior engineering
Two valve adjustment to incorporate closing and latching speed
ANSI 156.4 Grade 2
C-UL US listed, Conforms to Standards UL10C and UBC7-22-1997
Normal type, suitable for commercial&residential door
Die-Cast aluminum body and corrosion-resistant
Hydraulic Anti-freeze oil for special temperature under -40Centigrade--50Centigrade
Adjustable forearm
Optional parallel arm bracket
Optional back-check cushioning (BC)
Optional hold open arm
Optional built-in hold open
Optional Drop Plate
Optional plastic cover
10years guarantee, 1 million cycles in the endurance testing
Many colors optional, Silver, White, Black, Gold

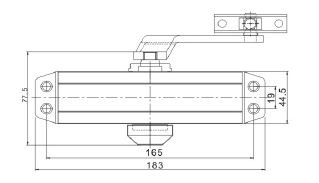

Production dimension:
Product details:
| Item | Maximum door width REGULAR ARM Inches(meters) | Maximum door width ARM inches(meters) | Maximum door weight Ref LBS(kg) | Back check | Built-in hold open |
| Interior door | Exterior door | Interior door | Exterior door |
| DT-63 | 42"(1.07m) | 36"(0.91m) | 36"(0.91m) | 32"(0.81m) | 99~143(45~65) | NO | NO |
