| Prod Model: |
DT-65 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Size 5 |
| Back Check: |
Optional |
| Certificate: |
En1154&En1634 |
| Warranty: |
10 Years |
| Material: |
Aluminum Alloy |
| Type: |
Outside-mounted |
| Standard: |
European Standard |
| Remote Control: |
Without Remote Control |
| Usage: |
Fire Exits |
| Installation Type: |
Standard and Parallel |
| Function: |
Door Closer |
| Door Width: |
1070~1370mm |
| Door Weight: |
85-120kg |
| Color: |
Silver, White, Black, Gold Champagne |
Product Description
Name :door closer
item no:DT-65
Easy to install, Non-Handed
Universal application as standard
Superior engineering
Normal type, suitable for commercial&residential door
Two valve adjustment to incorporate closing and latching speed
ANSI 156.4 Grade 1
C-UL US listed, Conforms to Standards UL10C and UBC7-22-1997
UL,CE listed
Needle bearing application
Die-Cast aluminum body and corrosion-resistant
Hydraulic Anti-freeze oil for special temperature under -40Centigrade--50Centigrade
Adjustable forearm
Optional parallel arm bracket
Optional back-check cushioning (BC)
Optional hold open arm
Optional Drop Plate
Optional plastic cover
Many optional colors, including Silver, White, Black, Gold
10years guarantee, 1 million cycles in the endurance testing

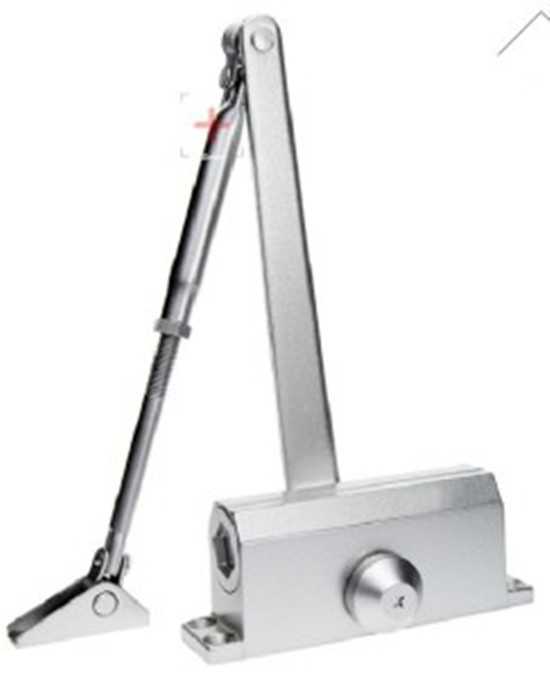

Product picture:
Product details:
| Item | Maximum door width REGULAR arm inches (meters) | Maximum door width PARALLEL arm inches(meters)
| Maximum door weight Ref LBS (KG) |
| Interior door | Exterior door | Interior door | Exterior door |
| DT65 | 54'' (1.37m) | 48''(1.22m) | 48''(1.22m) | 42''(1.07m) | 187~264(85~120) |
