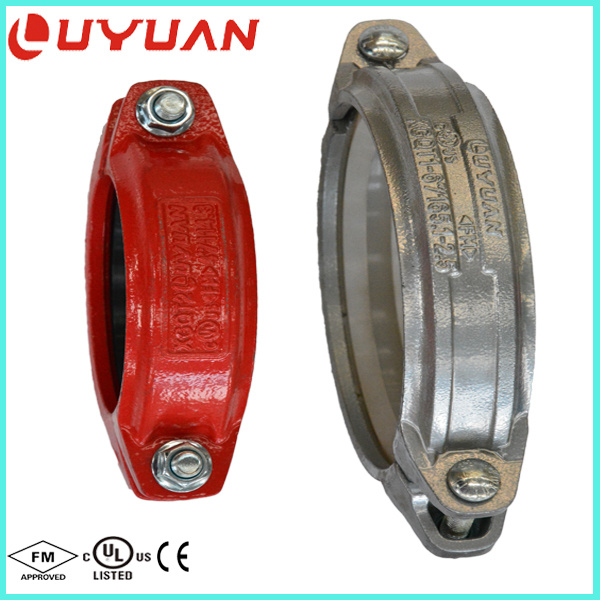

Ductile Iron Casting Pipe Clamp for Construction
| Price: |
US $ 0.5-12/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
XGQT2 |
| Plumbing Fitting Size: |
10'' |
| Plumbing Fitting Standard: |
ASTM A536 |
| Plumbing Fitting Color: |
Red Paint |
| Plumbing Fitting Approval: |
UL Listed, FM Approved |
| Plumbing Fitting Material: |
Ductile Iron |
| Plumbing Fitting Usage: |
Pipeline Connector |
| Plumbing Fitting Make By: |
Disa Machine |
| Plumbing Fitting Quality: |
High Quality |
| Plumbing Fitting Supply: |
Pipeline Connector |
| Plumbing Fitting Price: |
Competitive |
| Connection: |
Female |
| Material: |
Ductile Iron |
Product Description

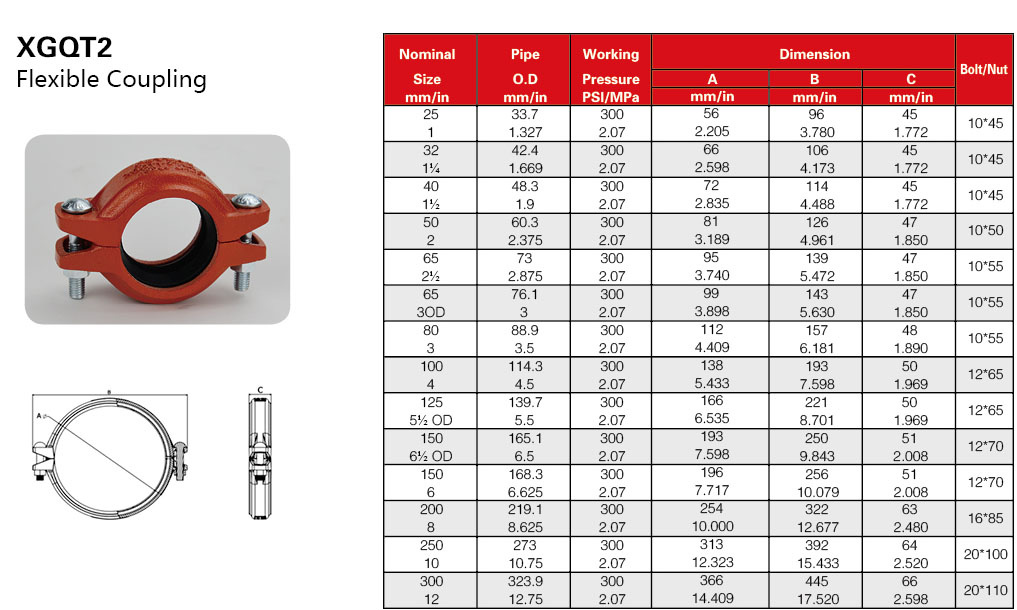

| Name | Grooved Pipe Clamp |
| Standard | ANSI, ASTM, DIN, JIS, GB, BS, etc |
| Size | 1"-12" |
| Material | Ductile Iron ASTM A536/QT450-10 |
| Surface Finish | Paint Epoxy Powder or Galvanized |
| Color | Red-RAL3000,Blue,Orange or as customer want |
| Working Pressure | 300 PSI/2.07 Mpa |
| Approval | FM/UL/ISO |
Usage | 1) Automatic sprinkler system for fire protection on commercial, civil and municipal constructions like water supplying, gas supplying, heat supplying, etc. |
2) Industrial pipeline system on shipping,mine,textile
oil field,powder plant, etc. |
| 3) Pipeline system on subway station, railway |
| Parts | Standard |
| Bolt&Nut | ISO 898-1 class 8.8 |
| Gasket | 1)EPDM (Nitril, Silicon Rubber)
2)Temperature range -30°F to +230°F (-34°C to +110°C)
3)Recommended for cold and hot water dilute acids, oil-free air and many chemical services |

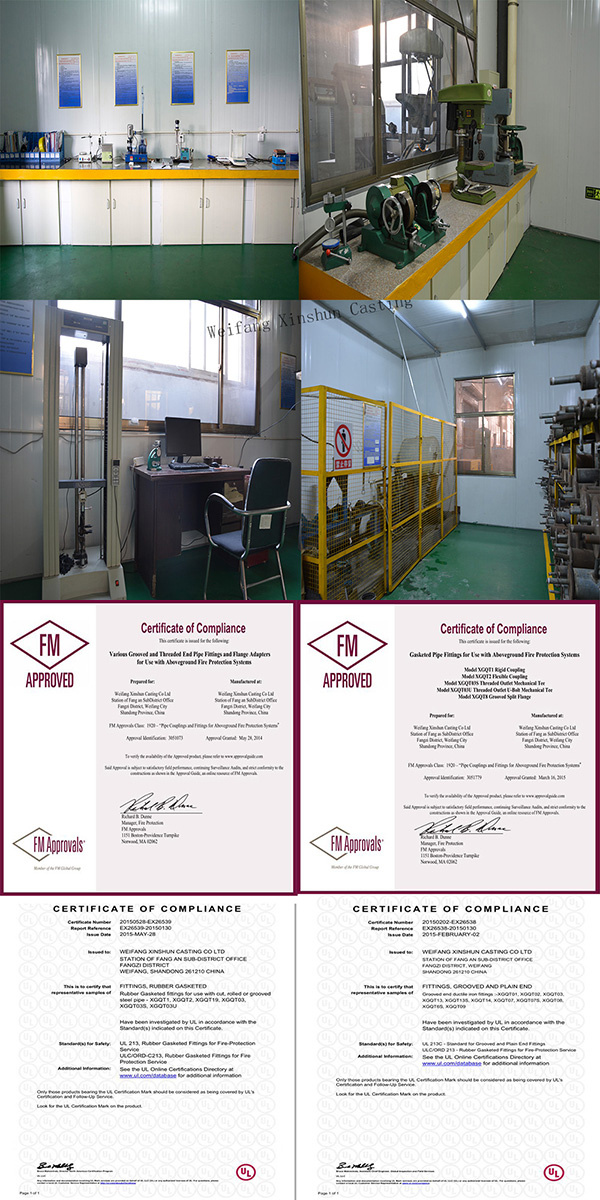

Grooved Pipe Clamp Test
Our Lab for testing the material (bolt,nut,seal ring,sands,coal,etc) and the finished
products (quality and performance test as the UL/FM,GB5135.11-2006 standard

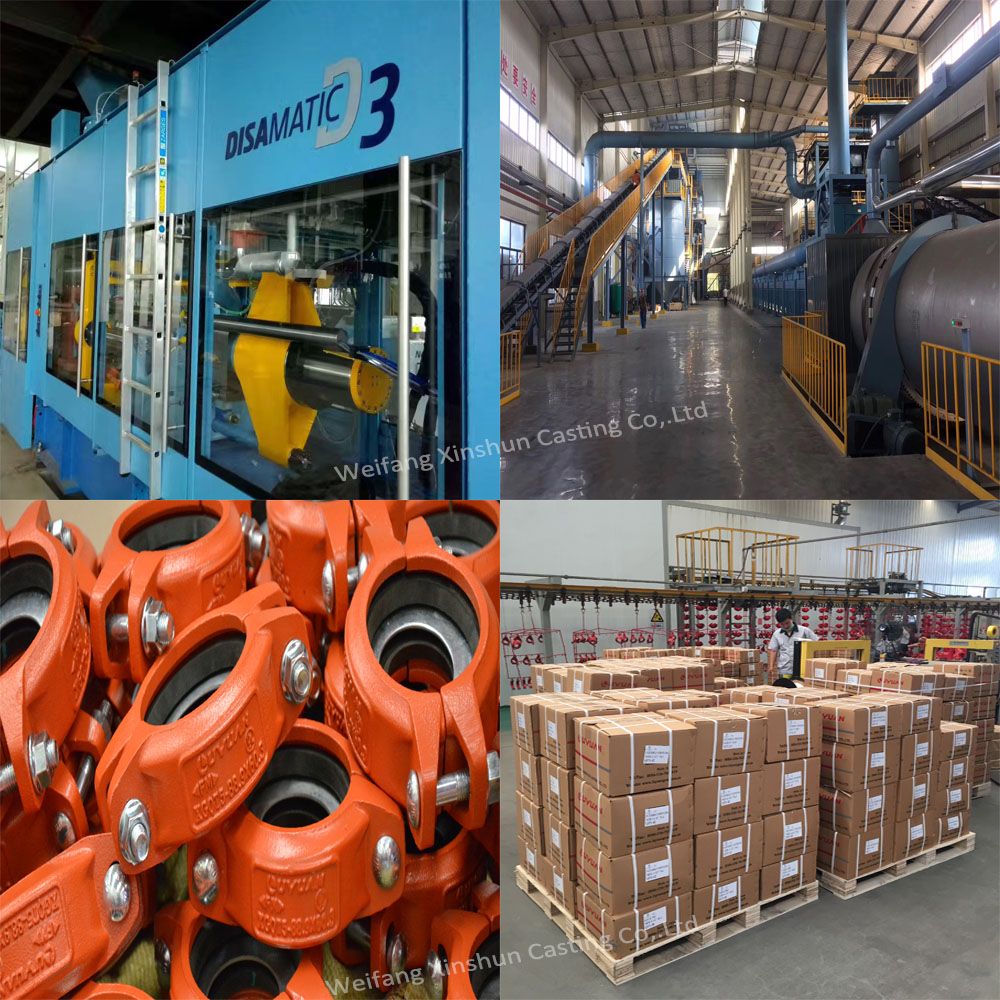

Grooved Pipe Fitting and Coupling Production Line (Our Factory)
Smelting---Shot Blasting----Grooved&Machining----Painting---Assemble----Packing
Grooved Pipe Clamp Pack and Delivery| Pack | Carton box with pallet |
| Payment | T/T :30%deposit,the balanced before delivery
L/C at sight |
| Port | Qingdao |
| Delivery Time | 20-30 days shipment when we get the deposit |
Exhibitions (USA NFPA , INTERSEC DUBAI ) and Customers visiting Factory
Factory Introduction
Weifang Xinshun Casting Co,.Ltd,a factory specializing in production of Ductile Iron pipe fitting with over 12 years professional experiences.Our pipe fittings have been approved by UL and FM of USA in 2004,We factory has two automatic DISA casting line and CNC lathe,Modeling machine center,Automatic coating and packaging line.Our Products have high reputation at home and abroad and we have been exporting to USA,Canada,Mexico,Chile,Columbia,Peru,Spain,Saudi Araba,Bangladesh,South Africa and so on.
If have a chance in future,welcome you come to China to visit our factory.
Weifang Xinshun Casting Co., Ltd established in 2005, located on Weifang City- The world kite capital, Shandong Province, China.
Our company is a large-scale manufacturer specialized in production of Ductile iron Grooved couplings and fittings for over 12 years, There are 450 employees in our factory, including 185 skilled workers, 10 senior engineers, 6 mold developments staffs and 12 quality inspectors. The annual capacity is over 50000 Tons. Our company has professional R&D team, Sales team and After-sales service team to meet all needs of customers.
Our company has been passed ISO9001: 2008 quality system and our grooved couplings and fittings have been approved by CCC of China, FM and UL of American, and European Union CE certificate, Products are on sale over 300 cities of China and exported to the United State, Canada, Mexico, Columbia, Chile, Peru, Brazil, Panama, Spain, Saudi Arabia, Turkey, Korea, South Africa etc. More than 20 countries and areas. Our "LUYUAN" brand has been becoming the well-known brand in China, enjoying high reputation among the customers for its excellent quality, competitive prices and professional service.
There are three automatic casting production lines in our factory, One new DISA molding line imported from Denmark is under construction, the production process use fully automatic intelligent control system. We have CNC lathe, Mold machining center, Automatic coating and packaging line and so on. We also have a very professional laboratory with full series of testing and inspection, such as hydrostatic strength testing, raw material receiving inspection, batch chemical composition inspection, microstructure testing, dimension inspection, first article inspection, in- process inspection and final visual inspection in order to ensure the product quality.
With mature and advance technology, quality product, prudent working style, we believe we will be your best supplier!
