| Prod Model: |
DN50 to DN2000 |
| Pressure Test: |
100% Pressure Test |
| Request Information From Client: |
Pipe Od |
| Coating: |
Fusion Bonded Epoxy Coating |
| Connection: |
Female |
| Structure: |
Universal |
| Flexible Or Rigid: |
Flexible |
| Material: |
Iron |
| Standard: |
Standard |
Product Description
Universal flange adaptor
Flanged Adaptors are designed for pipelines, As a wide tolerance system
It will fit most standard pipe materials and therefore dramatically reducesthe number of dedicated Flanged Adaptors which need to be stocked for maintenance purposes
It is suitable for steel, GRP, PVC, PE, Ductile Iron, Cast Ironand Asbestors Cement
When connecting PE pipes, It is important that pipe inserts are fitted to the PE pipes
1) All the flanged adaptors are assembled by " T " bolts.
2) Bolts, Nuts and Washers are in carbon steel Grade 4.8, 8.8 with zinc plated, Dacromet coating or according to customer's request.
3) Body material is Ductile iron GGG500-7.
4) Fusion bonded epoxy powder coating in blue, black or red or according to customer's Request.
5) Gaskets material: E. P. D. M., NBR or SBR.
6) Accommodate BS, DIN, ANSI flange drillings.
7) Wras approved powder and gasket are available upon request.
8)Our range are as below
size
Range
DN40
48-59
DN50
59-72
DN65
63-88
DN80
88-103
DN100
109-128
DN125
135-153
DN150
159-182
DN175
192-210
DN200
218-235
DN225
250-267
DN250
272-289
DN300
315-332
DN450
424-458
DN500
492-516

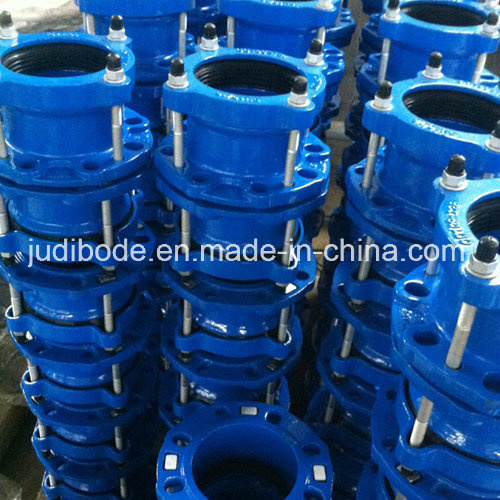

9)our product photos are as below
Our foundry photos are as below
Material is as below
| End rings | ductile iron |
| Body | ductile iron |
| Gasket | EPDM |
| Bolts,nuts and washers | gal.steel/hot dip galvanized carbon steel;Stainless steel SS304/SS316 |
| Coating | FBE /nylon 11 |
Our company, Qingdao Judibode trading CO. Ltd. Is a large and professional manufacturing company.
Our main products are as below:
1, Ductile iron pipe fitting according to EN545/ISO2531/ANSI AWWA C110/153 from DN50 to DN2000
2, Ductile iron pipe joint, include but not limited to Universal couplings, universal flange adaptor, Gibault joint for PVC pipe, Quick flange adaptor for PVC/PE pipe, Saddle for PVC pipe, Universal saddle with SS band., Flange adaptor and coupling for PE/PVC pipe, dismantling joint, repair clamp, expansion joint etc. All of them are according to EN545/ISO2531/AWWA and PN10/PN16/PN25/PN40/ANSI B16.5 Class 125/150
3, Ductile iron valves, include but not limit to gate valve, check valve, angle valve, air release valve, hydraulic control valve etc.
For surface treatment, beside Epoxy Resin power coated, Nylon coated also available.
Our market: Europe, USA, Middle-east, Africa and South-America.
5; Our capacity: 500tons/month.
We are most professional supplier in China for ductile iron pipe joint(coupling, flange adaptor, dismantling joint, gibault joint, saddle clamp, repair clamp etc) and OEM pipe joint, and we are the only one who produce them on auto production line in China. Then our price is much lower and quality is better for higher pressure. And surface is more smooth and beautiful.
Welcome all clients come to check our foundry, we will do our best to support.
