Flange Gate Valve
| Price: |
US $ 1-100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
DN40 to DN1200 |
| Seal Pressure Test: |
1.1 Times of The Pn |
| Shell Pressure Test: |
1.5 Times of The Pn |
| Body And Bonnet Material: |
En Gjs500-7 |
| Stem: |
2Cr13 |
| Seal: |
Resilient Seated,Metal Seated(Ss or Brass) |
| Connection Form: |
Flange |
| Seal Surface: |
Parallel Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Water Industrial Usage |
| Material: |
Ductile Iron |
| Standard: |
DIN3352 F4/F5;BS5163;Awwac509/C515 |
Product Description
Product Description

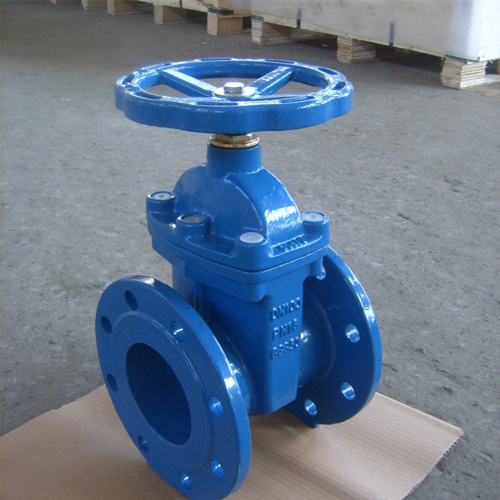

Flange gate valve
Features:
Standard:EN1074-2;DIN3352 F4/F5;BS5163;AWWAC509/C515;BS5150;SABS664/665
Face to Face:DIN3202;EN558
Flange BS4504;EN1092-2;DIN;GB;ANSIB16.5
Stem:NRS/OS&Y
Seat:Resilient seated;metal seated(ss or brass)
WRAS approved valves are available
Bypass valves are available
Materials of parts:
| Sr No. | Name | Material |
| 1 | Body | Ductile Iron |
| 2 | Wedge Cap | EPDM or NBR |
| 3 | Wedge | Ductile Iron |
| 4 | Stem Nut | Brass/Bronze |
| 5 | Stem | SS420/SS304 |
| 6 | Bonnet | Ductile Iron |
| 7 | Gland | Brass |
| 8 | Handwheel | Ductile Iron |
Dimensions data:
Dimension is based on PN16
| DN | L | H | W | O | C | g | f | T | n-d |
| F4 | F5 | BS5163/665 | BS5150/664 | | | | | | | | |
| 40 | 140 | 240 | 165 | | 184 | 160 | 150 | 100 | 84 | 3 | 18 | 4-19 |
| 50 | 150 | 250 | 178 | 216 | 195 | 160 | 165 | 125 | 99 | 3 | 19 | 4-19 |
| 65 | 170 | 270 | 190 | | 222 | 200 | 185 | 145 | 119 | 3 | 19 | 4-19 |
| 80 | 180 | 280 | 203 | 229 | 251 | 200 | 200 | 160 | 133 | 3 | 19 | 8-19 |
| 100 | 190 | 300 | 229 | 254 | 282 | 200 | 220 | 180 | 154 | 3 | 19 | 8-19 |
| 125 | 200 | 325 | 254 | | 340 | 250 | 250 | 210 | 184 | 3 | 19 | 8-19 |
| 150 | 210 | 350 | 267 | 280 | 379 | 250 | 285 | 240 | 210 | 3 | 19 | 8-23 |
| 200 | 230 | 400 | 292 | 317 | 461 | 320 | 340 | 295 | 265 | 3 | 20 | 12-23 |
| 250 | 250 | 450 | 330 | 356 | 559 | 370 | 405 | 355 | 319 | 3 | 22 | 12-28 |
| 300 | 270 | 500 | 356 | 380 | 639 | 370 | 460 | 410 | 370 | 4 | 24.5 | 12-28 |
| 350 | 290 | 550 | 381 | 470 | 762 | 450 | 520 | 470 | 429 | 4 | 26.5 | 16-28 |
| 400 | 310 | 600 | 406 | 470 | 836 | 450 | 580 | 525 | 480 | 4 | 28 | 16-31 |
| 450 | 330 | 650 | 432 | 485 | 957 | 640 | 640 | 585 | 548 | 4 | 30 | 20-31 |
| 500 | 350 | 700 | 457 | 510 | 1036 | 640 | 715 | 650 | 609 | 4 | 31.5 | 20-34 |
| 600 | 390 | 800 | 508 | 600 | 1188 | 640 | 840 | 770 | 720 | 5 | 36 | 20-37 |
Our EN1074-2 valve test as below for your reference
2500times opening/closing cycle test
Bend test
Our flange gate valve include
NRS resilient seated gate valve
metal seated os&y gate valve
AWWA C509/C515 gate valve
Our company, Qingdao Judibode trading CO. Ltd. Is a large and professional manufacturing company.
Our main products are as below:
1, Ductile iron pipe fitting according to EN545/ISO2531/ANSI AWWA C110/153 from DN50 to DN2000
2, Ductile iron pipe joint, include but not limited to Universal couplings, universal flange adaptor, Gibault joint for PVC pipe, Quick flange adaptor for PVC/PE pipe, Saddle for PVC pipe, Universal saddle with SS band., Flange adaptor and coupling for PE/PVC pipe, dismantling joint, repair clamp, expansion joint etc. All of them are according to EN545/ISO2531/AWWA and PN10/PN16/PN25/PN40/ANSI B16.5 Class 125/150
3, Ductile iron valves, include but not limit to gate valve, check valve, angle valve, air release valve, hydraulic control valve etc.
For surface treatment, beside Epoxy Resin power coated, Nylon coated also available.
Our market: Europe, USA, Middle-east, Africa and South-America.
5; Our capacity: 500tons/month.
We are most professional supplier in China for ductile iron pipe joint(coupling, flange adaptor, dismantling joint, gibault joint, saddle clamp, repair clamp etc) and OEM pipe joint, and we are the only one who produce them on auto production line in China. Then our price is much lower and quality is better for higher pressure. And surface is more smooth and beautiful.
Welcome all clients come to check our foundry, we will do our best to support.
