| Prod Model: |
XGQT5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1-12"in |
| Technics: |
Casting |
| Tensile Strength: |
Min.65, 000(MPa-448) |
| Yield Strength: |
Min.45, 000(MPa-310) |
| Elongation: |
Min.12% |
| Gasket: |
EPDM/Nitril/Silicone |
| Bolts & Nuts: |
Epoxy Powder/Galvanized/Paiting |
| Flexible Or Rigid: |
Flexible |
| Standard: |
Standard |
| Connection: |
Fixed and Assembled by Rubber and Bolts |
| Structure: |
Grooved |
| Material: |
Ductile Iron |
Product Description

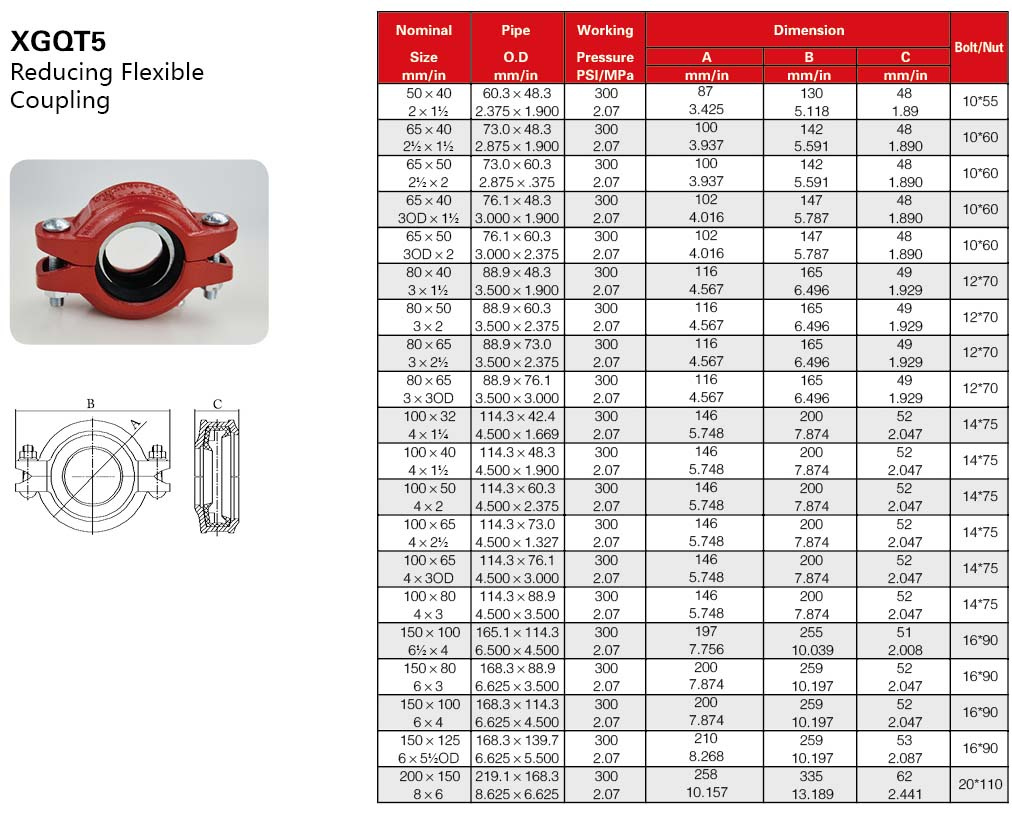

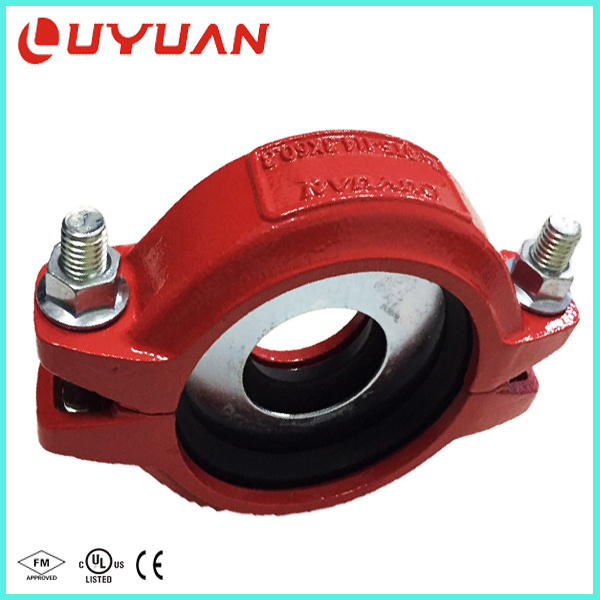

| Name | Reducing Flexible Coupling |
| Material | Ductile Iron (ASTM A536 Grade 65-45-12) |
| Gasket Material | EPDM |
| Surface Treatment | Epoxy-(Red)RAL3000, Epoxy-Orange,Epoxy powder painting,Hot Galvanized, |
| Size | 2*1-1/2 inch -8*6 inch |
| Working Pressure | 2.5Mpa |
| Cerification | ISO 9001:2008,FM,UL,CCC and CE approved |
| Connect End Type | Grooved end ,Thread end |
| Technology | Casting |
| Bolts and Nuts | ISO 898-1 Class8.8 |
| Payment | by T/T,L/C |
| Packaging | In poly wooden case,or in carton on the poly wooden pallets,we can pack products as per custmon's requirement. |
| Delivery detail | normally within 15days,depending on order quantity. |
| Structure type | Coupling(Rigid, Flexible), Flange Adapter, Reducer(Concentric /Eccentric), Elbow(90°/45°/22.5°/11.25°), Tee(Equal/Reducing), Cross(Equal/Reducing), Cap, Mechanical Tee(Grooved /Thread), Mechanical Cross (Grooved /Thread)etc. |
Our Services
1 FM approval, UL and CE certification
2 We are a manufacturer with more than 10 years producing experience of grooved pipe fittings and
couplings.
3 DISA Automatic Casting Line---Imported from Denmark.
4 Sample acceptable
5 Competitive price for world market.
Bolts and Nuts
Heat treated and electro galvanized bolts with oval neck, and heavy duty hexagon nuts.
Track head meet to the physical and chemical requirements of ASTM A-449 and physical requirements of ASTM A-183.
Rubber Gasket
| Material Composition | Applocable Temperature | Application Scops |
EPDM |
34ºC- +150 ºC | Cold and hot water |
| non-oil gas |
| diluted acid,alkaline salt |
| multichemicals(free ofhydrocarbon) |
| Oil-like mediums are forbidden |
Silicon rubber |
-40ºC-+177ºC | Drinking water,hot water, |
| high-temperature air ,some high-temperature chemicals |
| Oil-like mediums are forbidden. |
Nitrile rubber |
-29ºC-+82ºC | Oil,Oil-gas,mineral oil, |
| vegetable oil,hot water, |
| water with temperature of |
| not than 65ºC are forbidden |
Notes: 1.Gasket rings of different materials will be used for different liquid mediums.
2.Products can be supplied as per Customers requirments. |
FAQ
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 20-30days.
3.What is the shipping port?
We ship the goods via Qingdao port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How about the samples?
We could send you the free samples but transport fee shoule be paid by you.
We sincerely welcome you to visit our factory.Any inquiry,feel free to contact us pls.
Weifang Xinshun Casting Co., Ltd established in 2005, located on Weifang City- The world kite capital, Shandong Province, China.
Our company is a large-scale manufacturer specialized in production of Ductile iron Grooved couplings and fittings for over 12 years, There are 450 employees in our factory, including 185 skilled workers, 10 senior engineers, 6 mold developments staffs and 12 quality inspectors. The annual capacity is over 50000 Tons. Our company has professional R&D team, Sales team and After-sales service team to meet all needs of customers.

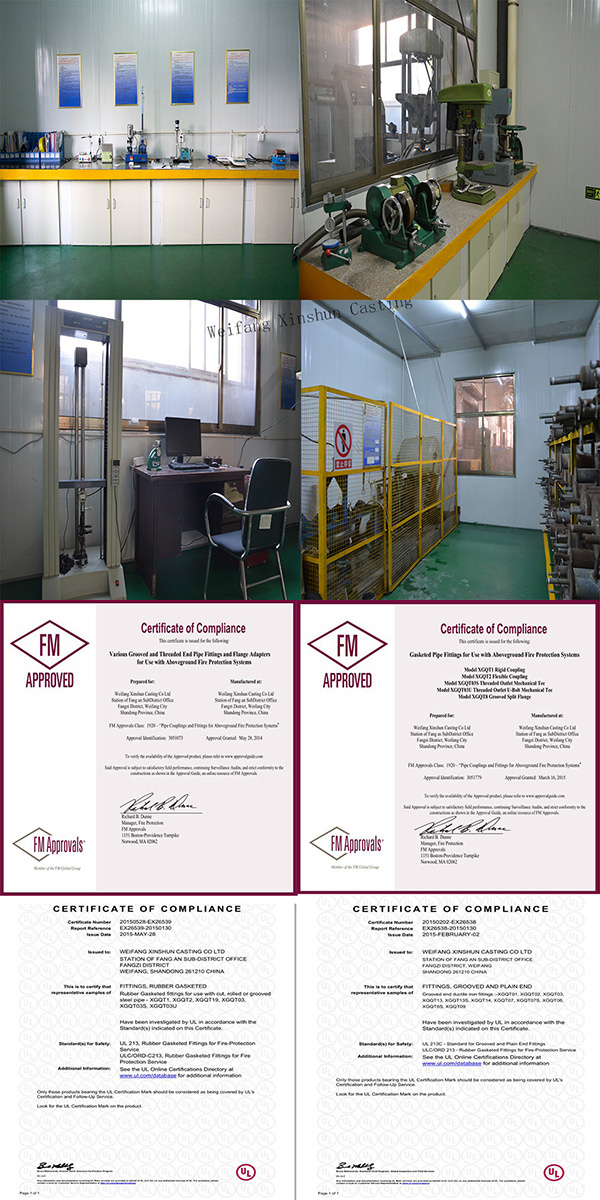

Our company has been passed ISO9001: 2008 quality system and our grooved couplings and fittings have been approved by CCC of China, FM and UL of American, and European Union CE certificate, Products are on sale over 300 cities of China and exported to the United State, Canada, Mexico, Columbia, Chile, Peru, Brazil, Panama, Spain, Saudi Arabia, Turkey, Korea, South Africa etc. More than 20 countries and areas. Our "LUYUAN" brand has been becoming the well-known brand in China, enjoying high reputation among the customers for its excellent quality, competitive prices and professional service.

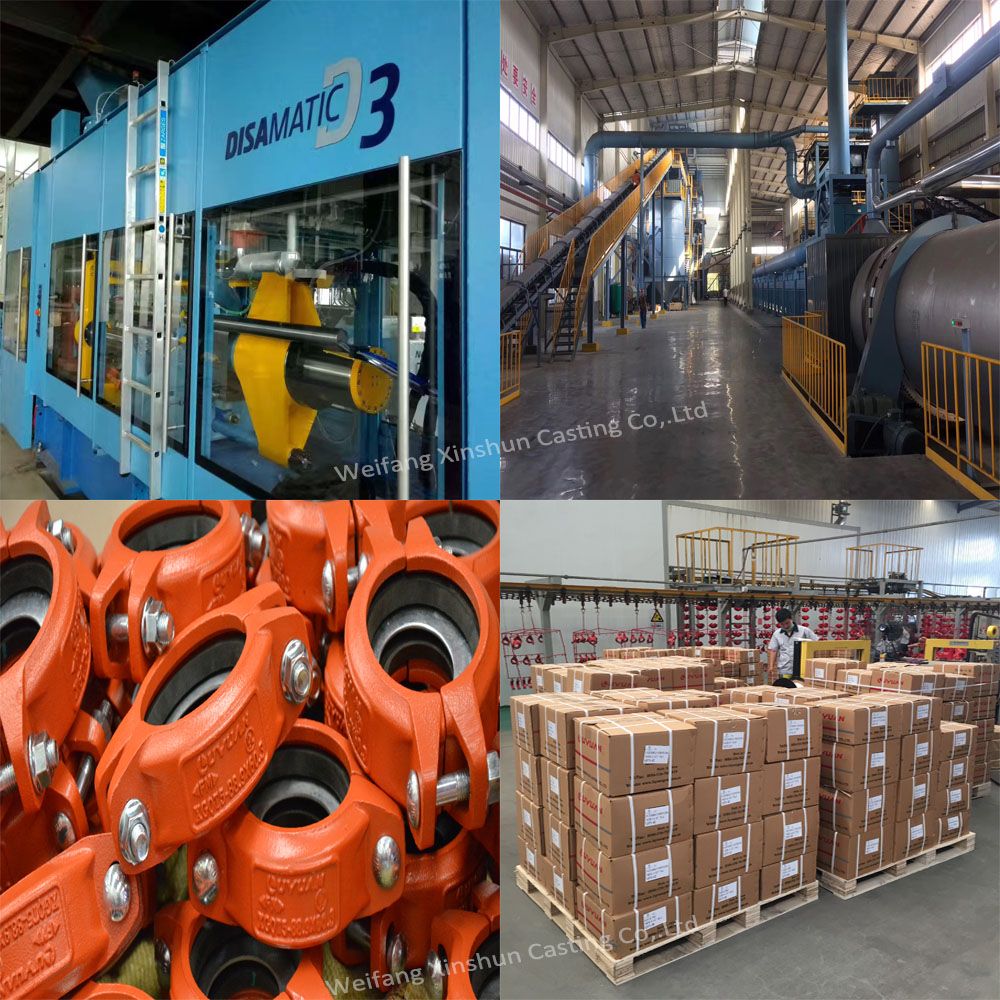

There are three automatic casting production lines in our factory, One new DISA molding line imported from Denmark is under construction, the production process use fully automatic intelligent control system. We have CNC lathe, Mold machining center, Automatic coating and packaging line and so on. We also have a very professional laboratory with full series of testing and inspection, such as hydrostatic strength testing, raw material receiving inspection, batch chemical composition inspection, microstructure testing, dimension inspection, first article inspection, in- process inspection and final visual inspection in order to ensure the product quality.
With mature and advance technology, quality product, prudent working style, we believe we will be your best supplier!
