| Prod Model: |
TR2643 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Rubber Recycling Machine |
| Material Processed: |
Rubber |
| Automation: |
Automatic |
| Knife Type: |
Piece Knife Crusher |
| Screw: |
Multi-Screw |
| HP/Kw: |
315kw |
| Capacity: |
3-6t/Hr |
| Number Of Motors: |
1 |
| Cutting Chamber L*W: |
697*1562 |
| Equipment Weight: |
24000kg |
| Certification: |
GMA, QS, UL, FDA, SGS |
| Voltage: |
as Per Customer Request |
Product Description
Welcome to Dura-shred company and thank you for your interests in the products Dura-shred hot sale power tool for waste tire(TR2643).
About Dura-shred. Who are we?
Dura-Shred has been focusing on designing and manufacturing equipment for the recycling industry since 2001 and is emerging as a leader in providing cost effective turnkey tire recycling systems. Our main focus is to provide custom designed tire recycling systems that deliver optimum production for a variety of applications such as TDF (Tire Derived Fuel), rubber mulch, and crumb rubber.
About our products. What are we produce?
We provide our customers with cost effective turnkey recycling equipment. Including TDF plant, rubber mulch plant, rubber crumb plant and rubber powder plant. Beside the plant, we also provide our customers with high quality low price single machines, including Double shaft shredder, Grater(Rasper), Granulator and Miller. For more information, please visit our website;www.dura-shred.cn or: http://dura-shred.en.alibaba.com. Followings are some brief introduction of our main machines:
Double Shaft Shredder-to make 25-152mm rubber chips.
Dura-Shred's Double shaft shredders are designed with an aggressive low RPM, high torque shredding technology. As the primary shredder it quickly and easily shreds tires into rubber strips ready for further processing. The input can be car tires, truck tires and OTR tires.
Grater(Rasper)-to make 12-25mm wire free rubber mulch
Dura-shred's Rasper is made for mid-stream grinding and steel separation. With unique single shaft design, it can separate the steel in the rubber and produce rubber mulch with the capacity of 3-6t/h.
Granulators-to make 1-6mm fiber free rubber crumb
Dura-shred's Granulators are designed to grind the rubber mulch from the Rasper into small granules as fine as 10 mesh. The granules are screened and re-circulated until the desired size is reached.
Miller-to make 30-120mesh rubber powder
Dura -shred's millers are designed to mill the granules of 1-6mm to 30-120mesh. The final size is determined by adjustable centrifugal screen. The final products can be widely used in rubber products like rubber asphalt pavement, color composite and rubber floor tiles.
About the operation. How many people will need and how to control this whole system?
Dura -shred's waste tire recycling system is totally automatic. We adopt Siemens PLC with Schneider spare parts in it. Meanwhile, a whole plant-from waste tire to powder, roughly 9 people are needed:1 Plant Manager, 6 Operators per shift and 2 Maintenance Technicians per shift.
About our factory, where are we?
Our production plant is located in Wuxi, China, with headquarters in Shanghai, China. We have a modernized factory with an experienced professional work force. Our management team comprises of multi-culture and bi-lingual professionals fluent in English, Spanish, and Mandarin Chinese. Dura-Shred has a turnkey service that allows us to export to all major international ports.
About cooperation, if I were a trader, how can I cooperate with Dura-shred?
Dura-Shred's promises that we will cooperate with our partners no matter you are a trader or factory, no matter where you are from. What we will do is to provide you with advance technology and high quality products. Besides, by cooperating with Dura- shred, you will benefit as following:
1. You can get one complete line at the lowest price.
2. You do not need to worry about anything such as installation, debugging, worker training and maintenance etc.
3. Your tire shredding plant will be a show plant.
4. As we all known, China's market is a big cake. Through the cooperation, we can help you to sell the final product.
My connections: Mr.Charles Huang
Cel: 0086-180-7014-8921
Tel: 0086-021-5171-9519
Fax: 0086-021-6085-3579
E-mail: [email protected]
Skype:Charles Dura
| TR2663 | TR2147 | TR1740 | TR1732 | TR1332 | TR1324 |
| Motor Specifications | Electric | Electric | Electric | Electric | Electric | Electric |
| Number of Motors | 1 | 1 | 1 | 1 | 1 | 1 |
| HP | 315KW | 132KW | 90KW | 75KW | 55KW | 45KW |
| Voltage | as per customer request | as per customer request | as per customer request | as per customer request | as per customer request | as per customer request |
| Cutting Chamber LxW | 697x1562 | 742x1200 | 550x1000 | 550x800 | 450x800 | 450x600 |
| Equipment Dimensions | 6217x2168x3561 | 1412x902x1410 | 1182x700x1255 | 1995x1980x4105 | 1720x1730x2316 | 1400x1200x2260 |
| Equipment Weight | 24000kg | 6100kg | 4200kg | 3500kg | 1850kg | 1700kg |
| Hopper Opening LxWxH | 1726x877x906 | 1412x902x1410 | 1182x700x1255 | 982x700x1255 | 922x580x916 | 722x580x916 |
| Capacity | 3-6t/h | 1.5-3t/h | 1-1.5t/h | 700-1000kg/h | 500-700kg/h | 300-500kg/h |
| Product Size Range | 12mm-25mm | 12mm-25mm | 12mm-25mm | 12mm-25mm | 12mm-25mm | 12mm-25mm |
Any other requirements or questions about our Dura-shred hot sale power tool for waste tire(TR2643),be free to contact me!
Dura-Shred has been designing and manufacturing equipment for the recycling industry since 2001 and is emerging as a leader in providing cost effective turnkey tire recycling systems. Our main focus is to provide custom designed tire recycling systems that deliver optimum production for a variety of applications such as TDF (Tire Derived Fuel), rubber mulch, and crumb rubber. We have manufactured and installed recycling systems in countries all over the world, including the US, Mexico, Poland, South America, South Africa, and Kazakhstan etc. These systems are specifically designed and tailored to fit the diverse needs of our global customers.
Our production plant is located in Wuxi, China with headquarters in Shanghai, China. We have a modernized factory with an experienced professional work force. Our management team comprises of multi-culture and bi-lingual professionals fluent in English, Spanish, and Mandarin Chinese. Dura-Shred has a turnkey service that allows us to export to all major international ports.
Dura-Shred's mission is to provide our customers with cost effective turnkey recycling equipment. We accomplished this by establishing our own production and assembly facility in China using proven American and European tire shredding technologies.
Advantage of the System
Exclusive Control System - Controls and operates the entire plant from its centrally located position and provides instant visibility to what each machine is doing in real time.
Unique Stop/Auto Reversal Feature - Protects against overfeeding and damage by non-processable items.
Premier Full Turn Key Systems - Plant is manufactured, shipped, installed and ready to start recycling.
Warranty - one of the best warrantees in the industry.
Dura-shred main equipments:
Double Shaft Shredder
Dura-Shred's two shaft shredders are designed with an aggressive low RPM, high torque shredding technology. The shredder blade thickness ranges from 25 mm to 152 mm (1"-6") depending on the type of tires, throughput, and desired end product. The biggest shredder can process OTR tires, large truck tires, and car tires at a rate of up to 20 tons per hour.

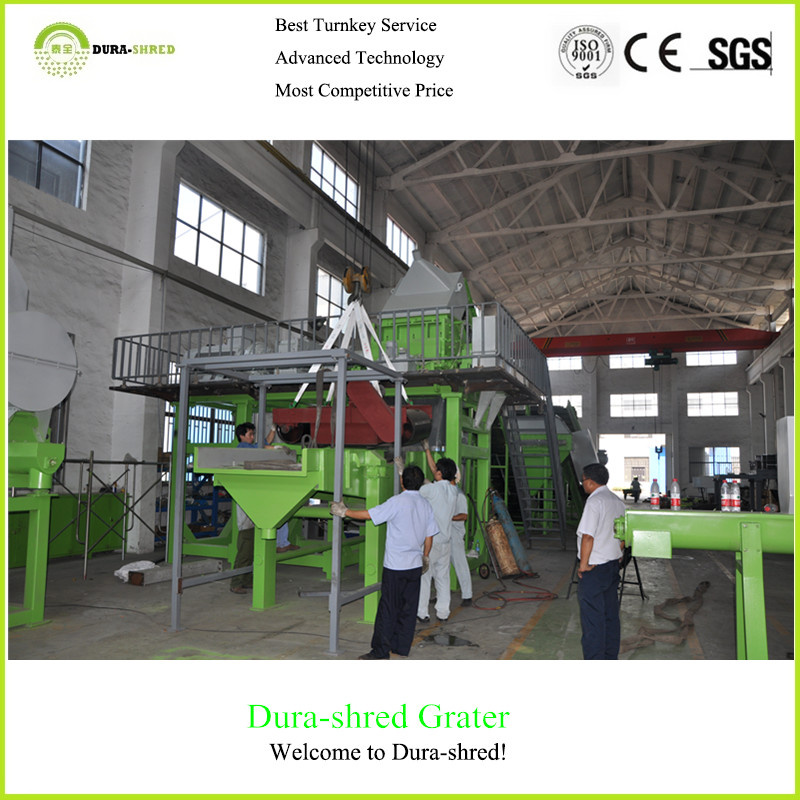

Grater
The Grater is the ultimate machine for MID-stream grinding and steel separation. It is specifically designed to take pre-shredded tires chips and produce between 10-30mm wire free rubber chip. The Grater and can process up to 6 tons of input per hour. The main rotor housing is equipped with replaceable wear plates to increase the durability and longevity of the cutting chamber. Another unique feature of this machine is the ability to turn the knives once before having to send them to be sharpened or replaced, minimizing operating costs.
Granulator
The Granulators are designed to grind the rubber mulch from the Grater into small granules as fine as 10 mesh. The granules are screened and re-circulated until the desired size is reached. Due to the design of the our granulator and precise alignment of the blades, this Granulator produces a very uniform cut, high quality granule. During the granulation process, 99% of the fiber is removed, leaving a contaminant free crumb rubber granulate ready to be further processed or sold.
Miller
Dura-shred's miller is designed for rubber material where a powdered products is required. Granules of size 1-8 is fed via feeder to the rotating high speed serrated disk to produce a powder product in the required 30-120mesh range and where the final size is determined by adjustable centrifugal screen.
Dura-shred is looking forward to cooperating with you!
