| Prod Model: |
QC12Y 6X6000 |
| Suitable For: |
Aluminum, Alloy, Carbon Steel, Stainless Steel |
Product Description
Product DescriptionProduct Application

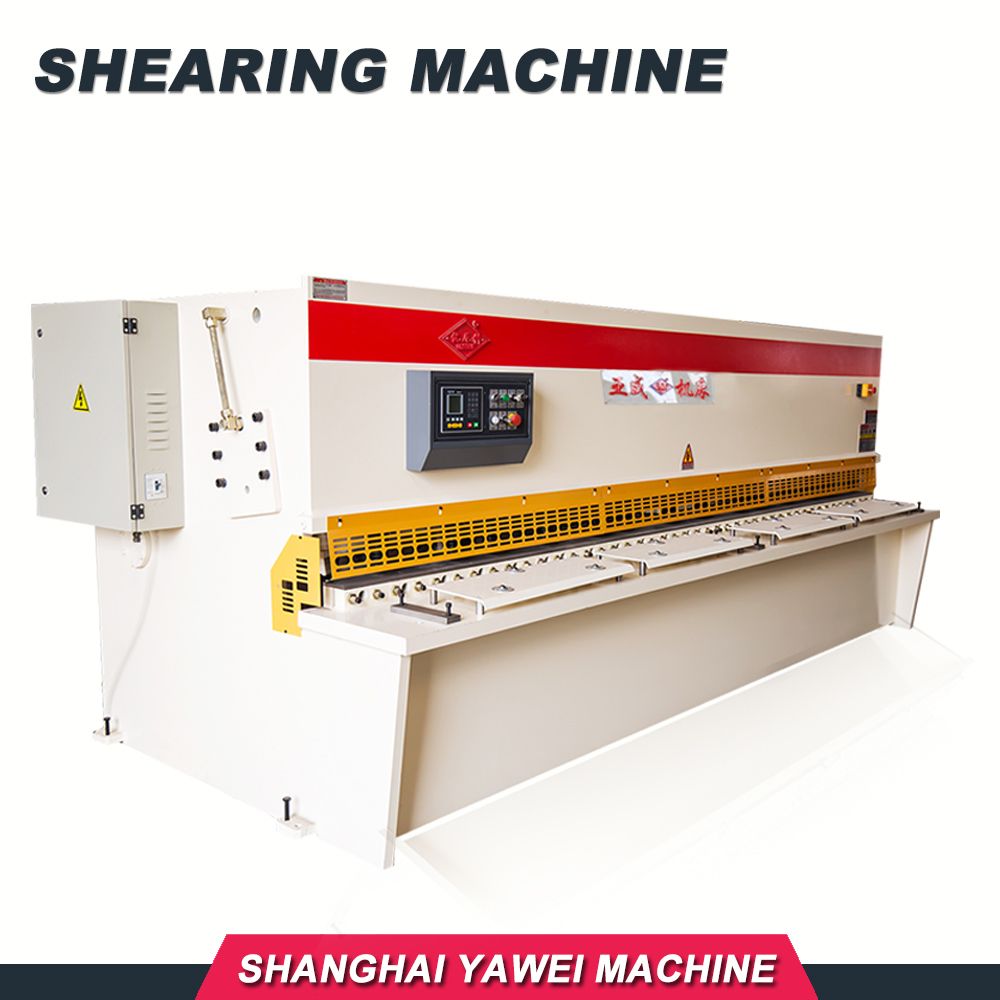

Shear machine Features
1.The QC12Y/K hydraulic guillotine shear machine is entirely welded and treated with fireplace tempering.
2.It adopts the hydraulic gearing and the energy accumulator for return stroke.
3.The rolling guide with three-point support facilitates to improve the cutting quality.
4.The rectangular balance comes with 4 usable balance angles and has a long service life.
5.The adjustment of blade angles complies with the indicator,fast and convenient.
6.A beam alignment device is configured,which also can adjust the stroke of upper tool post in stepless mode.
7.The fence-type safety protection device is adopted by the QC12Y/K hydraulic guillotine shearing machine.
8.The back gauge dimension and cutting times are available in digital display.
9.The cutting angle is adjustable.
10.The QC12Y ADOPTS Estun E21S system.
11.The QC12Y-CNC series is applicable for plate cutting due to its adoption of DELEM DAC41 /DAC41S CNC control
System by Netherlands.Its back gauge adopts imported ball screw and liner guideway.
Mould
/QC11Y(K) | Cutting type
/mm | Motor power
/kw | Throat depth
/mm | Slider stroke
/min | Shear angle
/° | L*W*H
/mm | The blade Length
/m |
| 6*2500 | 6*2500 | 7.5 | 500 | 15-25 | 0.5-1.5 | 2900*1600*1620 | 2600 |
| 6*3200 | 6*3200 | 7.5 | 500 | 13-22 | 0.5-1.5 | 3900*1520*2100 | 3300 |
| 6*4000 | 6*4000 | 7.5 | 500 | 8-15 | 0.5-1.5 | 4700*1770*2200 | 4100 |
| 8*2500 | 8*2500 | 7.5 | 500 | 14-24 | 0.5-2 | 3150*1580*2050 | 2600 |
| 8*3200 | 8*3200 | 7.5 | 500 | 12-21 | 0.5-2 | 3900*1700*2150 | 3300 |
| 8*4000 | 8*4000 | 7.5 | 500 | 8-14 | 0.5-2 | 4700*1840*2350 | 4100 |
| 10*2500 | 10*2500 | 11 | 500 | 12-24 | 0.5-2 | 3150*1670*2150 | 2600 |
| 10*3200 | 10*3200 | 11 | 500 | 10-18 | 0.5-2 | 3900*1730*2250 | 3300 |
| 10*4000 | 10*4000 | 18.5 | 750 | 7-12 | 0.5-2 | 4750*1900*2450 | 4100 |
| 12*2500 | 12*2500 | 18.5 | 750 | 10-18 | 0.5-2.5 | 3250*1800*2280 | 2600 |
| 12*3200 | 12*3200 | 18.5 | 750 | 9-18 | 0.5-2.5 | 3950*1870*2350 | 3300 |
| 12*4000 | 12*4000 | 18.5 | 750 | 7-12 | 0.5-2.5 | 4800*1970*2550 | 4100 |
| 16*2500 | 16*2500 | 18.5 | 750 | 9-16 | 0.5-2.5 | 3290*1890*2400 | 2600 |
| 16*3200 | 16*3200 | 18.5 | 750 | 8-13 | 0.5-2.5 | 3970*1920*2520 | 3300 |
| 16*4000 | 16*4000 | 22 | 750 | 9-12 | 0.5-2.5 | 4850*1890*2750 | 4100 |
| 20*2500 | 20*2500 | 30 | 750 | 8-16 | 0.5-2.5 | 3350*2050*2500 | 2600 |
| 20*3200 | 20*3200 | 30 | 750 | 5-14 | 0.5-2.5 | 4100*2080*2550 | 3300 |
| 20*4000 | 20*4000 | 30 | 750 | 5-12 | 0.5-3 | 4900*2200*2800 | 4100 |
| 25*2500 | 25*2500 | 37 | 900 | 6-14 | 0.5-3 | 3500*2150*2600 | 2600 |
| 25*3200 | 25*3200 | 37 | 900 | 5-11 | 0.5-3 | 4100*2150*2650 | 3300 |
| 25*4000 | 25*4000 | 37 | 900 | 5-10 | 0.5-3 | 4900*2280*2900 | 4100 |
| 30*2500 | 30*2500 | 45 | 900 | 5-11 | 0.5-3.5 | 3700*2570*3100 | 2600 |
| 30*3200 | 30*3200 | 45 | 900 | 5-9 | 0.5-3.5 | 4400*2800*3250 | 3300 |
| 30*4000 | 30*4000 | 55 | 900 | 4-9 | 0.5-3.5 | 5200*3000*3400 | 4100 |

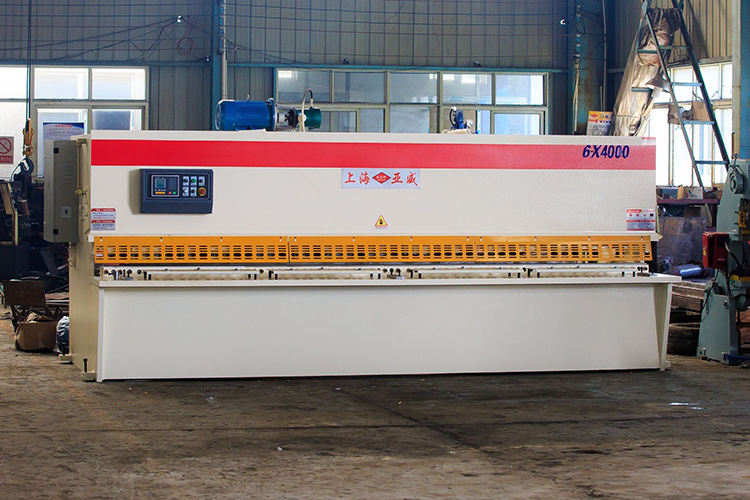

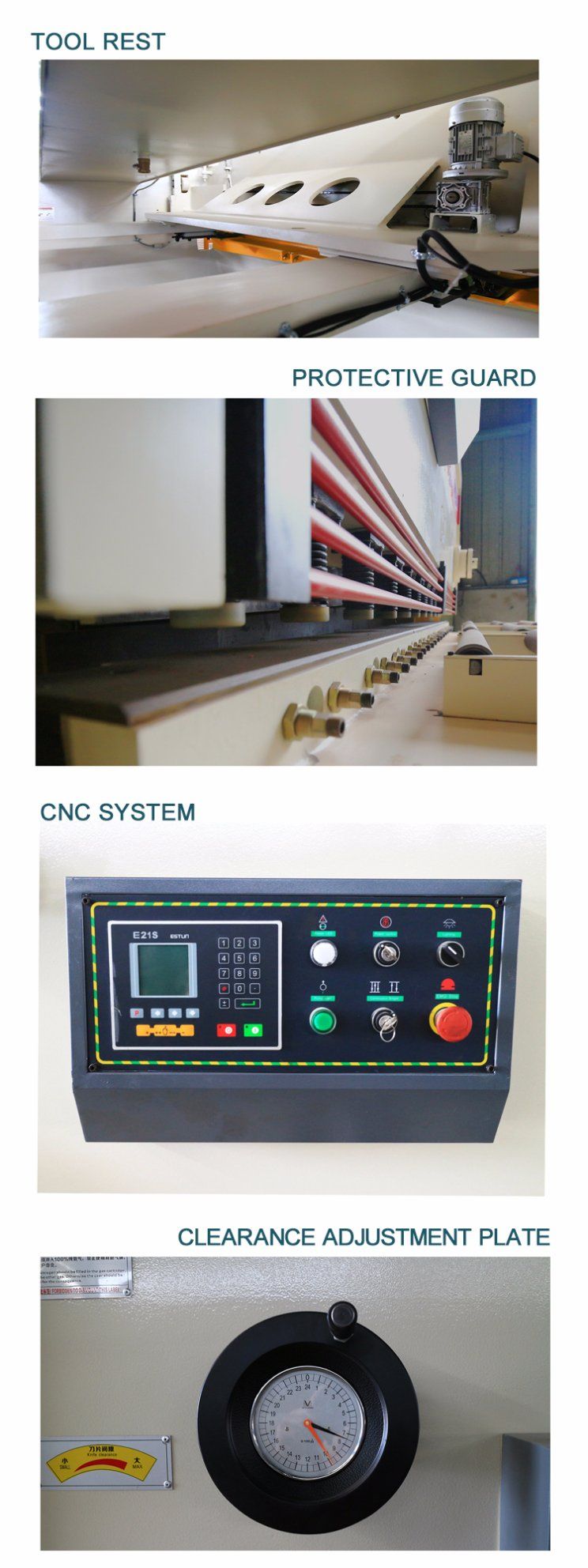

Detailed Image

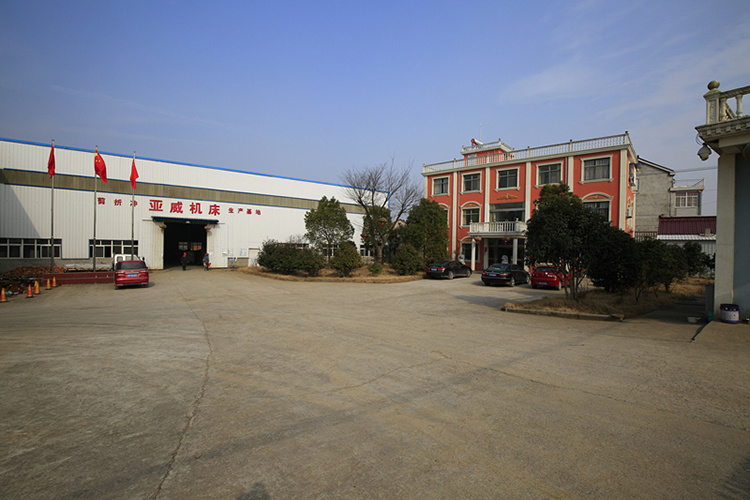

Our Company
Shanghai Yawei Machine tool manufacturing co., LTD(delta) is located in China Shanghai urban and rural integration
model 'of the' sample located in Jiading district of Shanghai,the gate-way machine for fusion to undertake international
industrial transfer and Shanghai Yangzi river delta has become a new trend in the regional cooperation,the machine tool
company choose promotion CCTV,China central television(CCTV)-1 unit,the Shanghai world expo exhibitors Anhui Huade
machine tool manufacturing CO.,LTD for cutting,folding ,punching machine production cooperative unit.OUR PRODUCT
The gateway machine tools specializing in the production of sales:QC12 series digital display, CNC hydraulic shearing
machine; QC11 digital display type shearing machine,CNC hydraulic gate;WC67 series digital display,CNC bending
machine and three ,five cylinder bending machine; Electro hydraulic Servo CNC Bending machine;Q35 series hydraulic
combined punching and shearing machine,W11S series roller plate bending rolls;J23 series.J 21 series open-style
press.Pipe bending machine and shearing machine blade,bending machine ,model and other products.
Yawei machine comprehensive advantage relying on the powerful production technology,advanced equipment and
advanced services strategy measures to implement the new system,new mechanism,new equipment,new technology
means of strategy,efforts to promote the development and progress of China's machine tool industry industry pioneer.
Yawei machine in line with "For products,by the sincerity"spirit of enterprise based on Shanghai,services across the
country,facing the world.Our work goal is to meet customer needs an dedication to provide users with high-quality products
and high-quality service,widely at home and abroad to make friends from all walks of life,hand in hand to cooperate,
altogether will create the glorious future of the new brilliance!
Our ServicePre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* To achieve and maintain excellence in quality and services and to strive for continuous improvement with a view to
ensure total customer satisfaction at competitive price
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Our guarantee time is 14 months from B/L Date ,If any component is damaged during guarantee time, we can send the
component to the customer By DHL,TNT freely .
* Our factory can send our engineer to the customer's factory install, commission and training freely .The customer
provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to
our factory to learn the operation and maintains freely.
* Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN,
Skype, Email and Telephone at any time, we provide 24 hours on-line service.
Packing & Delivery| Packaging |
| Size | 670(L) * 220(W) *2200(D)CM |
| Weight | 16T |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special req |
