Ee328167/Ee328269 Good Quality Taper Roller Bearing for Vehicle and High Pricision Machine

Name: Ee328167/Ee328269 Good Quality Taper Roller Bearing for Vehicle and High Pricision Machine
Brand: tool-buy.com
SKU: 817750835
Availability: InStock
Rating: 4.3 (140 reviews)

Price:	US $ 0.2/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Guan Xian Changming Bearing Co., Ltd.

Showroom Product Company Profile

Prod Model:	EE328167/EE328269
Noise Level:	Emq V1 Z2 Emq V2 Z3 Emq V3 Z4
Seals Type:	Z, RS, Zz, 2RS
Structure:	Deep Groove
Certification:	ISO9001:2000 SGS
Tolerance Level:	ABEC-1 (P0) ABEC-3 (P6)
Internal Clearance Codes:	C0,C2, C3, C4,
Lubrication:	Oil,Grease,Dry
Precision Rating:	P0,P6,P5,P4,P2
Noise Leve:	Z1,Z2,Z3,Z4
Type:	Taper Roller
Rolling Body:	Roller Bearings
The Number Of Rows:	Single
Outer Dimension:	Small and Medium-Sized (',60-115mm)
Material:	Bearing Steel
Load Direction:	Radial Bearing
Separated:	Unseparated

Product Description

Bearing Factory Ball Bearing Wheel Bearing Tapered Roller Bearing

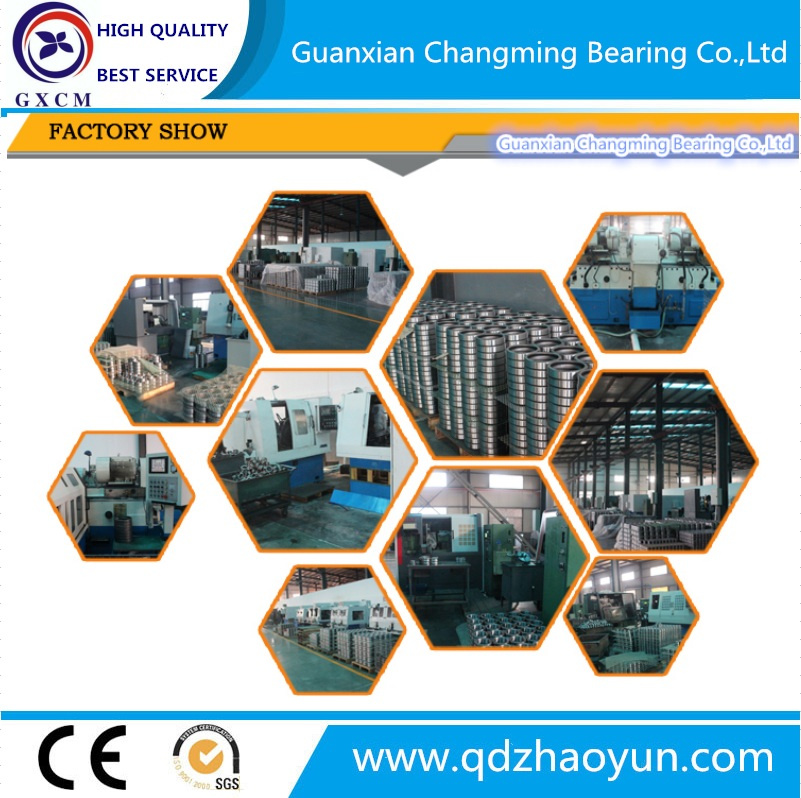

We are a factory specializing in manufacturing and exporting bearings. We could also manufacture products according to your special requirements, we will provide a more favorable price.
Taper roller bearing are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.

Taper roller bearing are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings.

Taper roller bearing are designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer.
Tapere roller bearing mainly carry radial, axial combined load with radial load in the main. The capacity of axial load carrying depends on the contact angle of outer ring's raceway. The bigger the contact angle is, the greater the capacity will be.

Taper roller bearing the angle between the outer raceway generatrix and line, the bearing can bearing heavy load and other Tapered Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.

Series models sp

tapered roller bearings

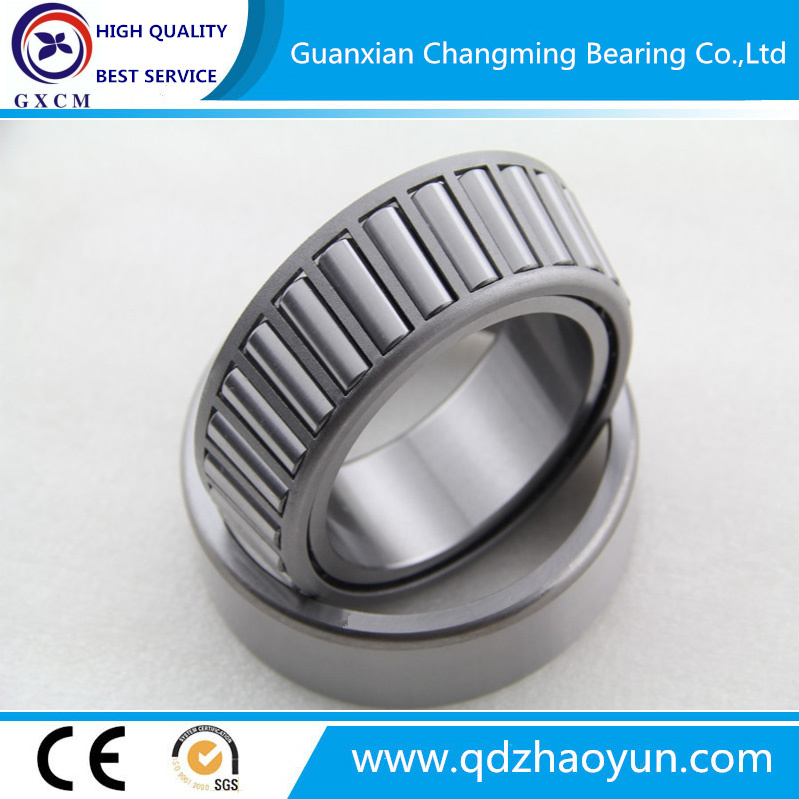

Single row tapered roller bearings are separable radial bearings:

Suitable for high radial loads and thrust loads (in one direction)
Take up tilting moments
When paired, can take up thrust loads in both directions
Standards: DIN 616, DIN 720
Series: 30200, 30300, 31300, 32000, 32200, 32300, 33000, 33100, 33200
Application examples: gear boxes, pumps, compressors, etc.

Type	d	D	T	B	C	R	r
30202	15	35	11.75	11	10	0.6	0.6
30203	17	40	13.25	12	11	1	1
30204	20	47	15.25	14	12	1	1
30205	25	52	16.25	15	13	1	1
30206	30	62	17.25	16	14	1	1
30207	35	72	18.25	17	15	1.5	1.5
30208	40	80	19.75	18	16	1.5	1.5
30209	45	85	20.75	19	16	1.5	1.5
30210	50	90	21.75	20	17	1.5	1.5
30211	55	100	22.75	21	18	2	1.5
30212	60	110	23.75	22	19	2	1.5
30213	65	120	24.25	23	20	2	1.5
30214	70	125	26.25	24	21	2	1.5
30215	75	130	27.25	25	22	2	1.5
30216	80	140	28.25	26	22	2.5	2
30217	85	150	30.5	28	24	2.5	2
30218	90	160	32.5	30	26	2.5	2
30219	95	170	34.5	32	27	3	2.5
30220	100	180	37	34	29	3	2.5
30302	15	42	14.25	13	11	1	1
30303	17	47	15.25	14	12	1	1
30303D	17	47	15.25	14	12	1	1
30304	20	52	16.25	15	13	1.5	1.5
30305	25	62	18.25	17	15	1.5	1.5
30306	30	72	20.75	19	16	1.5	1.5
30307	35	80	22.75	21	18	2	1.5
30308	40	90	25.25	23	20	2	1.5
30309	45	100	27.25	25	22	2	1.5
30309X2B	45	100	31.8	29	20.5	4	2.3
30310	50	110	29.25	27	23	2.5	2
30311	55	120	31.5	29	25	2.5	2
30312	60	130	33.5	31	26	3	2.5
30313	65	140	36	33	28	3	2.5
30314	70	150	38	35	30	3	2.5
30315	75	160	40	37	31	3	2.5
31305	25	62	18.25	17	13	1.5	1.5
31306	30	72	20.75	19	14	1.5	1.5
31307	35	80	22.75	21	15	2	1.5
31308	40	90	25.25	23	17	2	1.5
31309	45	100	27.25	25	18	2	1.5
31310	50	110	29.25	27	19	2.5	2
31311	55	120	31.5	29	21	2.5	2
31312	60	130	33.5	31	22	3	2.5
31313	65	140	36	33	23	3	2.5
31314	70	150	38	35	25	3	2.5
31315	75	160	40	37	26	3	2.5
31316	80	170	42.5	39	27	3	2.5
31317	85	180	44.5	41	28	4	3
31318	90	190	46.5	43	30	4	3
32205	25	52	19.25	18	15	1	1
32206	30	62	21.25	20	17	1	1
32207	35	72	24.25	23	19	1.5	1.5
32208	40	80	24.75	23	19	1.5	1.5
32209	45	85	24.75	23	19	1.5	1.5
32210	50	90	24.75	23	19	1.5	1.5
32211	55	100	26.75	25	21	2	1.5
32212	60	110	29.75	28	24	2	1.5
32213	65	120	32.75	31	27	2	1.5
32214	70	125	33.25	31	27	2	1.5
32215	75	130	33.25	31	27	2	1.5
32216	80	140	35.25	33	28	2.5	2
32217	85	150	38.5	36	30	2.5	2
32218	90	160	42.5	40	34	2.5	2
32219	95	170	45.5	43	37	3	2.5
32220	100	180	49	46	39	2	2.5
32221	105	190	53	50	43	3	2.5
32222	110	200	56	53	46	3.5	2
32303	17	47	20.25	19	16	1	1
32304	20	52	22.25	21	18	1.5	1.5
32305	25	62	25.25	24	20	1.5	1.5
32306	30	72	28.75	27	23	1.5	1.5
32307	35	80	32.75	31	25	2	1.5
32308	40	90	35.25	33	27	2	1.5
32309	45	100	38.25	36	30	2	1.5
32310	50	110	42.25	40	33	2.5	2
32311	55	120	45.5	43	35	2.5	2
32312	60	130	48.5	46	37	3	2.5
33205	25	52	22	22	18	1	1
33206	30	62	25	25	19.5	1	1
33207	35	72	28	28	22	1.5	1.5
33208	40	80	32	32	25	1.5	1.5
33209	45	85	32	32	25	1.5	1.5
33210	50	90	32	32	24.5	1.5	1.5
33211	55	100	35	35	27	2	1.5
33212	60	110	38	38	29	2	1.5
33213	65	120	41	41	32	2	15
33214	70	125	41	41	32	2	1.5
33215	75	130	41	41	32	2	1.5
33216	80	140	46	46	35	2.5	2

INCH SERIES

Cone Number	Cup Number	A(mm)	D(mm)	R(mm)	B(mm)	C(mm)	r(mm)	T(mm)
462	453	57.15	29.317	2.3	104.775	24.605	3.3	30.162
463	453	47.625	29.317	4.8	107.95	27	0.8	27.795
467	453	47.625	29.317	0.8	107.95	27	0.8	27.795
469	453	57.15	29.317	3.5	107.95	27	0.8	27.795
2776	2720	38.1	25.654	4.3	76.2	19.05	3.3	23.812
2777	2729	38.1	25.654	5.5	76.2	19.05	0.8	23.812
2780	2733	36.487	25.654	1.5	75.26	19.05	3.3	23.812
2788	2733	38.1	25.654	3.5	75.26	19.05	3.3	23.812
2793	2733	34.925	25.654	0.8	75.26	19.05	3.3	23.812
2794	2733	36.487	25.654	3.5	75.26	19.05	3.3	23.812
2796	2733	34.925	25.654	3.5	75.26	19.05	3.3	23.812
3775	3720	50.8	30.302	0.8	93.264	23.812	3.3	30.162
3780	3727	50.8	30.302	3.5	93.662	23.812	3.3	30.162
3781	3730	49.212	30.302	3.5	93.264	23.812	0.8	30.162
3781A	3730	48.412	30.302	3.5	93.264	23.812	0.8	30.162
3784	3730	50.8	30.302	6.4	93.264	23.812	0.8	30.162
3872	3820	34.925	30.162	3.5	85.725	23.812	3.3	30.162
3872A	3821	34.925	30.162	0.8	85.725	23.812	1.3	30.162
3878	3821	36.512	30.162	0.8	85.725	23.812	1.3	30.162
3878A	3821	36.512	30.162	3.5	85.725	23.812	1.3	30.162
3984	3920	66.675	30.048	3.5	112.712	23.812	3.3	30.162
3994	3925	66.675	30.048	5.5	112.712	23.812	0.8	30.162
7097	7204	25	14.26	1.5	51.994	12.7	1.3	15.011
7099	7196	25.273	14.26	1.5	50.005	9.525	1	27.046
7100	7196	25.4	14.26	1	50.005	9.525	1	27.046
9067	9195	19.05	19.05	1.3	49.225	14.288	1.3	19.845
9067	9194	19.05	19.05	1.3	49.225	17.462	3.5	23.02
9067	9196	19.05	19.05	1.3	49.225	17.462	1.5	23.02
LM11749	LM11710	17.462	14.605	1.3	39.878	10.668	1.3	13.843
LM11949	LM11910	19.05	16.637	1.3	45.237	12.065	1.3	15.494
12168	12303	42.862	17.145	1.5	76.992	11.908	1.5	17.462
12175	12303	44.45	17.145	1.5	76.992	11.908	1.5	17.462
M12648	M12610	22.225	18.288	1.3	50.005	13.97	1.3	17.526
M12649	M12610	21.43	18.288	1.3	50.005	13.97	1.3	17.526
LM12749	LM12710	22	16.637	1.3	45.237	12.065	1.3	15.494
LM12749	LM12711	22	16.637	1.3	46	12.065	1.3	15.494
18590	18520	41.275	17.462	3.5	73.025	12.7	1.5	16.667
24780	24720	41.275	23.02	3.5	76.2	17.462	0.8	22.225
26877	26820	36.512	25.4	0.8	81.167	20.683	1.5	25.4
26882	26823	41.275	25.4	3.5	76.2	20.683	1.5	25.4
27690	27620	83.345	29	3.5	125.412	19.845	1.5	25.4
28580	28521	50.8	25.4	3.5	92.075	18.845	0.8	24.608
28584	28521	52.388	25.4	3.5	92.075	19.845	0.8	24.608
28678	28622B	50.8	24.608	3.5	97.63	19.446	0.8	24.608
28680	28622B	55.562	24.608	3.5	97.63	19.446	0.8	24.608
28985	28920	60.325	25.4	3.5	101.6	19.845	3.3	25.4
29580	29520	60	25.4	3.5	107.95	19.05	3.3	25.4
29590	29521	66.675	25.4	3.5	110	19.05	1.3	25.4
29586	29522	63.5	25.4	1.5	107.95	19.05	0.8	25.4
29685	29620	73.025	25.4	3.5	112.712	19.05	3.3	25.4
33275	33462	69.85	30.162	3.5	117.475	23.812	3.3	30.162
33281	33472	71.438	30.162	3.5	120	23.444	0.8	29.794
33287	33472	73.025	30.162	3.5	120	23.444	0.8	29.794
L45449	L45410	29	14.732	3.5	50.292	10.668	1.3	14.224
LM67048	LM67010	31.75	16.764	SPEC	59.131	11.811	1.3	15.875
LM67049	LM67011	31.75	16.764	1.5	59.131	13.716	1.3	17.78
LM300849	LM300811	41	18	SPEC	68	13.5	1.5	17.5
HM518445	HM518410	88.9	39.688	6.4	152.4	30.162	3.3	39.688
HM801346	HM801310	38.1	28.575	0.8	82.55	23.02	3.3	29.37
HM801346X	HM801310	38.1	28.575	2.3	82.55	23.02	3.3	29.37
M802048	M802011	41.275	25.654	3.5	82.55	20.193	3.3	26.543
HM803146	HM803100	41.275	29.37	3.5	88.9	23.02	3.3	30.162
HM803149	HM803100	44.45	29.37	3.5	88.9	23.02	3.3	30.162
368	362	50.8	22.225	1.5	90	15.875	2	20
368A	362A	50.8	22.225	3.5	88.9	16.513	1.3	20.638
385	382	50	21.946	2.3	98.425	17.826	0.8	21
387A	382A	57.15	21.946	3.5	96.838	15.875	0.8	21
387AS	382(A)S	57.15	21.946	5	96.838	20.274	2.3	25.4
462	453X	57.15	29.317	2.3	104.775	24.605	3.3	30.162
575	572	76.2	36.098	3.5	139.992	28.575	3.3	36.512
580	572	82.55	36.098	3.5	139.992	28.575	3.3	36.512
595	592A	82.55	36.322	3.5	152.4	30.162	3.3	39.688
2580	2520	31.75	25.357	0.8	66.421	20.638	3.3	25.4
2582	2523	31.75	25.357	3.5	69.85	19.05	1.3	23.812
14124	14274	31.75	19.583	0.8	69.012	15.875	3.3	19.845
14125A	14276	31.75	19.583	3.5	69.012	15.875	1.3	19.845
14137A	14277	34.925	19.583	1.5	69.012	18.415	2.3	22.285
14138A	14277	34.925	19.583	3.5	69.012	18.415	2.3	22.285
15123	15243	31.75	19.05	SPEC	61.912	14.288	2	19.05
15123	15244	31.75	19.05	SPEC	62	15.875	1.3	20.638
15123	15245	31.75	19.05	SPEC	62	14.288	1.3	19.05
16137	16282	34.925	20.638	3.5	72	14.237	1.5	19
25570	25519	36.512	25.4	3.5	82.55	19.05	2	23.812
25572	25520	38.1	25.4	0.8	82.931	19.05	0.8	23.812
25580	25521	44.45	25.4	3.5	83.058	19.05	3.3	23.812
25581	25522	44.45	25.4	0.5	83.058	19.114	2	26.988
25582	25523	44.45	25.4	5	82.931	22.225	2.3	26.988
25584	25523	44.983	25.4	1.5	82.931	22.225	2.3	26.988
25590	25523	45.618	25.4	3.5	82.931	22.225	2.3	26.988
25877	25820	34.925	24.608	1.5	73.025	19.05	2.3	23.812
25878	25821	34.925	24.608	3.5	73.025	19.05	0.8	23.812
25880	25821	36.487	24.608	1.5	73.025	19.05	0.8	23.812
LM29748	LM29710	38.1	18.288	SPEC	65.088	13.91	1.3	18.034
LM29749	LM29710	38.1	18.288	2.3	65.088	13.91	1.3	18.034
L44643	L44610	25.4	14.732	1.3	50.292	10.688	1.3	14.224
L44649	L44610	26.988	14.732	3.5	50.292	10.688	1.3	14.224
LM48548	LM48510	34.925	18.288	SPEC	65.088	13.97	1.3	18.034
LM48549	LM48510	34.925	18.288	1.5	65.088	13.97	1.3	18.034
LM67047	LM67010	31.75	16.764	2.3	59.131	11.811	1.3	15.875
LM67048	LM67011	31.75	16.764	SPEC	59.131	13.716	1.3	17.78
LM67049	LM67011	31.75	16.764	1.5	59.131	13.716	1.3	17.78
LM67049A	LM67011	31.75	16.764	0.8	59.131	13.716	1.3	17.78
L68149	L68110	35	16.764	SPEC	59.131	11.938	1.3	15.875
L68149	L68111	35	16.764	SPEC	60	11.938	1.3	15.875
JL69349	JL69310	38	17	SPEC	63	13.5	1.3	17
M86649	M86610	30.162	21.433	1.5	64.292	16.67	1.5	21.443
M88047	M88010	33.338	22.225	5.5	68.262	17.462	1.5	22.225
M88048	M88011	33.338	22.225	0.8	68.262	17.462	2.3	22.225
M88048	M88012	33.338	22.225	0.8	68.262	17.462	0.8	22.225
HM88649	HM88610	34.925	25.4	2.3	72.233	19.842	2.3	25.4
HM88649A	HM88610A	34.925	25.4	3.5	72.233	19.842	0.8	25.4
LM102949	LM102910	45.242	19.812	3.5	73.431	15.748	0.8	19.558
LM102949	LM102911	45.242	19.812	3.5	73.431	17.62	0.8	21.443
LM104947A	JLM104910	50	22.225	0.5	82	17	0.5	21.976
LM104949	LM104911	50.8	22.225	3	82.55	16.51	1.3	21.59
JLM104948	LM104911	50	12.501	3.5	82.55	16.51	1.3	21.59
HM212047	HM212010	63.5	38.354	7	122.238	29.718	1.5	38.1
HM212049	HM212011	66.675	38.354	3.5	122.238	29.718	3.3	38.1
HM218248	HM218210	90	40	7	147	32.5	3.5	40
LM501349	LM501310	41.275	19.812	3.5	73.431	14.732	0.8	41.275
LM501349	LM501314	41.275	19.812	3.5	74.431	16.604	0.8	45.019
LM603049	LM603011	45.242	19.842	3.5	77.788	15.082	0.8	19.842
LM603049	LM603012	45.242	19.842	3.5	77.788	16.667	0.8	21.43
390	394	57.15	21.996	2.3	110	22	0.8	22
390A	394A	63.5	21.996	1.5	110	18.824	1.3	22
535	532X	44.45	36.957	3.5	107.95	28.575	3.3	36.512
535	532A	44.45	36.957	3.5	111.125	30.162	3.3	38.1
594A	592A	95.25	36.322	5	139.992	28.575	3.3	36.512
594R	592A	95.25	36.322	8	139.992	28.575	3.3	36.512
598A	593X	92.075	36.322	6.4	150	27	3	35.992
663	653	82.55	41.275	3.5	146.05	31.75	3.3	41.275
749	742	85.026	46.672	3.5	150.089	36.512	3.3	44.45
749A	742	82.55	46.672	3.5	150.089	36.512	3.3	44.45
799	792	128.588	67.625	3.3	206.375	34.925	3.3	47.625
1380	1328	22.225	20.168	1.5	52.388	14.288	1.5	23.178
1755	1729	22.225	19.837	1.3	56.896	15.875	0.8	19.386
1988	1922	28.575	19.355	3.5	57.15	15.875	1.5	19.845
3379	3320	34.925	30.391	3.5	80.167	23.812	3.3	29.37
3490	3420	38.1	29.771	3.5	79.375	23.812	3.3	29.37
3576	3520	41.275	30.886	0.8	84.138	23.812	3.3	30.162
3659	3620	23.812	30.416	2.3	61.912	23.812	3.3	28.575
3776	3720	44.983	30.302	3.5	93.264	23.812	3.3	30.162
3982	3920	63.5	30.048	3.5	112.712	23.812	3.3	30.162
A6075	A6157	19.05	11.153	1	39.992	9.525	1.3	12.014
9278	9220	68.262	46.038	3.5	161.925	31.75	3.3	49.212
3062	3162	15.875	14.681	1.3	41.275	11.112	2	14.288
9074	9195	19.05	21.539	1.5	49.225	14.288	1.3	19.845
9081	9196	20.625	21.539	1.5	49.225	17.462	1.5	23020
11162	11300	41.275	17.387	1.5	76.2	14.288	1.5	18.009
11590	11520	15.875	14.288	1.5	42.862	9.525	1.5	14.288
13686	13620	38.1	26.195	1.5	69.012	15.083	0.8	19.05
15100	15243	25.4	20.638	3.5	61.912	14.288	2	19.05
15101	15244	25.4	20.638	0.8	62	15.875	1.3	20.638
15103S	15245	26.162	19.939	0.8	62	14.288	1.3	19.05
15106	15245	26.988	20.638	0.8	62	14.288	1.3	19.05
15113	15245	28.575	20.638	0.8	62	14.288	1.3	19.05
15126	15250X	31.75	20.638	0.8	63.5	15.875	1.5	20.638
J15585	15250X	28	17.462	3.5	63.5	15.875	1.5	20.638
15590	15520	28.575	17.462	3.5	57.15	13.945	1.5	17.462
16137	16282	34.925	20.638	3.5	72	14.495	1.5	19
16150	16282	38.1	20.638	3.5	72	14.495	1.5	19
J16154	J16285	39	20.638	3.5	72.014	16.637	0.4	21.4
17887	17831	45.23	20.638	2	79.985	15.08	1.3	19.842
21075	21212	19.05	21.839	1.5	53.975	15.875	2.3	22.225
24780	24720	41.275	23.02	3.5	76.2	17.462	0.8	22.225
24780	24721	41.275	23.02	3.5	76.2	20.638	2.3	25.4

Regarding Taper Roller Bearing Application

1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.

2.Heavy-duty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.

3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc.

4.The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc.

5.Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.

6.Car: truck, road, bus, car, modified car, motorcycle ,etc.

PRODUCTION FLOW

CONTACT US

Guanxian Changming Bearing Co., Ltd is a manufacturer and trader which is specialized in the research, development and production of bearing, auto spare parts, gardening products.

We have been devoting ourselves to production of deep groove ball bearing, tapered roller bearing, spherical roller bearing, cylindrical roller bearing, flange bearing, stamping bearing and all kinds of auto spare parts and gardening products for over 30 years, to make sure we are professional and competitive in this product. "GXCM" is our registered trademark. We own the most advanced full-automatic production equipment, experienced production group and strict quality control system. Besides, our factory also regards the products R&D and Teamwork as the most important thing in enterprise's survival and development.

As a professional manufacturer, we are always looking for the long term business partner to establish win-win success. We insist on developing particularly according to customer's need to make sure we supply them with suitable and satisfying products. We believe that supports, understanding, loyalty is the only way to lead us to win-win success.

We would like to establish business relationship with customers all over the world. We will try our best to fulfill successful cooperation between us.
