| Prod Model: |
JCF1530L |
| Machine Name: |
CNC Router, Foam Router, Carving Machine, Engraver |
| Series: |
4 Axis |
| Application: |
Advertising, Decoration, Mold, 3D Scultures |
| Materials: |
Wood, Foam, MDF, Aluminum, PVC, Acrylic, Plastic |
| Milling Mode: |
Flat & Rotary |
| Flat Working Size: |
1500mm(X)*3000mm(Y)*500mm(Z)*180degree |
| Rotary Size: |
2500mm(Length)*1000mm(Diameter) |
| Title: |
Tool Change Electric CNC Carving Router for 3D Woo |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
BV, TUV |
Product Description

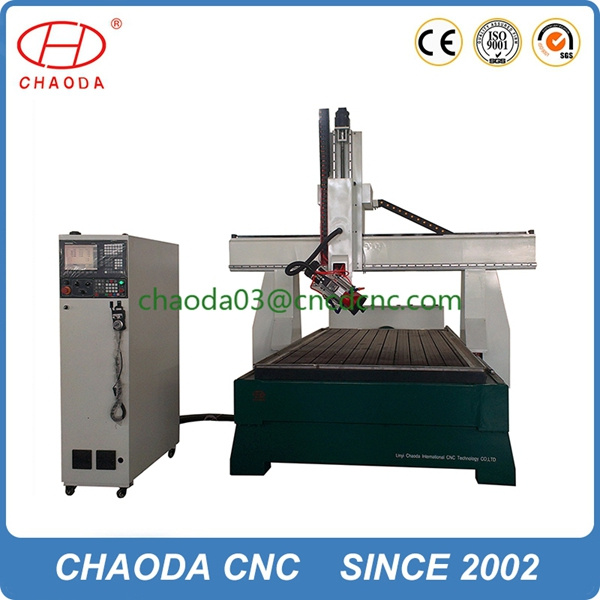

JCF1530L swing head 4 axis 3d carving equipment big rotary for sculpture engraving with ATC
our products include cnc router of 3 axis, 4 axis, 5 axis and 5+1 axis
as well as 3d scanner, hot wire foam cutter, laser machine and plasma cutting machine
we supply not only cnc machine!
we also supply best solution to your specific project !!
Model No.: JCF1530L
TECHNICAL PARAMETERS OF THIS MACHINE

| | SPECIFICATION | | 1 | X,Y,Z,working area | 1500*3000*500mm | | | Rotary working size | 1000mm diameter,2500mm length | | 2 | Lathe bed structure | T-extrusion,Thick Steel frame | | 3 | Table | Moving table,
table surface:T-slot with clamps | | 4 | X structure | Rack and pinion, Taiwan linear square rail | | 5 | Y structure | Rack and pinion, Taiwan linear square rail | | 6 | Z structure | Ball screw, Taiwan linear square rail | | 7 | Resolution | ±0.03mm | | 8 | Reposition accuracy | ±0.05mm | | 9 | Max. rapid | 0-55000mm/min | | 10 | Max. working speed | 0-28000mm/min | | 11 | Spindle power | 6kw air cooling spindle | | 12 | Spindle speed | 0-18000RPM | | 13 | Collet | ER32 | | 14 | Working mode | Japan YASKAWA servo motor and driver | | 15 | Operating system | Newest 4 axis NCstudio NK300 with handwheel | | 16 | Command code | G code(*uoo,*nc,*mmg, *plt) | | 17 | Running circumustance | Temperature: 0ºC~45ºC
relative humidity: 30%~75% |
| 18 | Working voltage | 3 phase AC380V 50HZ/60Hz | | 19 | Oil system | automatic | | 20 | Weight | 2150kg |
| | Spare parts | education CD,one set Tools,Wrenches,one set clamps,collets. | | Packing | standard wooden case or other | | Delivery time | 40-45 days | | Payment term | 50%T/T advance, 50% balance before shipment | | Warranty | main parts free charge for one year,offer lifetime online and phone service | | ▪ Application: | Foam,woods,MDF,Composite boards,PVC,plastics,Acrylic,Organic glass, Aluminum,
copper and other materials. |
Machine Features
multi-functional cnc router machine, with big rotary device for cylinder works, and also with a
removable table and rotating spindle for 2d and 3d flat working!
very suitable for processing large 3d sculptures, statues, deep wood, foam, plastic, wood mould works, also widely used for woodworking furnitures, large 3d statues, sculptures, figures, stage&
movie props, molds, prototyping, pattern design and so on!
Product Samples

FAQ
Question 1: I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine. If there is
still any question, we can talk through phone calling, whatsapp or Skype. Moreover, you could come to
our factory to learn how to use it before shipment. Our technician will give you professional guidance.
Question 2: How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us
what work you planning to do, our technician will recommend the most suitable machine for you.
Question 3: What is your service and ganrantee?
1. Technical supports and suggestions before you order a machine according to your work.
2. Professional instructions for the operation of the machine.
3. Offer one year warranty for the whole machine.
4. Our technician will supply lifetime technical support and problem solving by email, calling and video
conference.
Question 4: Do you supply training? what is the cost?
We supply training free of charge in our factory. When machine production finished, you can come to
inspect and test the machine by yourself, at the same time we will teach you how to use the software
and how to operate/maintain the machine until you satisfied.
If you are too busy to come, we will send detailed operation videos and English manuels for you study.
We will make sure you can operate this machine well and start your work as soon as possible!
Question 5: This machine not suitable for me, can i customize a specific one?
Yes, we can customize your machine to suit your specific needs!
Our experienced program techs can create new programs or modify your existing programs, work with
you on fixturing and tooling, create custom interfaces for your control and much more. Because we are
a professional manufacturer, we can easily modify and hone any part of the machine or control to fit your
exact need. Our ultimate goal is to provide the best solution possible with the lowest learning curve for
you. We'll stay by your side during each step of the way.
Question 6: Can you degrade/upgrade the machine configurations?
Yes, there are many optional parts and functions for your choosing, you can select our standard
configurations or degrade/upgrade them to fit your demand.
CHAODA Gallery:
workshop, our team, CE/BV/TUV/SGS certificates, clients, machines
for quick and accurate quotation, please kindly advise us the following details:
a) material and size of your product
b) sample picture for our reference please
we will recommend a suitable machine with best price according to your advice,
thanking you!! | |
| |
