Price Cutting Tools Styrofoam, Styrofoam Cutting Machine, Styrofoam Cutter
| Price: |
US $ 1000-48000set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
JCT1530L |
| Application: |
Foam,EPS Foam,Styrofoam,Polyethylene,Wood,Aluminum |
| X Axis: |
Rack and Pinion, Square Linear Guide Rail |
| Y Axis: |
Rack and Pinion, Square Linear Guide Rail |
| Z Axis: |
Ball Screw, Square Linear Guide Rail |
| Rotary Working Size: |
1000mm Diameter, 2500mm Length |
| Table: |
T-Slot with Clamps |
| Spindle Power: |
6kw or 9kw |
| Driving System: |
Japan Yaskawa Servo Motor and Driver |
| Control System: |
Ncstudio |
| Software: |
Powermill |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
BV, TUV |
Product Description
price cutting tools styrofoam , styrofoam cutting machine , styrofoam cutter it can process different kinds of small and big 3d sculptures statues,also can process plane materials !!

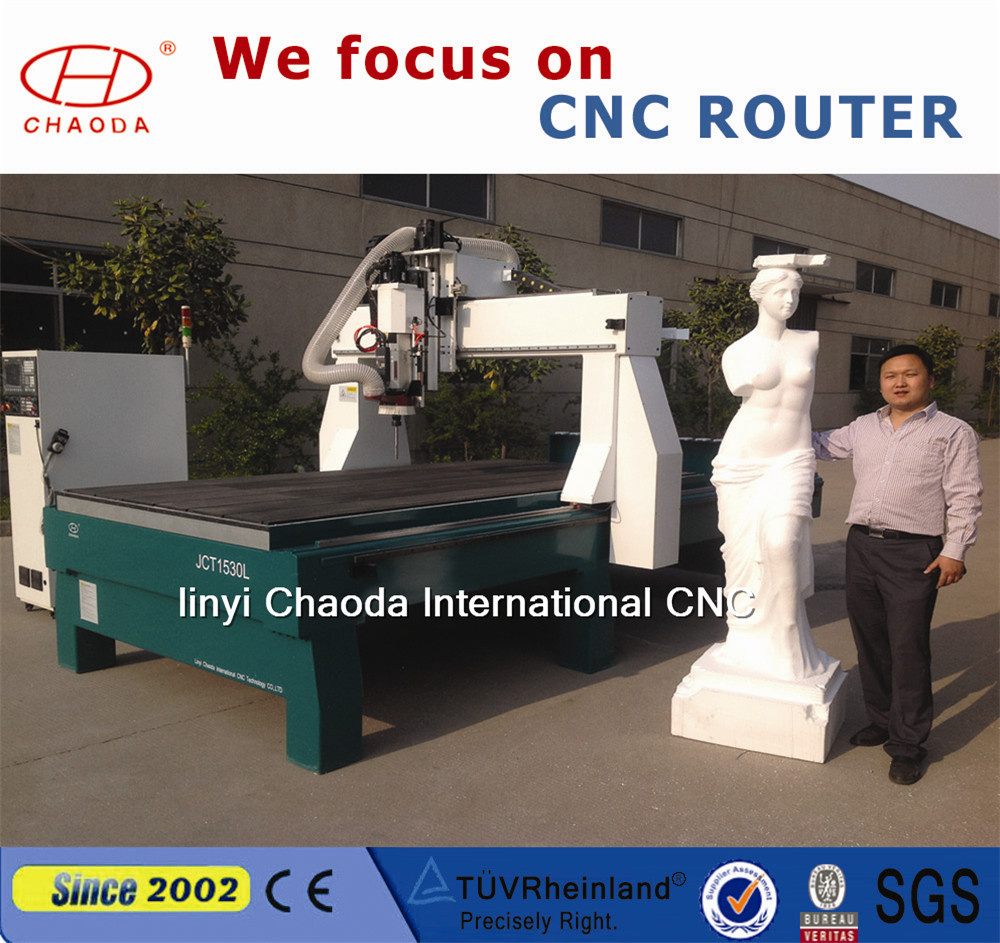

Model: JCT1530L
Applications:
all kinds of eps foam,styrofoam,polyethylene,woods,Composite boards PVC,plastics,Acrylic,Organic glass,Aluminum,copper and other materials.
1.decoration industry 2.advertising industry 3.mould industry 4.construction industry 5.craft industry
Techinical parameters: | 1 | Flat working size | 1500x3000x500mm |
| | Rotary working size | 1000mm diameter,2500mm length |
| 2 | lathe bed structure | T-extrusion thick steel frame |
| 3 | table surface | T-slot with clamps |
| 4 | X axis | rack and pinion, square linear guide rail |
| 5 | Y axis | rack and pinion, square linear guide rail |
| 6 | Z axis | ball screw, square linear guide rail |
| 7 | resolution | ±0.02mm |
| 8 | reposition accuracy | ±0.05mm |
| 9 | max.travelling speed | 0-60000mm/min |
| 10 | max.working speed | 0-30000mm/min |
| 11 | spindle power | 9kw air cooling (option: 6kw) |
| 12 | spindle speed | 0-24000mm/rpm |
| 13 | collet size | ER32 |
| 14 | tool magazine | linear type, 8 tools ability |
| 15 | working mode | Japan YASKAWA servo motor and driver |
| 16 | operating system | Ncstudio with handwheel |
| 17 | command code | G code |
| 18 | software | powermill |
| 19 | oil system | automatic |
| 20 | working voltage | 3 phase,AC380V,50/60Hz |
| 21 | weight | 2150kg |
Feature:

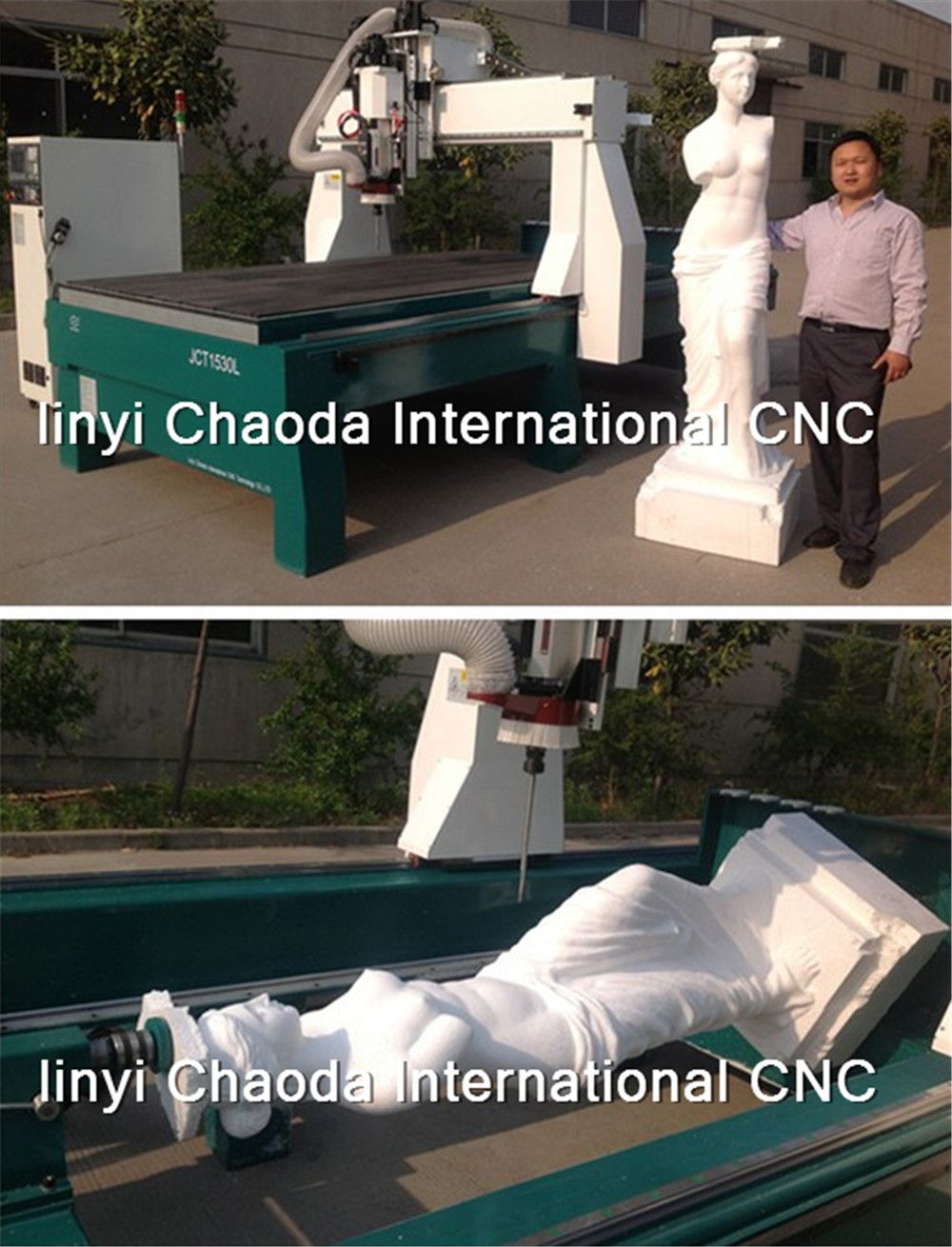

it is with a big Rotary device,can process different kinds of small and big 3d sculptures,statues,complex mould.
Sample pictures:

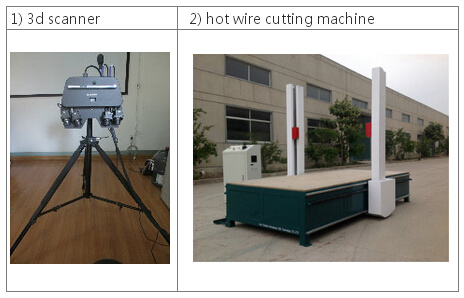

you may also interested in following machines:
Certificates:
Customer testing and free training:
contact us as below guide, we will give you our best price !!
A Factory You Can Trust:
Located in Linyi City, Shandong Province, Linyi CHAODA International CNC Technology Co., Ltd is a professional manufacturer of CNC Router Machine, Laser Engraving and Cutting Machine, Plasma Metal Cutting Machine, 3D Scanner, vacuum Forming Machine, etc.
Our factory was established in 2002 and covers 40000 Square meters.
We have experienced and professional engineers who devote themselves to machines' research, development, production, and after- sale service. Our machines have won praise from customers worldwide and with very good reputation in this field.
Quality and Safety:
We have implemented a strict and complete quality control system, which ensures that each machine can meet quality requirements of customers. Besides, all of our machines have been strictly inspected before shipment. Our machines have attained CE certificate with Quality Test report & BV certification.
Your satisfaction, Our eternal pursuit!
Our aim is to help customers realize their goals. We are making great efforts to achieve mutual benefit relationship and sincerely hope to cooperate with you!
