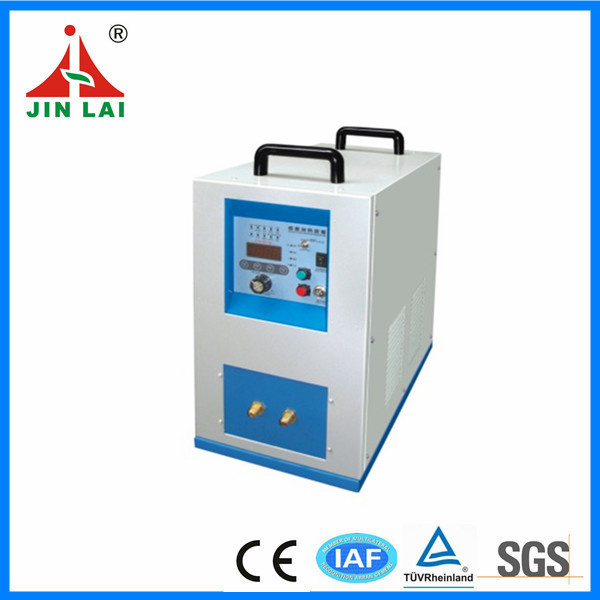

Electric Induction Brazing Machine for Welding Bore Bit (JLCG-10)
| Price: |
US $ 100-10000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
JLCG-10 |
| Certificate: |
ISO9001:2008, Ce, SGS, BV etc |
| Frequency: |
200-500kHz |
| Input Power Desire: |
3 Phase 380V 50/60Hz |
| Max Input Current: |
20A |
| Cooling Water Desire: |
>0.2MPa 2-6L/Min |
| Warranty: |
1 Year |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Heating Speed: |
1-2 Seconds |
| Working Theory: |
Electromagnetic Induction Heating |
| Feature: |
Portable, High Efficiency, Environmental |
| Current: |
Alternating Current |
| Type: |
Metal Welder |
| Model: |
Jlcg-10 |
| Application: |
Welding, Brazing, Soldering, Heating, Melting |
Product Description
Electric Induction Brazing Machine for Welding Bore Bit (JLCG-10)
Main Feature:
- Ultrahigh series: high frequency, able to heat Φ 0.1mm work-piece.
- Small size, light weight, low failure rate and conservation of energy. (which can save the power by 70% as compared with glass-ceramic vacuum tube high frequency heating machine)
- It can ensure the solid welding point which is pleasing and delicate in appearance, integral geometric configuration, perfect surface grain, complete crystal structure of internal metal part, limited annealing range and elimination of obvious weld knot.
- About ten types fault protection and display of over-current, over-voltage, water shortage and phase missing can provide higher reliability and durability.
- It is applied to the welding of coupler and inserts used in metal glass manufacturing as well as electric appliance and electronics industries, non-contact welding of internal parts of small-size relays, high-pressure refrigerating parts, headwear decorations, metal ornamental articles an art wares.
Technical Parameters: | Model | JLCG-10KW |
| Input power desire | 3 phase 380V 50/60HZ |
| Oscillate power max | 10KW |
| Max input current | 20A |
| Oscillate frequency | 200-500KHZ |
| Cooling water desire | >0.2MPa 2-6L/Min |
| Duty cycle | 100% 40°C |
| Dimensions(L*W*H) | 620*300*530mm |
| Net weight | 30kg |
| Cable length | 2-6(Meters) |

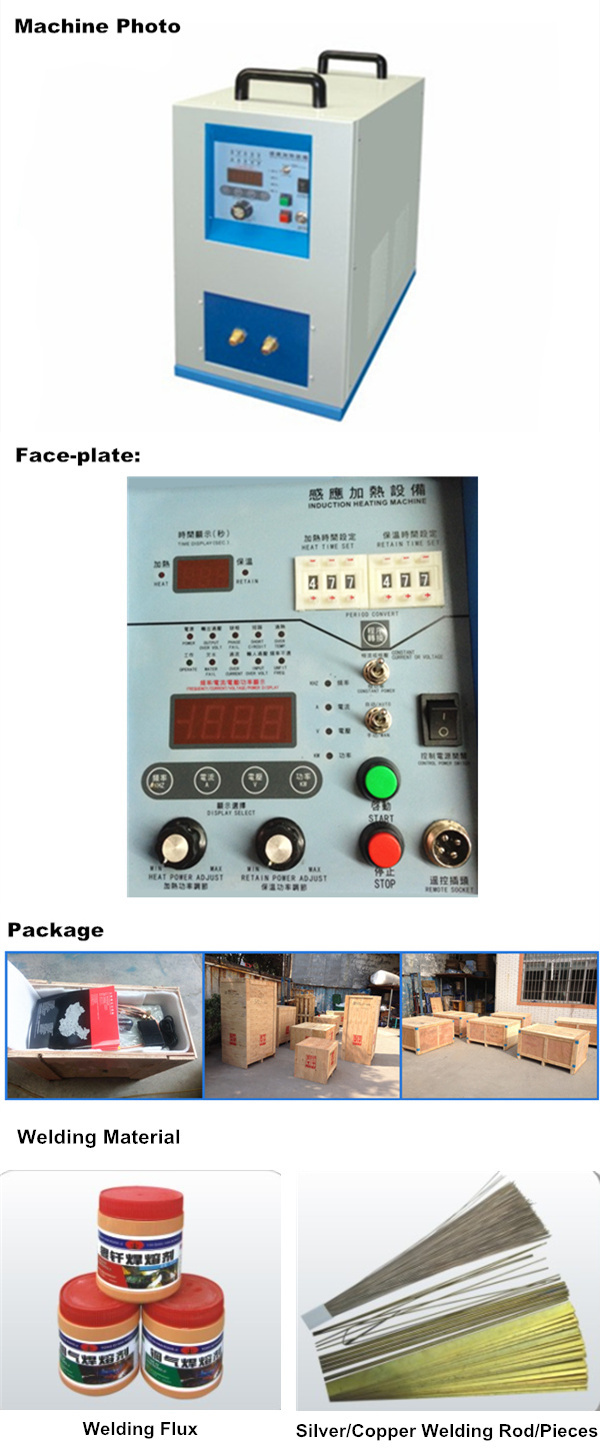

Accessories list:| Item | Name of machine or parts | Specification | Amount |
| 1 | JLCG-10KW Generator | - | 1 pcs |
| 2 | Foot switch | 3 core | 1 pcs |
| 3 | Induction Coils | - | 2 sets |
| 4 | Instruction Manual | - | 1 pcs |
| 5 | Product catalog | - | 2 pcs |
Main Parts Introduction:
- Germany SIEMENS INFINEON IGBT Module. ( 40-60KHZ oscillation frequency, fast response time, superhigh stability, almost spatter-free welding )
- Japan Nichicon electrolytic capacitor. ( filter capacitor )
- Imported transistor integrated block.
- All water pipe use thermostability, High pressure resistance best quality material.
- Main card, signal circuit, drive circuit board,control circuit board and components are adopted:Toshiba, Hitachi,Motorola, China's top manufacturers.
- International advanced all-solid-state semiconductor power devices.
- Technical advantage:perfect control, alarm display circuit, getting full automatic tracking frequency, continuous adjustable power, safe dependable protection,clear and accuracy data display and etc.
- Superiority Advantages: fast heating, wide application, small size, easy installation, simple operation, low power consumption, high efficiency.

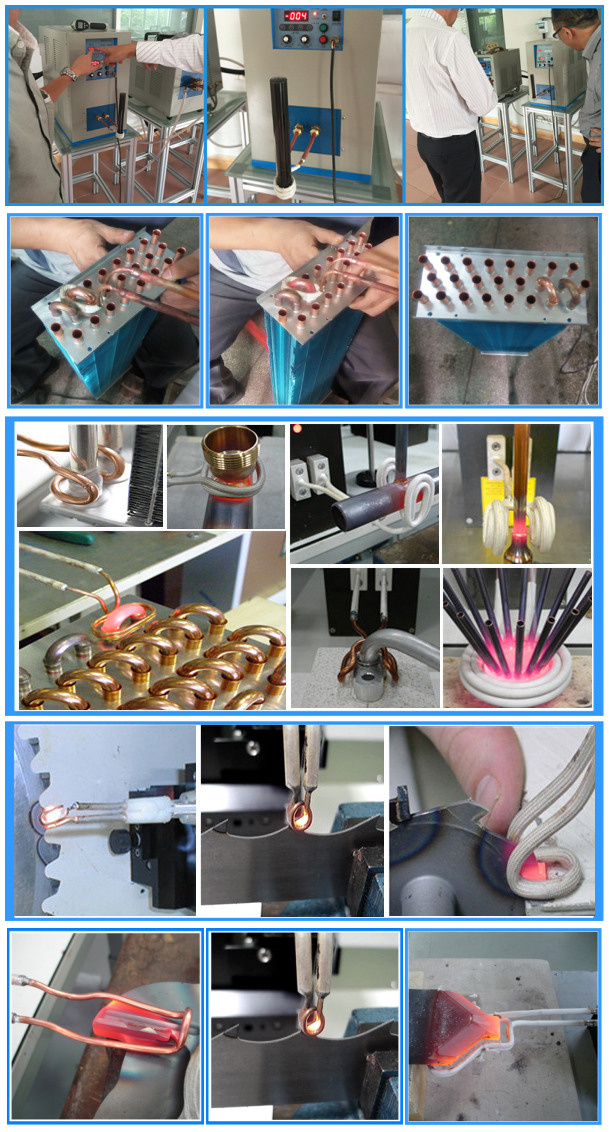

Applications:
- Brazing materials: copper and brass brazing, tungsten steel and stainless steel brazing, iron and copper brazing, aluminum and copper brazing and other metal brazing;
- Glasses welding, fishing tool welding, hardware appliances welding;
- Carbide saw and saw-tooth welding, carbide blade welding;
- Jewelry, watches welding;
- Electronic industry: motor rotor hot-cooperate, electrode silver soldering and tin soldering;
- Metal implants, bulbs fight electrode;
- Band accessory soldering, golf head, pipe welding;
- Communication equipment soldering, copper coaxial cable connector soldering etc.
Dongguan Jinlai Electromechanical Device Co.,Ltd., founded in 1996, which is engaged in R&D,
production andsale of solid Induction heating machine professionally. Several senior experts of induction heating equipment gathered here, who initiate the induction heating machines with environmental protection and highly effective energy conservation, positively and diligently.
Our Services:
(1). Pre-sale service:
- Recommend the most suitable machine for customers, according to their requirements.
- Inquiry and consulting support.
- Sample testing support.
- View our Factory.
(2). In-sale service:
- Strictly manufacture the machine, according to relevant technical standards.
- Take run test, according to relevant equipment test run regulations.
- Strictly check up the machine, before delivery
- Delivery on time.
(3). After-sale service:
- 12 months warranty period
- Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, Jinlai shall provide replacement parts after detecting the faults.
- If any big quality problems occurs out of the guarantee period, Jinlai will send maintenance
- Technician to provide visiting service after checking with the customer and charge for a favorable price.
- Jinlai will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
- The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.
1. Which countries your products are exported to?Our products are sold all over the world and with related certifications.2.How about the warranty?All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.3.How to install your machine?We have paper installation instructions and videos, we will teach till you learn it.4. Which export port you use?Any China port, commonly we will use Shenzhen ,Guangzhou ,Hongkong port, it can appoint as you like.5.How about the payment terms and delivery time ?Payment terms for small machines: 100% T/T/ Western Union/Cash in advance. The big machines and big amount: 30% deposit,70% before shipment (we will shoot total delivering process for customer's confirmation)and the related papers. You can pay by T/T,L/C, Western Union or other ways.The small machine delivery time is within 7 days, the bigger one takes about 15days,we will delivery goods on time.6.If I have paid but can not receive the goods, how should I do?Alibaba international website is a famous trade platform and has been mature those years ,every supplier on it has paid large integrity fund,and we have Chinese business licenses which can be checked on China official website or we can show it to you,so that situation will never appear, please be assured.7.Is your goods has ISO9001 or CE certificate ?Yes, all our goods has ISO and CE certificate. All machines are high quality goods.8.What is your nature of your company:dealer or factory ?We are manufacturer and have a big factory ,warmly welcome to visit our factory and contact us. Ultrahigh FrequencySeries:
Ultrahigh Frequency Series JLCG (100KHZ-1.1MHZ)
| Model | JLCG-3 | JLCG-6 | JLCG-10 | JLCG-20 | JLCG-30 | JLCG-40 | JLCG-60 | JLCG-100 |
| Input power desire | Single phase 220V 50/60HZ | 3 phase 380V 50/60HZ |
| Oscillate power max | 3KW | 6KW | 10KW | 20KW | 30KW | 40KW | 60KW | 100KW |
| Max input current | 14A | 28A | 20A | 32A | 45A | 60A | 90A | 152A |
| Oscillate frequency | 0.5-1.1MHZ | 0.2-1.1MHZ | 200-500KHZ | 50-250KHZ | 50-200KHZ | 50-200KHZ | 50-150KHZ | 50-150KHZ |
| Cooling water desire | >0.2MPa 2-6L/Min | 0.3Mpa≥6L/MIN | 0.5Mpa≥6L/MIN |
| Duty cycle | 100% 40°C |
| Net weight | 15kg | 25kg | 30kg | 25kg/15kg | 30kg/20kg | 35kg/25kg | 45kg/35kg | 60kg/40kg |
| Cable length | 2-6(Meters) |
Dongguan Jinlai Electromechanical Device Co., Ltd, founded in 1996, which is engaged in R&D, production and sale of solid Induction heating machine professionally. Several senior experts of induction heating equipment gathered here, who initiate the induction heating machines with environmental protection and highly effective energy conservation, positively and diligently.
Now there are series of products range from 3KW to 600KW, including the ultra-high/high/ super-audio/medium frequency induction heater, KGPS Parallel IF Power supply, IGBT energy saving IF power supply, 12 pulse IF furnace and special equipments (e. g. High-frequency quenching machine, Medium-frequency induction melting furnace, Ultrasonic -frequency annealing machine, Induction forging furnace, Brazing machine, Plastic welding machine, Branch divider/Bicycle fittings special -purpose welding machine, Railway river furnace, etc). These products are widely applied in the heating of hardware, metal (steel, iron, copper, aluminum) processing, plastic, deeply heating shaping, brazing, hardening, melting, annealing, hot cooperation and so on.
It was certified to ISO9001: 2008 quality system and CE certification. Advocating quality management conception of "producing products with zero defect", the quality has been guaranteed. The company has been sated up and perfected the marketing network and after-sales system. Our products are widely exported to Russia, USA, Italy, Romania, Netherlands, Finland, Turkey, Ukraine, Argentina, Brazil, India, Pakistan, Malaysia, Indonesia, Thailand, Vietnam and other countries or region. Most of products gain good reputation from customers.
Our conception is "human-oriented, service the society with innovation". "the quality and prestige are the fist" is our mission. The principle is "communal development, mutual benefit, we are looking forward to cooperate with you to create a bright future!
