IGBT Electric Induction Welding Equipment for Watch Strap (JLCG-3)
| Price: |
US $ 1000-10000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
JLCG-3 |
| Frequency: |
100kHz-1.1MHz |
| Applications: |
Hardening, Quenching, Brazing, Welding etc |
| Size: |
Generator:260X270X145mm, Transformer:120X60X105mm |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Warranty: |
1 Year |
| Heating Speed: |
1-2 Seconds |
| Cooling Water Desire: |
>0.3MPa 2-6L/Min |
| Including: |
Generator,Transformer,Cable |
| Gross Weight: |
20kg |
| Current: |
Alternating Current |
| Type: |
Metal Induction Welding Brazing |
| Model: |
Jlcg-3 |
| Application: |
Welding, Brazing, Soldering |
Product Description

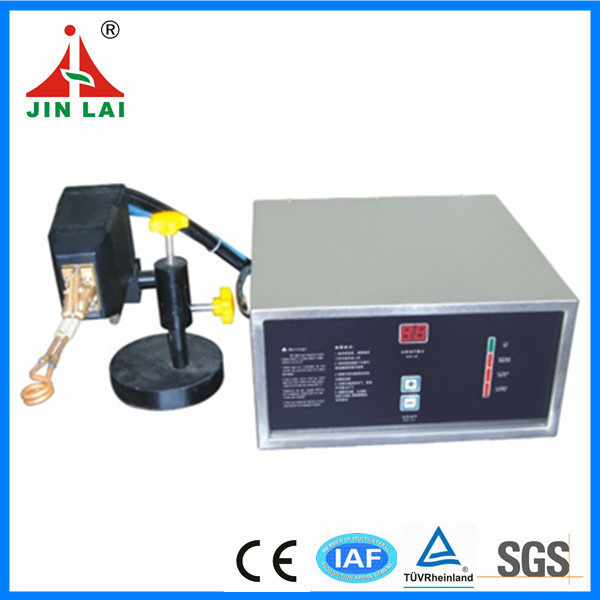

IGBT Electric Induction Welding Equipment for Watch Strap (JLCG-3)
Main Feature:
- Ultrahigh series: high frequency, able to heat Φ 0.1mm work-piece.
- Small size, light weight, low failure rate and conservation of energy. (which can save the power by 70% as compared with glass-ceramic vacuum tube high frequency heating machine)
- It can ensure the solid welding point which is pleasing and delicate in appearance, integral geometric configuration, perfect surface grain, complete crystal structure of internal metal part, limited annealing range and elimination of obvious weld knot.
- About ten types fault protection and display of over-current, over-voltage, water shortage and phase missing can provide higher reliability and durability.
- It is applied to the welding of coupler and inserts used in metal glass manufacturing as well as electric appliance and electronics industries, non-contact welding of internal parts of small-size relays, high-pressure refrigerating parts, headwear decorations, metal ornamental articles an art wares.
Technical Parameters:
| Model | JLCG-3KW |
| Input power desire | Single phase 220V 50/60HZ |
| Max oscillate power | 3KW |
| Max input current | 14A |
| Oscillate frequency | 0.5-1.1MHZ |
| Cooling water desire | >0.2MPa 2-6L/Min |
| Duty cycle | 100% 40°C |
| Dimensions(L*W*H) | 420*370*180mm |
| Net weight | 17kg |
| Cable length | 2-6(Meters) |
Packing List:
| Item | Name of machine or parts | Specification | Amount |
| 1 | JLCG-3KW Generator | - | 1 pcs |
| 2 | Foot pedal | 3 core | 1 pcs |
| 3 | Induction Coils | - | 2 sets |
| 4 | Instruction Manual | - | 1 pcs |
| 5 | Product catalog | - | 2 sets |
Performance and advantages:
- The machine is compact, space-saving, easily to operate.
- The machine adopts microcomputer software automatically capture frequency, to minimize the sensor head making.
- Simple operation. Only one power switch and two power control touch keys.
- High frequency ,heating output stable, vibration-free heating ensure precise welding position, can be heated minimum 0.1MM metals.
- Safe and reliable, no million-volt high-voltage, safe operation.
Main Parts Introduction
- Germany SIEMENS INFINEON IGBT Module. ( 40-60KHZ oscillation frequency, fast response time, superhigh stability, almost spatter-free welding )
- Japan Nichicon electrolytic capacitor. ( filter capacitor )
- Imported transistor integrated block.
- All water pipe use thermostability, High pressure resistance best quality material.
- Main card, signal circuit, drive circuit board,control circuit board and components are adopted:Toshiba, Hitachi,Motorola, China's top manufacturers.
- International advanced all-solid-state semiconductor power devices.
- Technical advantage:perfect control, alarm display circuit, getting full automatic tracking frequency, continuous adjustable power, safe dependable protection,clear and accuracy data display and etc.
- Superiority Advantages: fast heating, wide application, small size, easy installation, simple operation, low power consumption, high efficiency.

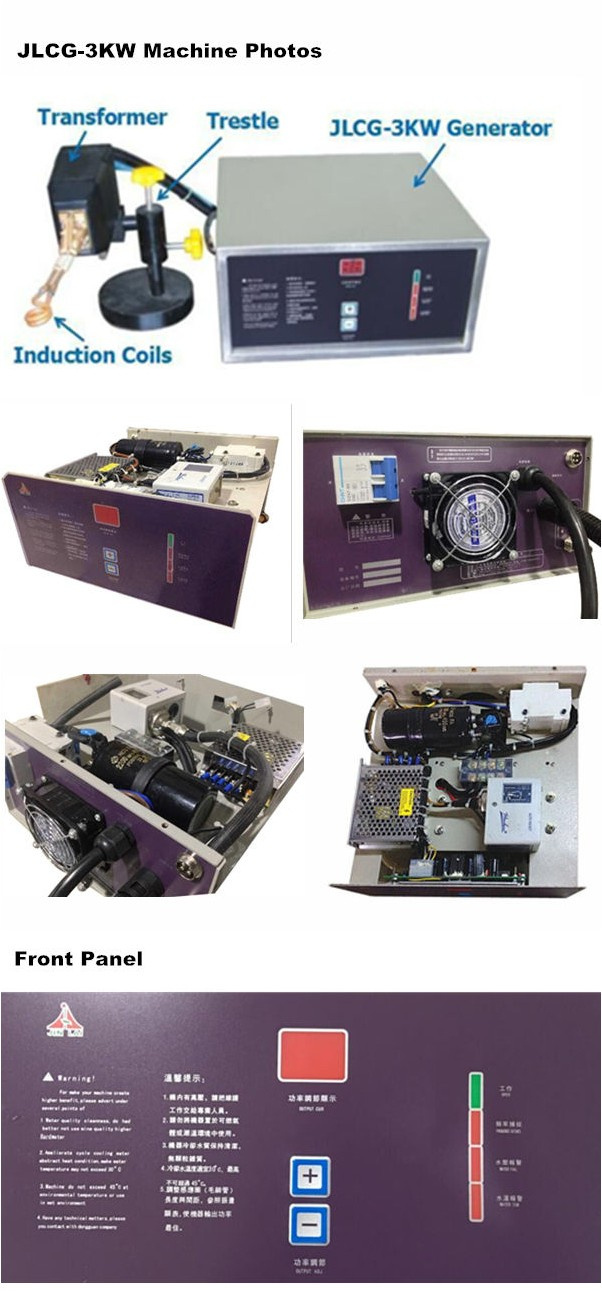

Photos of Product:

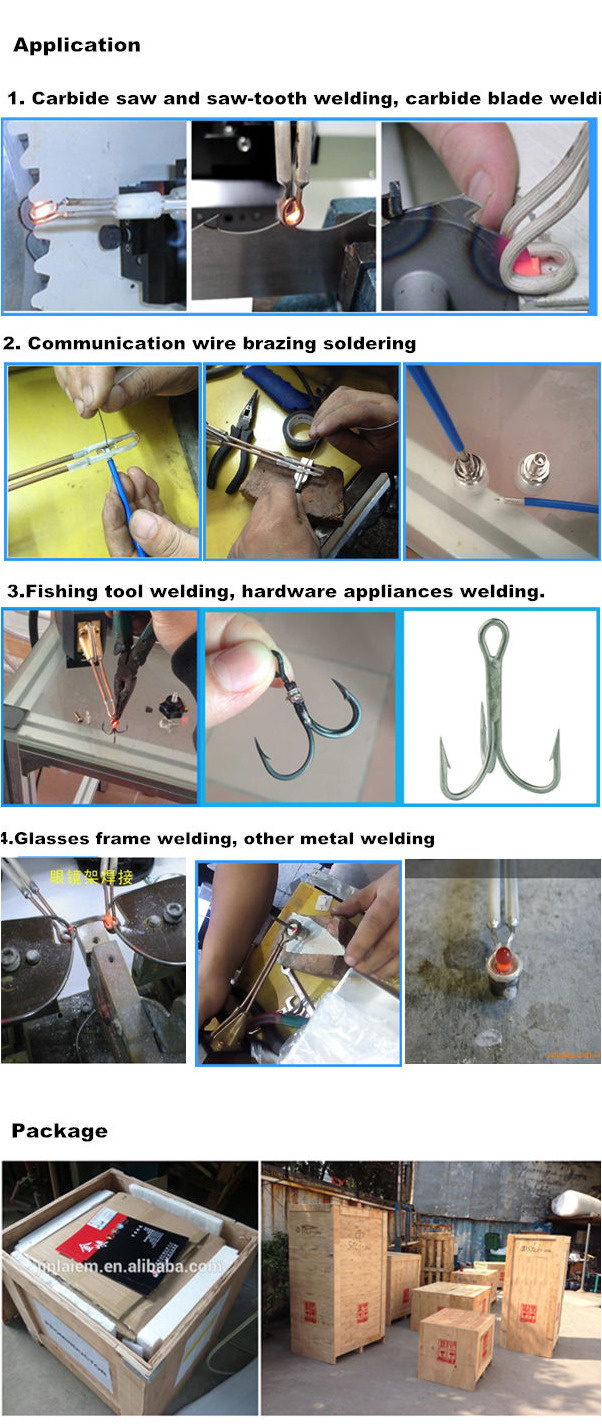

Applications:
- Brazing materials: copper and brass brazing, tungsten steel and stainless steel brazing, iron and copper brazing, aluminum and copper brazing and other metal brazing.
- Glasses welding, fishing tool welding, hardware appliances welding
- Carbide saw and saw-tooth welding, carbide blade welding
- Jewelry, watches welding
- Electronic industry: motor rotor hot-cooperate, electrode silver soldering and tin soldering.
- Metal implants, bulbs fight electrode.
- Band accessory soldering, golf head, pipe welding
- Communication equipment soldering, copper coaxial cable connector soldering etc.
Dongguan Jinlai Electromechanical Device Co.,Ltd., founded in 1996, which is engaged in R&D,
production andsale of solid Induction heating machine professionally. Several senior experts of induction heating equipment gathered here, who initiate the induction heating machines with environmental protection and highly effective energy conservation, positively and diligently.
Our Services:
Pre-sale service:
- Recommend the most suitable machine for customers, according to their requirements.
- Inquiry and consulting support.
- Sample testing support.
- View our Factory.
In-sale service:
- Strictly manufacture the machine, according to relevant technical standards.
- Take run test, according to relevant equipment test run regulations.
- Strictly check up the machine, before delivery
- Delivery on time.
After-sale service:
- 12 months warranty period
- Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, Jinlai shall provide replacement parts after detecting the faults.
- If any big quality problems occurs out of the guarantee period, Jinlai will send maintenance
- Technician to provide visiting service after checking with the customer and charge for a favorable price.
- Jinlai will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
- The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.
1. Which countries your products are exported to?Our products are sold all over the world and with related certifications.2.How about the warranty?All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.3.How to install your machine?We have paper installation instructions and videos, we will teach till you learn it.4. Which export port you use?Any China port, commonly we will use Shenzhen ,Guangzhou ,Hongkong port, it can appoint as you like.5.How about the payment terms and delivery time ?Payment terms for small machines: 100% T/T/ Western Union/Cash in advance. The big machines and big amount: 30% deposit,70% before shipment (we will shoot total delivering process for customer's confirmation)and the related papers. You can pay by T/T,L/C, Western Union or other ways.The small machine delivery time is within 7 days, the bigger one takes about 15days,we will delivery goods on time.6.If I have paid but can not receive the goods, how should I do?Alibaba international website is a famous trade platform and has been mature those years ,every supplier on it has paid large integrity fund,and we have Chinese business licenses which can be checked on China official website or we can show it to you,so that situation will never appear, please be assured.7.Is your goods has ISO9001 or CE certificate ?Yes, all our goods has ISO and CE certificate. All machines are high quality goods.8.What is your nature of your company:dealer or factory ?We are manufacturer and have a big factory ,warmly welcome to visit our factory and contact us. Ultrahigh FrequencySeries:
Ultrahigh Frequency Series JLCG (100KHZ-1.1MHZ)
| Model | JLCG-3 | JLCG-6 | JLCG-10 | JLCG-20 | JLCG-30 | JLCG-40 | JLCG-60 | JLCG-100 |
| Input power desire | Single phase 220V 50/60HZ | 3 phase 380V 50/60HZ |
| Oscillate power max | 3KW | 6KW | 10KW | 20KW | 30KW | 40KW | 60KW | 100KW |
| Max input current | 14A | 28A | 20A | 32A | 45A | 60A | 90A | 152A |
| Oscillate frequency | 0.5-1.1MHZ | 0.2-1.1MHZ | 200-500KHZ | 50-250KHZ | 50-200KHZ | 50-200KHZ | 50-150KHZ | 50-150KHZ |
| Cooling water desire | >0.2MPa 2-6L/Min | 0.3Mpa≥6L/MIN | 0.5Mpa≥6L/MIN |
| Duty cycle | 100% 40°C |
| Net weight | 15kg | 25kg | 30kg | 25kg/15kg | 30kg/20kg | 35kg/25kg | 45kg/35kg | 60kg/40kg |
| Cable length | 2-6(Meters) |
