| Prod Model: |
MS-16 |
| Voltage(V/Hz): |
AC 220V/50Hz |
| Power(W): |
250W |
| Max. Strapping Force(N): |
40-480n |
| PP Tape Width(mm): |
9-15mm |
| PP Tape Thickness(mm): |
0.45-0.85 |
| Strapping Speed(S/Strap): |
1.8 Second/Strap |
| Max. PP Tape Reel(mm): |
280mm |
| G.W(Kg): |
85kg |
| Dimensions(mm): |
925*585*810mm |
| Application: |
Fruit Drinks |
| Strapping Material: |
Strip |
| Packaging Type: |
Cartons |
| Automatic Grade: |
Semi-Automatic |
| Strapping Mode: |
Welding Type |
| Driven Type: |
Electric |
| Structure: |
Pressure Strapping |
Product Description
| Model name | battery powered strapping tool |
| description | widely used in paper industry,aluminum alloy, steel, wood, wooden box package, |
| | chemical fiber,cotton spinning,tobacco,chemical,metal products,etc.. |
| Feature | 1. convenient operation,smart and light, big electric power design |
| | 2. buckle free, friction fusion welding technology, beautiful and reliable connection joint |
| | 3. high automatic working performace, high controllability of tension and welding |
| | 4. no need to connect any power,easy remove |
| | 5. excellent quality motor made by swiss. |
| | 6.High speed tension,special structure design, easy to achieve tension and |
| | package of steel, aluminum ingots, heavy packages |
| | 7.all the parts with High - strength aluminum alloy to keep long time use, |
| | reliable design and advanced manufacturing technology |
| | 8.patent design and avoid fatigue |

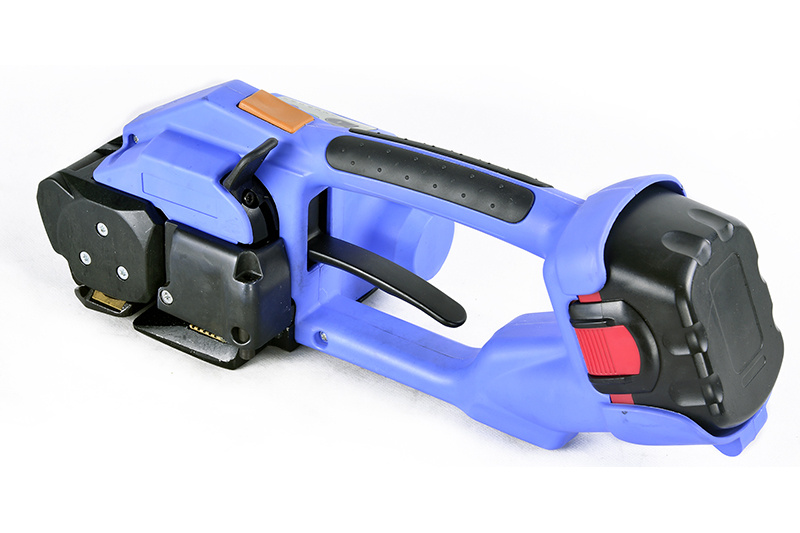

| Battery powered strapping tool |
| Applicable packing Strap | PP & PET |
| Packing Strap Size | strap width | 16-19mm |
| | strap thickness of PP | 0.6-1.2mm |
| | strap thickness of PET | 0.5-1.2mm |

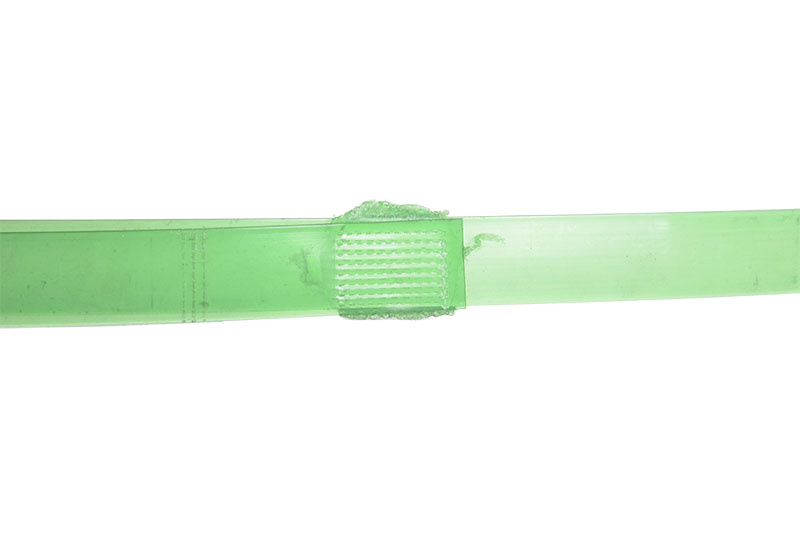

| Sealing way | friction heat sealing |
| Tension force | 650N-3000N |
| Tension speed | 13.5M/min |
| Operation mode | button |

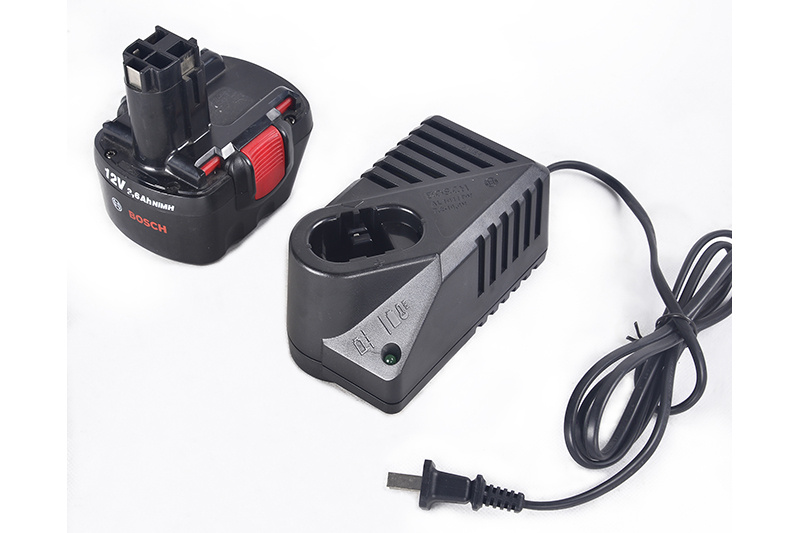

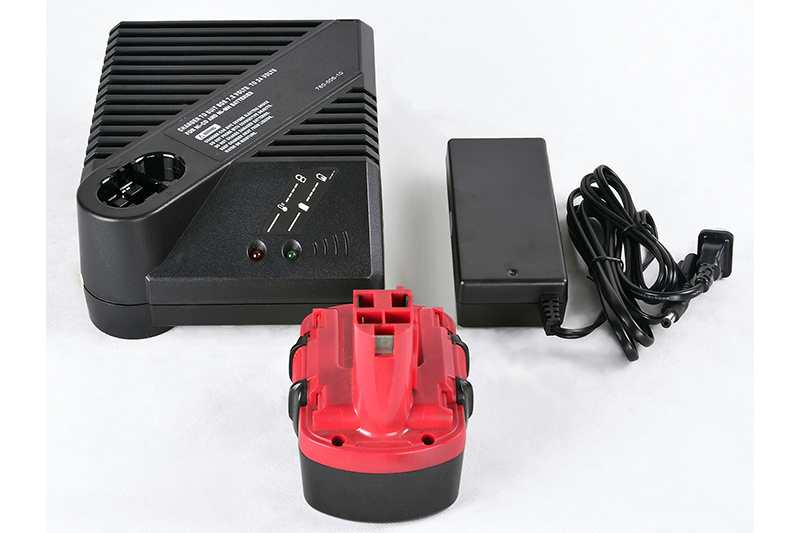

| Battery power | battery | NiMH 12V/2.4AH |
| | charging time | 60minutes |
| | no. of cycles per battery up to | 100-200 |
| | charger voltage | 100-240V / 50-60HZ |
| | long life | 2000 times |
| Weight (w/ battery) | 4kgs |
| Size: | 130*140*370mm |

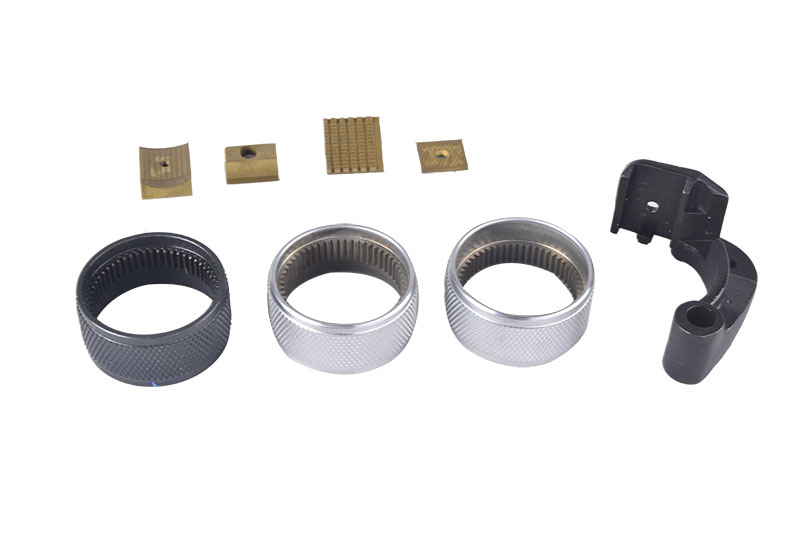

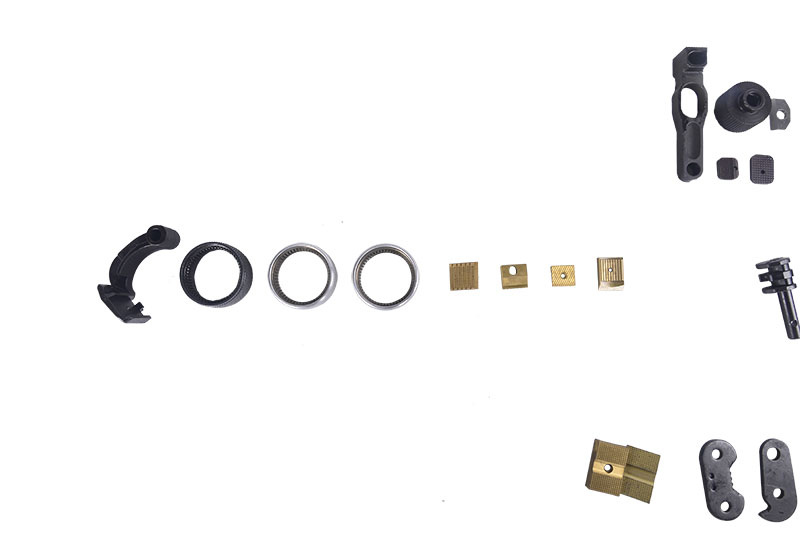

Spare
Tool:

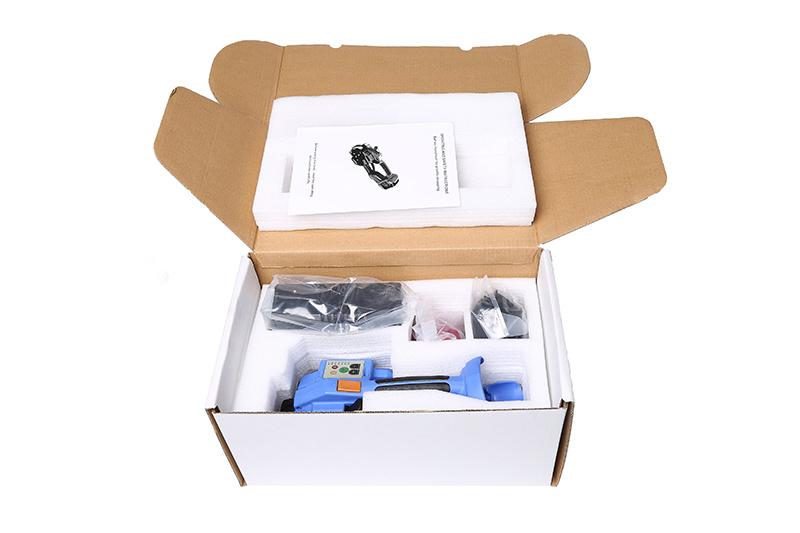

Packaged:
