| Prod Model: |
MS-19P |
| Voltage(V/Hz): |
AC 220V/50Hz |
| Power(W): |
250W |
| Max. Strapping Force(N): |
40-480n |
| PP Tape Width(mm): |
9-15mm |
| PP Tape Thickness(mm): |
0.45-0.85 |
| Strapping Speed(S/Strap): |
1.8 Second/Strap |
| Max. PP Tape Reel(mm): |
280mm |
| G.W(Kg): |
85kg |
| Dimensions(mm): |
925*585*810mm |
| Application: |
Fruit Drinks |
| Strapping Material: |
Strip |
| Packaging Type: |
Cartons |
| Automatic Grade: |
Semi-Automatic |
| Strapping Mode: |
Welding Type |
| Driven Type: |
Electric |
| Structure: |
Pressure Strapping |
Product Description

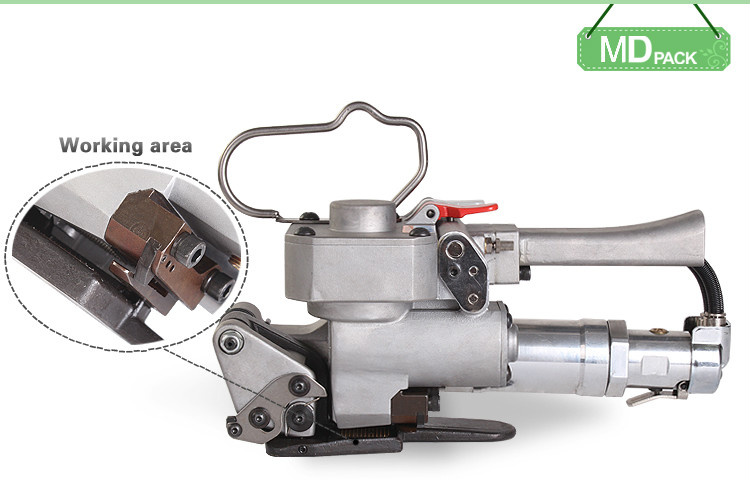

General (Pneumatic Hand Strapping Tool):
The Pneumatic Strapping Machine is applicable to most status of packaging fields and widely used in the export enterprises of iron, metal, textile, household electric appliance, foodstuff and daily merchandise, specialized in strapping big and heavy pallets.
The tools adopts PET band to finish a strap in a high speed, very easy to operating. PET band is high-tension, environmental -protection and no-pollution and can be used to replace steel strapping band. In short, the pneumatic strapping machine is very flexible to use in every packing fields.
Application(Pneumatic Hand Strapping Tool):
It applies to the export enterprises of iron, metal, textile, household electric appliance, foodstuff and daily merchandise, specialized in strapping big and heavy pallets.
Technical Characters of Pneumatic Hand Strapping Tool:
1. Straining, sticking & cutting the strap pneumatically in one time.
2. Driven by pneumatic motor with low noises & malfunction rate.
3. Don't need power & safe to operate.
4. Light weight for portable use or handling
5. Excellent tighten strength reach to 280 kgs.
6. Sealing the strap without the steel buckle and save the cost.
7. Suitable for the packing of the steel, timber, brick, fiber and so on.
Technical Specification(Pneumatic Hand Strapping Tool):
| Model | MS-19P | MS-25P |
| Standard | CE |
| Sealing Type | Pneumatic friction weld seal |
| Max. Strapping Force(N) | Pneumatic 2700N(0.6Mpa) | Pneumatic 3000N(0.6Mpa) |
| Air pressure(Mpa) | 0.5-0.7Mpa |
| PET tape width(mm) | 13-19mm | 19-25mm |
| PET Tape Thickness(mm) | 0.5-1.5mm |
| Strapping speed(s/strap) | 5-10 second/strap |
| G.W(kg) | 3.8kg | 6kg |
| Shipping Dimensions(mm) | 275×115×130mm | 280×160×180mm |

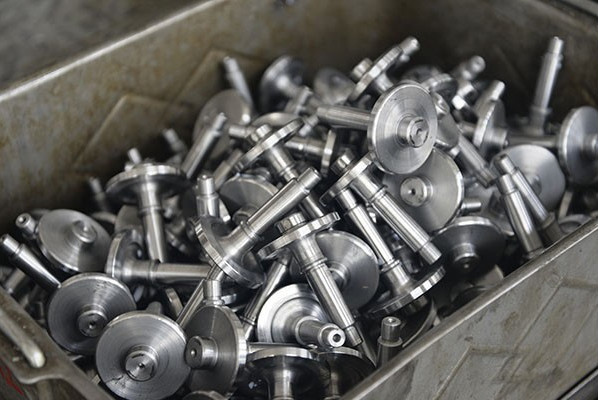

Spare Parts:
Packaging :

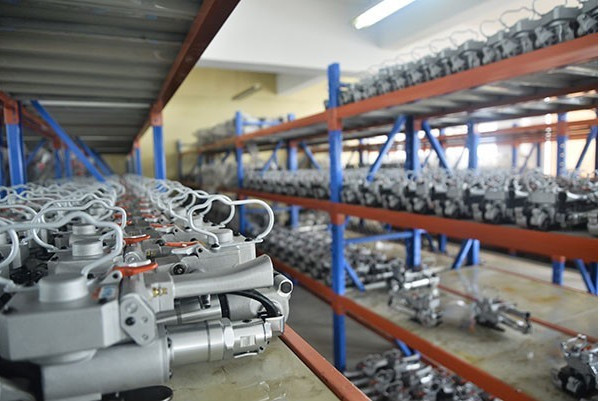

Workshop:
About SME:
SME specialize in designing and developing of integrated packaging products and solutions for food, beverage, household goods and pharmaceutical industries. With over 10 years of experience Motech packaging provides a complete end-to-end packaging solution by offering state of-the-art packaging equipment, installation, training, service and supplies
Till now, SME have formed a whole production chain with main products: Conveyor Equipment ,Carton Erector ,Carton Packing Machine, Carton Sealer ,Carton Wrapper Machine, Cellophane Wrapper Machine, Labeling Machine, Pallet Wrapper Machine ,Palletizer, Shrink Wrapper Machine, Shrink Film Packaging Machine ,Strapping Machine,
Weight Check Machine,Robot Automation Application System, Logistics Conveying System , Software management System .
SME( China) has 3 brand: MOTECH; FENGYE; DESON distributed in China. With its own sales office in Shanghai, supporting by some 20 staff and dealers worldwide, its e-business marketplace and global distribution system, SME is always closed to its customers for the supply of both products and services MOTECH Specialize in designing and developing of integrated packaging products and solutions for food, beverage, household goods and pharmaceutical industries. With over 10 years of experience Motech packaging provides a complete end-to-end packaging solution by offering state of-the-art packaging equipment, installation, training, service and supplies Motech packaging believes in putting its clients needs first and offers innovative packaging solutions at affordable pricing DESON Polymer Solutions has been developing and Manufacturing innovative sealing systems based on Polyurethane and Silicone. MOTECH systems combine top Quality with exceptionally easy handling. Key Features include Low water Absorption, good adhesion, high long-term Temperature resistance, and a cost-efficient manufacturing process. MOTECH Polymer develop, produces and distributes worldwide polymer sealing, gluing and potting systems on polyurethane, silicon and PVC basis. Their performance is based on the experience of more than thousand formulations. The sealing material is applied onto structural components and modules of OEMs and industrial suppliers by the FIPFG/FIP (Formed-in-Place Foam Gasket/Formed-in-Place) technology We are committed to bringing 100% satisfaction to all our customers, so whether you're a small business working out of your home or a fortune 500 company, Motech Packaging has all your packaging needs covered Our machine combines a tightly crafted and functional design with optimum ease of operation and a long life span. Smart design ensure that strict standards and maintained at all times. Our customers, which range from the start-up operations to Fortune 500 multinational corporations, can be found a broad range of industries, including: · Medical· Pharmaceutical Energy· Food Processing· Aerospace Electronics/semiconductor· Telecommunications/ Fiber Optics· Packaging Material handling· General ManufacturingWe welcome any comments and questions you may have about our products or any other aspect of our business. We value your feedback as we are always looking for opportunities to provide better service.
