Product Description
1.electric pipe tube cutting beveling machine cold pipe cutter
Basic Parameters of pipe cutting beveling machine
| Model | ISD-168 |
| Pipe Outside Diameter | 2"-6",60-168mm |
| Wall Thickness | ≤25mm |
| Beveling angle | 0,30,37,or other angles |
| Non-load rotation speed | 10rpm |
| Net Weight of Cutter | 40kg |
| Packing Gross Weight | 60kg |
| Packing Dimension | 580*490*260mm |
| Input voltage | 1 phase 220V,50/60Hz |
| Power | 1.1KW |
You can check the operation video on the YOUTUBE :
https://youtu.be/bbeTC1CFLPc
2.Highlights
.Frame: White/Black Steel Frame(or optional Aviation Degree Aluminum),split frame,compact and rigid structure,rust-proof body..Special occlusive line to connect two shells(Patent Design).Function: Simultaneous cutting & beveling,or dual cutting or dual beveling..Drive: High performance electric motor drive,with strong force,stable rotation.Easy control of operation.Tool Feeding: Automatic tool feeding..Applicable for pipe materials: Carbon steel,stainless steel,copper,alloy,special metals..Low mechanical consumption,low machining fault rate.

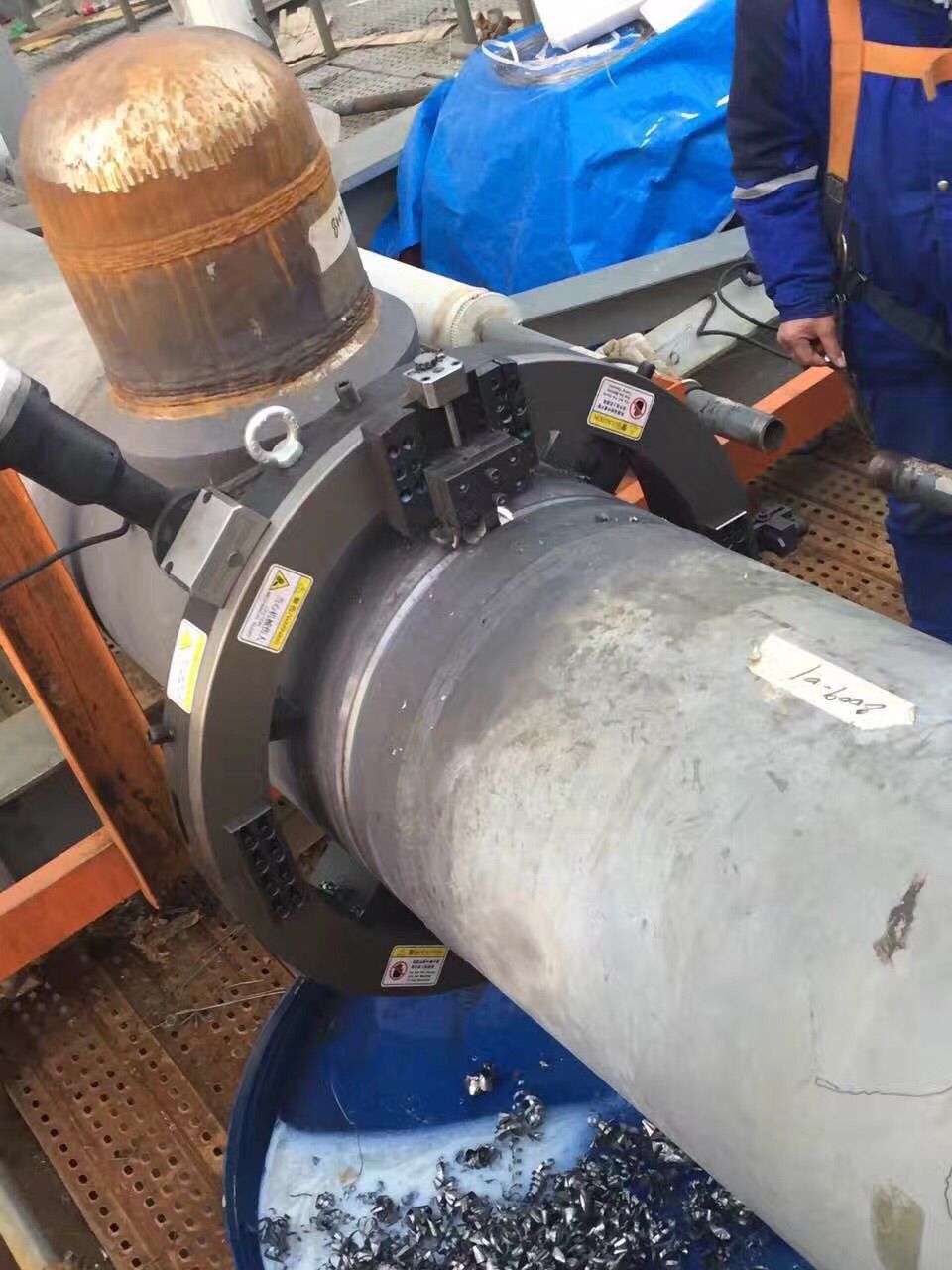

Onsite machining photos
4.Main features
1).Original Metabo motor drive,strong force,convenient for speed adjustment.
2).Has 6 sets of swelling columns for steady clamping on pipeline,not be loose during rotating.
3).Machine can be installed at any space on the pipeline quickly and rigidly.
4).Adopts auto feeding method.
5).Simultaneous cutting and beveling processes.
6).Pure end shape after cutting and beveling,with no burrs.
7).High duty cycle.
5.Tools
1).Attached standard HSS Tools 2 pcs 0 degree, 1pc 30 degree and 1pc 37 degree.
2).Titanium/Cobalt made tools, suitable for stainless steel,alloy and other hard metals.
3).Tools can be resharpened after little wearout.
Accessories included
4pcs standard tools
A completed set of clamping ribs to cover various pipe diameters
A completed set of operation tools such as wrenches,screws,etc
After-sales service: 12 month quality warranty.
Remarks
Packaging: Export Standard Strong wooden case(Free fumigation)
Guarantee: 1 Year
Certificate: CE,SGS,CCC,ISO9001
The other size specification as following:
