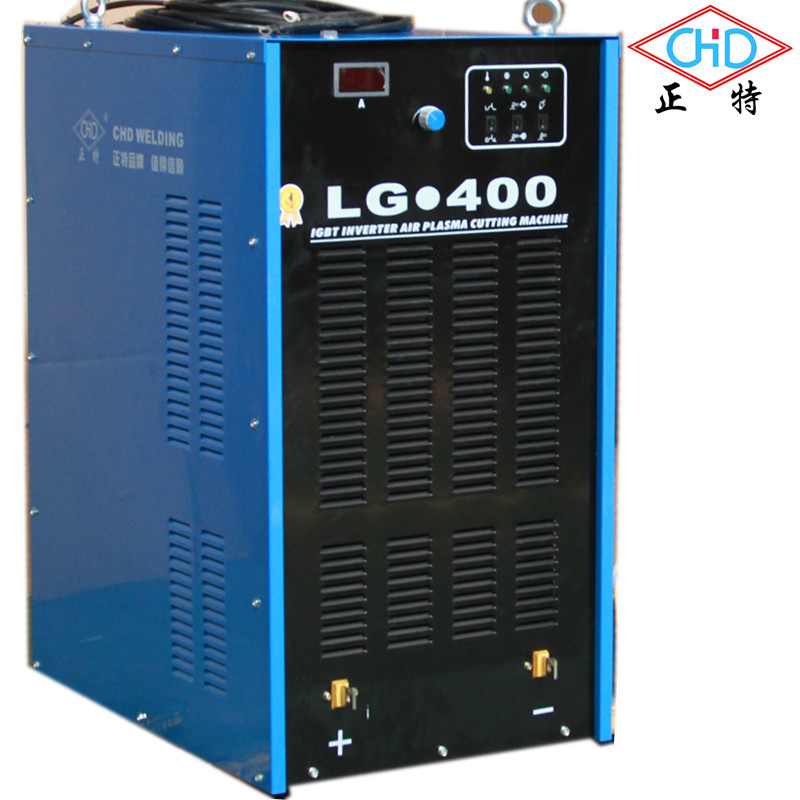

| Prod Model: |
LG-400 |
| Manufacture: |
Yes |
| OEM: |
Yes |
| ODM: |
Yes |
| Color: |
Blue or as Per Customer's Requirements |
| CNC Interface: |
Yes |
| CNC Cutting System: |
Avaiale |
| Frequency: |
High Frequency,You Also Can Choose Low Frequency |
| Plasma Torch: |
Yes |
| Water Cooler: |
Yes |
| After Service: |
12 Months Quality Assurance |
Product Description
Features of Plasma Cutting MachineAdvantages of Plasma Cutting Machine| 1. Wide cutting range of Plasma Cutting Machine, Plasma Cutting Machine can cut all kind of sheet metal; |
| 2. Cutting speed up to 10m/min, high efficiency. |
| 3. The plasma cutting accuracy is higher than flame cutting. Under the water operation, the plasma cutting accuracy is higher and with no distortion. |
| 4. Underwater cutting of plasma cutting machine can eliminate the noise, dust, harmful gases and arc generated by cutting, effectively improve the workplace environment. |
| 5. With the high-power plasma cutting technology matures, cutting thickness can reach more than 150mm, makes the CNC plasma cutting machine range has been broadened as well. |

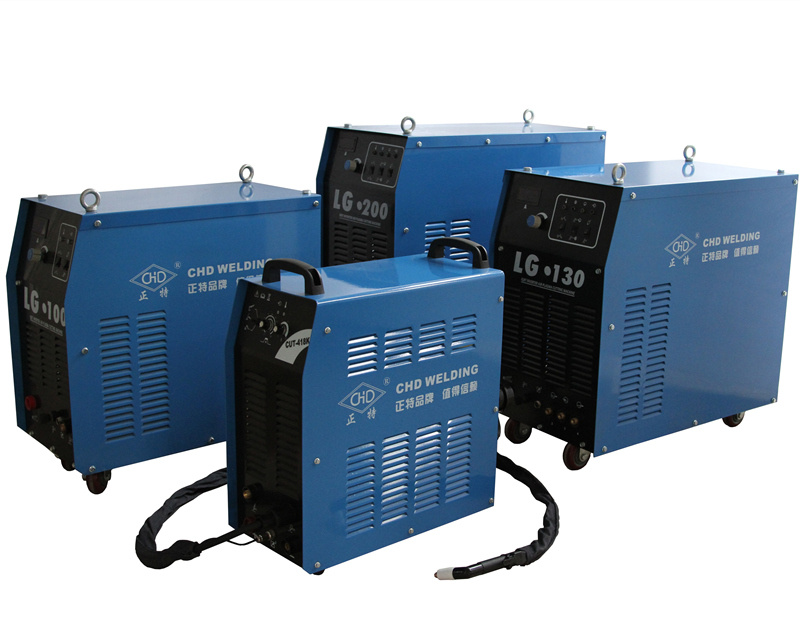

LG Plasma Cutting Machine Series| Features of our LG Plasma Cutting Machine Series |
| 1 | Available With CNC cutting system to fit the application |
| 2 | Small volume,light weight,energy saving,60%(100%)high duty cycle |
| 3 | The cutting current can be preset accurately |
| 4 | Fast high frequency arc starting enable the reduction of interference to CNC system |
| 5 | With stable plasma arc and high speed enable smooth incision and little deformation |
| 6 | Gas cut-off delay function effectively protects the torch |
| ITEM | LG-60 | LG-100 | LG-130 | LG-200 | LG-400 |
| Input Voltages | 380V 50/60 Hz |
| Rated Input Current(KVA) | 4.7 | 14.5 | 21.5 | 38 | 100 |
| Output Current(A) | 30-60 | 30-100 | 30-130 | 30-200 | 30-400 |
| Duty Cycle | 60% | 60% | 60% | 100% | 60% |
| Max. Cutting Thickness(mm) | 20 | 30 | 35 | 65 | 90 |
| Optimal Cutting Thickness(mm) | 0.3-10 | 0.3-22 | 0.3-25 | 1-45 | 1-55 |
| Gas Pressure(Mpa) | 0.3-0.5 | 0.4-0.6 | 0.45-0.6 |
| Cutting Torch Cooling Mode | Air Cooling | Air Cooling,Water Cooling |
| Dimension(H*W*L,mm) | 510*280*610 | 600*325*740 | 710*380*790 | 800*360*880 | 1260*540*830 |
| Weight(kg) | 35 | 53 | 75 | 82 | 170 |

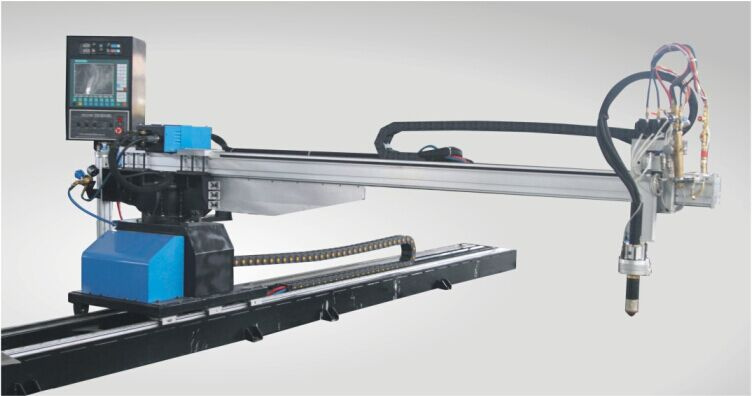

How does this work on our CNC machines?
Easy, we supply the CNC platform with CNC controller and software.
We supply the 60A,100A ,130A ,200A and 400A plasma cutter of choice.
The Plasma cutting nozzle mounts on the CNC machine quickly and easily.
Plug the Plasma controller cable into the CNC controller.
Load a file onto the PC and start cutting.
Torch Height ControllerWe supply and install a complete THC system for our CNC platforms. The torch height controller allows the CNC machine to control the cut height of the plasma nozzle above the material to give the best cut quality and also the best consumable life span for the torch consumables.Torch Break Away is added to prevent the torch from getting damaged if it collides with any obstacle on the machine bed FAQ:1. Q: Certificate
A: ISO, CE, SGS, CCC
2. Q: Cutting Thickness Range ?
A: 0.3-90 MM
3. Q: Optimal Cutting Thickness Range?
A: 0.3-55 MM
4. Q: Cutting material?
A: All kind of sheet metal
5. Q: Lead Time, Delivery Time
A: 7 working days
6. Q: Warranty
A: 1 Year
7. Q: After service
A: 24 Hours Online Service, Free spare parts for breakdown machine in warranty service
8. Q: Portable or not?
A: Yes
9. Q: Precision
A: ±0.5mm
10. Q: Do you also deal with hypertherm plasma source?
A: YesOr you can tell us the following infomation, then we'll suggest what is the suitable machine for you .1. Material you'll cut.
2. Thickness of Material.
3. Cutting range (Length, width) you required.
4. Handheld torch or automated machine you required? CHD WELDINGCHD was founded in 1989, is a High-Tech Enterprise which integrates R&D, Production, Sales and Service of cutting machine.
CHD, as one of the largest metal cutting machine manufacturers, headquartered in Shanghai, China. With 3 production bases, totally plant area of more than 53,000 square meters , respectively located in Shanghai, Chengdu and Wenzhou.
CHD focus on quality control, has passed many certification audits including ISO9000, SGS, CE, CCC, etc., was one of the world's largest manufacturer's partners of steel plate cutting equipment. CHD cutting machines have already been exported to more than 100 countries in the past 20 years.Advantages of CHD1. Large Production Capacity.16 R& D stuff, 120 Workers, 3 Production Bases,Plant of 53000 Square Meters. 10 Production Lines.
2. Full line of Products. Cutting Machine, Plasma Power, Welding Machine, Beveling Machine, Circular Cooling Water Tanks, Consumables.
3. Honesty. All parameters (cutting thickness & precision) are actual operation parameters without overstate.
4. Good after service, not one-off business.
5. One year guarantee. Free spare parts service on base of order amount. Engineer oversea service.
6. Adjustable Short Lead Time.
7. Quality been assurance. We are OEM supplier of one of world's largest cutting machine company. Most of our products have CE and CCC certificate.
CHD was founded in 1989, is a High-Tech Enterprise which integrates R&D, Production, Sales and Service of cutting machine.
CHD, as one of the largest metal cutting machine manufacturers, headquartered in Shanghai, China. With 3 production bases, totally plant area of more than 53, 000 square meters, respectively located in Shanghai, Chengdu and Wenzhou.
CHD focus on quality control, has passed many certification audits including ISO9000, SGS, CE, CCC, etc., was one of the world's largest manufacturer's partners of steel plate cutting equipment. CHD cutting machines have already been exported to more than 100 countries in the past 20 years.
