electric Pole Mounting Clamp Pole Clamp for Pole Line Hardware

electric Pole Mounting Clamp Pole Clamp for Pole Line Hardware
Price: US $ 2.5-4.5/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: C0150
Material: Steel Bar
Finish: Hot DIP Galvanized ASTM a-153
Usage: Pole Accessories
Standard: ANSI
Duty: Light Duty, Heavy Duty
Type: Ca, Rl
Code: C-6377, C-6366

Product Description

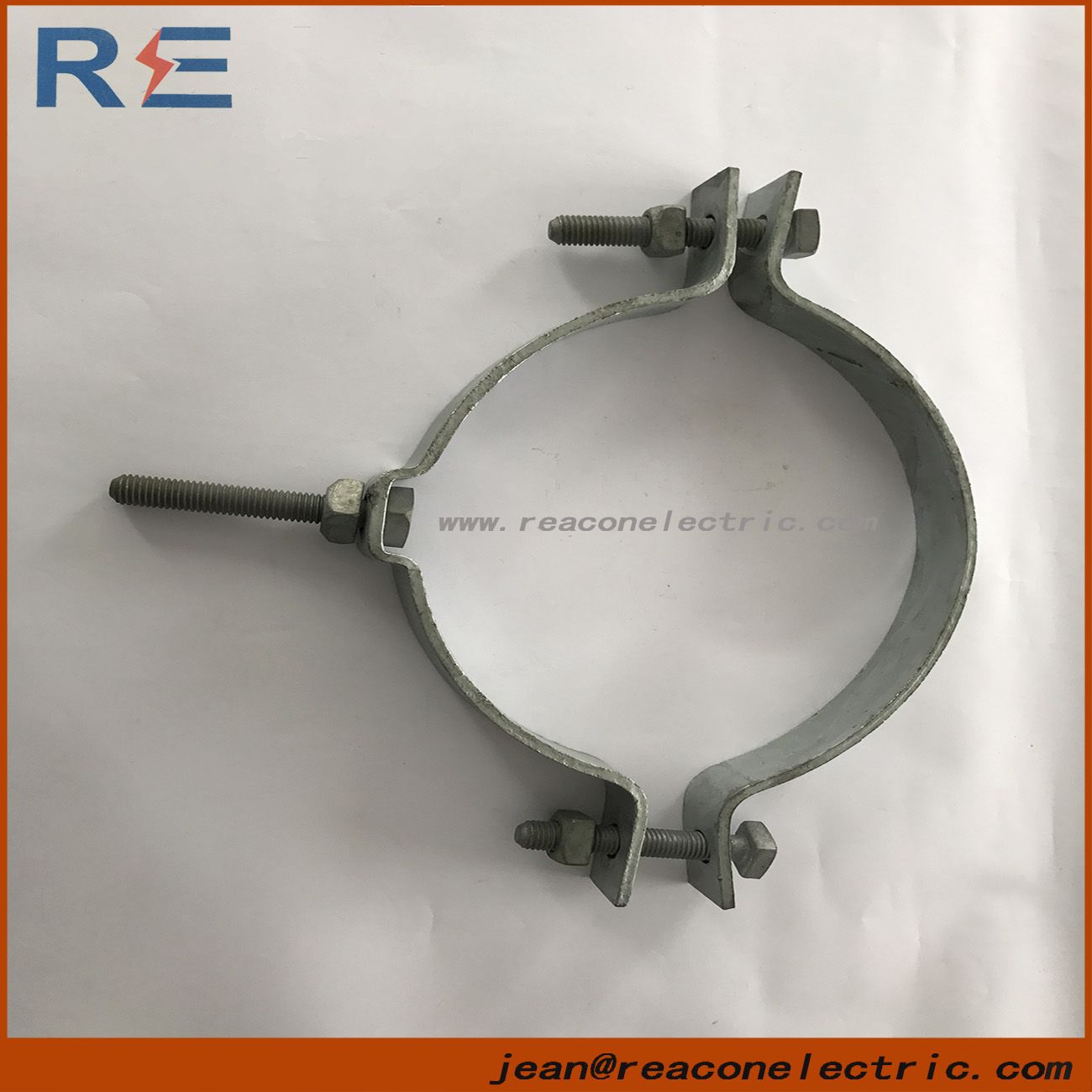

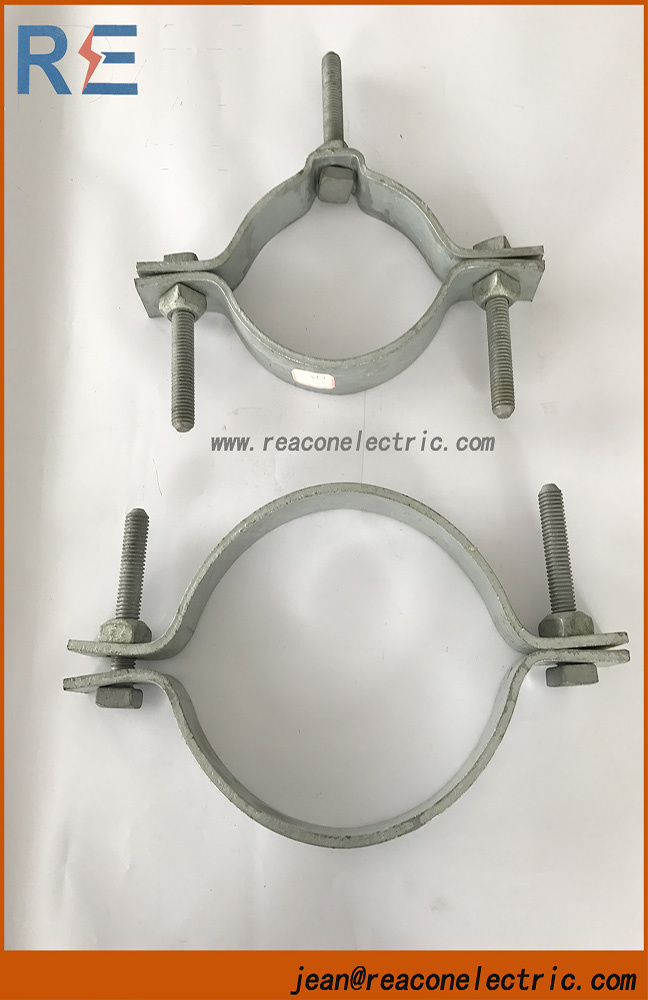

RE Pole banding clamp, hot dip galvanized, pole line hardware fittings, good price, large production.

1> These clamp are designed to adapt to circular and octagonal concrete steel pole. Alternatively can be adapted to wood poles at the end user option.

2>The C150H clamps are heavy duty type band, They are designed with forged reinforcing rib/stiffener on its corner bond for extra flexural, used for attaching brace for heavy primary line cross arm or side arm construction.

3>The C0150L series are used for light cross arm or side arm primary line construction.

4>Both clamps can be used for attaching extension arm, aerial cable attachment on straight run, attaching cable on corner run, down guying or deadend guying application.
Light Duty

 Stock No.
            Dimension mm


Standard Pkg.
 Qty./Bundle
Range mm   Inch  A mm B mmWidth mmGauge mm
C0150L-06 127-152   5-6152127 3865
C0150L-07 152-178  6-71781523865
C0150L-08 178-203  7-82031783865
C0150L-09 203-229  8-92292033865
C0150L-10 229-254  9-102542293865
C0150L-11 254-279 10-112792543865
C0150L-12 279-305 11-123052793865
C0150L-14 330-356 13-143563303865
C0150L-15 356-381 14-153813563865


Heavy Duty

   Stock No.
      Dimension mm Width
  mm
 Gauge
   Mm
Standard Pkg.
 Qty./Bundle
 Diameter
 Inch mm
Range
mm
Inch
 C0150H-08  8 (203) 178-203  7-8  50 65
 C0150H-09  9 (229) 203-229  8-9 50 65
 C0150H-10 10 (254) 229-2549-105065
 C0150H-11 11 (279) 254-27910-115065
 C0150H-12 12 (305) 279-305 11-125065
 C0150H-13 13 (330) 305-33012-135065
 C0150H-14 14 (356) 330-35613-145065

-------------------------------------------------------------------------------------------------------------------------
