| Prod Model: |
SQ50D |
| Gear Housing: |
Die Cast Aluminum |
| Die Heads: |
811A |
| Product Name: |
Ratchet Pipe Threader |
| Categories: |
Threading Machines for 2" Pipes |
| Accessories: |
Adapter, Support Arm |
Product Description
Product Description
Product Application

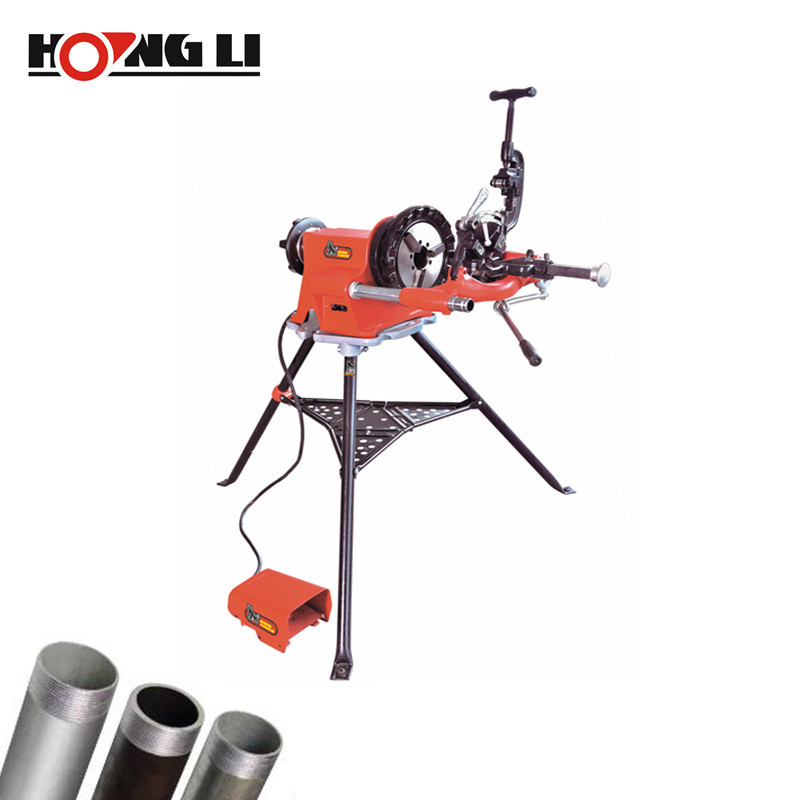

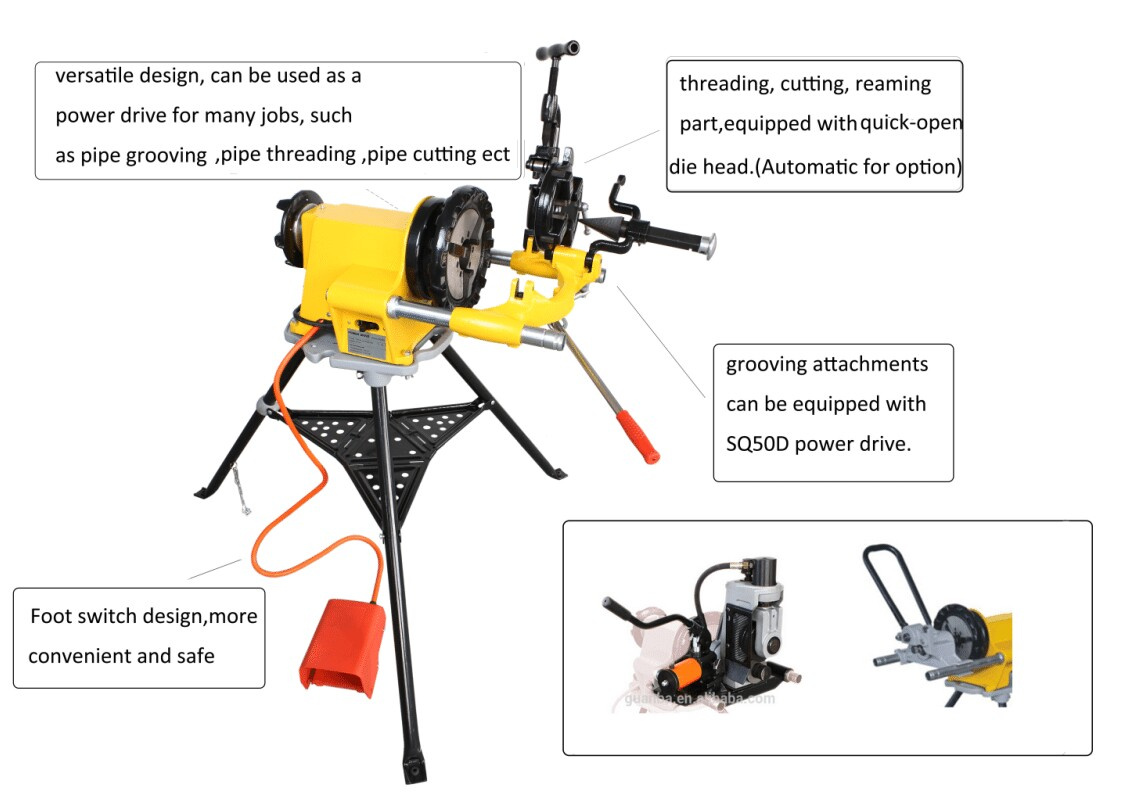

Model SQ50D Electric Pipe Threading Machine For BSPT or NPT Threader Compatible With Ridgid 300 Threading Machine
Capacity: 1/8"-2" (6mm-50 mm) pipe.
Motor: 1500w universal type
Speed: 38 RPM
Chuck: Hammer type with replaceable, rocker-action jaw inserts
Rear centering device: Cam action
N.W.: 80KG (including accessories)
CE & CSA certified
Standard equipment:
1- Die head (1/2"-2"): quick-open type, 811A
1- 1/2"-3/4" universal HSS dies set
1- 1"-2" universal HSS dies set
1- Cutter:Capacity:1/8"-2"(6mm-50mm) pipe
1- Reamer: Positive-locking, 5-flute cone, right-hand 1/8"-2"(6mm-50mm)
1- 1206 tri-stand
1- 418 oiler
1- 42 foot switchHS Code of SQ50D Electric Pipe Threading Machine: 8459700000
Ordering Information: | Catalog.No. | Model No. | Description | Spindle Speed RPM | Pipe Threading Capacity | Rod Threading Capacity |
| 37012 | SQ50D complete | 110 V, 50/60 Hz | 38 | 1/4-2In. (6-50mm) | M12-M52 |
| 37014 | SQ50D complete | 110 V, 50/60 Hz | 57 | 1/4-2In. (6-50mm) | M12-M52 |
| 37011 | SQ50D complete | 220 V, 50/60 Hz | 38 | 1/4-2In. (6-50mm) | M12-M52 |

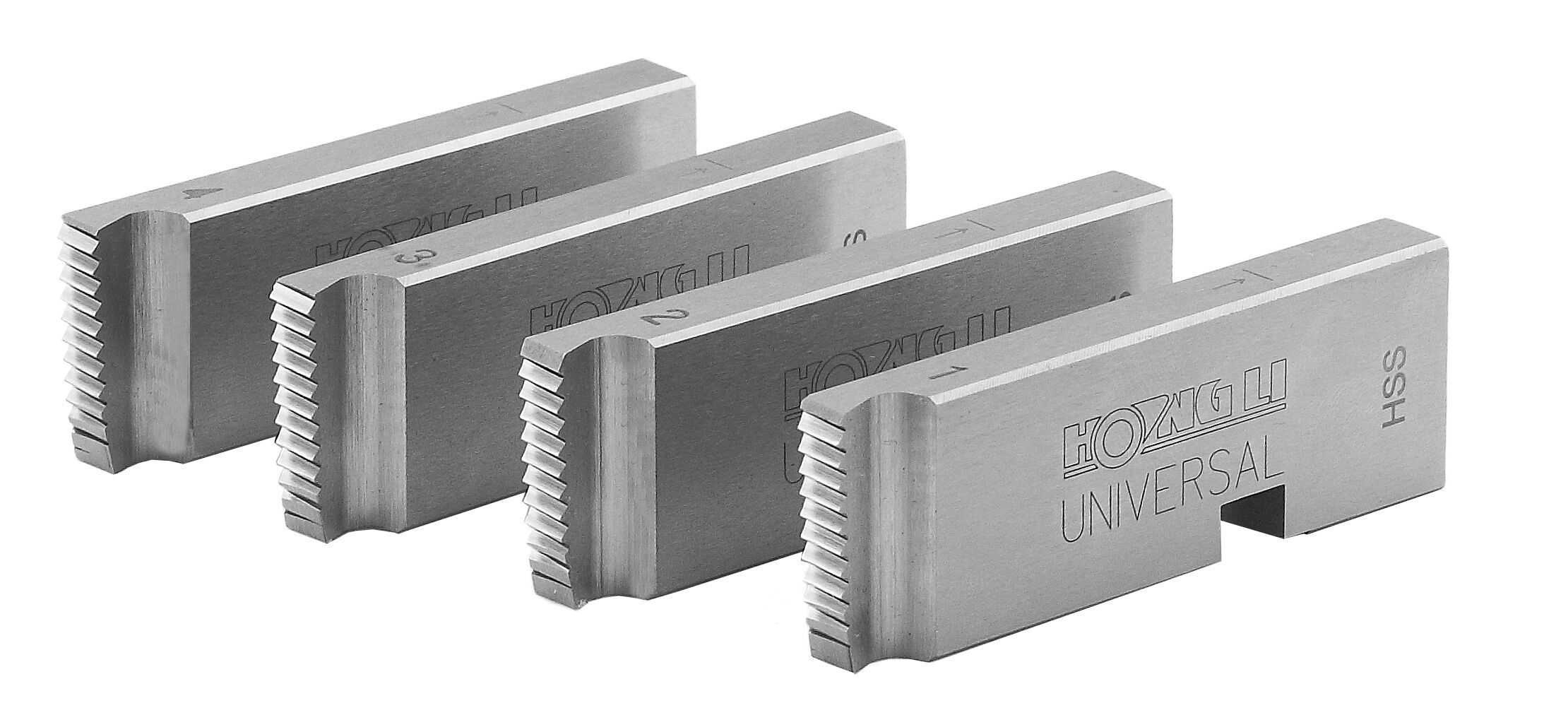

Dies sets:
| Cat no. | Size | Material | Weight |
| | 1/4-3/8 BSPT(optional) | HSS | 0.75KG |
| 24051 | 1/2-3/4 BSPT | HSS | 0.75KG |
| 24053 | 1-2 BSPT | HSS | 0.75KG |
| | 1/4-3/8 NPT(optional) | HSS | 0.75KG |
| 21051 | 1/2-3/4 NPT | HSS | 0.75KG |
| 21053 | 1-2 NPT | HSS | 0.75KG |
| | 1-2BSPP | HSS | 0.75KG |
We are developing all kinds of threading machine .In order to make our machines meet the requirements from different counties
Some spare parts of our machine can interchange with that of RIDGID, ROTHENBERGER, REX, ASADA , REMS, EGAMASTER tools.
Standard equipment:
Power drive 1 pc
Carriage assembly 1 pc
Die head 811A (NPT or BSPT) 1 pc
Dies 1/2"-3/4" (NPT or BSPT, HSS) 1 set
Dies 1"-2" (NPT or BSPT, HSS) 1 set
Pipe cutter assembly 1 pc
Pipe reamer assembly 1 pc
Tripod stand 1 pc
Foot switch pedal 1 pc
Oil bucket 1 pc

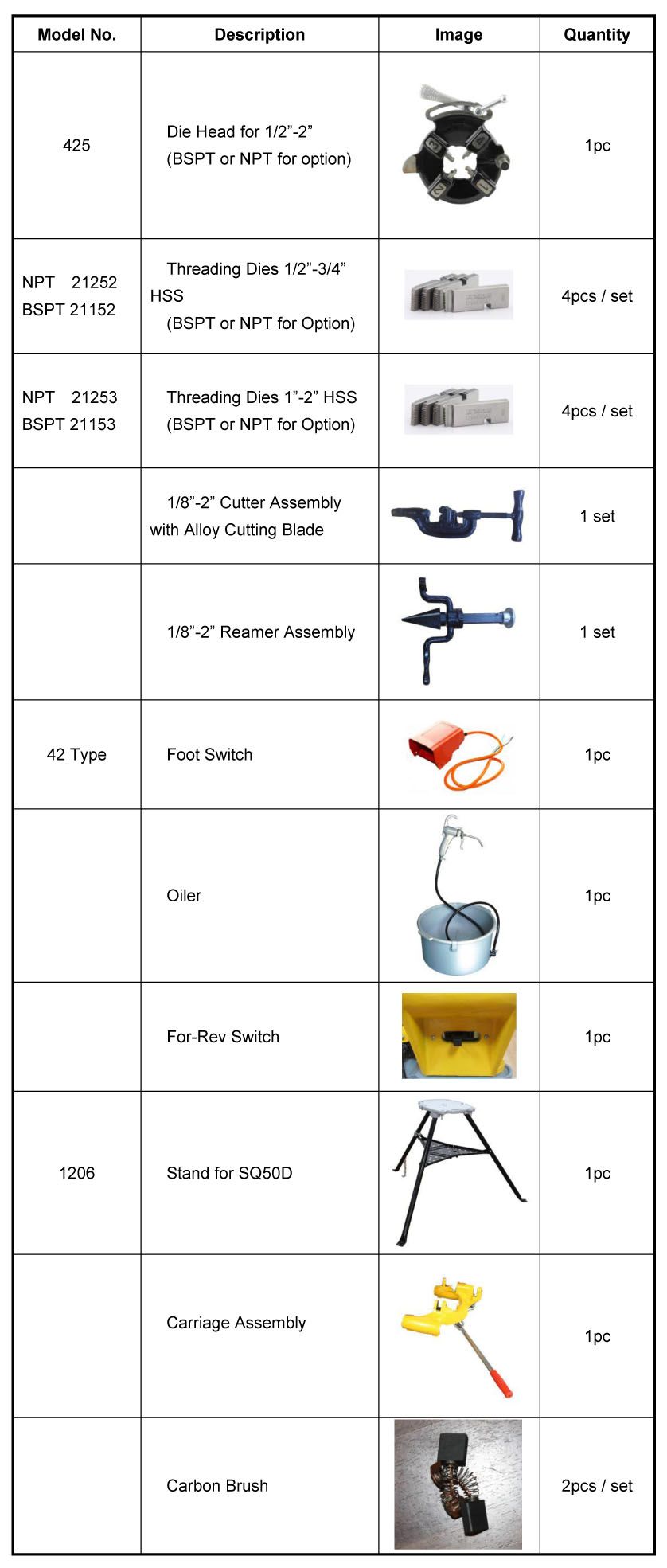

Detailed images Standard Parts of SQ50D Electric Pipe Threading Machine:
Packing & Delivery
| Model No. | G.W | N.W. | Packing |
| SQ50D Threading Machine | 121kgs | 105kgs | 100*52*47cm. |
