| Price: | US $ 11254/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | IBT |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: | Zhejiang, China (Mainland) |
| Brand Name: | Hongli |
| Product Name: | Ibt Series Hydraulic Torque Wrench |
| Power Source: | Hydraulic |
| Rated Voltage: | 100V-120V, 200-240V, 350-420V |
| Torque: | 112-72000n.M |
| Bolt Size: | M14~M125 |
| Square Drive: | 3/4', 1"1 1 1/2', 2-1/2" |
| Type: | Torque Wrench |
| Material: | Aluminum Alloy |
| Standard: | European Type |
| Feature: | Anti-Magnetic |
| Surface Treatment: | Titanizing |
| Brand: | Hongli |

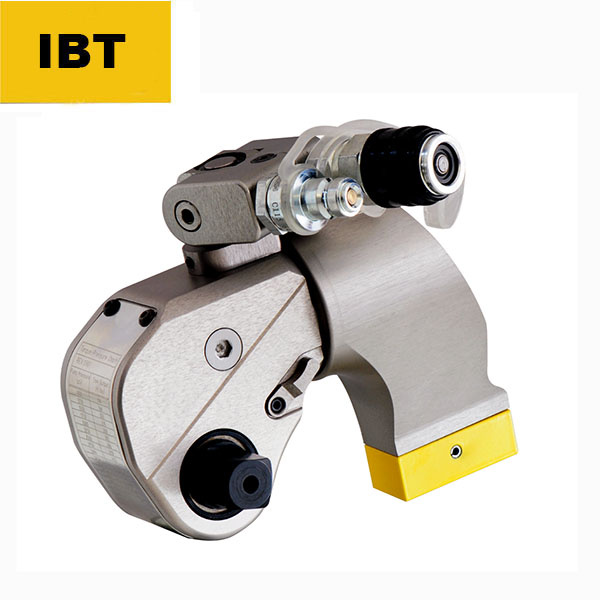

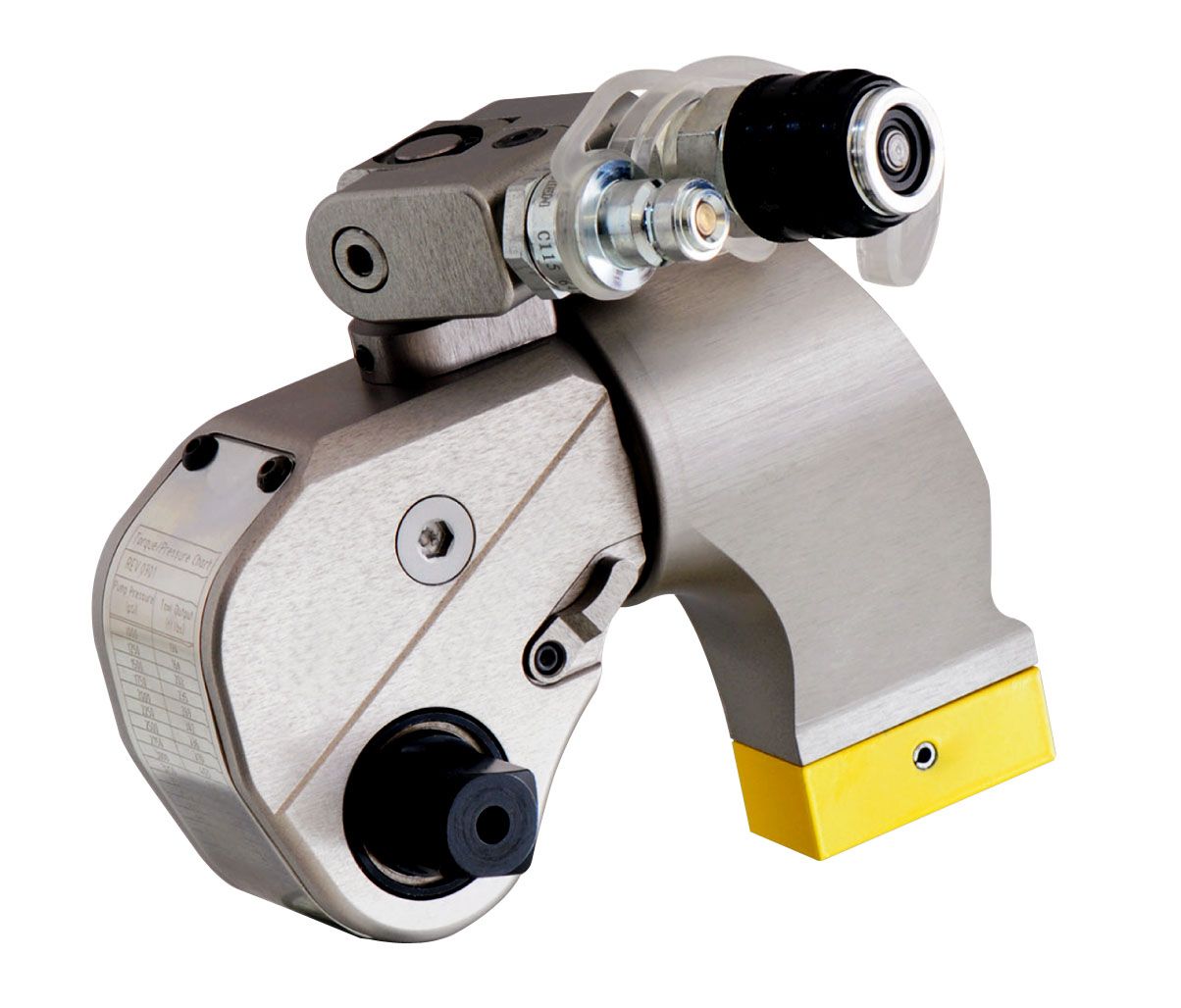

IBT series hydraulic torque wrench
Specification:

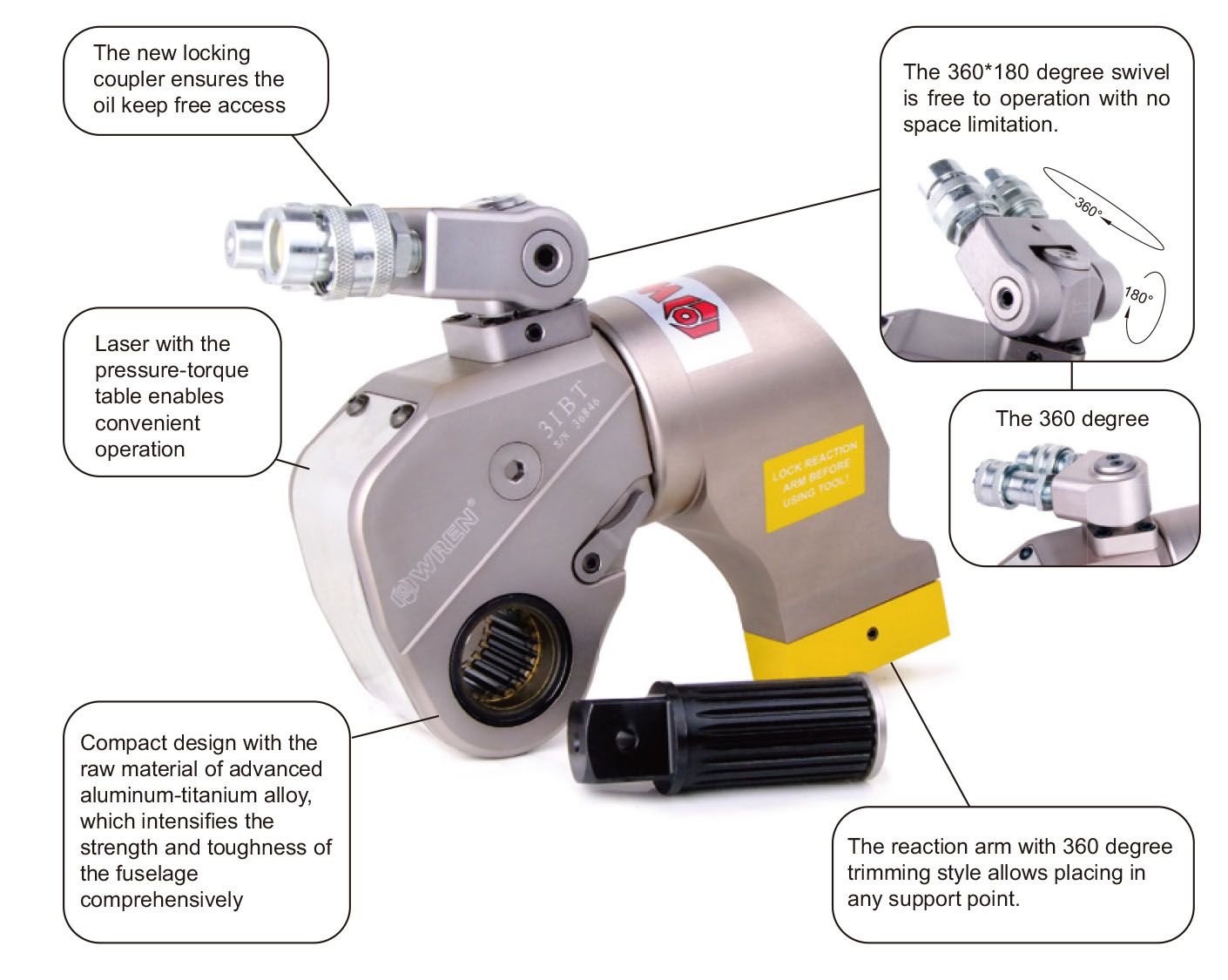

1.All together 10 models with the range from 112N.m to 72000N.m,which covers the most bolts size,and be the most comprehensive available in the market.
2.70Mpa Max working pressure and the accuracy keep within ±3%
3.The 360*180 degree swivel is free to operation with no space limitation.
4.The square drive operate with the high intense socket and suitable with large range of bolts.
5.360 degree adjustable reaction arm allows placing in any support point.
6.Compact design with the raw material of advanced aluminum-titanium alloy, high intense.
7.The new locking coupler ensures the oil keep free access
IBT series is the professional hydraulic torque wrench . Its raw material is aluminum-titanium alloy which makes the wrench light and high intense. IBT series has 10 models with the range from 112N.m to 72000N.m; covers the most of bolts size, and be the most comprehensive available in the market. WREN provide after-sales service all over the world, and already got the approved by TUV certificate.
Company informations:
Hongli is a company that brings together technology and engineering to provide innovative solutions for our customers in the range of pipe machinery. Hangzhou Guanba Machinery Import & Export Co., Ltd is our sister company. Our priorityis to design, produce and deliver products and solutions that make your job been done easily.

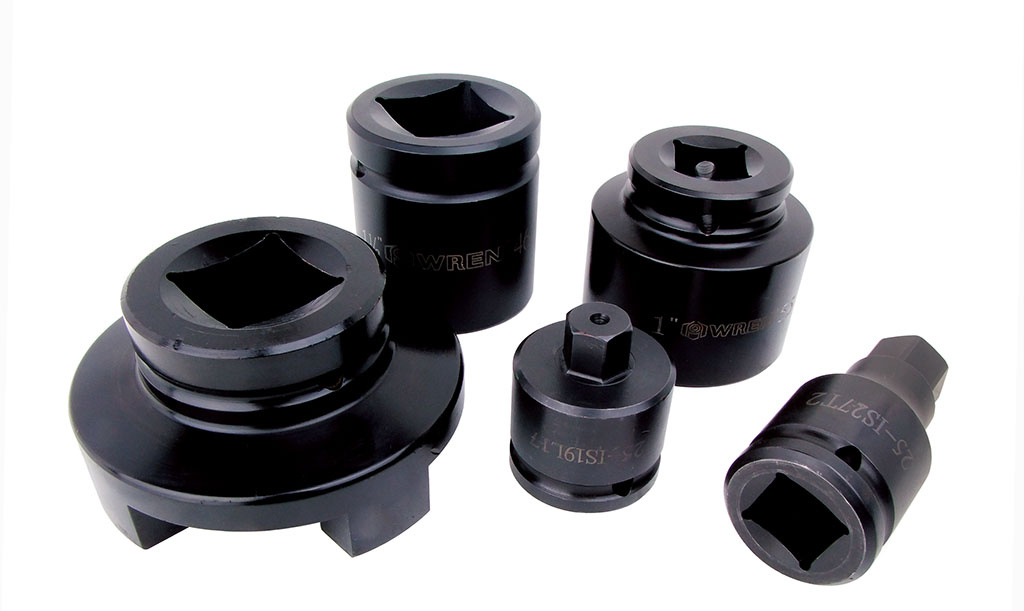

ACCESSORIES of torque wrench:
Our services
Our products is certified by CE or CSA. We supply buyer one year warranty
for our products. We will change the spares for free for any of the non-human damage in using, but not including the worn spares.
We also provide consulting service, spare parts list supply, or any other request.
Website: www.pipetool.com.cn
Welcome to contact us!
Name: Melissa
Tel: 0086-0571-86260006
| Ordering information | ||||||||||
| Model | 071IBT1 | 1IBT | 3IBT | 5IBT | 8IBT | 10IBT | 20IBT | 25IBT | 35IBT | 50IBT |
| Torque (N.M) | 112~1120 | 183~1837 | 451~4512 | 752~7528 | 1078~10780 | 1551~15516 | 2666~26664 | 3472~34725 | 4866~48666 | 7200~72000 |
| Bolt Size (M) | 14~30 | 16~36 | 22~48 | 27~56 | 30~64 | 36~72 | 42~90 | 48~100 | 64~120 | 72~125 |
| Weight(kg) | 1.8 | 2.5 | 5 | 8 | 11 | 15 | 26.5 | 35 | 50 | 87 |
| L1 | 110.8 | 144.5 | 178 | 210.5 | 222 | 245.5 | 307.5 | 323 | 372.5 | 400 |
| L2 | 139.3 | 173.5 | 229 | 270.5 | 293 | 317.5 | 383.5 | 401 | 496.5 | 516 |
| H1 | 42 | 50 | 68 | 80 | 90 | 100 | 120 | 137 | 153 | 160 |
| H2 | 65.8 | 72 | 95 | 123 | 134 | 142 | 183 | 200 | 216 | 223 |
| H3 | 76.2 | 96 | 127 | 149 | 167 | 182 | 220 | 247 | 282 | 291 |
| H4 | 108.1 | 131 | 176.5 | 199 | 217 | 232 | 270 | 297 | 332 | 341 |
| R1 | 20.5 | 26 | 34 | 39 | 47 | 51 | 29 | 66 | 77 | 81 |
| R2 | 68.3 | 85 | 114 | 137 | 153 | 154 | 186 | 199 | 241 | 259 |
| Square drive | 3/4" | 3/4" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" |
