| Prod Model: |
KM-91Z |
| Product Name: |

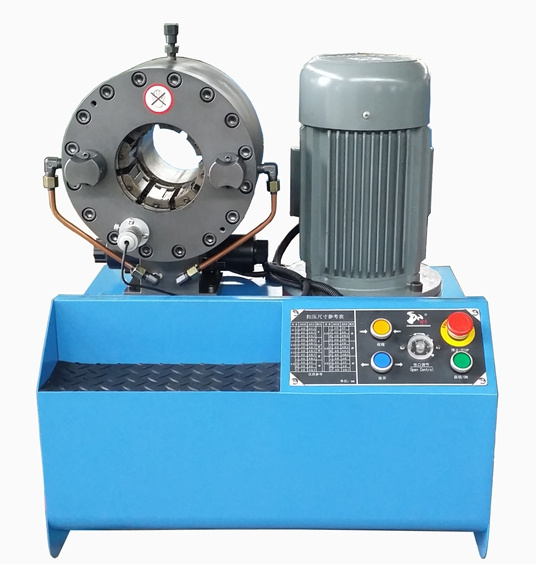

Hydraulic Hose Crimping Machine Km-91z |
| Crimping Range: |
1/8"-1 1/4" 4sp |
| Machine Max Opening: |
104mm |
| Die Material: |
Special Steel |
| Opening Time: |
Within 4s |
| Closing Time: |
Within 10.5s |
| Weight: |
160kg |
| Volume (L-W-H): |
640*480*660(mm) |
Product Description
Technical Datas Of Uptodate Hydraulic Hose Crimping Machine KM-91Z
| Crimp ranger: | 1/8"-1 1/4" 4SP |
| Standard voltage&motor: | 380V/50HZ/3PH |
| Optional voltage&motor | 220v,440v |
| Pump | piston pump |
| Opening without dies | φ104mm |
| Opening | ≥20mm |
| No.of standard die | 8 sets |
| Oil box | 40L |
| Force | 400T |
| System pressure | 30Mpa |
| Weight without oil | 160 kg |
| Machine size | 640mm*480mm*660mm |
Standard Die Size Of Hose Crimping Machine KM-91Z
| Die bore | 15mm | 18mm | 20mm | 23mm | 26mm | 29mm | 37mm | 46mm |
| length | 65mm | 65mm | 65mm | 65mm | 65mm | 65mm | 65mm | 78mm |
| Hose I D | 6mm | 8mm | 10mm | 13mm | 16mm | 19mm | 25mm | 32mm |
Advantages Of Hyraulic Hose Crimping Machine KM-91Z:
NEW foam inserts introduced to protect your machine from debris dropping into
the bottom of the head. With there you will minimize the risk of debris getting
into the cylinder which could cause damage to seals and other moving parts of
the head. This will significantly extend the life of hydraulic hose crimping machine.
Applications Of Hydrauli Hose Crimping Machine KM-91Z
1).Suitable for high precision pressing of low and high pressure hose diameter, starting from 1/8 inch to 1 1/4 inch internal hose pipe.
2).Used rubber hose to transmit hydraulic pressure as there working power.
3).Used in Building Construction, Petroleum Industry, Chemical Industry, Car and motor Industry.
Hydrauli Hose Crimping Machine Why Not Choose Kangmai?
1). Kangmai hose crimper has approved CE & ISO and audited by SGS.
2). The fitting and hoses crimped by kangmai machine never leakage the oil and never broken. The reason are like below:
(a)The machine head process by CNC machine, roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advances craft,the hardness is above 55HRC. The die hardness is enough so that the die life is very long and easy to crimp high pressure hydraulic hose, such as 4SP even 6SP.
(c)The technical of machine head is forging not cast. Casting is cheap but has small hole on the machine head. The piston will divide from casting machine head.
3). Strictly testing and inspetion.
(a) for raw material, we will check again by our inspector as per international standard. Only the raw material reach to international standard and allow enter kangmai facotry.
(b) for hydraulic and eletrical parts, such as valve, pump, motor and so on, we use famous brand both from China and abroad.However, we will check again when these parts enter our facotry.
(c) before the hose crimping machine enter our warehouse, the inspector check the machine roundess, taper, opening, speed, noise, apprance and so on. Only each parts is up to standard of ISO, CE standard, the machine can enter the warehouse.
(d) when the machine package, the inspector the dies, the package and other parts of clients requriment. Everything is ok, the inspector signed and machine allow to go out the facotry.
Handan Kangmai Hydraulic Equipment Co., Ltd...Located in East of Wang Zhuang, Han (Dan) - Lin (Zhang) Expressway with covered an area of 50 acres. We invest RMB30 million and built mechanical processing workshop, finished debugging workshop, mold workshop, new product development center, warehouse, and spare parts warehouse. We can product 2000 sets machines in one year.
Our employees reach to 60 people now. Professional and technical personnel account more than 50%. With a number of technology patents, we passed the ISO9001 quality system certification, obtained the self import and export rights and the European Union CE certification. And now we are one of largest factory in hydraulic area.
The main products are hose crimping machine, hose cutting machine, hose skiving machine, hose coupling machine, marking machine, nut crimping machine, hose testing machine, and cleaning machine, nine series more than 50 models. We successively provided equipment for XAC, Jizhong energy, South car group, the Beijing Shanghai High-speed Rail, and Yiwan railway company. Meanwhile, our products are exported to the United Kingdom, Spain, Portugal, Ukraine, Russia, Mexico, Brazil, Argentina, USA, Saudi Arabia, Iran, Thailand, Indonesia and other more than 30 countries and regions, and get good response by domestic and foreign customers.
In the future, we will insist on innovation and development, make the product more and more precisely. Make Chinese Kangmai become the world's Kangmai.
