| Prod Model: |
KM-92S |
| Product Name: |

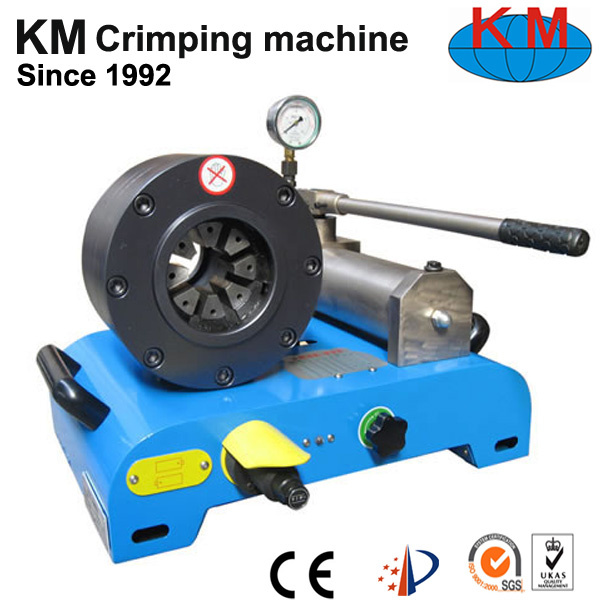

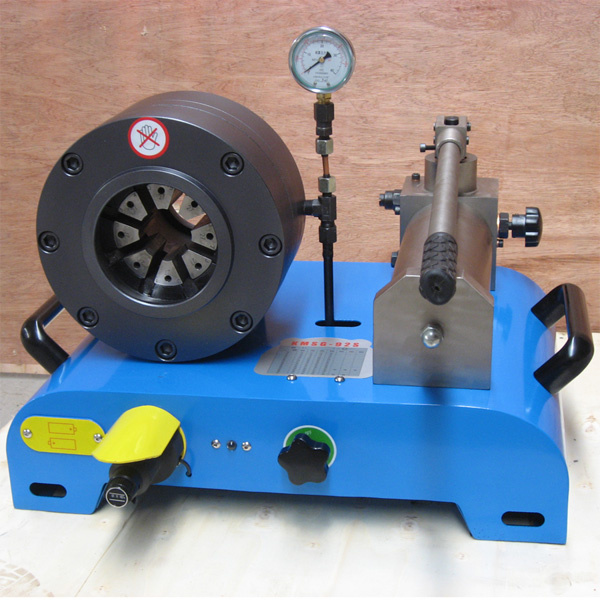

Manual Hydraulic Hose Crimping Machine Km-92s |
| Crimp Rage: |
1/8 Inch to 1 1/4 Inch |
| Machine Max Opening: |
108mm |
| Die Material: |
Special Steel |
| Machine Valves: |
From Taiwan |
| Machine: |
Blue |
| Weight: |
71kg |
| Volume(L-W-H): |
550*520*395(mm) |
| Automatic Grade: |
Manual |
Product Description
Technical Datas Of KM-92S Manual Hydraulic Hose Crimping Machine| Model NO. | KM-92S |
| Crimper Rage | 1/8 ich -1 1/4inch 4SP |
| Swaging Force | 1370KN |
| Pump | Maual Pump |
| Opening without dies | φ108mm |
| Opening | ≥ 27mm |
| Oil Box | 1.3L |
| Hydraulic Oil | L-HM32 |
| No. of standard die sets | 12 sets |
| Weight | 71 kg |
| Systematic Pressure | 30Mpa |
Installation Kits of Manual Hydraulic Hose Crimping Machine KM-92S| NO. | Name | Specification | Quantity | remark |
| 1 |
Die |
Φ12-Φ48 |
12Sets/1Box | |
| 2 | Dies disassembling tool |
| 1PC | |
| 3 | Product Manual | | 1PC | |
| 4 | Product Warranty | | 1PC | |
Advantages Of KM-92S Manual Hydraulic Hose Crimping Machine 1).Small volume,low weight and easy to be moved;
2).When crimping to the pre-set size, indicator light will be on;
3).Suitable for outdoor, non-electricity manipulation;
4).Fast speed with compound dienbase;
5).Load-off handwheel make the die return fast.
Applications Of Manual Hydraulic Hose Crimping Machine KM-92S1). Suitable for OUT DOOR MAINTAINCE,
ONLY 71KGS, EASY TO CARRY.
2).Used rubber hose to transmit hydraulic pressure as there working power.
3).Used in Building Construction, Petroleum Industry, Chemical Industry, Car and motor Industry.
Hydraulic Hose Crimper why not choose Kangmai?1). Kangmai hose crimper has approved
CE & ISO and audited by SGS.
2). The fitting and hoses crimped by kangmai machine never leakage the oil and never broken. The reason are like below:
(a)The machine head process by CNC machine, roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advances craft,the hardness is above 55HRC. The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, such as 4SP even 6SP.
(c)The technical of machine head is forging or cast. Casting is cheap but has small hole on the machine head. The piston will divide from casting machine head.
Handan Kangmai Hydraulic Equipment Co., Ltd...Located in East of Wang Zhuang, Han (Dan) - Lin (Zhang) Expressway with covered an area of 50 acres. We invest RMB30 million and built mechanical processing workshop, finished debugging workshop, mold workshop, new product development center, warehouse, and spare parts warehouse. We can product 2000 sets machines in one year.
Our employees reach to 60 people now. Professional and technical personnel account more than 50%. With a number of technology patents, we passed the ISO9001 quality system certification, obtained the self import and export rights and the European Union CE certification. And now we are one of largest factory in hydraulic area.
The main products are hose crimping machine, hose cutting machine, hose skiving machine, hose coupling machine, marking machine, nut crimping machine, hose testing machine, and cleaning machine, nine series more than 50 models. We successively provided equipment for XAC, Jizhong energy, South car group, the Beijing Shanghai High-speed Rail, and Yiwan railway company. Meanwhile, our products are exported to the United Kingdom, Spain, Portugal, Ukraine, Russia, Mexico, Brazil, Argentina, USA, Saudi Arabia, Iran, Thailand, Indonesia and other more than 30 countries and regions, and get good response by domestic and foreign customers.
In the future, we will insist on innovation and development, make the product more and more precisely. Make Chinese Kangmai become the world's Kangmai.
