| Price: | US $ 1000-5000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | XLCT series |
|---|---|
| Name: | Enerpac Standard Hydraulic Low Profile Hexagon Wre |
| Maximum Pressure: | 700 Bar |
| Torque Range: | 235-46500 Nm |
| Hex. Size: | 19-175 mm |
| Product Name: | Al-Ti Hexagon Cassette Wrench |
| Material: | Al-Ti Alloy |
| Color: | Customize |
| Delivery Time: | 5-15 Days After Eceive Payment |

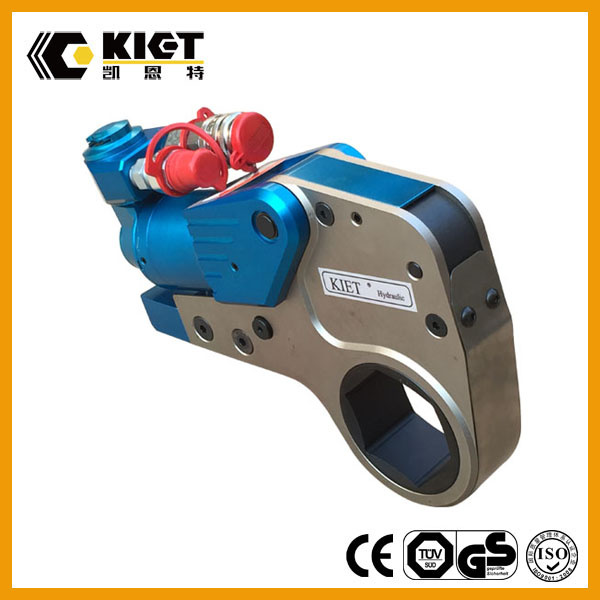

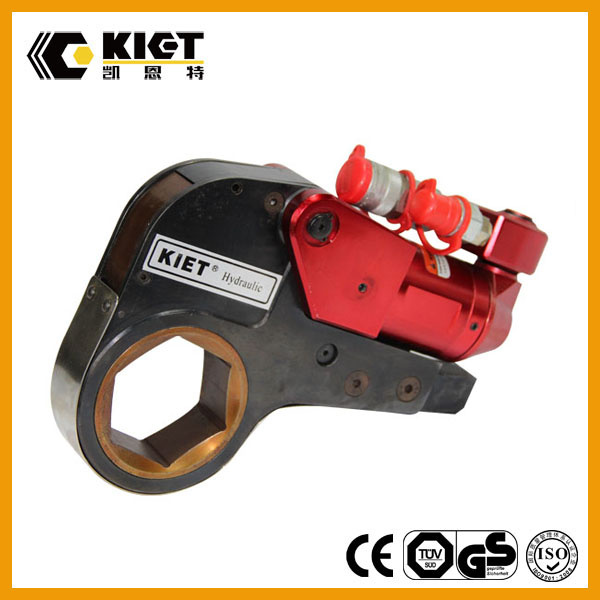

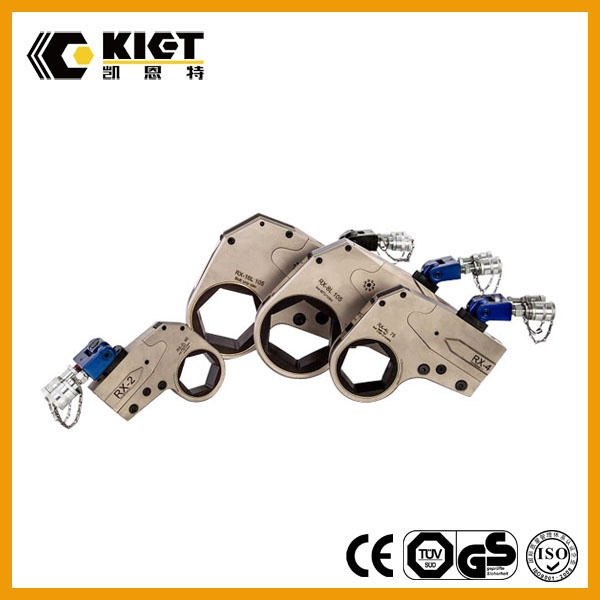

Features for Hexagon socket wrench:
1.Very high torque-to-weight ratio
2.High speed,double acting operation
3.High degree of rotation angle
4.Never-jam mechanism
5.High repeatability,with accuracy ±3%
6.Slim nose radius and 360 degree swivel hose connection allow easier positioning in confined areas
7.Few moving parts means durability and low maintenance
8.Push button drive release;no tools needed to reverse square or allen key drives for tighening or loosening
Parameter:
| Model | KET-2XLCT | KET-4XLCT | KET-8XLCT | KET-14XLCT | KET-30XLCT |
| Torque Nm | 232~2328 | 585~5858 | 1094~ 10941 | 1852~ 18521 | 4188~ 41882 |
| Bolt diameterM(mm) | 16-36 | 24-42 | 30-64 | 33-76 | 76-115 |
| ScrewS(mm) | 24-55 | 36~65 | 46~95 | 50~110 | 110~165 |
| Rotary head Model | 2XLCT | 4XLCT | 8XLCT | 14XLCT | 30XLCT |
| Working head model | 2XLCTA-50 | 4XLCTA-65 | 8XLCTA-90 | 14XLCTA-115 | 30XLCTA- |
| Weight(kg) | 2.4 | 5.0 | 9.3 | 16.9 | 30.9 |
| L(mm) | 196.4 | 245 | 300 | 361 | 430 |
| H1(mm) | 125.9 | 177 | 207 | 239 | 303 |
| H2(mm) | 102.3 | 135.7 | 170 | 203 | 272 |
| W1(mm) | 32 | 42 | 53 | 64 | 85 |
| W2(mm) | 51 | 66 | 83 | 99 | 131 |
Advantages:
Why choose KIET electric hydraulic pump:
Motor ----- Advanced inverter control of motors, energy-saving mute.
Valve ------ High Machining precision, easy to operate, long lifetime.
Plunger pump------what we use is plunger pump, not gear pump. More stable, high efficiency and continuous output to ensure the lifetime of driving tools.
Appearance----- baking varnish.
We are not the supplier that provide lowest price, but the most cost-effective one.
KIET provide one year guarantee for all the hydraulic torque wrench. We promise if there is any dysfunction of the hydraulic torque wrench during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded in 24 hours.
Company Information:

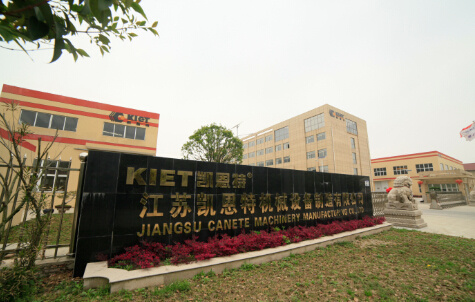

Jiangsu Canete Machinery Manufacturing Co.,Ltd . is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in Hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
