| Prod Model: |
KET-W |
| Material: |
Alloy Steel |
| Size: |
Common |
| Name: |
Steel Hollow Hydraulic Torque Wrench |
| Pressure: |
700 Bar |
| Color: |
Can Custmoize |
| Max Torque (Nm): |
2712-47454 |
| Feature: |
Ordinary |
| Weight (Kg): |
1.4-11.4 |
| Working Mode: |
Hydraulic |
| OEM: |
Yes |
Product Description
Product Description

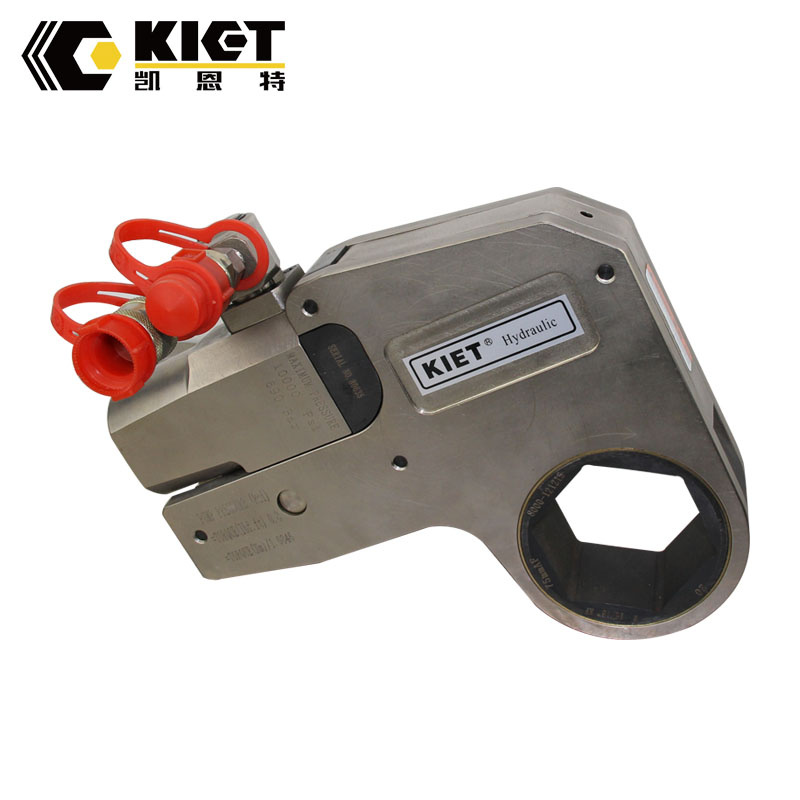

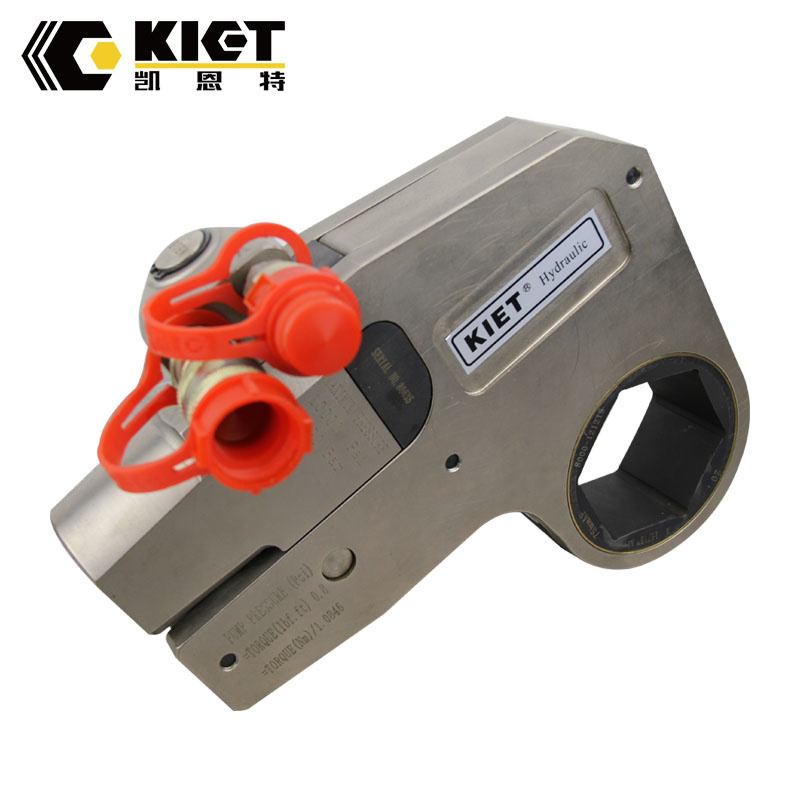

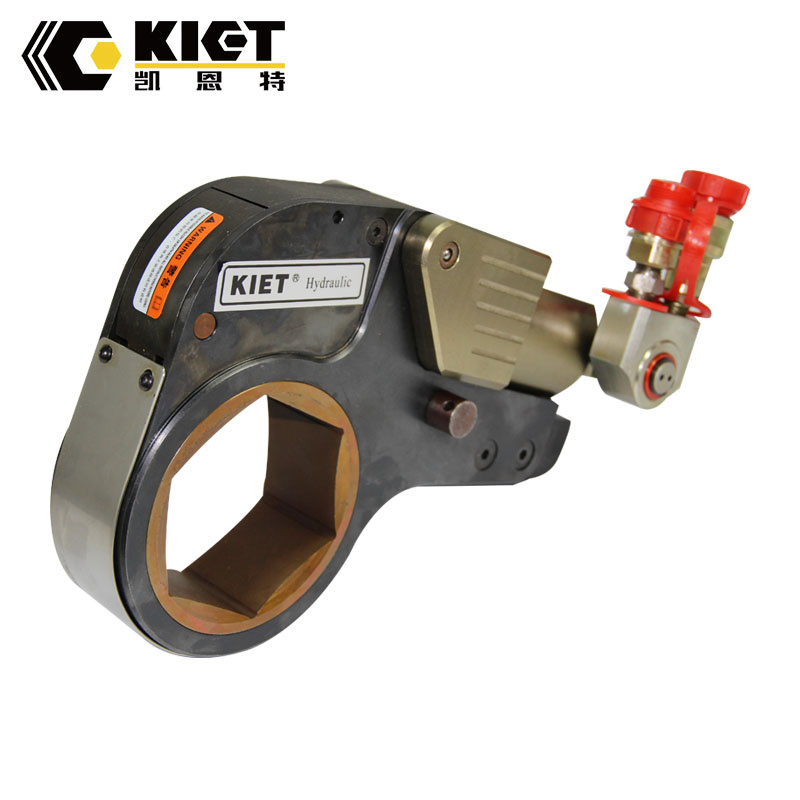

KIET-Brand Steel Hollow Hydraulic Torque Wrench
Hexagon Casstte Hydraulic Torque Wrench :
Features:
Innovation without pin connection wrench structure together with the rapid unloading cylinder and automatic crank bite
360 º x 180 º rotating tubing connector, without the use of space limitations, easy to operate
Cylinders and power head shape. And light weight. Compact structure, small operating radius
Single operation a large nut rotation. The cylinder quick return, high working efficiency
The reaction force in a straight line, reducing the internal torque loss
Constant torque wrench entire work process provides high accuracy
Easy to maintain, requiring no special tools
Surface of the torque wrench is nickel plated, with good anti-corrosive
All hollow hydraulic wrench is equipped with a the copper bushing to ensure that the ratchet will not be in contact with the sorrowful wall. Extend the service life
A variety of optional adjustable sets, extended use
Package:
Inner Package:Aluminum Alloy Box;
Outer Package:Wooden Package.
Shipping:
The best way to shipping the goods,you can choose by express,by sea or air.
Our Service:
KIET provide one year guarantee for all the hydraulic products, We promise if there is any dysfunction of the hydraulic products during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded in 24 hours.
Company Information:
Jiangsu Canete Machinery Manufacturing Co.,Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in Hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Contact:
For more information about the products please contact me as below:
Ms. Aaron
Tel: +86-523-81569666
Mob: +86-18052610078
Web: http://www.chinakiet.com/EN/
Model Number | Hexagon Drive Box Size Range | Optional Hexagon Heads | 700 bar Max. Torque | Working Pressure |
| mm | inch | mm | inch | Nm | Ft.lbs | Mpa |
| W2000 | 36-60 | 1 7/16-2 3/8 | 30-55 | 1 1/4-2 3/16 | 2712 | 2000 | 70 |
| W4000 | 55-80 | 2 3/26-3 1/8 | 41-75 | 1 5/8-2 15/16 | 5423 | 4000 |
| W8000 | 65-95 | 2 9/16-3 7/8 | 50-90 | 2-3 1/2 | 10846 | 8000 |
| W15000 | 80-115 | 3 1/8-4 5/8 | 65-110 | 2 9/16-4 1/4 | 20337 | 15000 |
| W35000 | 80-155 | 3 1/9-6 1/8 | 50-130 | 2-5 1/8 | 20337 | 47453 |
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
