Engergy Saving 4 Inch DTH Hammer for Water Well, Mining

Engergy Saving 4 Inch DTH Hammer for Water Well, Mining
Price: US $ 580-2000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: DHD, COP, XL, MISSION, NUMA
Formation: Soft-Hard Formation
Advantage: Ore Mining, Coal Mining, Well Drilling
Application: Rock Drilling, Core Mining, Well Drilling
Color: Blue, Golden, Black, Red, Customize
Usage: Small Hole Drilling, Gas Deep Hole Drilling, Boreh
Name: High Performance DTH Hammer for Drilling

Product Description

Product Description

OVERVIEW

Material: tungsten carbide

Color: blue, black, golden, red

Model: HD85A high air pressure dth hammer

Application: mining industry, energy, metallurgy, geology, coal, water conservancy, chemical industry and road construction.

Consistent performance
DTH hammer bits are designed for maximum performance and hole cleaning ability and high penetration rate.
Our bits are interchangeable with Atlas Copco's COP32 34 44 54 64 84, Ingersoll-Rand 's DHD3.5, DHD3.5HD, DHD 340A, DHD350R, DHD 360, DHD380 QL40, QL50, QL60, QL80. NUMA100, NUMA120, MISSION60, ects

1-12 inch middle-low / high air pressure DTH hammers & bits

Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling
Eccentric overburden drilling Equipment
Hole opener bit
Rock thread bit
Shank adapter, coupling sleeves and all kinds of adapters




DOWN THE HOLE  DTH HAMMER SPECIFICATION:



DescriptionThread connectionOutside diam.
(mm)
Rec. Hole size
(mm)
Working pressure
(bar)
Length without bit (mm)
BR1RD40 BOX5465-767-17.5760
BR2RD50 BOX6270-907-17.5880
BR3API 2 3/8" REG PIN8290-1107-17.6889
COP34API 2 3/8" REG PIN8190-11010-25994
DHD3.5
DHD340API 2 3/8" REG PIN99110-13510-251114
COP44
DHD350RAPI 2 3/8" REG PIN125135-15510-251260
COP54
DHD350CAPI 2 3/8" REG PIN125135-15510-251260
COP55C
DHD360API 2 3/8" REG PIN142155-19010-251260
COP64
DHD380API 4 1/2" REG PIN180195-25410-251492
COP84
DHD1120API 6 5/8" REG PIN275305-44510-251900
SD4API 2 3/8" REG PIN99110-13510-251084
SD5API 3 1/2" REG PIN125135-15510-251175
SD6API 3 1/2" REG PIN142155-19010-251261
SD8API 4 1/2" REG PIN180195-25410-251463
SD10API 4 1/2" REG PIN226254-31110-251502
SD12API 6 5/8" REG PIN275305-44510-251880
QL40API 2 3/8" REG PIN99110-13510-251097
QL50API 3 1/2" REG PIN125135-15510-251156
QL60API 3 1/2" REG PIN146155-19010-251212
QL80API 4 1/2" REG PIN180195-25410-251465
NUMA100API 6 5/8" REG PIN226254-31110-251510
NUMA120API 6 5/8" REG PIN275305-44510-251990
NUMA125API 6 5/8" REG PIN275305-44510-251990





DELIVER Y
- We can delivery in 2-3 days if we have products in stock, special design and customize products need 20-30 days.
- We can delivery according to customers' requirement, by sea, by air or express. We have long cooperation with DHL, TNT, EMS, UPS, FEDEX.
- Standard export packing. Wooden boxes, plastic boxes, carton packing, all with anti-collision foam.

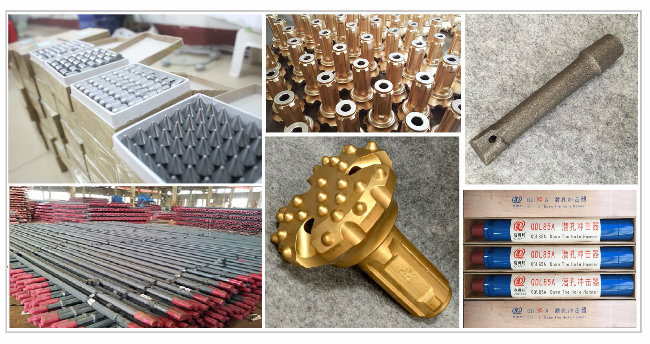

OUR MAIN PRODUCTS


OEM SERVICE

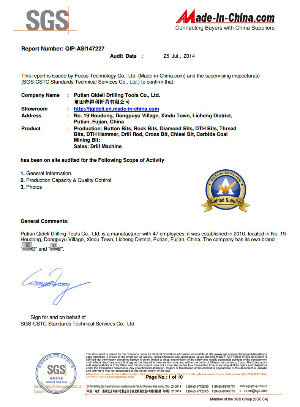

CERTIFICATE:



24 Hours service hotline:
Engineering equipment Dept.
Sophie Cheng
Cell: +86 18760510520

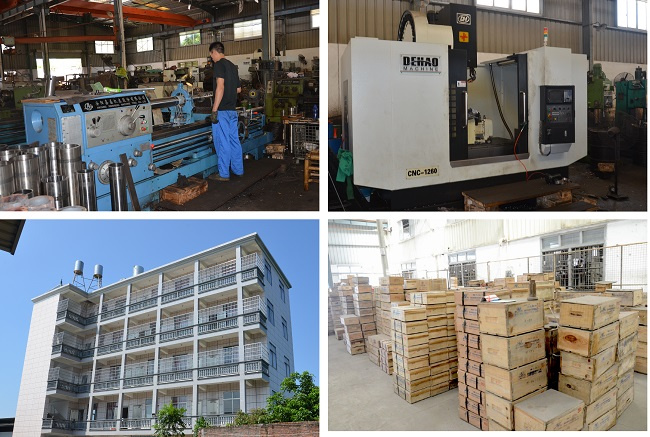

Putian Qideli drilling tools Company was founded in 2010, is specialized in the production and operation of mining drilling tools, research and development-oriented enterprises. 20 years, the production of chisel-bits, cross-bits, button bits, thread bits, PDC bits high and low air pressure DTH bits, DTH hammer, drill rods, etc, are widely used in energy, metallurgy, geology, coal, water conservancy, chemical industry and the mining, road construction, has been unanimously endorsed by the majority of users. Basing on our complete product and excellent quality, We have a certain domestic markets, also export to Russia, Japan, Southeast Asia and other regions alsowhile.

Where there is a will, there is a way. Putian Qideli drilling Tools Company diligently and wholeheartedly committed to drilling tools for mining research and development, with so many years learning of drilling tools for mining, and had attracted many of the domestic first-class drilling technology experts and experienced engineers to work for company, constant Close to the market, in-depth customer technology-LED, market-oriented, the market potential demand for the direction of development, actively planning an enterprise development strategy, focusing on product innovation and grasp the credit markets and technology to enhance the credibility of business products and services, constantly to enhance the core competitiveness of enterprises, in order to enhance the comprehensive advantages of products in the market.

"Continues to provide you with better products", which is the macro Dag keep business purposes, we sill make constant efforts to adhere to yesterday's achievements as a starting point, whole-heartedly to create first-class products and good services for all customers, in order to create the endless space and wealth for all customers.

Putian Qideli drilling tools company is authorizes the registration by the National Related Department the enterprise. Depends on a abundant fund strength, reasonable prices, excellent service, we establish long-term cooperative relationship with lots of enterprises. We are sincerely welcome your visit, investigate, and do business.

In March this year my company has registered a trading company in xiamen China: Xiamen Atlas trading Co., Ltd., this company will be a full range of services in foreign trading. The full import and export qualification for foreign customers with the convenience about import and export of products and services.
