| Price: | US $ 365-2000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | FY-ER |
|---|---|
| Working Pressure: | 700bar |
| Delivery Time: | 7-15 Days |
| Tank Capacity: | 12-100 L |
| Color: | Yellow Customized |
| Material: | Stainless Steel |
| Flow Low Pressure: | 10L/M High :4L/M |
| Source Of Power: | 220V/50Hz 380V |
| Flow Rate: | Constant Pump |
| Type: | Oil Pump |
Er Series High Quality Double Acting Hydraulic Electric Pump
Jiangsu Feiyao Machinery Manufacturing Co., Ltd
Product Description:
1Parameter:2stage pump with heat exchange,380v,50Hz,three phase
2.The maximum operating pressure :70Mpa
3.Flow:low pressure 10 Lm, high pressure4Lm
4.Operation :suitable for single and multi-operation (2 pair ports)
5.Two stage with hear exchange

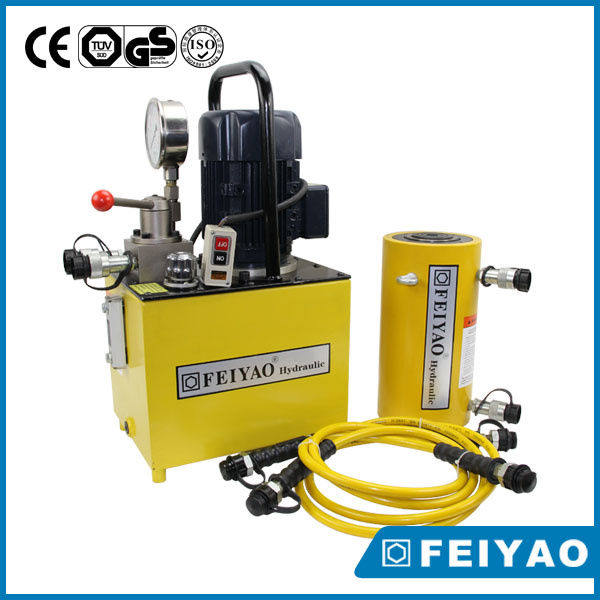

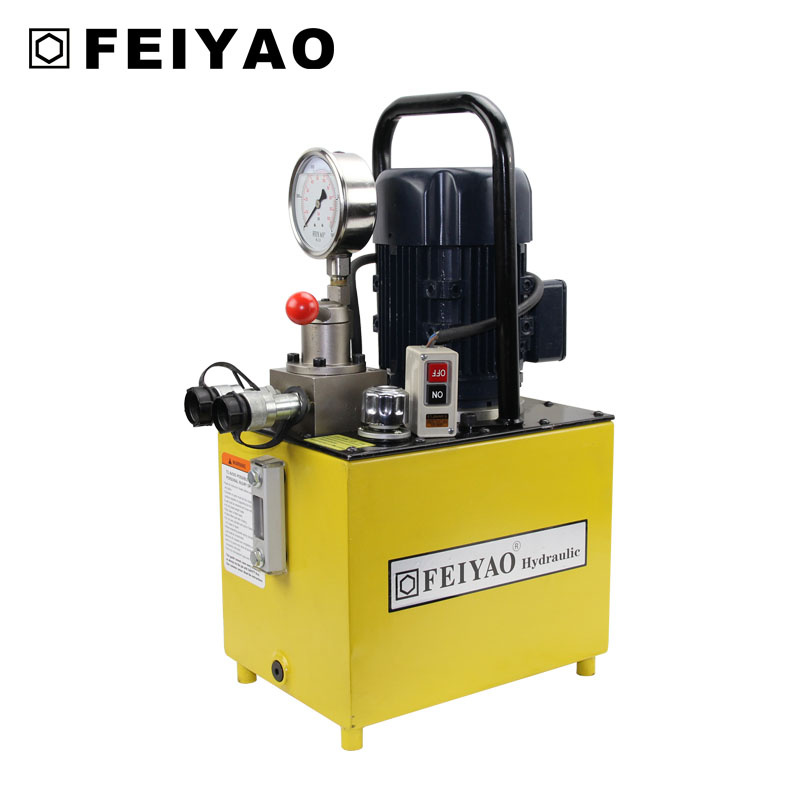

Photos for Hydraulic Electric Pump:
Jiangsu Feiyao Machinery Manufacturing Co., Ltd. is a professional hydraulic tools manufacturer with 30-year experience in the design, production, sale and service of Hydraulic Products, Electrical Control Equipment and Mechanical Devices.

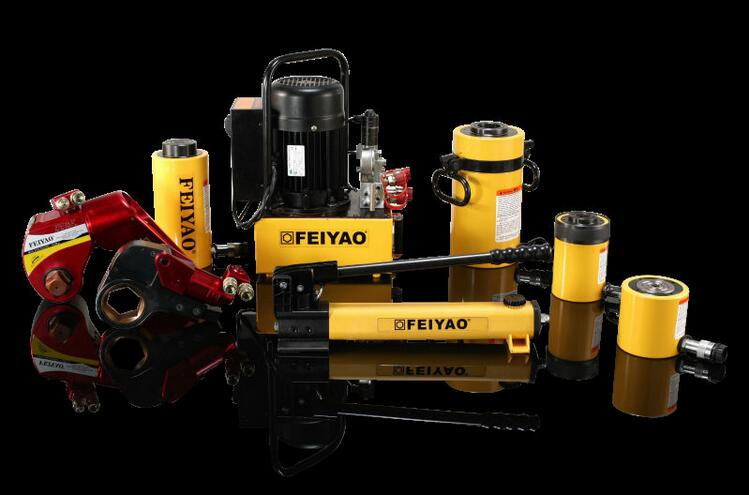

Jiangsu Feiyao has been in hydraulic tools industry since 1978. Mainly export:
Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
PLC synchronous lifting system;
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic bolt tensioners;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
IF YOU ARE LOOKING FOR SOME HYDRAULI JACKS BUT DO NOT HAVE WHOLE SPECS, PLEASE AT LEAST TELL US THREE FACTORS: 1. TONNAGE; 2. STROKE; 3. CLOSED HEIGHT. WE WILL RECOMMEND THE MOST SUITABLE TYPE FOR YOU.
Factory Show
FAQ
Q1: How to contact sales?
A1: Please email or call: +86-1180-3679-7771 for pre-sales.
Q2: How to make payment?
A2: Once order confirmed, we will prepare proforma invoice with our banking details.
Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock, if stock available, only take 2-3 business days.

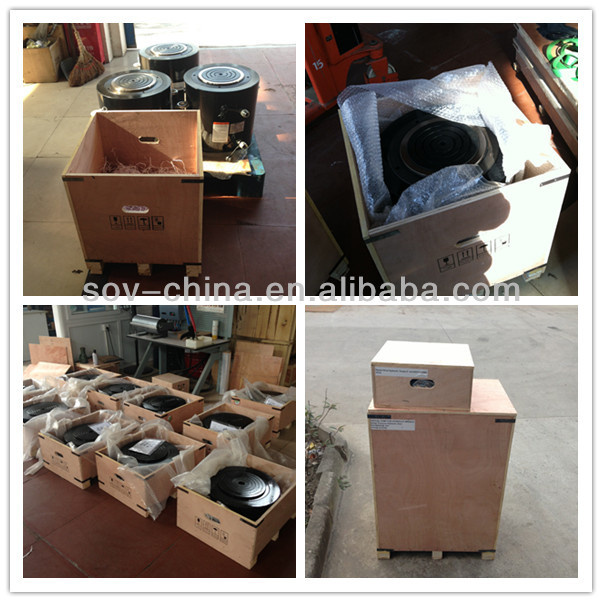

Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q5: How to ship?
A5: Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.
Q6: What is the warranty?
A6: 12 months against B/L date.
Contact Us
Jiangsu Feiyao Machinery Manufacturing Co., Ltd
Contact Person: Miss. Bella
Tel: +86-180-3679-7771
Web: www.fyhydraulic.com
| model.number | working pressure(Mpa) | flow (L/Min) | tank capacity | motor power(kw) | voltage(v) | dimension(L×W×H) (mm) | weight(kg) | ||
| high pressure | low pressure | high pressure | low pressure | (L) | |||||
| ER-75 | 70 | 0.8 | 12 | 0.75 | 380 | 400×260×440 | 30 | ||
| EPR-150 | 70 | 0.8 | 12 | 1.5 | 220 | 400×260×440 | 30 | ||
| EP-150 | 70 | 10 | 1 | 6 | 24 | 1.5 | 380 | 500×350×600 | 60 |
| EP-220 | 70 | 10 | 1.5 | 7 | 50 | 2.2 | 380 | 500×350×600 | 90 |
| EP-220 | 70 | 10 | 1.5 | 7 | 60 | 2.2 | 380 | 610×450×860 | 90 |
| EP-550 | 70 | 10 | 4 | 10 | 100 | 5.5 | 380 | 750×540×880 | 120 |
