| Price: | US $ 355-2000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | FY-ER |
|---|---|
| Working Pressure: | 700bar |
| Delivery Time: | 7-15 Days |
| Tank Capacity: | 12-100 L |
| Color: | Yellow Customized |
| Material: | Stainless Steel |
| Flow Low Pressure: | 10L/M High :4L/M |
| Source Of Power: | 220V/50Hz 380V |
| Flow Rate: | Constant Pump |
| Type: | Oil Pump |
70Mpa Two Stage Double Acting
Hydraulic Electric Pump (KT-ER )
Jiangsu Canete Machinery Manufacturing Co.,Ltd
Product Description:
1Parameter:2stage pump with heat exchange,380v,50Hz,three phase
2.The maximum operating pressure :70Mpa
3.Flow:low pressure 10 Lm, high pressure4Lm
4.Operation :suitable for single and multi-operation (2 pair ports)
5.Two stage with hear exchange

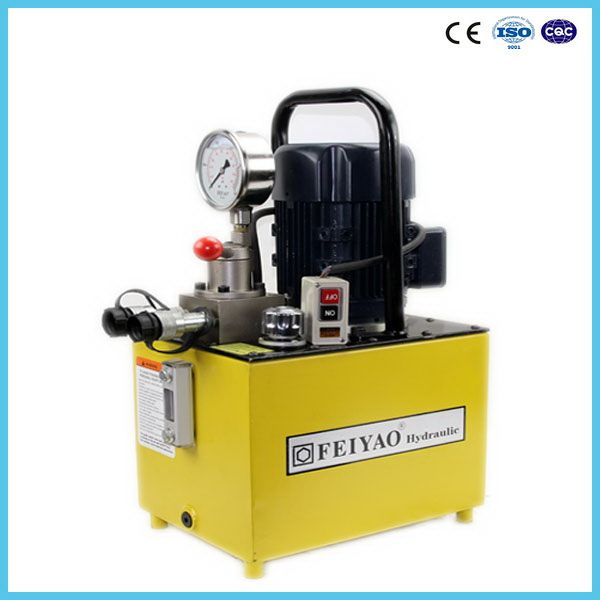

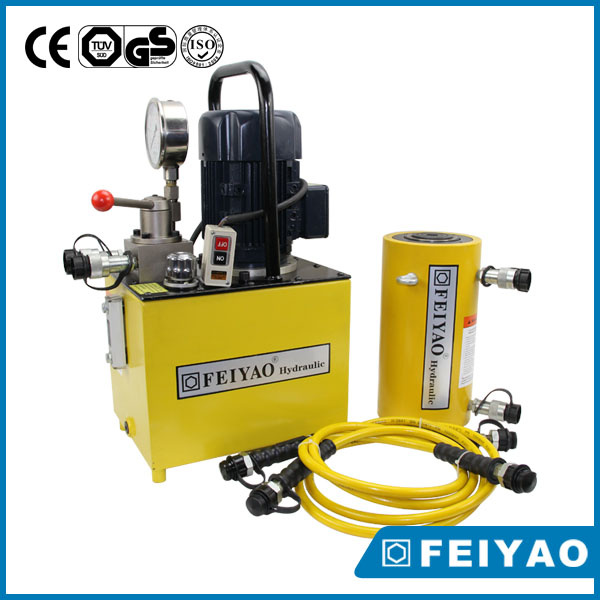

Photos for Hydraulic Electric Pump:
Jiangsu Canete Machinery Manufacturing Co.,Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pmps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Certificates:
CE, ISO9001:2008

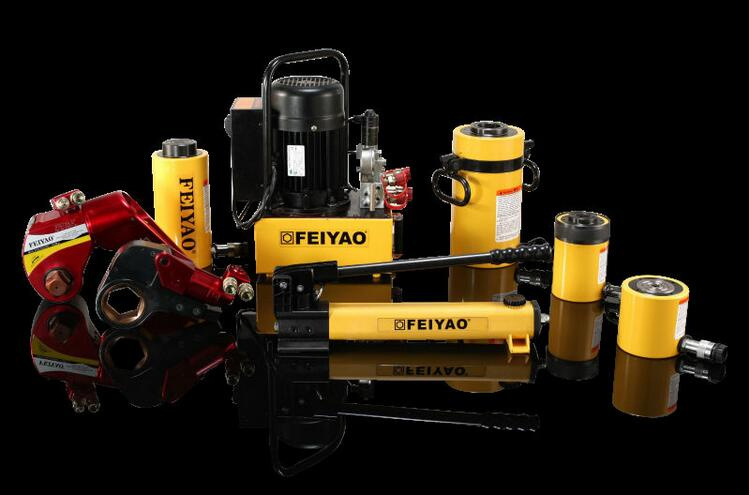

We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Packaging & Shipping:
KIET provide one year guarantee for all the hydraulic cylinders. We promise if there is any Problems of the hydraulic cylinder during the quality warranty not by outside force, we will replace a new cylinder for free. Any quality defects reported by customers will be responded in 24 hours.
More products For your reference:
More Information and questions please contact me as below:
Welcome to visit our factory !
We Make Sure will Quote Best Price To U After Get your inquiry!
| model.number | working pressure(Mpa) | flow (L/Min) | tank capacity | motor power(kw) | voltage(v) | dimension(L×W×H) (mm) | weight(kg) | ||
| high pressure | low pressure | high pressure | low pressure | (L) | |||||
| ER-75 | 70 | 0.8 | 12 | 0.75 | 380 | 400×260×440 | 30 | ||
| EPR-150 | 70 | 0.8 | 12 | 1.5 | 220 | 400×260×440 | 30 | ||
| EP-150 | 70 | 10 | 1 | 6 | 24 | 1.5 | 380 | 500×350×600 | 60 |
| EP-220 | 70 | 10 | 1.5 | 7 | 50 | 2.2 | 380 | 500×350×600 | 90 |
| EP-220 | 70 | 10 | 1.5 | 7 | 60 | 2.2 | 380 | 610×450×860 | 90 |
| EP-550 | 70 | 10 | 4 | 10 | 100 | 5.5 | 380 | 750×540×880 | 120 |
