| Prod Model: |
Bow shackle |
| Material: |
Stainless Steel |
| Shape: |
Bow Shape |
| Color: |
Ss Color |
Product Description

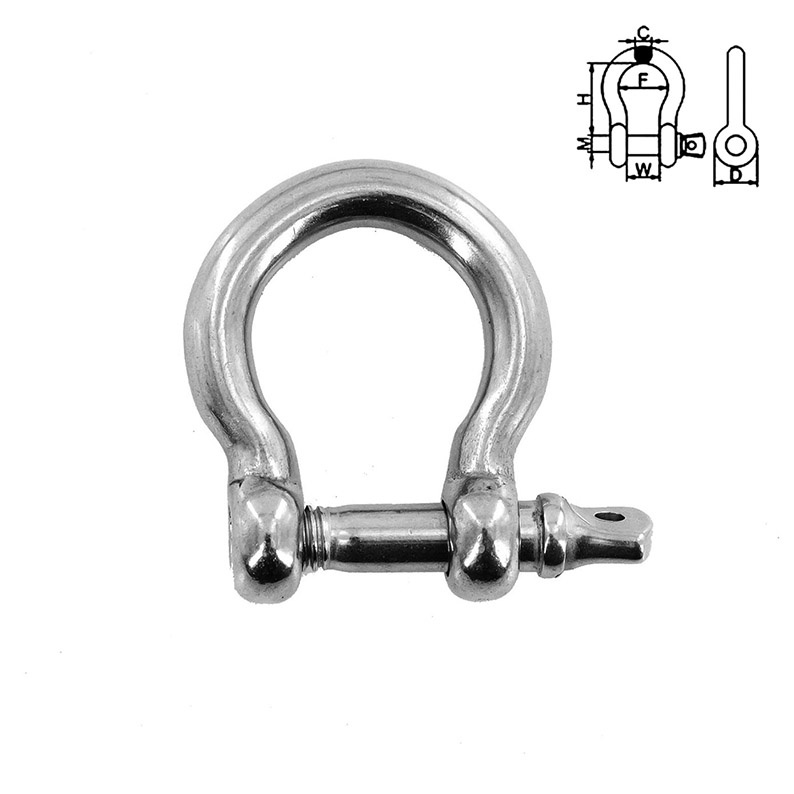

BOW SHACKLE EUROPEAN TYPE AISI304/316
Usage:Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings
Main standard: US type G210, G2130, G2150, Europe Dee & Bow type, JIS Dee & Bow type, Plate shackle
Material: Stainless steel 304/316
Finish: High polished
Size:Different size available(as below)
Delivery time:10-20days according to your order quantity

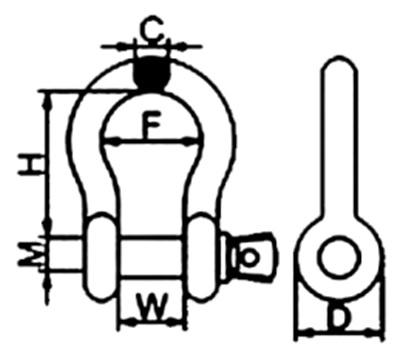

| SIZE | M(mm) | H(mm) | W(mm) | C(mm) | F(mm) | weight(G) |
| 4 | 4 | 16 | 8 | 4 | 14 | 7.5 |
| 5 | 5 | 20 | 10 | 5 | 18 | 14.5 |
| 6 | 6 | 24 | 12 | 6 | 21 | 25 |
| 8 | 8 | 32 | 16 | 8 | 28 | 61 |
| 10 | 10 | 40 | 20 | 10 | 35 | 120 |
| 12 | 12 | 48 | 24 | 12 | 42 | 208 |
| 14 | 14 | 56 | 28 | 14 | 49 | 324 |
| 16 | 16 | 64 | 32 | 16 | 56 | 485 |
| 18 | 18 | 72 | 36 | 18 | 63 | 700 |
| 20 | 20 | 80 | 40 | 20 | 70 | 971 |
| 22 | 22 | 88 | 44 | 22 | 77 | 1270 |
| 25 | 24 | 100 | 50 | 25 | 88 | 1705 |
| 28 | 28 | 112 | 56 | 28 | 98 | 2660 |
| 32 | 32 | 128 | 64 | 32 | 112 | 3800 |
| 38 | 38 | 152 | 76 | 38 | 133 | 6737 |
we also can supply:shackles, turnbuckles, hooks ,wire rope clips,chain, load binders and other rigging hardware accessories.
Welcome for your inquiry.
We Weihai BST Intl' Trade Co., Ltd established in 2011, We can supply various hardware products and electric tools accessories.
Our factory lies in Wudi City, Shandong Province, which has been known as the Fort of Qi Yan and Hinge of Ji Lu since long before. As it is founded in the center of Wudi where the geographical position and transportion are all very convenient, so that we can deliver the goods in time.
As a manufacturer specializing in stainless steel rigging, our products mainly include five fields, i. e. Hardwares, riggings, construction & decoration accessories, pipe fittings. These stainless steel products are mainly contains:
Shackles, wire rope clips, turnbuckles, snap hooks, swivels, links, connectors, eye nuts, eye bolts and other electric tools accessories include all sizes Keyless Drill Chuck, and Key-type Drill Chuck. With the good quality. They are mainly exported to North America, Middle East, Southeast Asia, West & East Europe and other areas.
Due to the advanced equipment and high quality technicians, we can produce excellent products. Meanwhile, we are ready to accept processing trust against users' designs and samples, and assemble products with users' components. Because of our competitive prices and promopt delivery we have enjoyed a high reputation at home and abroad.
Welcome your inquiry.
