| Prod Model: |
3 - 45tons |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |

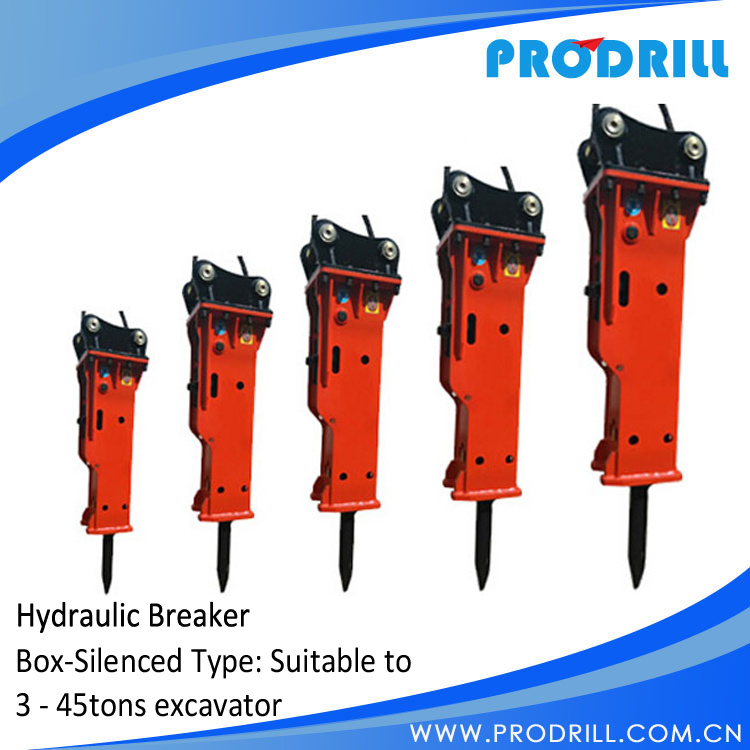

Excavator Mounted Hydraulic Breaker Hammer |
| Model: |
Hydraulic Breaker Hammer |
| Oil Pressure: |
180-210 Kg/Cm2 |
| Flow Rate: |
180-250 L/Min |
| Striking Frequency: |
240-250 Bpm |
| Suitable Excavator: |
5-45tons |
| Chisel Diameter: |
75-155mm |
| Color: |
Yellow, Red, Blue |
| Use: |
Rock Broken, Mining, Road, Building En |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
| Type: |
Breaker Hammer |
Product Description
Excavator Hydraulic Breaker Chisel
Excavator Mounted Hydraulic Breaker Chisel is powered by an excavator or loader pump provides pressure oil, it can dig a fundamental role in building a more efficient clean up floating rock crevice in the rocks and soil. Optional hydraulic hammer excavator model is based on the principle of the operating environment to choose the most suitable hydraulic rock breaker
Hydraulic breaker has become an important tool for the job, it was installed in the hydraulic breaker backhoe loaders (also known as two busy) or wheel loader for crushing operations. Excavator Hydraulic Breaker, also known as hydraulic breaker or hydraulic rock breaker (Excavator Hydraulic Breaker).
Excavator Mounted Hydraulic Breaker Chisel Feathers:
1. Use the highest strength material to get better wearing resistance.
2. Easy maintenance, prolonged life.
3. We have accumulated sales of 20, 000 units, rich maintenance experience.
4. The warranty period is 1 year.
Advantages:
1.Piston: the claim rate 0.1% for one year, The production line is CNC maching centre from Germany, Japan and South Korea.
2. Main body: For front head, back head and cylinder, we all use 20 CrMo, Adopt the most advanced Austrian heat treatment production line also with carburizing process over 36 hours, and depth of 1.8mm, while for other supplier, they use 40 CrMo, and use normal heat treatment equipment, only just need 5 hours heat treament process.
3. Bracket : Our materials is Q345 ( 16Mn), and obviously betten than other suppliers'Q235.
4. Control Valve : Also with Austrian heat treatment process, which is directly imported from South korea
5. Seal kit: we use NOK brand, imported from Japan directly,
6. Spare parts : four our through bolt, from cover, inner bush and tools, we all use 42CrMo, this steel raw materials is with betten strength and goood resistance
7. Robust design, durable parts and experienced engineers have enabled our hydraulic breakers to be POWERFUL in Striking, STABLE in Performance and DURABLE in Lifetime.
8. Annual manufacturing capacity is 10000 units, enjoy great popularity in the Middle East, India, Russia, Brazil, Mexico and so on.
9. OEM service offered, Technical Help to Importers, Design Service Offered, Buyer Label Offered
10. Quick delivery time: 1-2 weeks after deposit arrival.
Packaging & Delivery:
Two chisels, a netrogen device with a netrogen bottle, a gauge, all hoses and a maintenance tool box with all necessary tools
Fumigation-free Plywood Boxes For Export
Specification:
| TRB680 | TRB850 | TRB1000 | TRB1350 | TRB1400 | TRB1550 | TRB1650 | TRB1750 |
Weight
(kg) | 258 | 557 | 753 | 1653 | 1774 | 2569 | 2752 | 3912 |
Length
(mm) | 1415 | 1735 | 1994 | 2367 | 2414 | 2760 | 2816 | 3176 |
Required oil Flow
(L/min) | 40~70 | 60~100 | 80~110 | 120~150 | 130~1800 | 180~240 | 200~260 | 210~290 |
Working pressure
(kgf/cm2) | 110~140 | 130~1640 | 150~170 | 160~180 | 160~180 | 160~180 | 160~180 | 160~180 |
| impact rate | 500~900 | 400~800 | 350~700 | 400~800 | 350~500 | 300~450 | 250~400 | 200~350 |
Hose Diameter
(In) | 0.5 | 0.75 | 0.75 | 1 | 1 | 1 | 1.2 | 1.2 |
| Chisel Diameter (mm) | 68 | 85 | 100 | 135 | 140 | 155 | 165 | 175 |
Chisel Length
(mm) | 700 | 900 | 1000 | 1300 | 1300 | 1500 | 1600 | 1600 |
