Prod Model: |
JS20V |
Color: |
Yellow or as Request |
Rotary: |
360 Degree Rotary |
Weight: |
2100kg |
Opening: |
1100mm |
Warranty: |
14 Months |
Material: |
High Strength Steel |
Working Scene: |
Scrap Cutter, Building Demolition |
Cylinder: |
Two Cylinders |
Certification: |
ISO9001: 2000 |
Condition: |
New |
Type: |
Excavator Shear |
Product Description

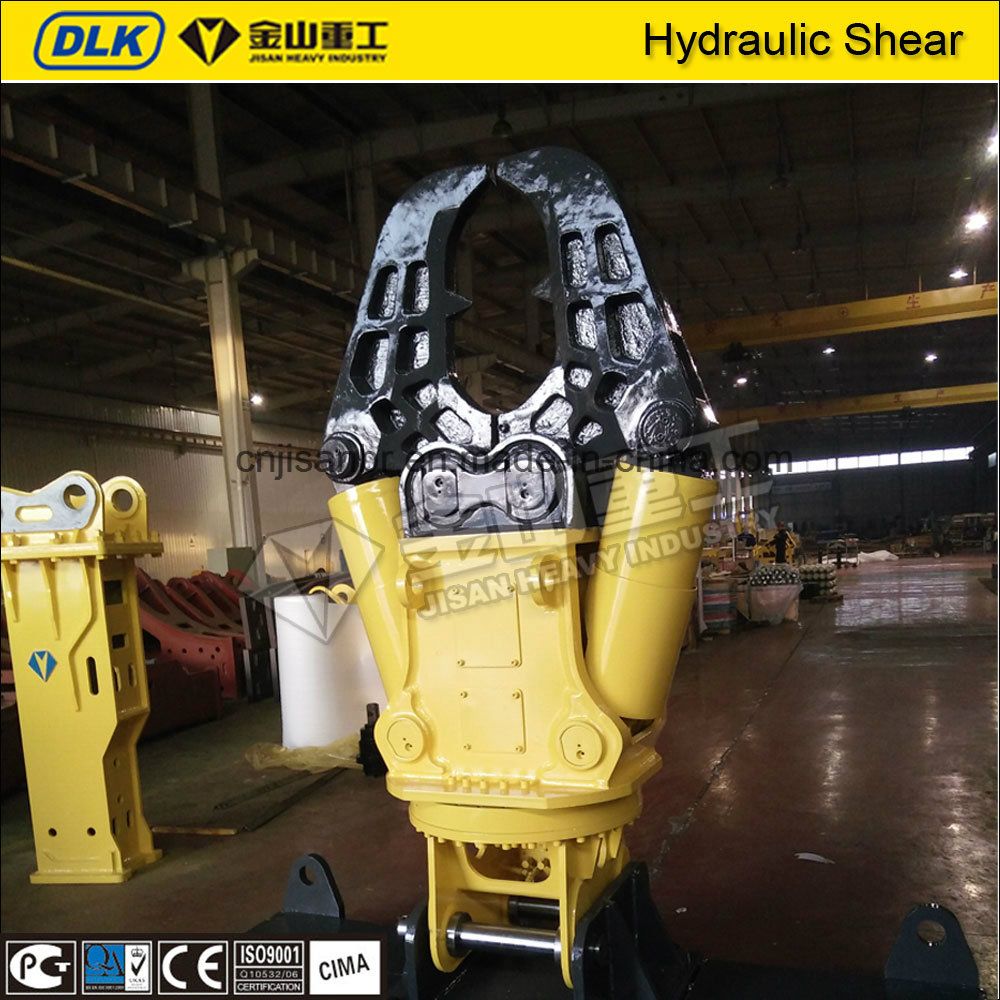

excavator cutting machine hydraulic rotating scrap metal shear for 20 ton excavator
Introduction
Hydraulic Shears are perfectly designed for primary crushing. It can be widely used to breaking down and remove building structures in reinforced concrete.
Features
1. Hydraulic study Rotation: Full 360° hydraulic rotation motor, apply for any location
2. Speed Valve: Speed Valve reduces cycle time
3. High quality Cylinder: Made of special designed sealing structure, strong power with long durability
4. Jaw and Tooth: Use high strength steel, wide jaw opening
5.Replaceable blade, easy for maintenance
6. Made of high strength abrasion-resistant steel, long durability
Parameters
Item/Model | Unit | JS10V | JS15V | JS20V | JS25V | JS30V |
Suitable Excavator | T | 6-9 | 15 | 18-24 | 35 | 45 |
Weight | kg | 1250 | 1580 | 2100 | 2750 | 5350 |
Opening | mm | 750 | 890 | 980 | 1100 | 1400 |
Blade Length | mm | 140 | 160 | 200 | 240 | 300 |
Height | mm | 1620 | 2100 | 2280 | 2450 | 2850 |
Width | mm | 1120 | 1280 | 1450 | 1720 | 2350 |
Crushing Force | metric ton | 45 | 58 | 70 | 85 | 95 |
Cutting Force | metric ton | 90 | 115 | 130 | 165 | 260 |
Rated Pressure | bar | 300 | 320 | 320 | 320 | 320 |
Rated Flow | Lpm | 180 | 230 | 240 | 260 | 380 |
Working Pressure | bar | 260 | 280 | 300 | 300 | 300 |
Cycle Time | Open | sec | 1.8 | 2.1 | 2.9 | 3.4 | 4.3 |
Close | sec | 1.7 | 2.3 | 2.7 | 4.1 | 5.5 |

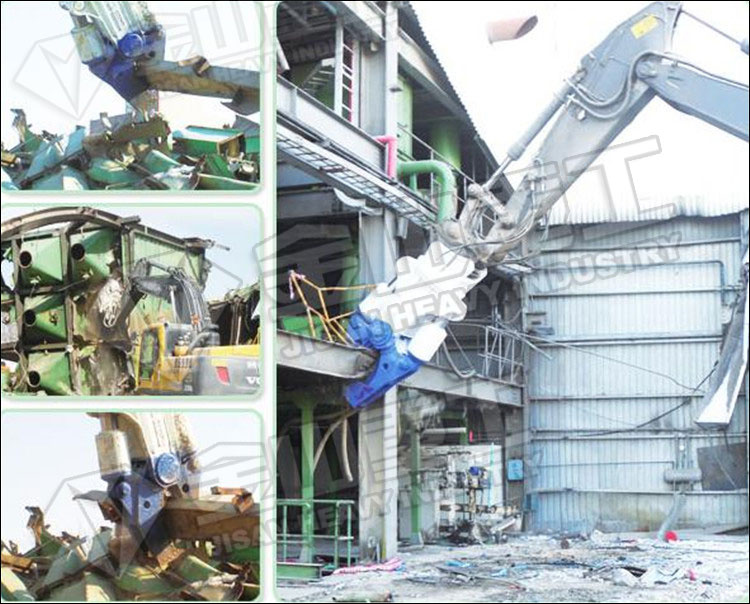

Working Scene
Certification
Package
Inner is stretch film, outside is export wooden case or as customer's request
Delivery
1. Delivery time: Usually 5-7days (1-5sets) after down payment.
2. We can arrange ocean or air transportation according to your request from any port of China.
Company Introduction
JISAN is one of the largest and most professional excavator attachment manufacturer with ten years experience. Our products have been exported to many countries in the world including India,Saudi Arabia, Iran, Brazil, Australia, New Zealand, Southeast Asia, USA and France etc.
With advanced imported CNC Center and strict quality control management, our products have been approved by ISO, CE authority.
Our Service
1. 7Days*24Hours after-sales service by email and phone
2. Your inquiry will be replied in 24 hours during workdays
3. Our customer-oriented sales and technical team are always at your service
4. OEM Service available
5. Warranty: 6 months warranty for hydraulic shear, beyond the warranty period, all spare parts offered to you with our cost price.
Contact Information
If you have any questions, please contact me by below ways:
Mr. Scott Ning
Mobile: 0086-18615951533
Website: www.jisanbr.net

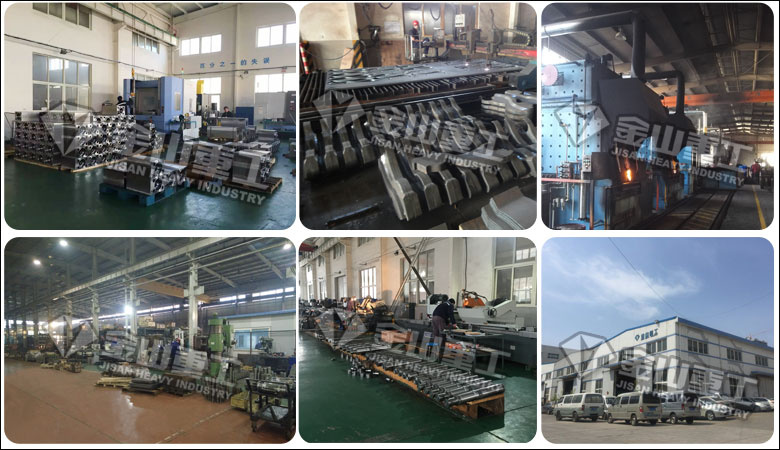

Jisan Heavy Industry Ltd. Is a modernized manufacture enterprise specializing in independent R & D, manufacturing of all the excavators matching equipments. The company is equipped with Plasma Cutting Machine, Edge Milling Machine, Welding Machine, CNC Machine, Sand and Spraying Equipment, Flaw Detector those processing and testing equipment, to lay a solid foundation for ensuring the advancing production capacity.
