Extrusion Mould for Thermal Barrier Strips Machine
| Price: |
US $ 3000-8000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
Mold |
| Shaping Mode: |
Extrusion Mould |
| Application: |
Engineering Plastics |
Product Description
The supply of PA66GF25 insulation strip extruding machine
Huachuang has its own design and development of nylon insulation strip automatic extrusion production line with high stability, high yield, high adaptability.
The utility model mainly uses the special screw to make the polyamide and the glass fiber mixed good.
Heat insulating rubber strips are widely applied to the doors, windows and curtain wall aluminum sheets through the different sections of the die.
Product Specifications:| Product Name | Mould for thermal barrier strips extrusion machine |
| Brand | Huachuang |
| Size | Various types |
| Mold material | Stainless steel |
| Product | PA66 thermal barrier strips |
| Runner | Cold/Hot runner |
| Mould cavity | Multi-cavity |
| Mould weight | 40kg-80kg |
| Service | Provide complete set of production press and technology and best after sale service. |
| Lead time | 25-35 working days |

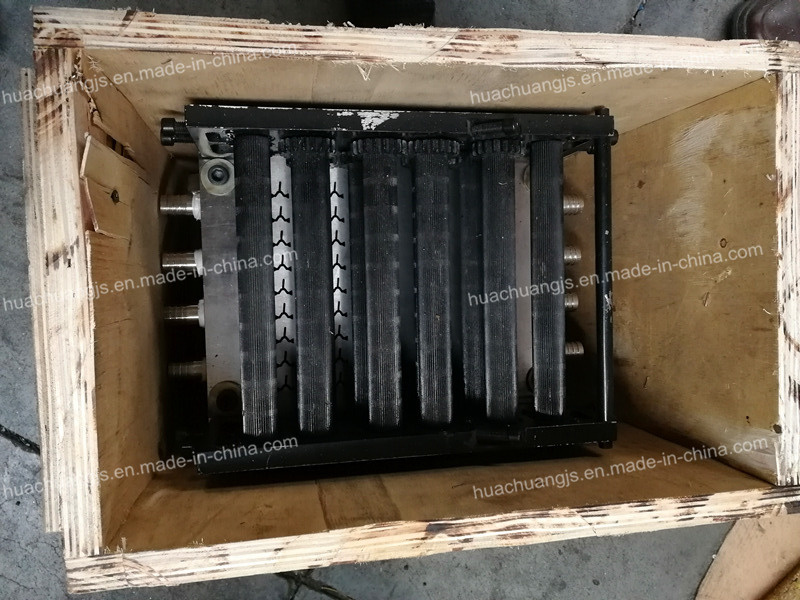

| Package | Plywood case |

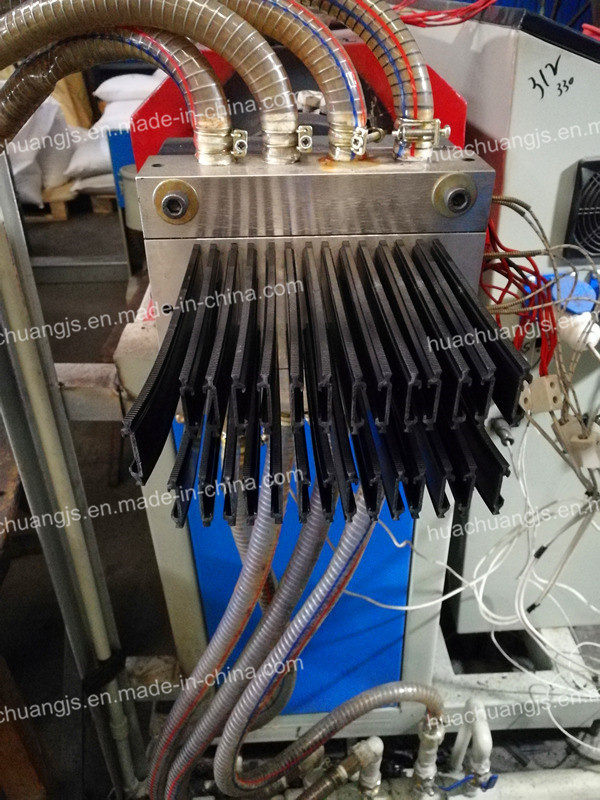

Detail introduction:PA66 granules and fiber glass are dired and get into the barrel through the hopper. Screw and pellets contact with the rotation of the screw is forced to promote the spiral groove die direction.
Because the screw barrel gap is small, the granule material is hot body under great pressure in the forward process, it is plasticizied to nylon thermosol through the high temperature of the electric heating ring body. Nylon plastic and plastic compression heating hot melt by extrusion molding, after traction, cutting or rolling become adiabatic adhesive tape products.
The host adopts imported inverter and traction, speed stability, ensure the main, auxiliary synchronous speed.
We use German technology to make the mould, so the surface of thermal insulation strips are beautiful, accurate shape and with high strength.
We use imported Japanese RKC temperature control table, so that the accuracy of the temperature can be controled in ±2 degrees.
Our Advantages:1. Our engineers follow the molds' production every week to make sure all of them are in schedule
2. After trial production, we will check the samples to make sure everything are right 3. We will send the sample and dimension report to our clients for approval
4. After everything is ok, we will do final inspection on the molds and products before shipment. Please feel free to contact us if you have any questions.Name:Camille Cai
Phone:0086-13584481777
Address:Jinfeng Town, Zhangjiagang City, Jiangsu Province, China
Our company is located in the city of Zhangjiagang, Jiangsu Province, China. Covering an area of 1, 580 Square Meters, near the beautiful Chanjiang River. We are close neighbor to national only inland river free trade zone, also a short distance from the economic hinterlands, such as Shanghai, Suzhou, Wuxi, Changzhou, Nantong, Nanjing, etc. With good location, mature economic environment, convenient modern communication, developed water and land transportation, we have been making research and development for special material of PA66 thermal insulation strip since 2006. PA66 GF25 is our main product, including plastic granules, thermal barrier strips, etc.
We expanded our business scope since the year of 2010. We not only produce PA66 granules and PA66 thermal barrier strips, but also sell parallel twin-screw granulator, extruding machine, mould and production technology. We can customize the mould according to customers' special requirements.
Customers come first, motives provide services is the principle we've always been insisting in the last ten years, to provide our customers with high-quality products and service.
Our domestic sales volume is very stable, and we are developing overseas market. We are going to promote our products all around the world, to seek win-win cooperation, mutual benefits and mutual development with our customers.
