| Prod Model: |
SHJS65 |
| Feeding Mode: |
Multiple Feed |
| Screw Channel Structure: |
Deep Screw |
| Color: |
Customized |
| Type: |
Plastic Granulation Production |
| Product Type: |
Granulating Extruder |
| Engagement System: |
Intermeshing |
| Exhaust: |
Exhaust |
| Usage: |
Plastic Forming Machine |
| Raw Material: |
PA |
| Screw: |
Double-Screw |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Certification: |
SGS |

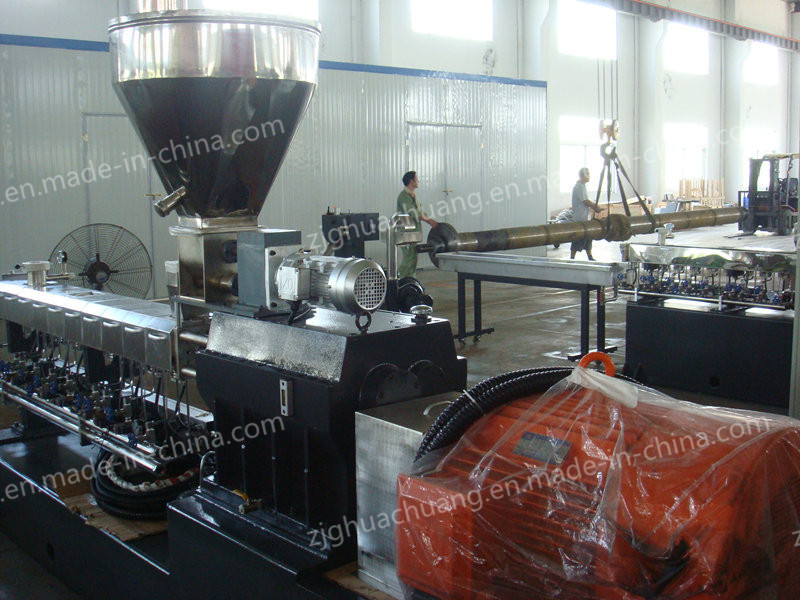

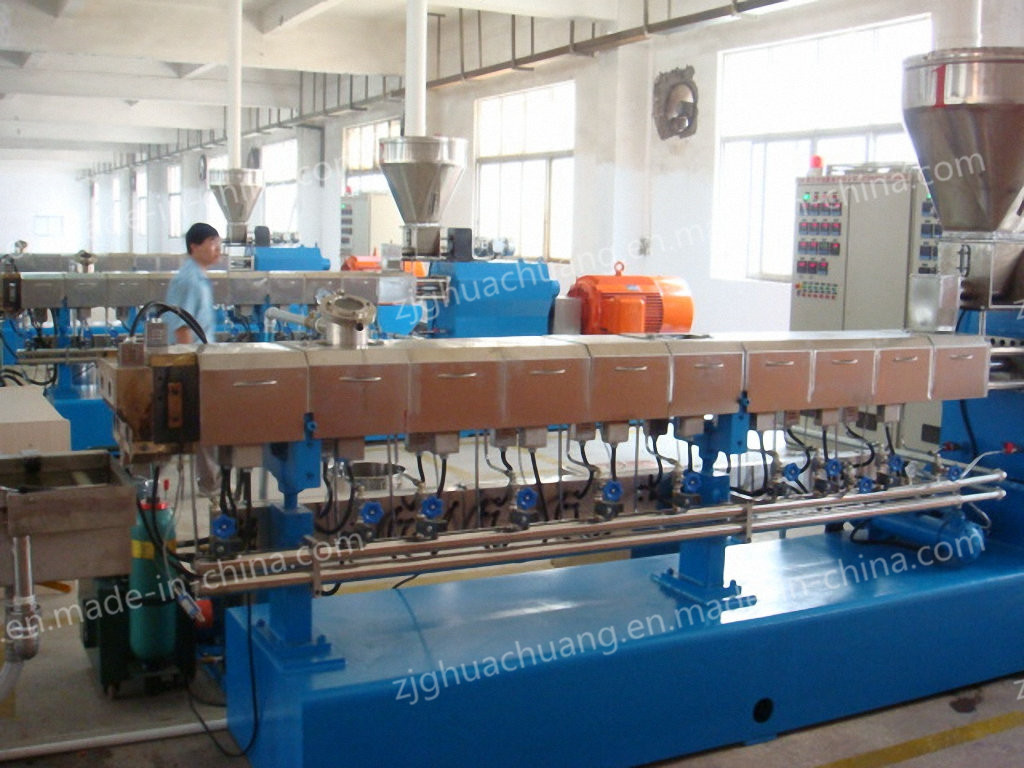

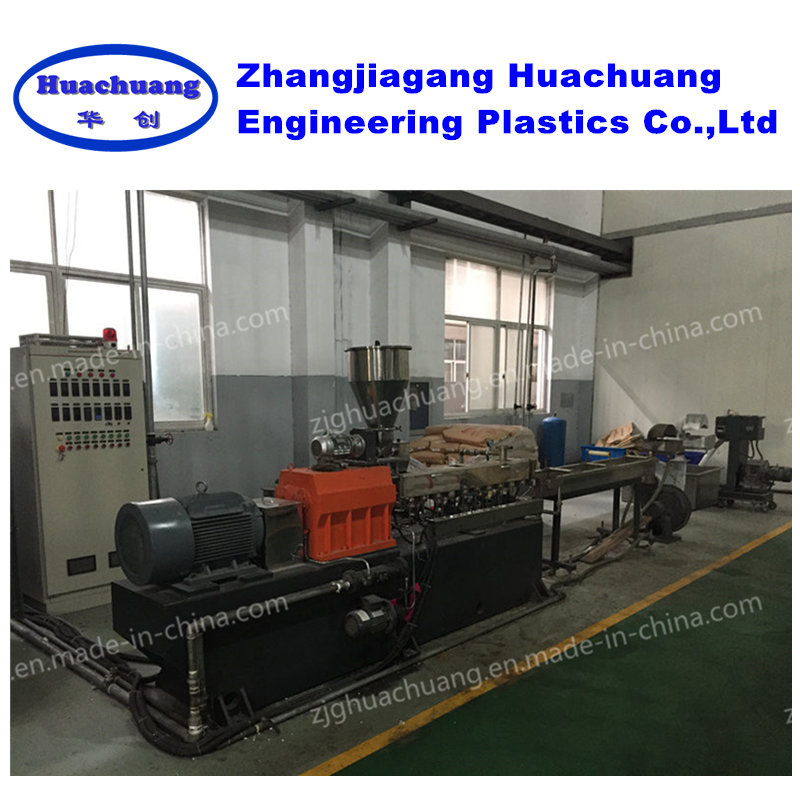

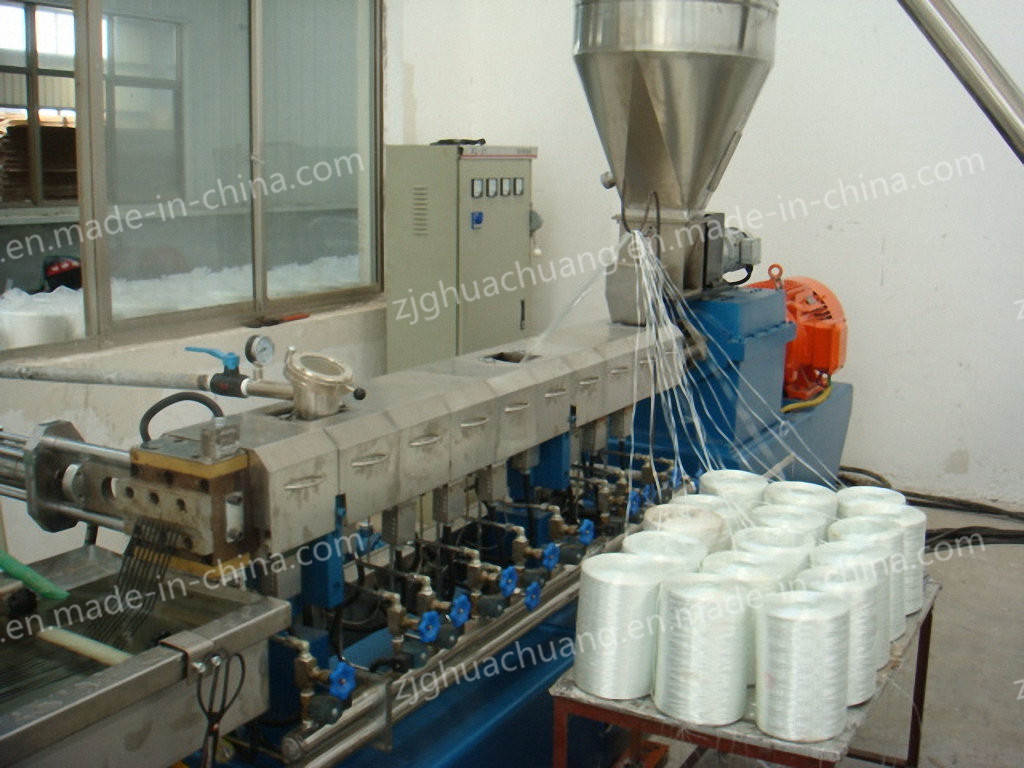

Product Description
Competitive advantage1.Lower power consumption.2.Low noise, work stable and durable.3.Modular principle design for screw configuration and barrel setup makes combination and cleaning convenient , also easy to adapt to customers' requirements .4.Screw elements and kneading blocks are made of high tool steel , with high corrosion-resistant and high wear-resistant.5.Barrels are made of high quality nitrided steel , corrosion proof and antifriction.6.Vacuum system fulfills devolatilization to ensure the quality of polymer processing.
Parallel Twin-screw Extruder Reference Values| Parallel Twin-screw Extruder Operating Capability kg/h |
| Process | Materials | 20 | 35 | 50 | 65A | 75A | 95 | 132 |
| Mixing Nature-changing | PA | 2-10 | 25-60 | 80-180 | 160-250 | 300-400 | 600-1100 | 800-1800 |
Technical Data Of Parallel Twin-screw Extruder| Model | D(mm) | L/D | Nmax(r/min) | P(kw) | Q(kw) |
| SHJ65 | 62.4 | 24-48 | 400-500 | 55-75 | 200-500 |
Our CompanyOur company is located in the city of Zhangjiagang, Jiangsu Province, China. We have been making research and development for special material of PA66 thermal insulation strip since 2006.We expanded our business scope since the year of 2010. We not only produce PA66 granules and PA66 thermal barrier strips, but also sell parallel twin-screw granulator, extruding machine, mould and production technology.we are developing overseas market. We are going to promote our products all around the world, to seek win-win cooperation, mutual benefits and mutual development with our customers.
Our products- PA66 Plastic Granules
- Thermal Barrier Strip of Polyamide
- Parallel twin-screw granulator
- Extruding machine of thermal barrier strip
Our ServiceBefore sales1. introduce products in detail2. recommend suitable solutions3. provide with reference information During manufacturing1. provide with layout and engineering conditions2. inform the processing status3. offer related documents After Sales1. provide installation, commissioning and training2. offer spare parts3. Provide with necessary technical supportPlease fee free to contact us if you have any questions.Name:Camille Cai
Phone:0086-13584481777
Address:Jinfeng Town, Zhangjiagang City, Jiangsu Province, China

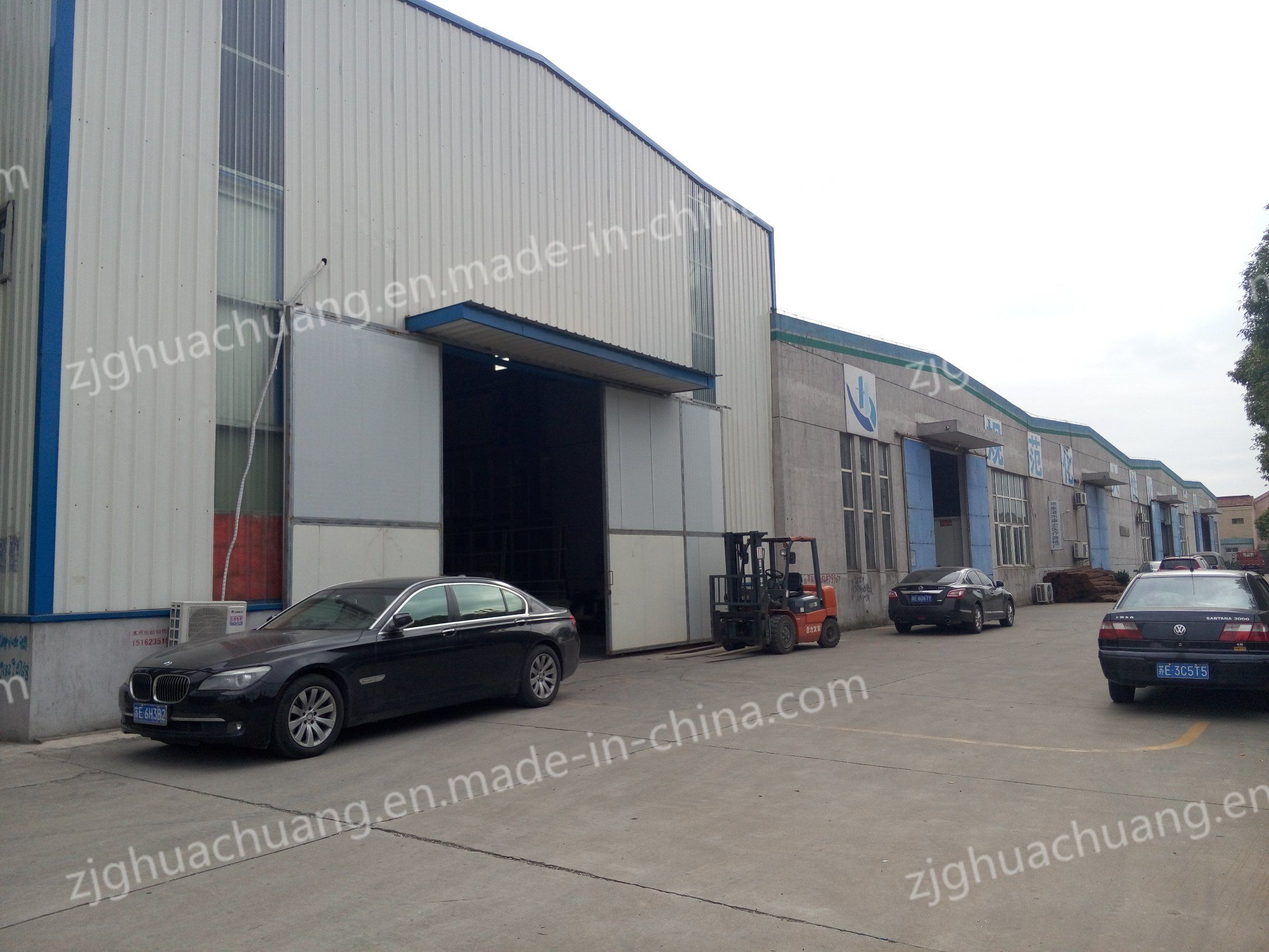

Our company is located in the city of Zhangjiagang, Jiangsu Province, China. Covering an area of 1, 580 Square Meters, near the beautiful Chanjiang River. We are close neighbor to national only inland river free trade zone, also a short distance from the economic hinterlands, such as Shanghai, Suzhou, Wuxi, Changzhou, Nantong, Nanjing, etc. With good location, mature economic environment, convenient modern communication, developed water and land transportation, we have been making research and development for special material of PA66 thermal insulation strip since 2006. PA66 GF25 is our main product, including plastic granules, thermal barrier strips, etc.
We expanded our business scope since the year of 2010. We not only produce PA66 granules and PA66 thermal barrier strips, but also sell parallel twin-screw granulator, extruding machine, mould and production technology. We can customize the mould according to customers' special requirements.
Customers come first, motives provide services is the principle we've always been insisting in the last ten years, to provide our customers with high-quality products and service.
Our domestic sales volume is very stable, and we are developing overseas market. We are going to promote our products all around the world, to seek win-win cooperation, mutual benefits and mutual development with our customers.
