Factory Customized Hydraulic Torque Wrench

Prod Model:	SOV-MXTA series
Torque Range:	183-1837 Nm to 4866-48666 Nm
Bolt Diameter:	16-36 mm to 64-115 mm
Nut Size:	24-55 mm to 95-165 mm
Square Drive:	3/4'' to 2 1/2"
Max Working Pressure:	700 Bar
OEM:	Yes
Color:	Metallic
Warranty:	One Year
Delivery Time:	7 Days
Product Name:	Factory Customized Hydraulic Torque Wrench

Product Description

                                                                 Factory Customized Hydraulic Torque Wrench


Product Featrues

Rigid steel design guarantees durability, reliability and safety.
Push button square drive release for quickly reversing the square drive for tightening or loosening
Fine tooth ratchet prevents tool "lock-on"
360 degree swivel manifold with screw lock couplers
Fast operation due to the large nut rotation per wrench cycle (35 degree) and rapid return stroke
Constant torque output provides high accuracy (± 3%) across the full stroke
Includes handle to improve tool handling and safety

Product Parameter


Model	SOV-1MXTA	SOV-3MXTA	SOV-5MXTA	SOV-8MXTA	SOV-10MXTA	SOV-20MXTA	SOV-25MXTA	SOV-35MXTA
Torque Range (nm)	183-1837	451-4512	752-7528	1078-10780	1551-15516	2666-26664	3472-34725	4886-48666
Bolt Size (mm)	16-36	22-48	27-56	30-64	36-72	42-90	48-100	64-115
Nut Size (mm)	24-55	34-75	41-85	46-95	55-105	65-110	74-145	95-165
Square Drive	3/4''	1''	1-1/2''	1-1/2''	1-1/2''	2-1/2''	2-1/2''	2-1/2''

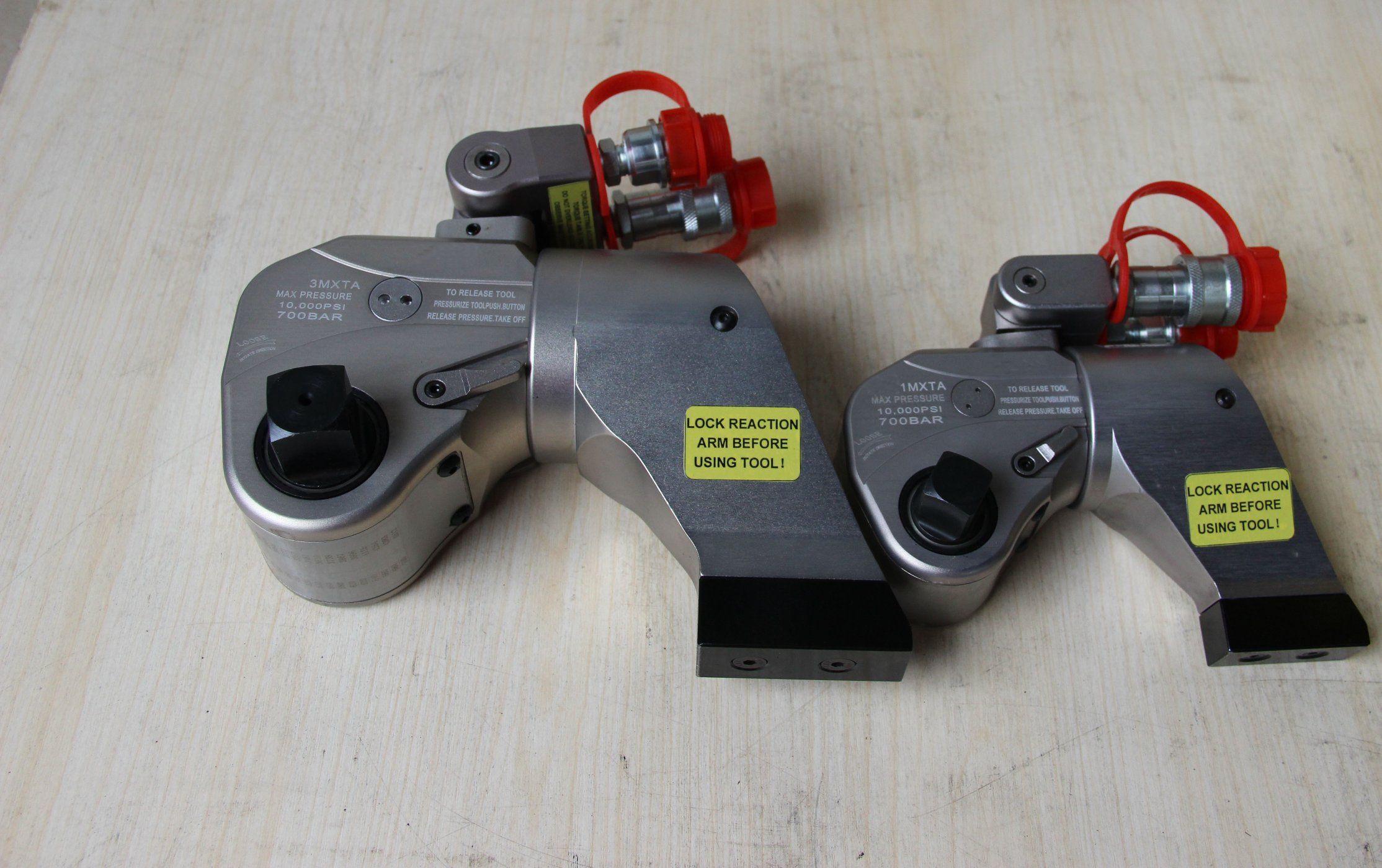

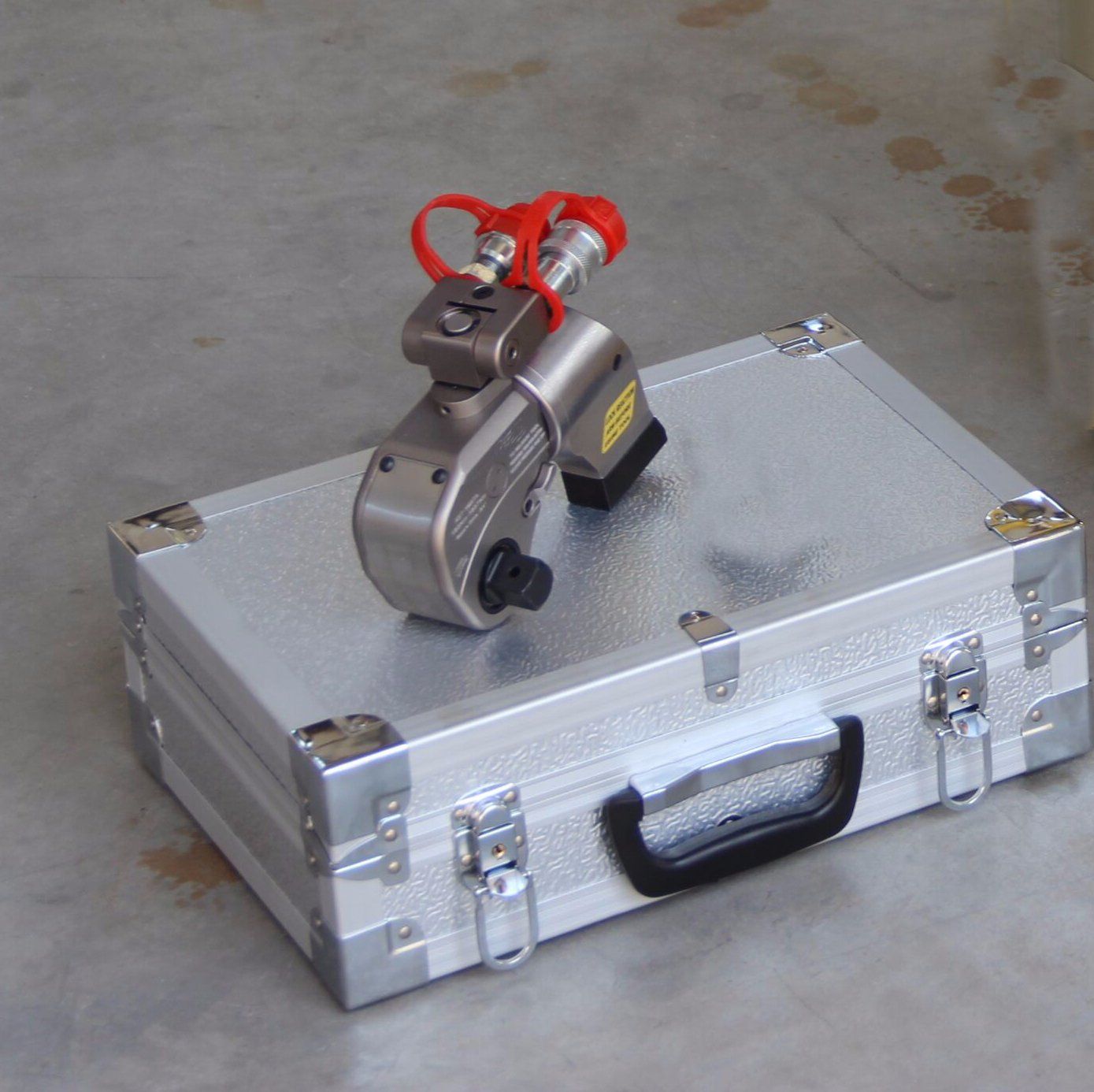

Photos

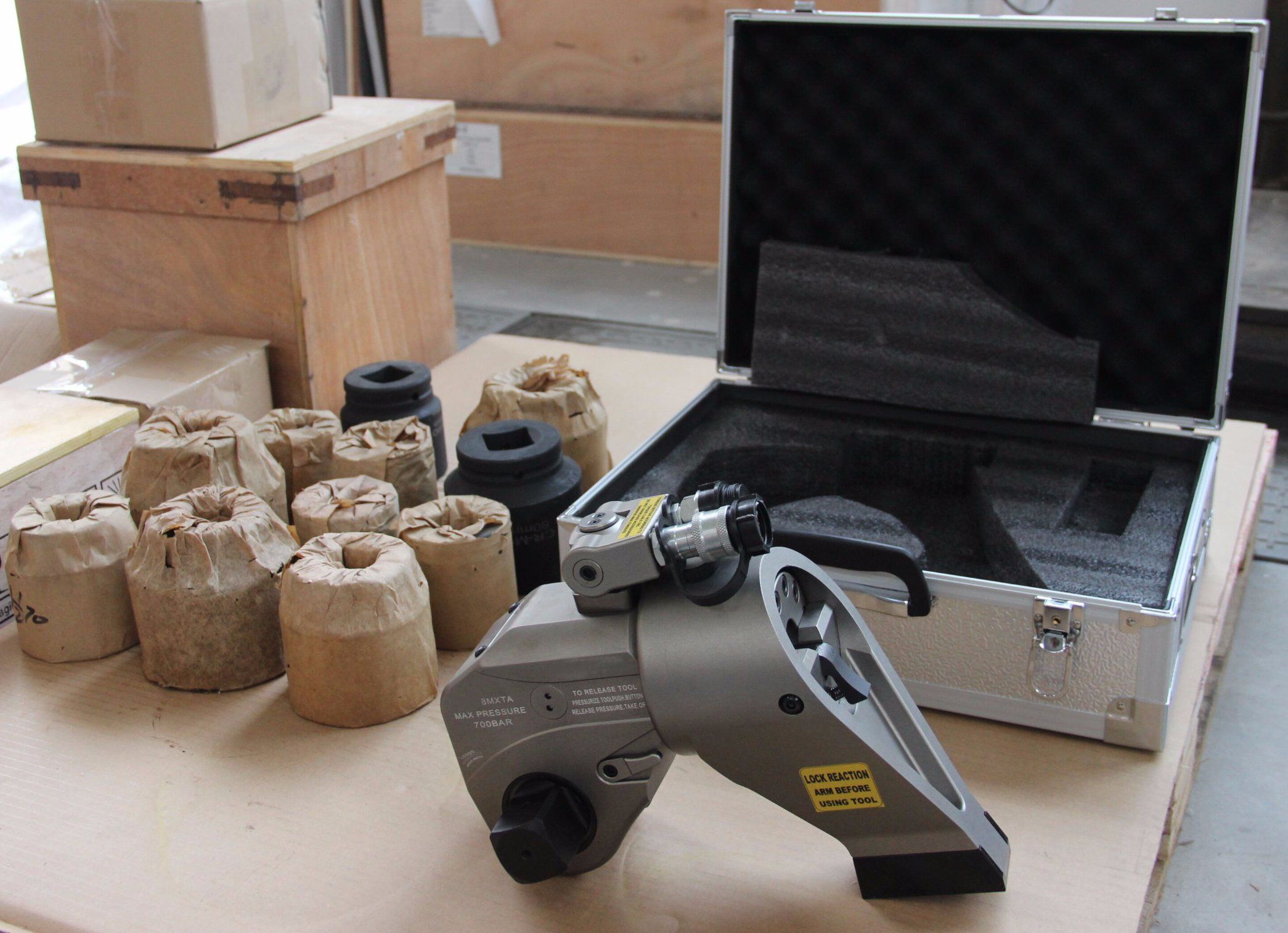

Package and Delivery
1. Outer packing: standard export wooden case
2. Inner packing: careful stretch film and cardboardalloy case
3. one workday when products in stock, 7~15workdays when out of stock
4. Delivery time: Prompt delivery


Shipping Methods
1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port

Our Services
One Year Warranty, repair and service for the whole life, question report response in 24 hours, and reply in 48 hours.

Company Information


Shanghai SOV Hydraulic Technology Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

Certificate
Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.

Clients
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.


Main Products
We are a manufacturer in tools, such as:
•Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut
•Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
•Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
•Hydraulic pumps, manual and electric type (max up to 4000bar);
•Integrated hydraulic lifting system solutions (4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
•Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.


FAQ
Q1: How can contact sales?
A1: Please call: 0086 21 685 61366 for pre-sales or click the contact find our website and email address.

Q2: How can I buy SOV products in my country?
A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.

Q3: Can I have SOV products catalog and price list?
A3: Please visit our English website: Www. Sovhydraulic. COM to download our E-catalog, and send us an email for price list

Q4: How long does it take to get the product If I place an order?
A4: If products stock available, after confirmation of your payment or advance payment, we will pack and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea shipment, it will take 15-45 days depending on different locations.

Q5: How to make payment?
A5: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma invoice with our banking details.

Q6: Manufacturing time?
Q6: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-20 days. If it is customized, not our standard products, it will take 20-45 days to produce.

Why Choose SOV?
Quality --- SOV has been in the industry for than 20 years. We have been trusted by domestic mega stated-state owned companies, as well as international distributors and renowned brands. We put quality as lifeline. We never manufacture or sale defected product, or lowering our price at the cost of products quality.

Service --- SOV promised to respond to customers products quality or service in 24 hours reported, and solutions shall be provided in 48 hours.
