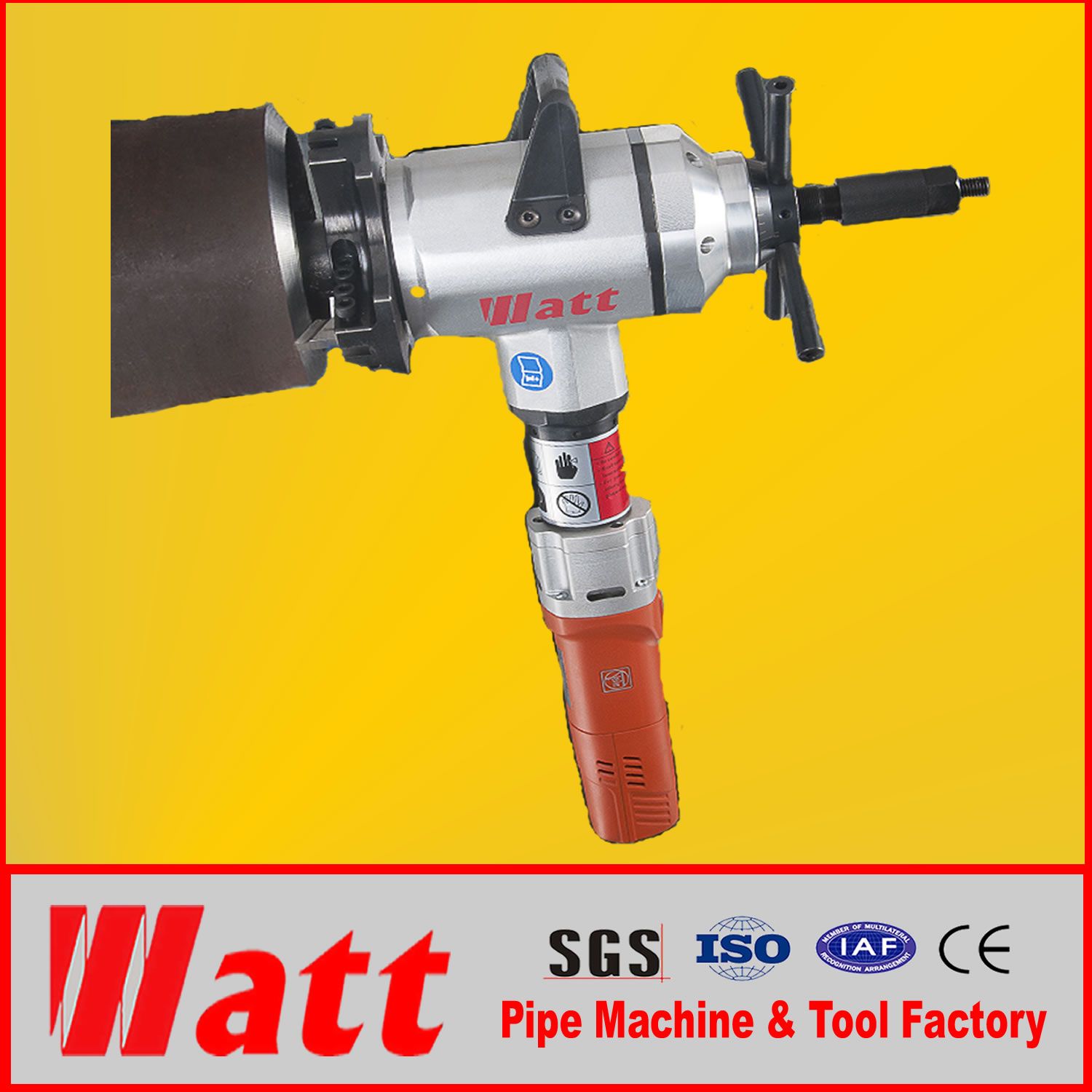

Factory Direct Sale Pipe Beveling Machine 1-3 Inch Stainless Steel Tube Beveling Machine Cutting Machine
| Price: |
US $ 750-800/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
S3 |
| Customized: |
Customized |
| Cutting Mode: |
Blade Cutting |
| Suitable For Pipe Dia. Range: |
1-3 Inch ID |
Product Description
Pipe & Flange ~ Cutting ~ Beveling ~ Facing ~ Drilling ~ Boring S1 Inner Mounted Portable Pipe Beveling Machine
Capacity ID: 25.4-79mm wall thickness: 1-5mm

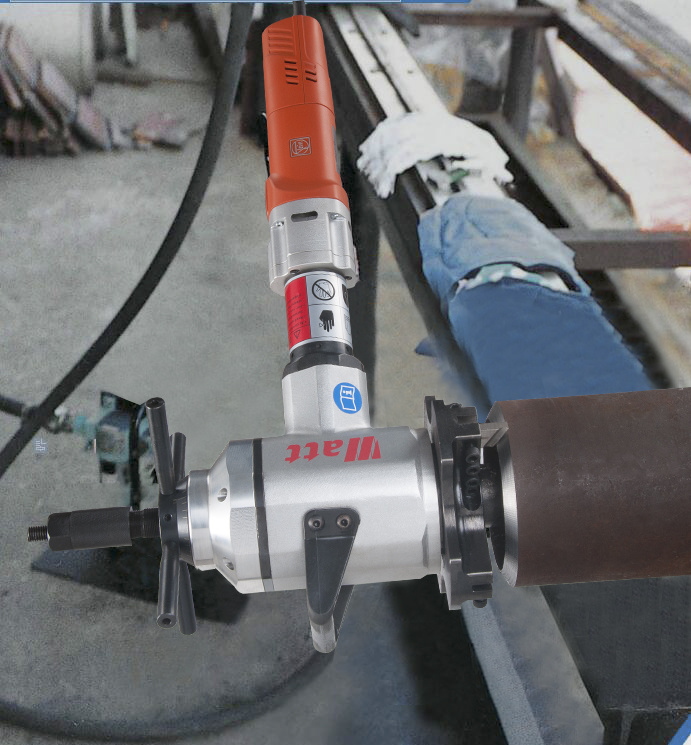

Product Show
Production Description
This series is Welding Preparation Portable Electric Pipe Beveling Machine with the following advantages:- Lighter weight,minimal radial space.
- self-located in the center of the pipe, Easy to operate.
- Beveling and grooving with high speed ,used for the welding preparation.
- Driveing Type: Pneumatic,Electric,Numerical,Hydraulic.
- Application:petroleum,chemical,natural gas,food,boiler,medicine,power supply construction and nuclear power.
- Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
- Angle:Beveling angle as per your required.
Equipment selection:| Model | Working range (mm)ID | OD | Wall thickness (mm) |
| mm | inch |
| S1 | 12.5-28 | 14-34 | 0.56-1.34 | 1-3 |
| S3 | 25.4-79 | 31-89 | 1-3 | 1-15 |
| S6 | 60-170 | 66-180 | 2-6 | 3-20 |
| S8 | 88-219 | 95-225 | 3-8 | 4-20 |
| S12 | 114-300 | 133-325 | 5-12 | 5-20 |
| S18 | 168-457 | 180-465 | 6-18 | 6-20 |
| S24 | 254-600 | 273-630 | 10-24 | 6-20 |
| S32 | 335-780 | 377-830 | 14-32 | 6-25 |
Order GuideBefore you place order to us, please let us know the following information:- Choose the right Model
- Confirm your electric power supply ( Voltage, frequency and phase)
- Confirm the beveling angel required
- Confirm the welding joint required (U, V, Double V or Compound preparation)
- Advise your pipe material ( Carbon steel, stainless steel or others)
- Other special demands about machine
- The spare parts needed
- If the pipe wall thickness more than 30mm, inform us in advance (Important)

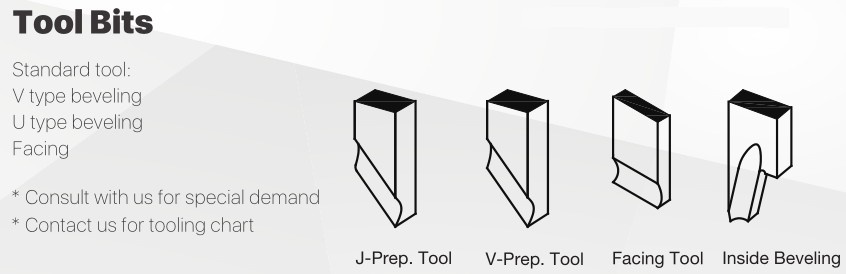

Method of operation: 1. Measure the size of the pipe to be machined, select the swelling block according to the swelling block diagram, install it on the wedge block, tighten the bolt, make sure it is secure and loose. 2. According to the processing requirements, select the tool table in the appropriate angle of the tool, installed in the machine cutter, tighten the bolt, fixed tool. 3. Rotate the feed hand wheel to extend the feed spindle. 4. Make the machine tightening mechanism into the tube, the cutter head and pipe surface should be left enough feed space. 5. Rotate the hand wheel and adjust the machine position to ensure that the machine feeds the spindle coaxial with the center of the tube. Tighten the nut on the hand wheel with a wrench. 6. Start the motor, rotate the feed handwheel, the blade is in contact with the pipe wall, and groove. 7. After finishing the machining, first exit the tool, then release the tightening mechanism, remove the machine from the tube.
We are Watt Machinery Technology Co., Ltd. (WATT)
WATT is located at Wenzhou city Zhejiang Province. WATT is full of vigor and ambition which has the whole world in view. With Excellent Brains, Advanced Management, Quality Product and Feasible Business Model, it leads the development of Flange facing and piping prefabrication Industry.
Watt Machinery Technology Co., Ltd. is the most innovation ability provider of integrated solutions for portable pipe and flange facing cutting and beveling on-site equipment and piping fabrication, also is the unique provider of professional piping fabrication and piping equipments in China which included pipe spool fabrication line, cutting equipments, bevelling equipments, fitting up equipments, handling equipments, welding equipments, as well as offer the commercialize piping fabrication service, training & guidence management service for automation pipe spool fabrication engineering project of Oil & Gas, Petrochemical, Petroleum, Chemical Industry, Power Plant, Offshore & Marine Engineering, Shipbuilding Industry, Aerospace, Electromechanical, Energy Engineering, Cement Plant, Boiler, Pressure Vessel, Heavy Industry, Heat Exchanger, Pipework Construction and Erection Fields etc.
From development domestic first portable flange facing machine to the invention of the first pipe and flange facing boring milling turning multifunction machine, from the completion of the first pipe prefabrication service project in incoming material shop to the first field pipe prefabrication service at domestic. Each equipment and each project is concentrated with great wisdom and unremiting efforts of people in QSPT. It has more than 60 of Proprietary Technology and Product Invention Patents, ISO: 9001 Quality Management System Certificate, CE Certificate, SGS Certificate, TUV Certificate, as well as High and New Technology Enterprise in Zhejiang.
We has not only stable product property and perfect service system, but also has many companies as cooperating partners. The Products have good market in the domestic and mass exported to Europe, America, Africa, Middle East, Southeast Asia, South America Nations and Regions etc.
WATT value base: "Faith, Innovation, pioneering, progressing"
WATT's target: "To Internationalize the Management and Allocate the Resource Effectively".
WATT mission: "Win-Win of Company development and Social Responsibility".
WATT will fulfill it's social responsibility, and give full play to their own advantages to achieve leapfrog development, and strive to world-class enterprises forward!
WATT is one of the world's leading manufacturer and supplier of specialist pipework fabrication Machinery, Tools and handing equipment for workshop, on-site and offshore environments.
We also provide on-site machining service, cold cutting work, flang management.
Products include:
Split Frame Pipe Cold Cutting and Beveling Machine
CNC Pipe Cutting and Beveling
Flange Facing Machine
Orbital Pipe Cutting Machine
Pipe End-prep Machine
Pipe Beveling Machine
