Factory Direct Sales Inner Mounted Flange Facing Machine 24inch
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
I24 |
| Customized: |
Customized |
| Automatic: |
Automatic |
| Certification: |
SGS/Ce/ISO9001 |
| Cutting Mode: |
Blade Cutting |
| Layout: |
All-Position |
| Package: |
Wooden Case |
| Flange Dia. Range: |
2-24inch |
| Suitable Material: |
Ss/CS/as |
| HS Code: |
846190 |
Product Description
Pipe & Flange | Cutting | Beveling | Facing | Drilling | Boring

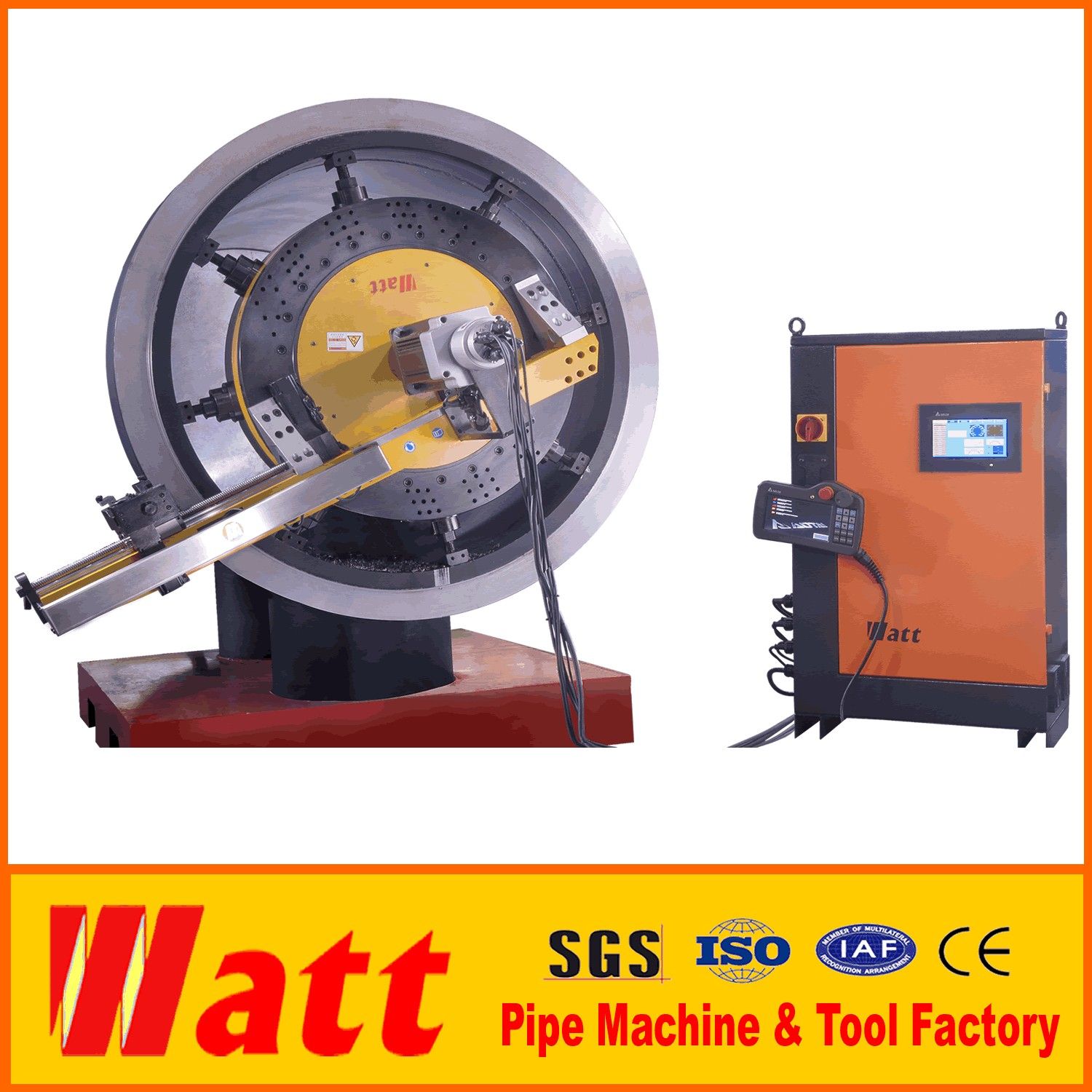

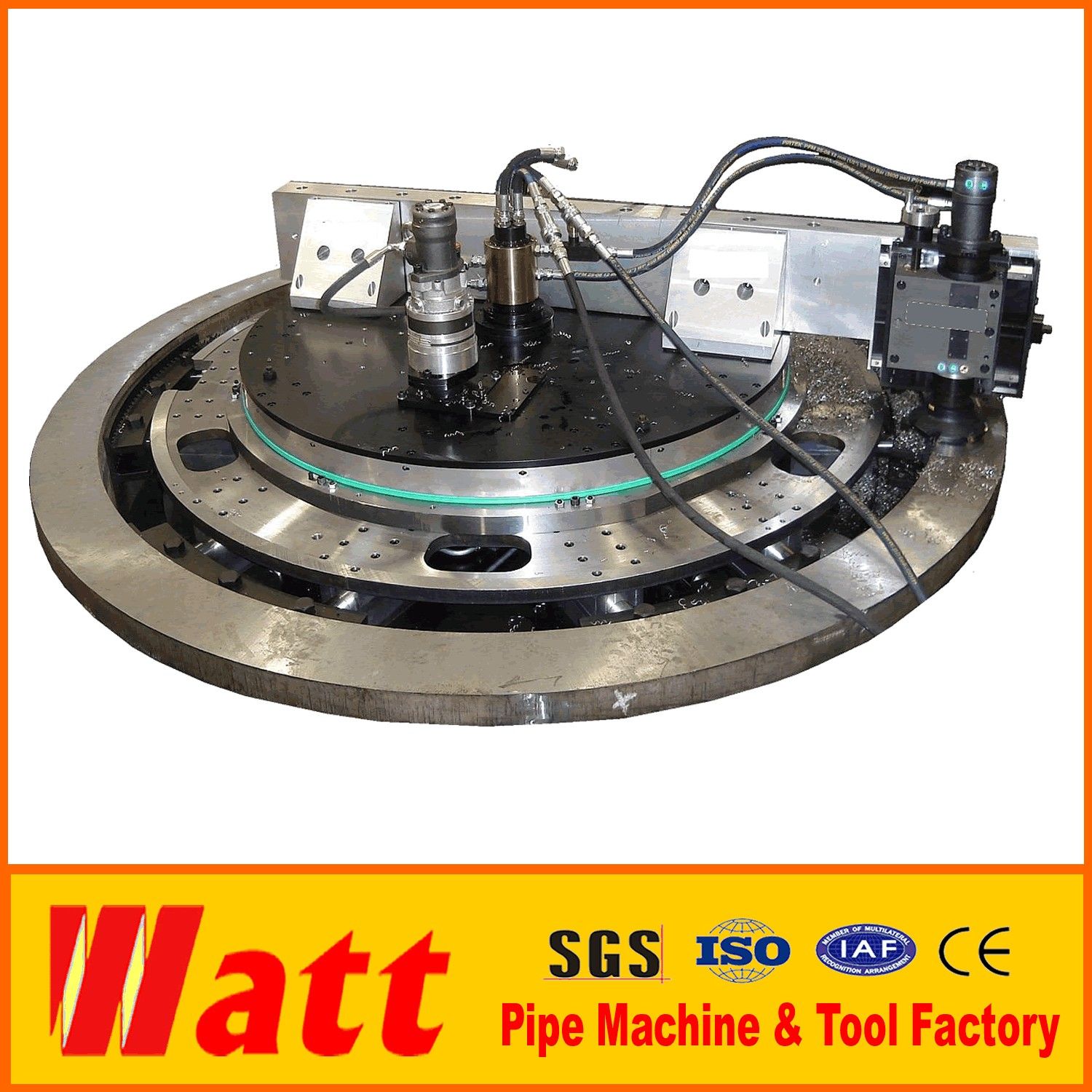

I12 Inner Mounted Flange Facing Machine
Facing Range: 2" - 24" Clamping Range: 2" - 20"
Production Description:

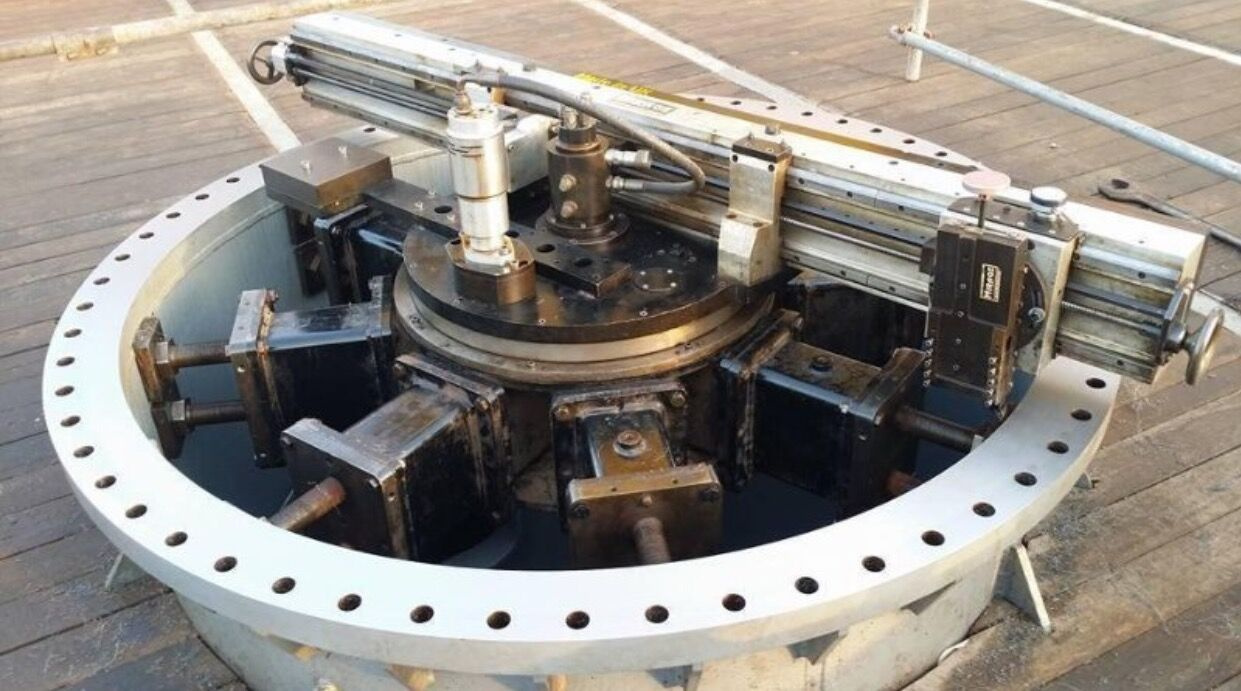

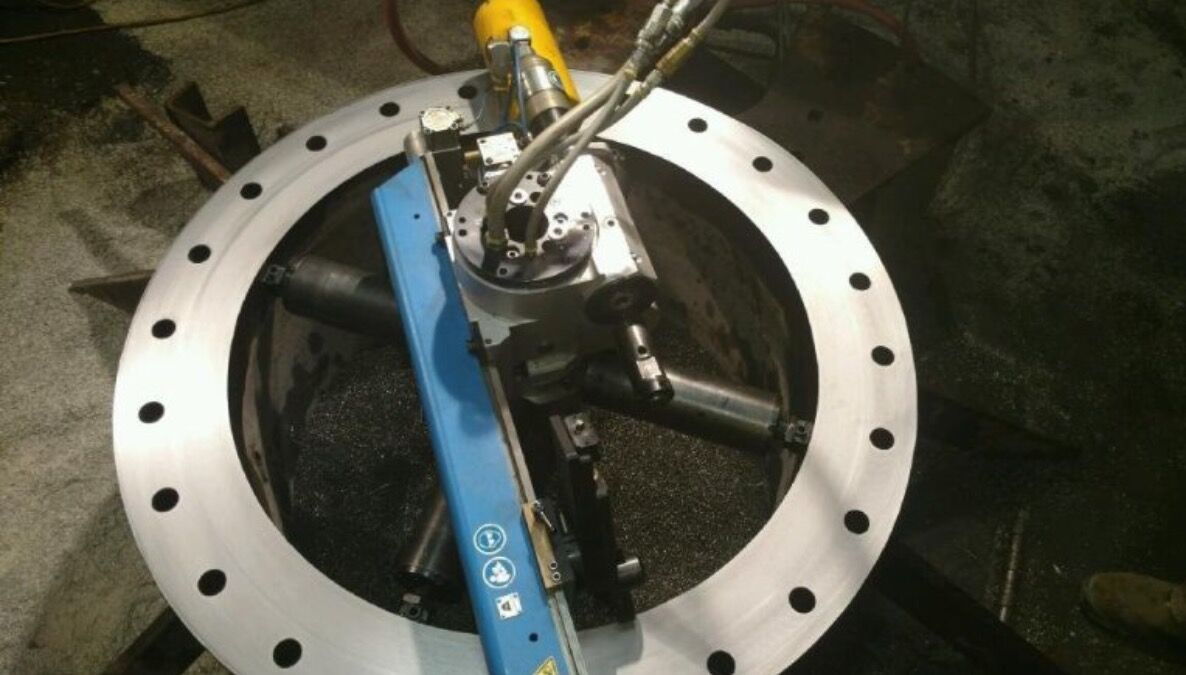

An internally mounted flange facing machine for flange facing, seal grooves, weld preparation and counter boring.

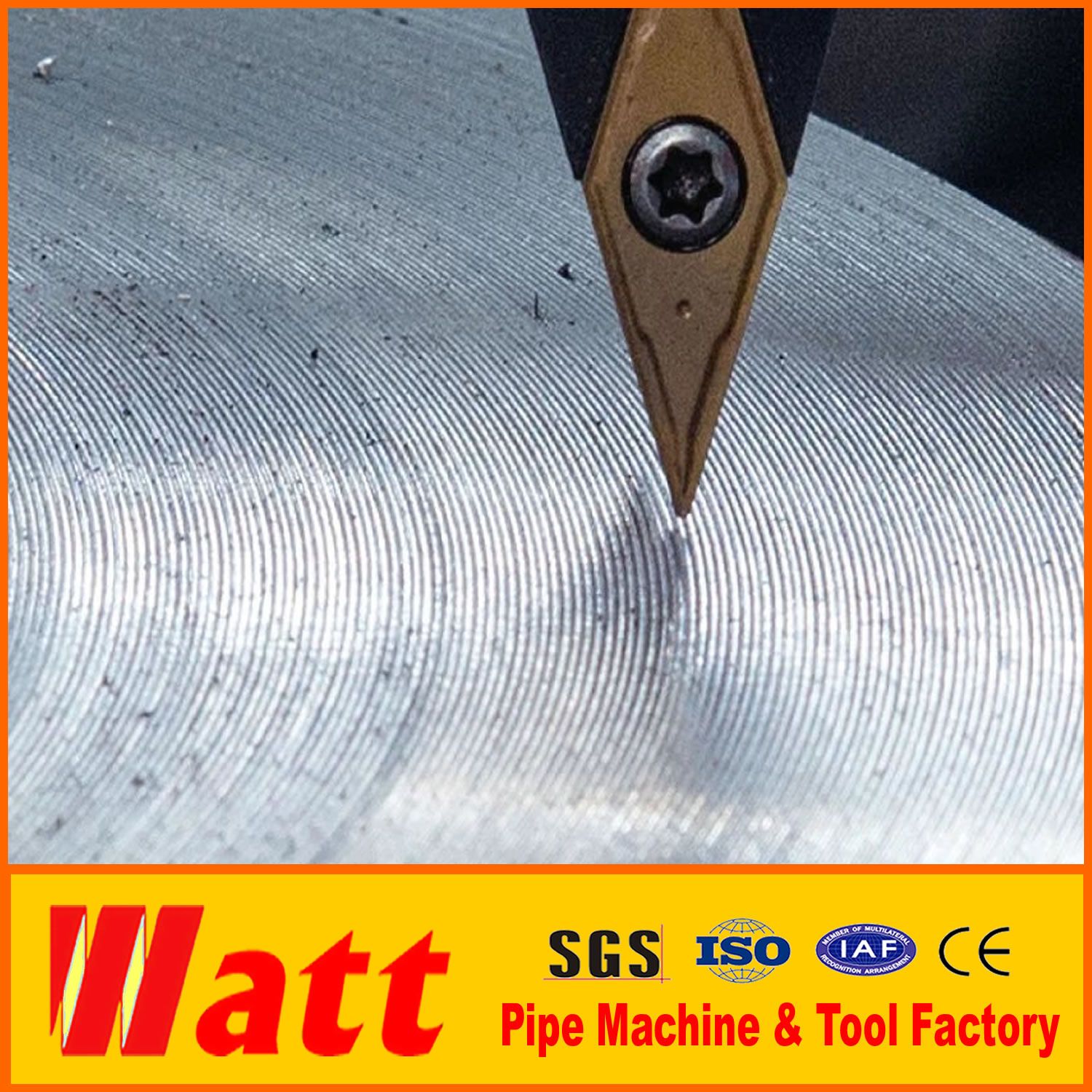

performs: stock finish, smooth finish, gramophone finish, on flanges, valve seats and gaskets.
High quality finish can be achieved. The feed of cut is automatic from the o/d. inwards.
Standard stock finishes carried out with step: 0.2 - 0.4 -0.6 - 0.8 mm.
Features:
- Quick set adjustable clamping jaws
- Lightweight construction
- Quality for demanding conditions
- Swivel tool post for grooves, RTJ flanges and bevels
- Quick set independent bases
- Continuous groove geared facing and boring feeds
- Latest linear technology for durability and repeatable accuracy
- High torque drive with only a 60 dB noise level
- Hydraulic,Electric,Pneumatic,all is available
Equipment selection:| Model | Clamping range | Working range | Tool stroke(mm) | Rotating speed(rpm) | Weight (kg) |
| I12 | 2"-9" | 2"-12" | 100 | 0-42 | 80 |
| I24 | 2"-20" | 2"-24" | 100 | 0-42 | 110 |
| I34 | 5.7"-32" | 6"-34" | 100 | 0-33 | 330 |
| I40 | 5.7"-32" | 6"-40" | 100 | 0-33 | 360 |
| I60 | 11.4"-55" | 12"-60" | 100 | 0-22 | 480 |
| I80 | 23.75"-72" | 24"-80" | 100 | 0-20 | 610 |
| I120 | 44"-110" | 45"-120" | 100 | 0-12 | 1050 |
®We can design and manufacture according to customer's requirement;Order GuideBefore you place order to us, please let us know the following information:- Choose the right Model
- Confirm your electric power supply ( Voltage, frequency and phase)
- Confirm the beveling angel required
- Confirm the welding joint required (U, V, Double V or Compound preparation)
- Advise your pipe material ( Carbon steel, stainless steel or others)
- Other special demands about machine
- The spare parts needed
- Advise pipe wall thickness (Important)
