Prod Model: |
YGL100T |
Product Name: |
Crawler Drilling Rig Machine |
Model: |
Ygl100t |
Rock Hardness: |
F=6~20 |
Traveling Speed: |
2.5 Km/H |
Climbing Ability: |
30° |
Highest Level Hole: |
2.7m |
Min Horizontal Hole: |
2.28m |
Power Type: |
Diesel |
Swing Speed: |
0-90r/Min |
Weight: |
3.5 T |
Product Description

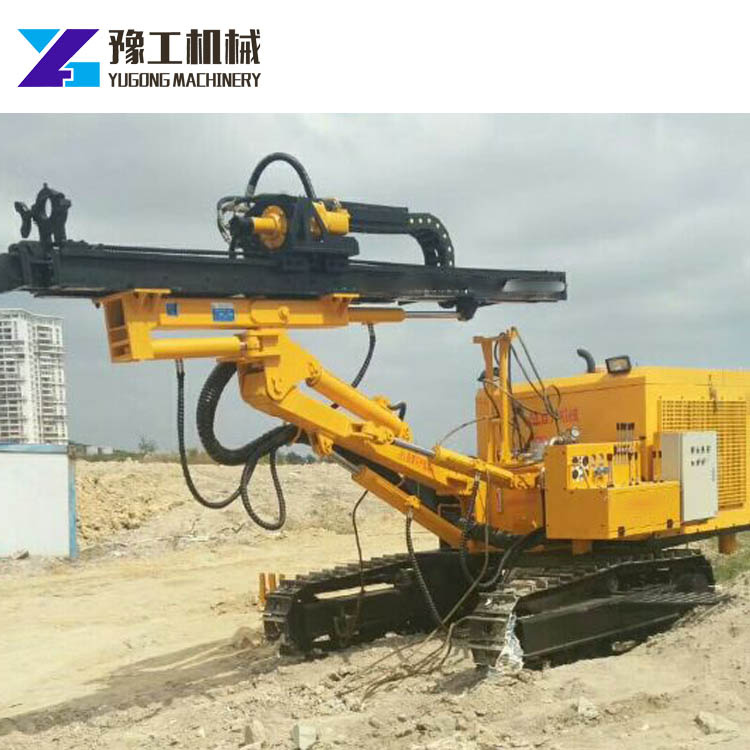

Factory Direct Supply Crawler Drilling Rig Machine Applications
Mainly used for mining guns, drilling blasting holes and tunnel pipe support hole.
Parameters Model | YGL100T |
Bore Diameter | φ83~130mm | Bore Depth | 30 m |
Rock Hardness | f=6~20 | Traveling Speed | 2.5 km/h |
Climbing Ability | 30° | Highest level hole | 2.7m |
Power Type | Diesel | Min horizontal hole | 2.28m |
Swing speed | 0-90r/min | Weight | 3.5 t |
Shipping Dimensions | 4400*1980*2260mm |
Max rotational torque | 2300N·m |
Max lifting force | 15kN |
Advance length | 2 m |
Compensation length | 900mm |
Working pressure | 0.5~1.4Mpa |
Air consumption | 7~12m³/min |
Min ground clearance | 284mm |
Guide rail pitch angle | 0-97° |
Guide rail swing angle | Left 17° Right 32° |
Diesel power | 33KW |

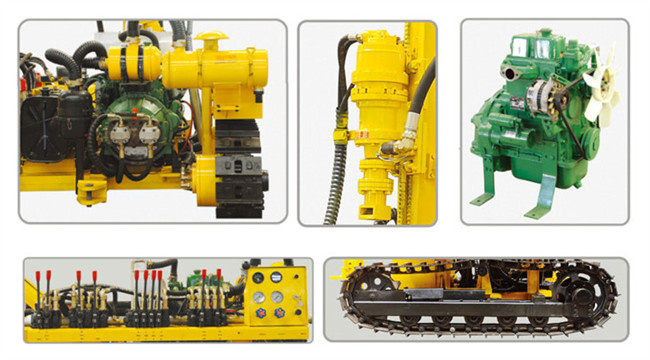

Product Display More Details
• Diesel protection device
• Strong power head
• Reliable supporting power
• Centralized control of the manipulation of the structure
• Reliable four wheels, one crawler
Packing and Shipping

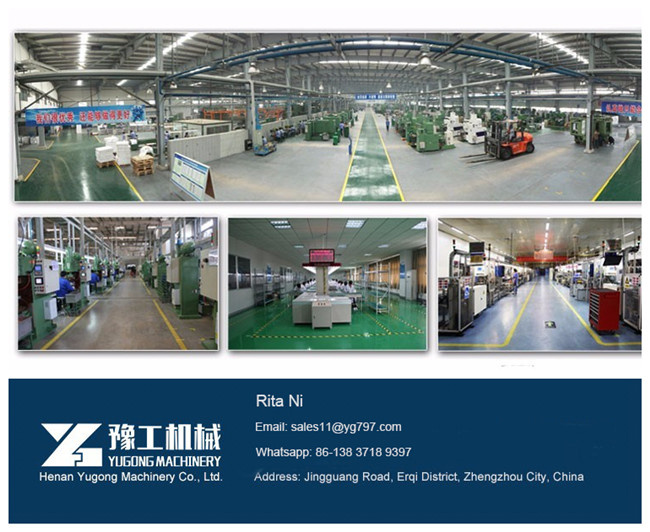

Company and Contact Information
Henan Yugong Machinery Co.,Ltd. is specialized in machinery in China over 20 years.We are committed to researching and developing all kinds of construction machinery etc.
Our company has more than 500 employees,including more than 30 senior technical staff and 30 international sales persons.We can supply high quality and professional services.
Henan Yugong Machinery Co., Ltd aims to have top quality, top reputation and top service. "Quality First, Reputation First, Be Innovative, Be Excellent" has always been our purpose. We warmly welcome your corporation from all fields and build great future for us all.
Henan Yugong Machinery Co., Ltd., located in Zhengzhou City, is specialized in machinery in China over 20 years. Our company focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on. Our products include equipments of different fields, highways, bridges, tunnels, culverts of metros, mining, coal mines and non-coal mines. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
Our factory have 20 years of manufacturing all kinds of mineral equipment, construction machinery, prestressed machinery, metallurgy machinery etc. There are more than 500 employees in our company, including more than 30 senior technical staff and 30 international sales persons. You can be rest assured that All the products with high quality meet international standards and have won a good reputation at home and abroad.
We are warmly looking forward your long-term friendly cooperation, please kindly contact us any time you need these machines.
