| Prod Model: |
HXDL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Length: |
4m , 6m |
| Materials Of Conductor Rail: |
Cold Rolled Steel Sheet, Stainless Steel Sheet |
| Speed Of Carrying Trolley: |
<120 M / Min |
| Running Life Of Carrying Trolley: |
32000 Hours |
| Feature: |
Simple Structure and High Performance |
| Type: |
Cable Conductor Rail |
| Guide Rail Material: |
Cold Rolled Steel Sheet |
| Application: |
Tobacco Machinery. Railway Goods Yard, The Port Et |
Product Description

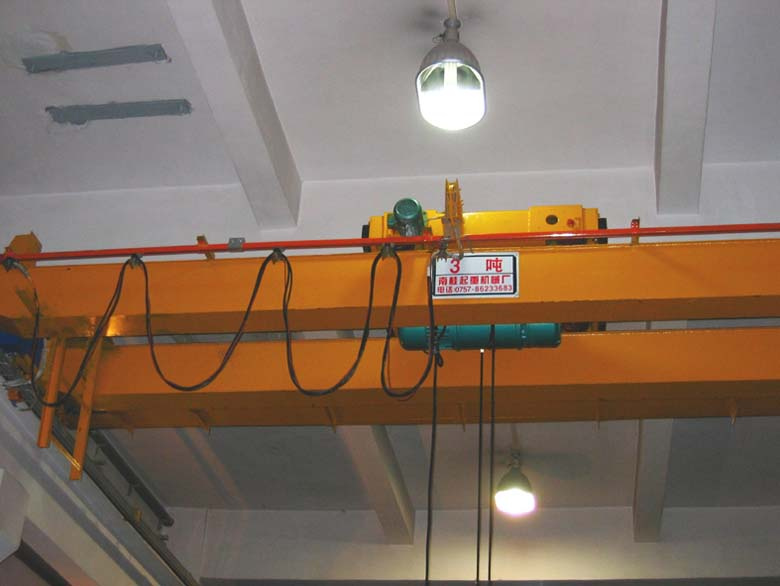

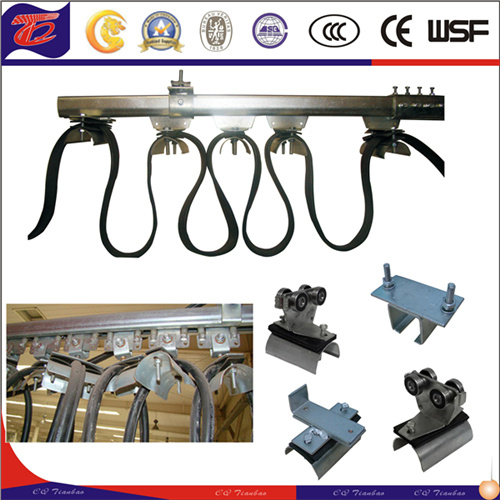

In these cable festooned systems each cable trolley has four rollers, which run inside a C-rail (profile rail). Therefore, this system runs in a very robust manner and at the same time, can be used for various applications. For instance on indoor cranes, in workshops or in outdoor areas, to implement a flexible transmission of current and compressed air or media.
The C-rails are attached to the ceiling or the walls; this, a firmly assembled, fixed system is created. However, in addition to the straight running tracks, we can also manufacture curved pieces for the C-rails, specifically for your requirements.
Standard dimensions and curved pieces
We offer C-rails in standard lengths of 4m or 6 m, however, they can be extended to any lengths using track connectors. Should you require shorter rail pieces, we can cut the rails to measure (merely costs for each started metre accrue).
Area of application C-rails:
Transport of hoses, flat and round cables
Carrying capacity of the trolleys: max. of 35 kg
Speeds up to 60 m/min
Curved tracks are only possible with this system!
Areas of application of cable festoon system
Cranes, hoisting devices
Conveyors, environmental engineering
Special engineering
Workshop equipment
Specifications:
1. Conductor rail material: Cold rolled steel sheet, stainless steel sheet.
2. Environmental temperature: -35°C-90°C
3. Carrying trolley speed: <120m/m
4. Carrying trolley running life: 32000 h
Technical parameters
S/N | Type | Model No. | Cross Section |
| | | | A | B | C | D |
| 1 | HXDL-30 | 68DL30 | 33 | 40 | 14 | 2 |
| 2 | HXDL-40 | 68DL40 | 40 | 40 | 14 | 2.5 |
| 3 | HXDL-50 | 68DL50 | 50 | 50 | 16 | 2.5 |
| 4 | HXDL-60 | 68DL60 | 63 | 63 | 18 | 4.5 |
| 5 | HXDL-70 | 68DL70 | 72 | 68 | 22 | 4.5 |
| 6 | HXDL-100 | 68DL100 | 100 | 100 | 35 | 5 |
| Remark: The standard length is 4m or 6m |
Components:
1. Bracket
2. Top supporting
3. C rail
4. Towing arm
5. Coupling
6. Trolley
7. End device
8. Suction hole
9. Rubber insert
10. Flat cable
Trolley design:
Flat cable trolleys with support diameters of 50 to 400 mm. Round cable trolleys with u-bolt or ball joint for cable clips. Special designs for special applications. Ideal control unit trolley.
Load capacity: Up to 125 kg
Max. System length: 150 m
Track Configuration:
Straight, only partially for curved tracks.
Order notice:
1. Track length:____meter
2. Cable length:____meter
3. Quantity of trolley:____pcs (2m ~ 4m with a trolley)
4. Quantity of coupling joints:___pcs (A joint is required when the guide rail is longer than 4m or 6m)
5. Others parts will be list in our quotation.
