| Price: | US $ 7000-10000set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | YG-25 |
|---|---|
| Name: | Hydraulic Diamond Wire Saw |
| Keyword: | Diamond Wire Saw |
| Power: | 25kw |
| Power Source: | Hydraulic |
| Color: | Red |
| Output Power: | 25kw |
| Weight: | 210kg |
| Dimension: | 1300*2500*300mm |
| Warranty: | 1 Year |
| Type: | Hydraulic Cutting Machine |
| Usage: | Marble |
| Application: | Stone Industry |
| Source Voltage: | 380V |
| Automation: | Semi-automatic |
Factory price hydraulic wire saw stone cutting machine for construction
Product Description:

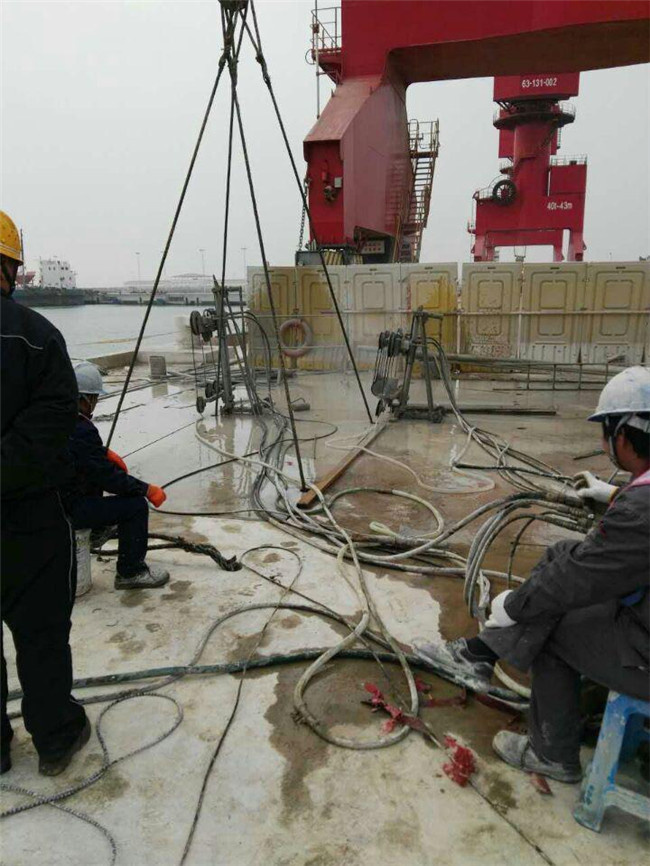

Model YG 22 YG 25 Marble Granite Stone Quarry Cutting diamond diamond wire saw beads beads Hydraulic Diamond Wire Saw With factory price is used to cut concrete and rock walls and beams in construction of bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks.If you are interested, please let us know which type of diamond wire saw beads you need. We will offer you the best Diamond Wire Saw Machine and a very competitive price.

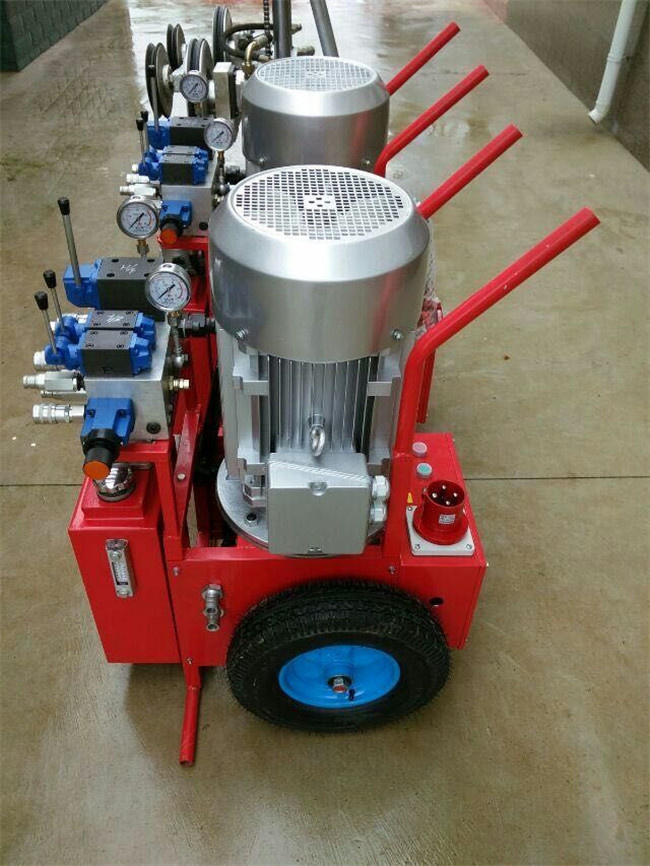

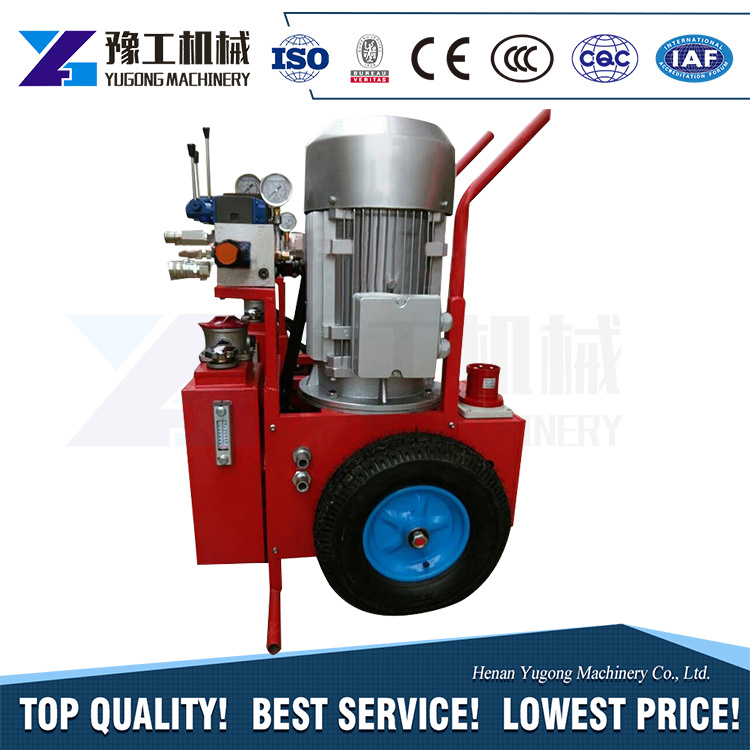

| Hydraulic Pump | YG-25 | Motor Power | 25kw |
| Voltage | 220V/380V, 50Hz | Motor Type | HM-80, 2 Cylinders |
| Rotation | 1300r/min | Working Pressure | 15-20Mpa |
| Weight | 170kg | Size | 720*650*1050mm |

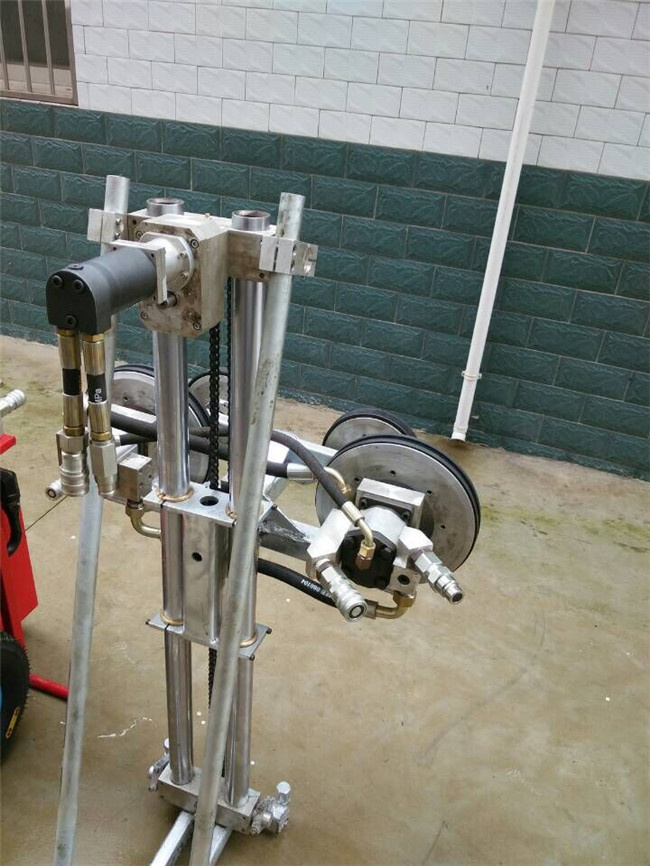

| Frame & Wheels | Aluminum | Wheels | 10 |
| Weight | 75kg | Size | 90*90*1700mm |
| Diamond Wire Saw | Diamond Wire | Specification | φ11.5mm 40beads/m |
| Cutting speed | 3~5m2/h | Wire life | 2~3m2/m |
Product Features:
1.It's made of hard materials. The wedges are running stability. Long surviving life of our Diamond Wire Saw Machine.
2.Powerful cutting ability, it can split the stone or concrete easily with no cutting depth limitation.
3.High Efficiency, and it's easy and comfortable to operate and maintain.
Packing&shiping:
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
FAQ:
1. Q: Are you trading company or manufacturer?
A: We are original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine.
But it's not free. You need to pay for the sample and the cost of freight.
4. Q: What is your terms of payment?
A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment.
About us

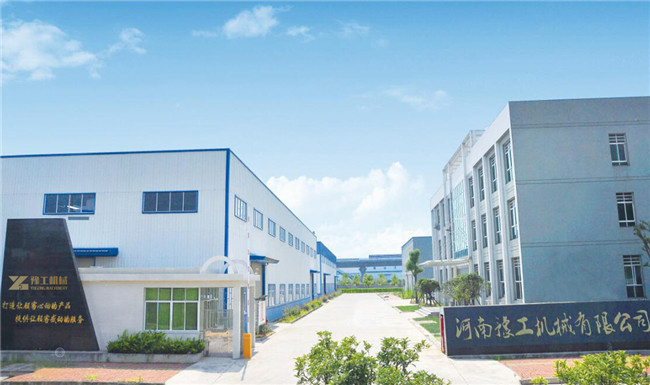

Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.
We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.
All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!
