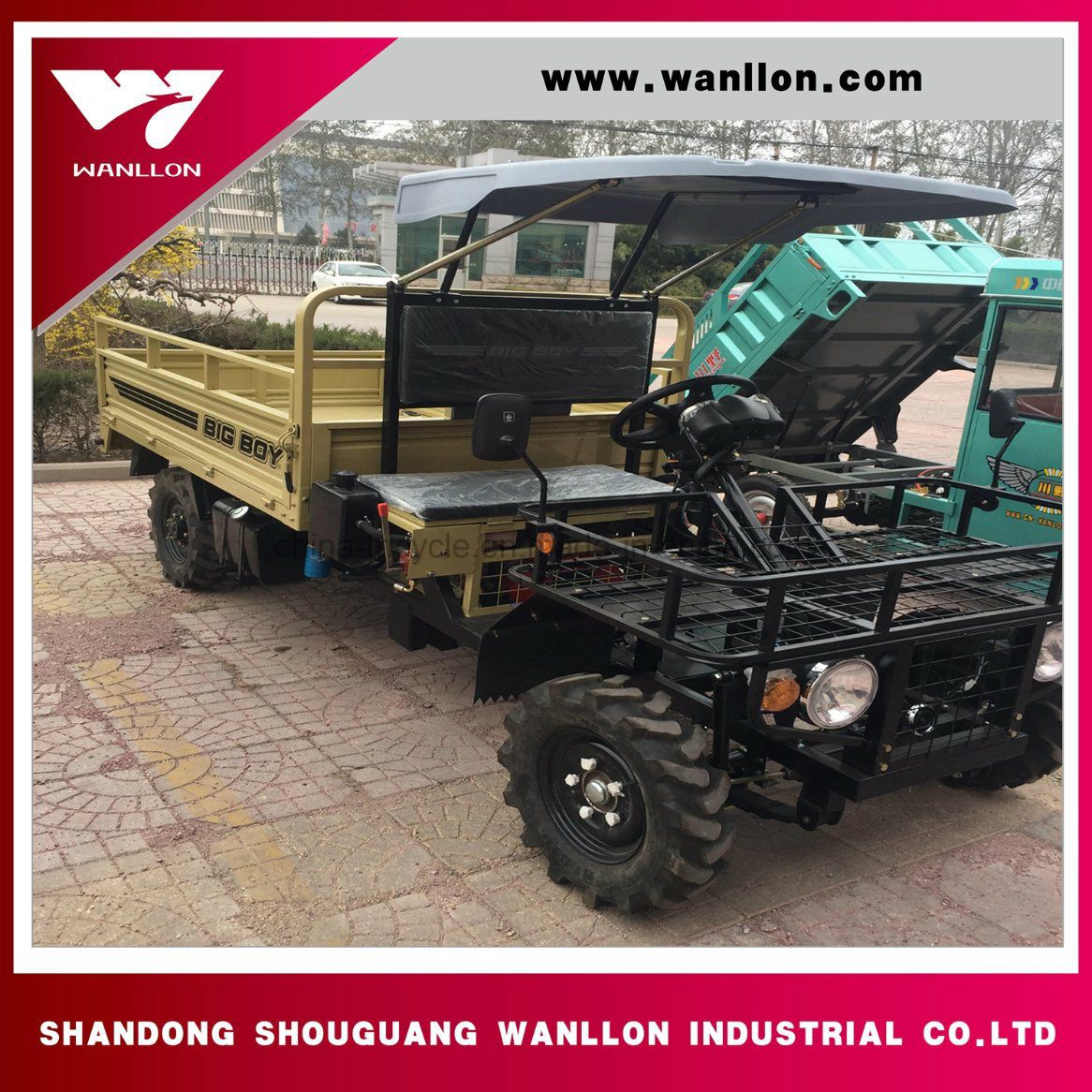

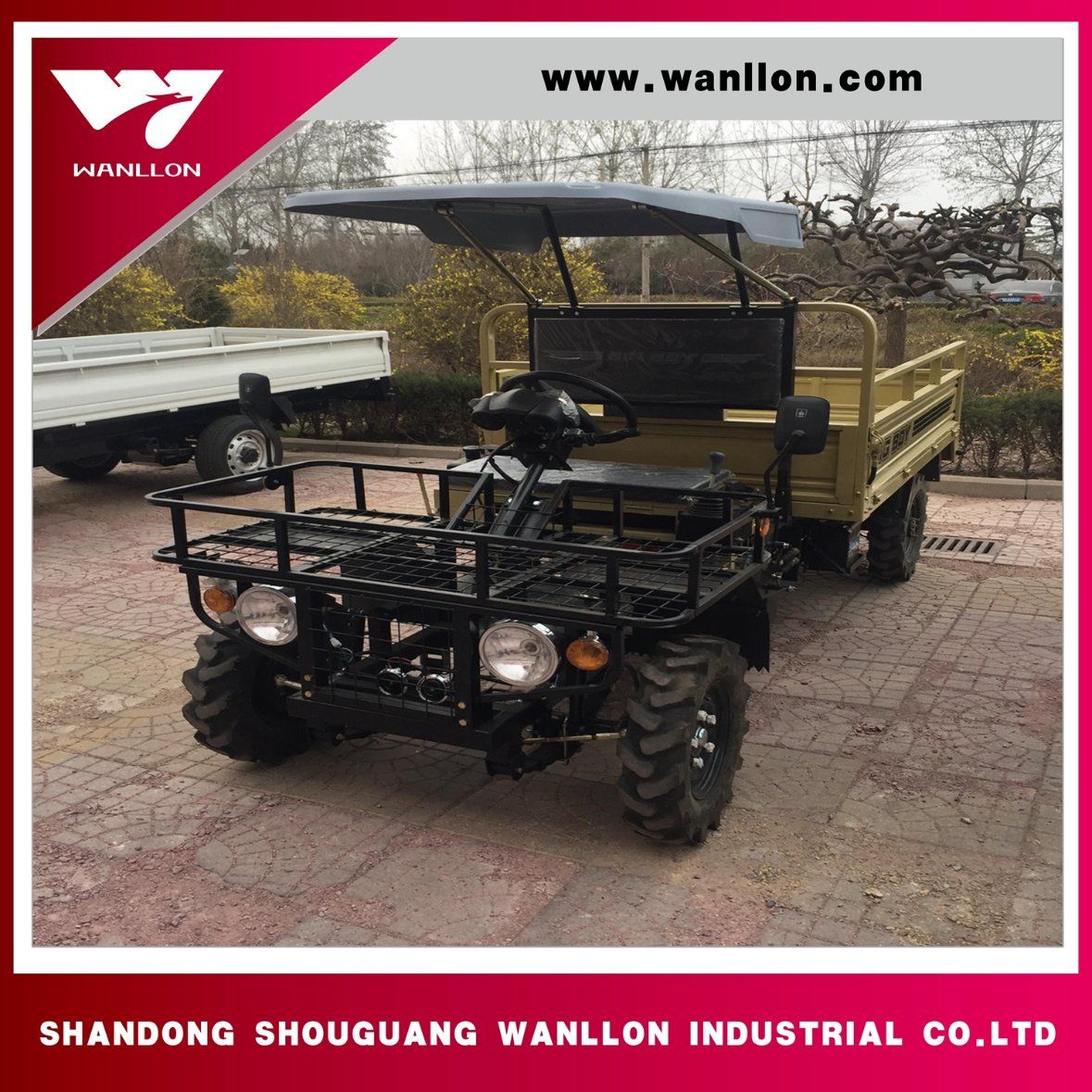

Factroy New Type High Quality Diesel Power UTV/ Motor Farm Cart

Factroy New Type High Quality Diesel Power UTV/ Motor Farm Cart
Price: US $ 1000-3000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Size: 3345*1290*1475mm
Type: Cargo Motorcycle
Engine Type: 4-Stroke
Fuel: Gas / Diesel
Engine Size: <250cc
Cooling Method: Air Cooling
Year Range: 2015
Condition: New

Product Description

Factroy New Type High Quality Diesel Power UTV/  Motor Farm Cart

PRODUCTS DESCRIPTION

Dimensions(L×W×H)mm3700×1310×1850mm
Storage size(L×W×H)mm2000×1280×850mm
Cargo size(L×W×H)mm1280×660×190mm
Minimum turning radius mm6500mm
Wheelbase2500mm
Minimum ground clearance180mm
Net Weight610kg
Rated load500kg
Max speed (high gear/low gear)60km/h
ENGINE
Engine ModelKP2V86F
double cylinder,horizontal axis,Air-cooled,Four stroke,
Air Cylinder2
Cylinder diameter86mm
Stroke86×72mm
Displacement0.813L
Compression ratio18:1
Rated power11.76KW
Maximum torque73Nm
Diesel injection pump\
Air filterpaper
Starting systemElectric start
Idle speed900 r / min
TRANSMISSION
Clutchdry type
Speed mode4 into 1 down
Engine net weight60KG
Climbing≥10°
1 Gear ratio3.43
2 Gear ratio2.11
3 Gear ratio1.38
4 Gear ratio1
Reverse gear ratio3.6
 Steering typeSteering wheel type
Front integral axle housing (steering axle) speed ratio\
Rear integral axle housing ratio6:37
high gear ratio\
slow gear ratio\
Transmission StructureTransmission shaft
CHASSIS
Front suspensionSteel leaf spring
Rear suspensionSteel leaf spring
passenger drivers2
Front and rear brakeDrum / drum type
Front tire specifications5.00-12
Rear tire specifications5.00-12
ELECTRICAL
Ignition modeDirect injection pressure ignition
Advance angle of fuel supply22-24°
Diesel filter replacement interval500 hours
Battery36V 60Ah
Fuse20A
Front Head lamp12V 35/35W
Rear lamp12V 5/10W
Turn signal light12V 10W
OIL CAPACITY
Engine oil pan1.7L
Air filter bottom shell\
Front steering axle / rear axle\/0.8L
Transmission / belt gearbox0.7L/\
Brake master / clutch master cylinder0.6L/\
Dump cylinder oil4L
Fuel tank capacity15L

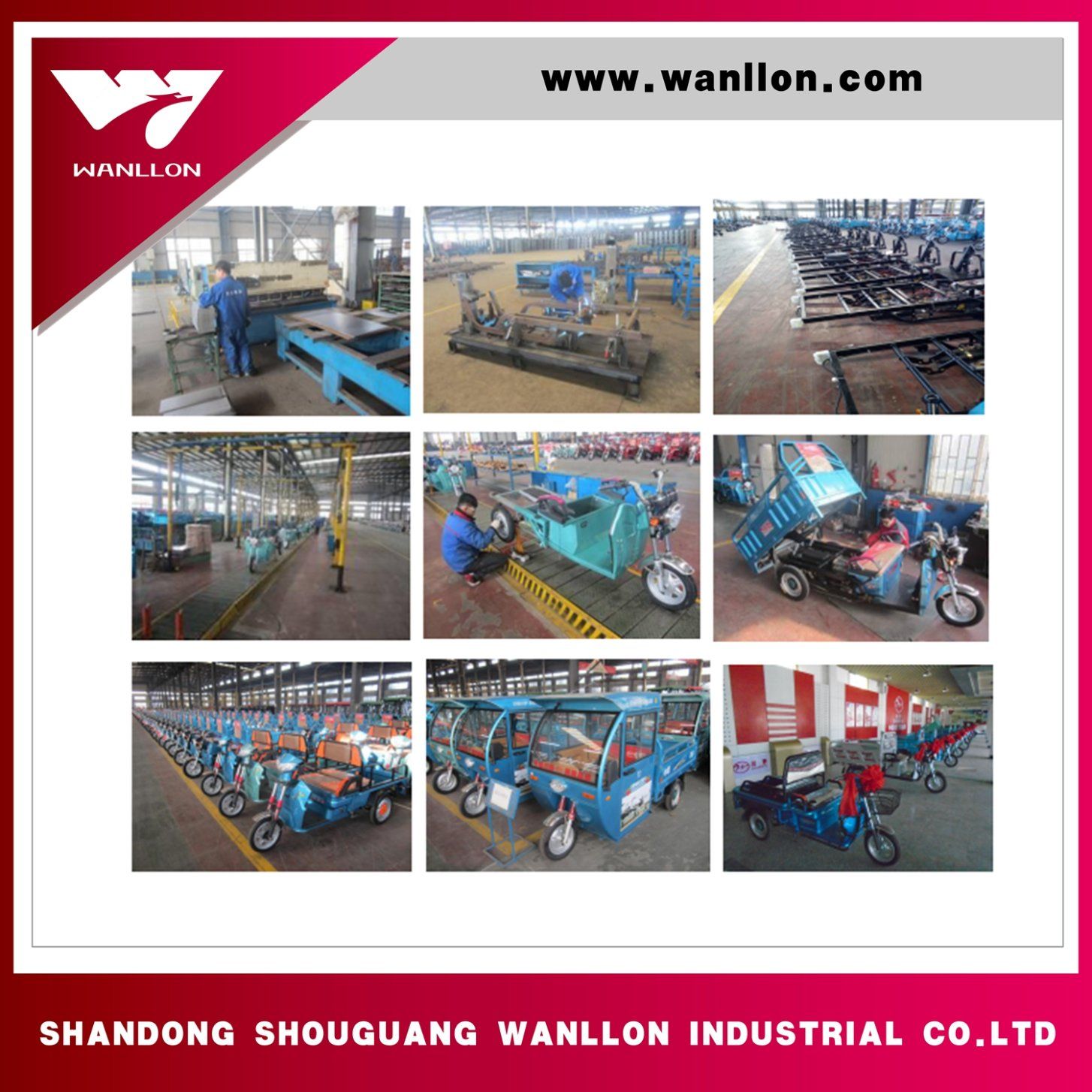

PRODUCTION LINE


PRODUCTS PACKAGE


CERTIFICATIONS

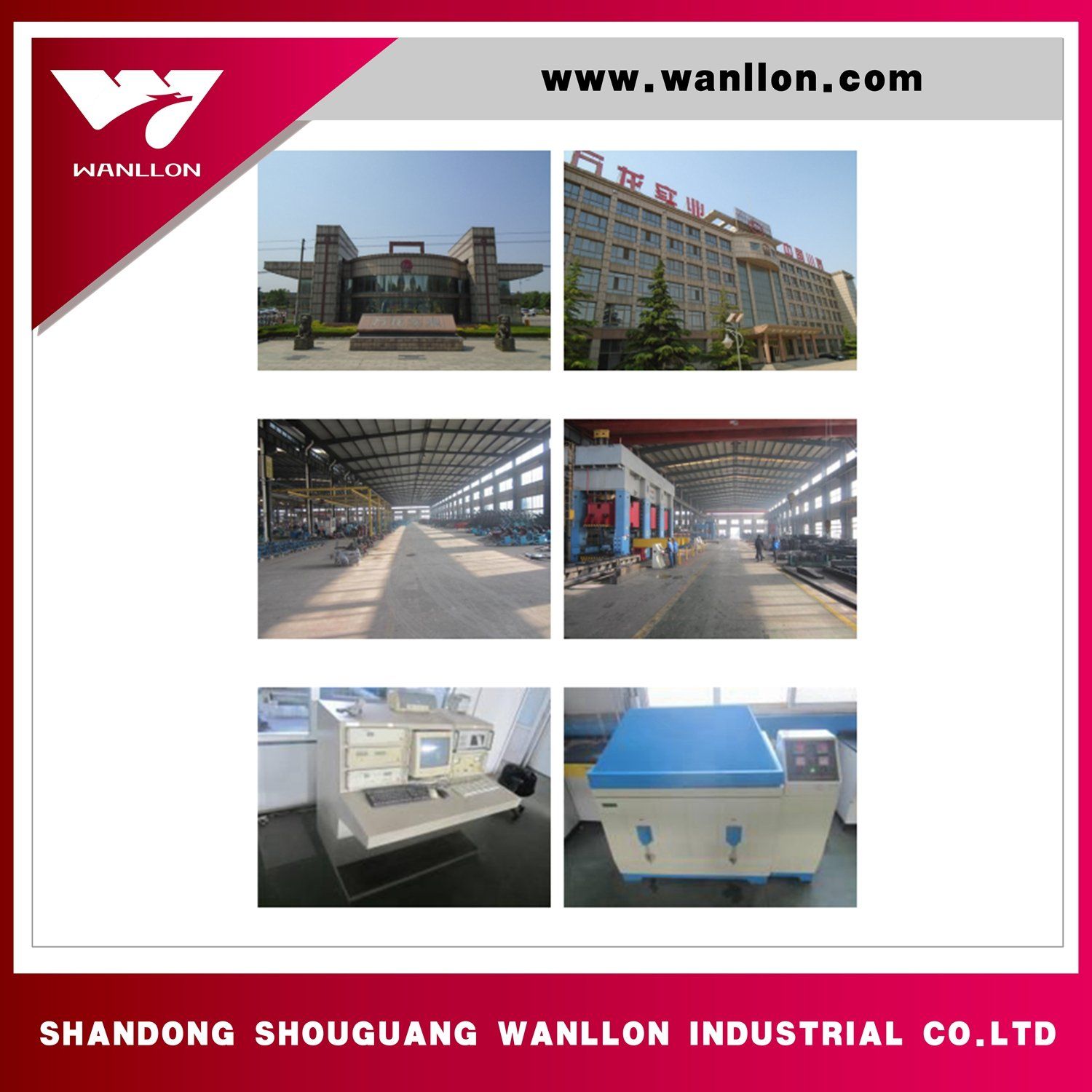

COMPANY INFORMATION
